Turbosmart TS-1-7675C-VB096E - Oil Cooled 7675 V-Band Inlet/Outlet A/R 0.96 External Wastegate TS-1 Turbocharger

Turbosmart  |  SKU: TS-1-7675C-VB096E
$2,86595 $3,18439

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

Turbosmart TS-1-7675C-VB096E - Oil Cooled 7675 V-Band Inlet/Outlet A/R 0.96 External Wastegate TS-1 Turbocharger

Turbocharger - TS-1 - 76 mm Inlet - V-Band Outlet - External Wastegate - Aluminum - Natural - Universal - Each

TS-1 Turbocharger 7675 V-Band 0.96AR Externally Wastegated

Smaller, Lighter and Faster - The Turbosmart TS-1 turbocharger series has been developed to leverage modern materials, design and manufacturing techniques to create a Turbocharger range that meets the demands of both Motorsport, and performance enthusiasts alike.

  • Unparalleled transient response
  • Aggressive aerodynamics with 7+7 splitter wheels
  • Lightweight 310s stainless steel investment cast turbine housings
  • Lightweight, Aluminum compressor covers
  • CFD driven designed housings for optimal AR's and flow
  • T14 Inconel turbine wheel for extreme EGT's
  • VSR speed balanced
  • Proprietary dual ceramic bearing system
  • Integrated Iron backplate on center housing
Available in: TS-1 oil cooled turbochargers; TS-2 oil and water cooled turbochargers; V-Band, various T3 Flange and T4 Flange options; Reverse rotation (Selected Sizes); Various AR's options; Internal and external wastegated options available
Compressor Inducer: 76mm
Compressor Inlet: 4.0 in. / 101.6mm

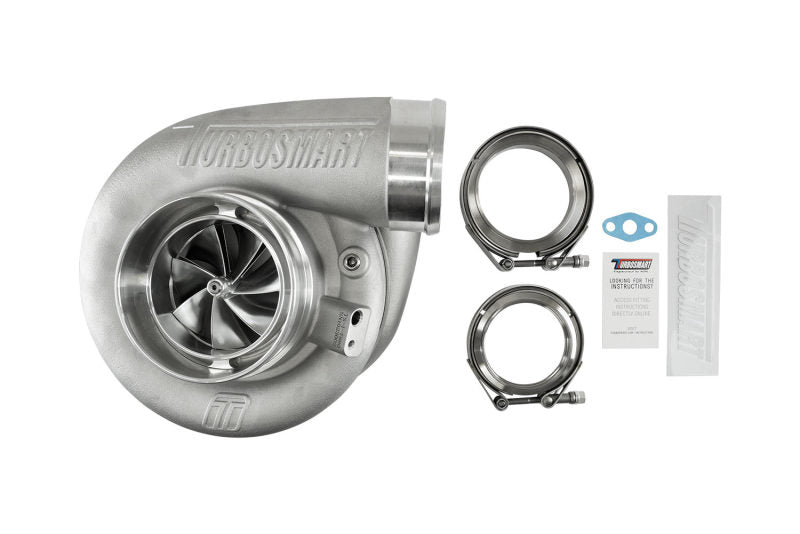

Package Contents: (1x) Turbosmart Performance Turbocharger, (2x) Weld Flanges (Turbine inlet and outlet), (2x) V-Band Clamps (Turbine inlet and outlet), (1x) Oil drain gasket
Turbine AR: 0.96
Turbine Exducer: 70mm
Turbine Inlet: V-Band (3.00 in.)
Turbine Outlet: V-Band (3.50 in.)
Weight: 6043kg / 14.17lbs
