Trans-Dapt Performance 1150 - SINGLE OIL FILTER RELOCATION SYSTEM; 2-1/2 IN. I.D. AND 2-3/4 IN. O.D. BYPASS FLANGE W/ 18MMX1.5 THREADS

Trans-Dapt Performance  |  SKU: FBLH-1150
$10199 $15789
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Trans-Dapt Performance 1150 - SINGLE OIL FILTER RELOCATION SYSTEM; 2-1/2 IN. I.D. AND 2-3/4 IN. O.D. BYPASS FLANGE W/ 18MMX1.5 THREADS

Remote Oil Filter - Single Filter - 18 mm x 1.50 Thread Adapter - 30 in Hoses - 3/4-16 in Thread Housing - Fittings / Hardware - GM V6 / 4-Cylinder - Kit

Single Oil Filter Relocation System; 2-1/2 in. I.D. and 2-3/4 in. O.D. Bypass Flange w/ 18mmX1.5 Threads

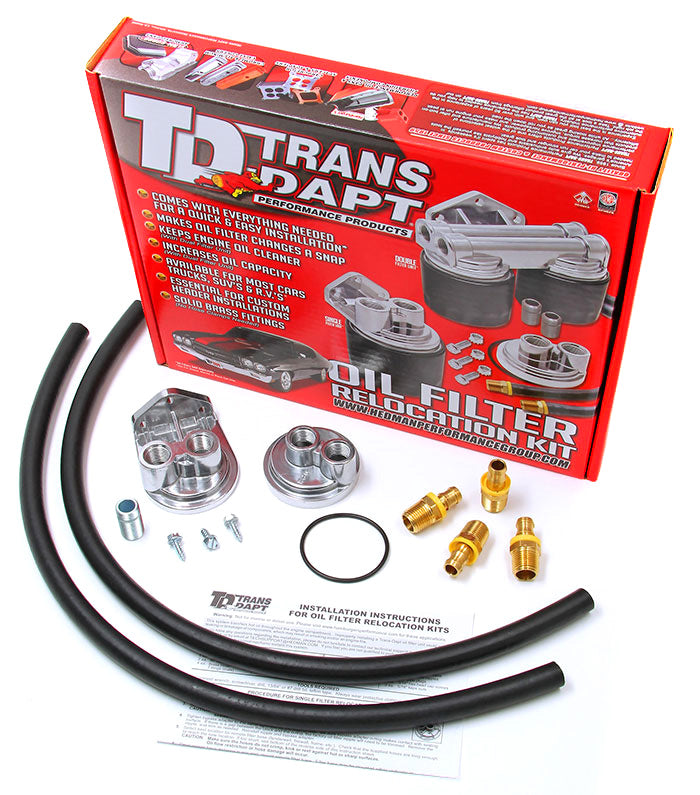

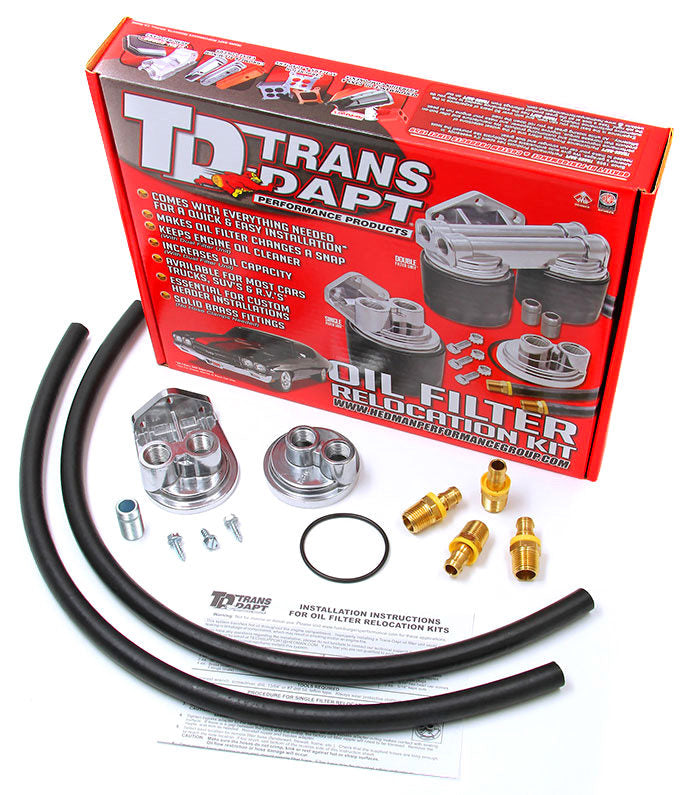

Contents: Oil Filter Bypass Adapter, remote single oil filter base, 2- 30 in. hoses, 4 brass fittings, mounting Hardware & instructions.
Hose Temperature Range: -40 F to +212 F
Package Contents: Oil Filter Bypass Adapter, remote oil filter base, 2 hoses, 4 fittings, 4 hose ferrules mounting Hardware
Bolt Hole Quantity: 3
Fitting Finish: Raw
Fitting Thread: 1/2 in. NPT
Hose Bust Pressure: 1200 psi
Hose ID: 1/2 in.
Hose Material: Flame Resistant Nitrile/Rubber
Hose Thickness: 0.125 in.
Hose OD: 3/4 in.
Hose Type: Reinforced 1 Fiber Band
Mount Material: Cast Aluminum
Performance: Yes
Race Only: No
Single or Dual Filter: Single
O.E. Replacement: No
Hose Length: 30 in.
Hose Connection Type: Push Lock
Filter Bypass Style: Standard Port Filter Bypass
Kit Type: Single Filter Kits
Filter Nipple Thread Size: 18mm x 1.5
VEHICLE Oil Filter Nipple Size: 18mm x 1.5
VEHICLE Oil Filter Flange ID: 2-1/2 in.
VEHICLE Oil Filter Flange OD: 2-3/4 in.
IMPORTANT!: NOT FOR DIESEL, MARINE OR RACE USE! See HAMBURGER'S Billet Filtration Components
Notes: Single Oil Filter Relocation System; 2-1/2 in. I.D. and 2-3/4 in. O.D. Bypass Flange w/ 18mmX1.5 Threads
Key Feature: 4x4 Only
Oil Filter Compatibility: FRAM PH8A, Trans-Dapt 1156 or Equivalent
Fitting Quantity: 4
Port Size: 1/2 in. NPT
Materials: Cast Aluminum
Port Style: Vertical
Product Details: Fits engine blocks designed to accept oil filters with a 18mmX1.5 thread and 2-5/8 in. diameter sealing o-ring.
Material: Cast Aluminum
Remote Base Filter Size: Fram PH8A (or equivalent)
Fitting Material: Brass
Fitting Type: Hose Barb
