Trans-Dapt Performance 1122 - SINGLE OIL FILTER RELOCATION SYSTEM; 3-3/16 IN. I.D. AND 3-7/16 IN. O.D. BYPASS FLANGE W/ 13/16 IN.-16 THREADS

Trans-Dapt Performance  |  SKU: FBLH-1122
$10499 $15476
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Trans-Dapt Performance 1122 - SINGLE OIL FILTER RELOCATION SYSTEM; 3-3/16 IN. I.D. AND 3-7/16 IN. O.D. BYPASS FLANGE W/ 13/16 IN.-16 THREADS

Remote Oil Filter - Single Filter - 13/16-16 in Thread Adapter - Two 30 in Hoses - 3/4-16 in Thread Housing - Fittings / Hardware - Chevy V8 - Kit

Single Oil Filter Relocation System; 3-3/16 in. I.D. and 3-7/16 in. O.D. Bypass Flange w/ 13/16 in.-16 Threads

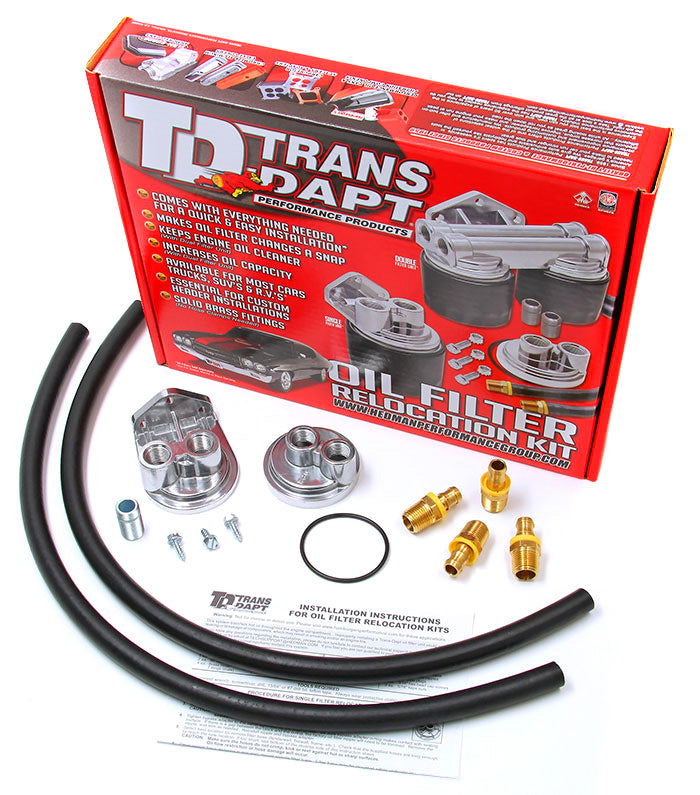

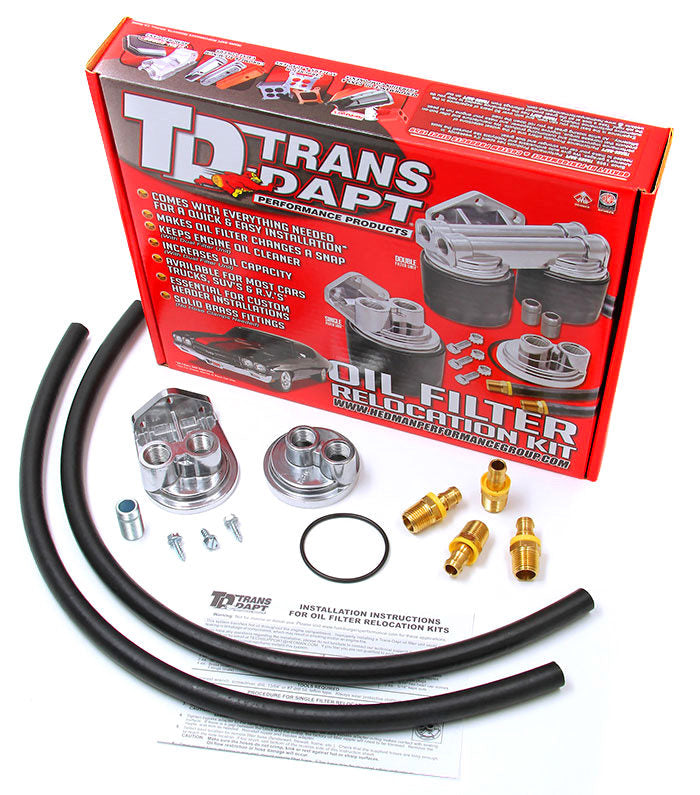

Contents: Oil Filter Bypass Adapter, remote single oil filter base, 2- 30 in. pre-assembled hoses with fittings, mounting Hardware & instructions
Hose Material: Flame Resistant Nitrile/Rubber
Hose Length: 30 in.
Package Contents: Oil Filter Bypass Adapter, remote oil filter base, 2 hoses, 4 fittings, 4 hose ferrules mounting Hardware
Bolt Hole Quantity: 3
Fitting Finish: Raw
Fitting Thread: 1/2 in. NPT
Hose Bust Pressure: 1200 psi
Hose ID: 1/2 in.
Hose Temperature Range: -40 F to +212 F
Hose Connection Type: Push Lock
Hose Thickness: 0.125 in.
Hose Type: Reinforced 1 Fiber Band
Mount Material: Cast Aluminum
Performance: Yes
Race Only: No
Single or Dual Filter: Single
O.E. Replacement: No
Hose OD: 3/4 in.
Fitting Quantity: 4
Filter Bypass Style: Standard Port Filter Bypass
Oil Filter Compatibility: FRAM PH8A, Trans-Dapt 1156 or Equivalent
Filter Nipple Thread Size: 13/16 in.-16
VEHICLE Oil Filter Nipple Size: 13/16 in.-16
VEHICLE Oil Filter Flange ID: 3-3/16 in.
VEHICLE Oil Filter Flange OD: 3-7/16 in.
IMPORTANT!: NOT FOR DIESEL, MARINE OR RACE USE! See HAMBURGER'S Billet Filtration Components
Notes: Single Oil Filter Relocation System; 3-3/16 in. I.D. and 3-7/16 in. O.D. Bypass Flange w/ 13/16 in.-16 Threads
Kit Type: Single Filter Kits
Port Size: 1/2 in. NPT
Fitting Type: Hose Barb
Materials: Cast Aluminum
Port Style: Vertical
Product Details: Fits engine blocks designed to accept oil filters with a 13/16 in.-16 thread and 3-5/16 in. diameter sealing o-ring.
Additional Details: Uses Trans-Dapt #1156 Compact oil filter, Fram PH8A, or equivalent filter.
Material: Cast Aluminum
Remote Base Filter Size: Fram PH8A (or equivalent)
Vehicle Specific Listings: Please refer to application chart pdf files for vehicle specific listings.
Fitting Material: Brass
