TrailFX WRS212B - Vehicle Recovery Winch
TrailFX | SKU:
DXTX-WRS212B
Sale price
$75899
Regular price
$83489
Unit price
/
Unavailable
$75.90 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

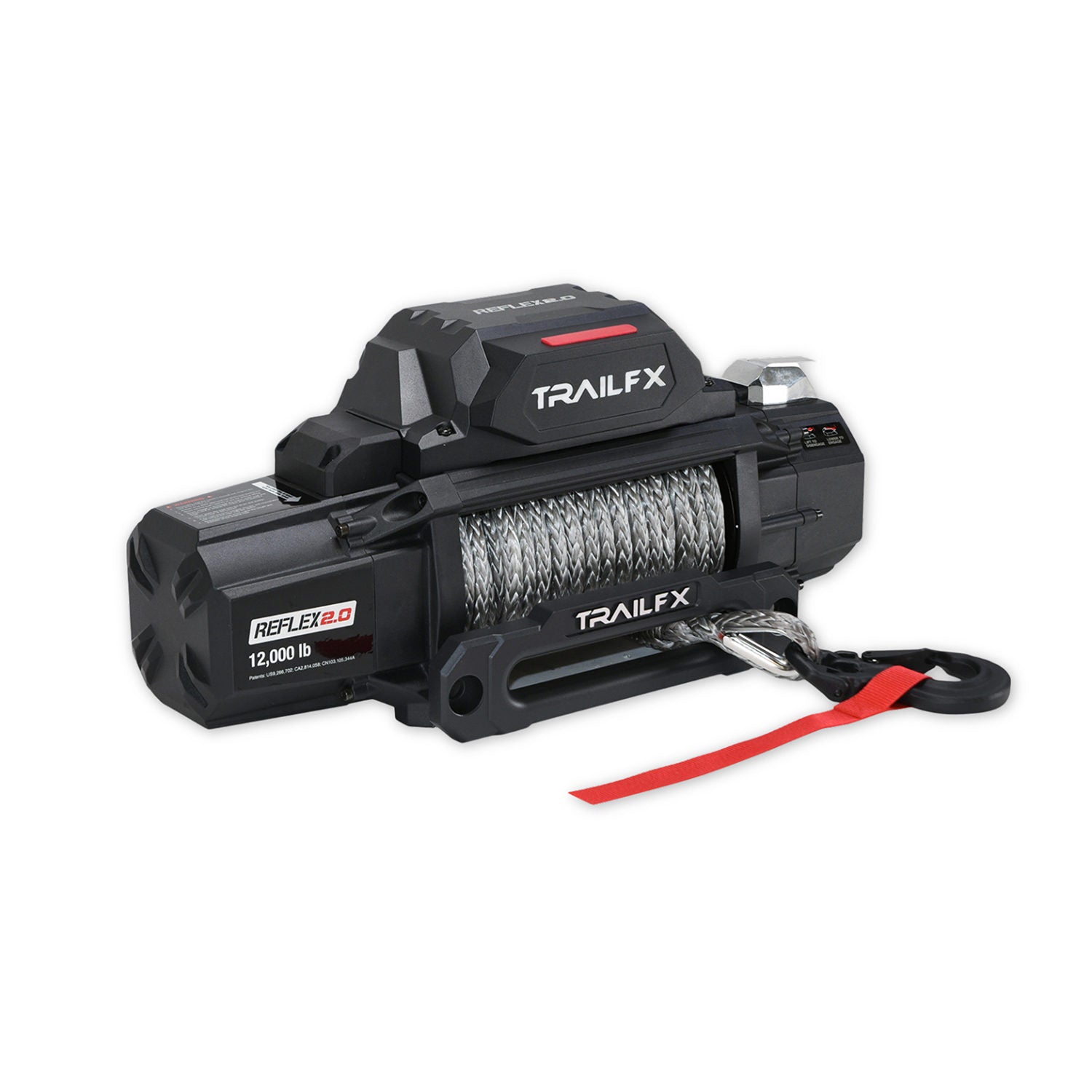

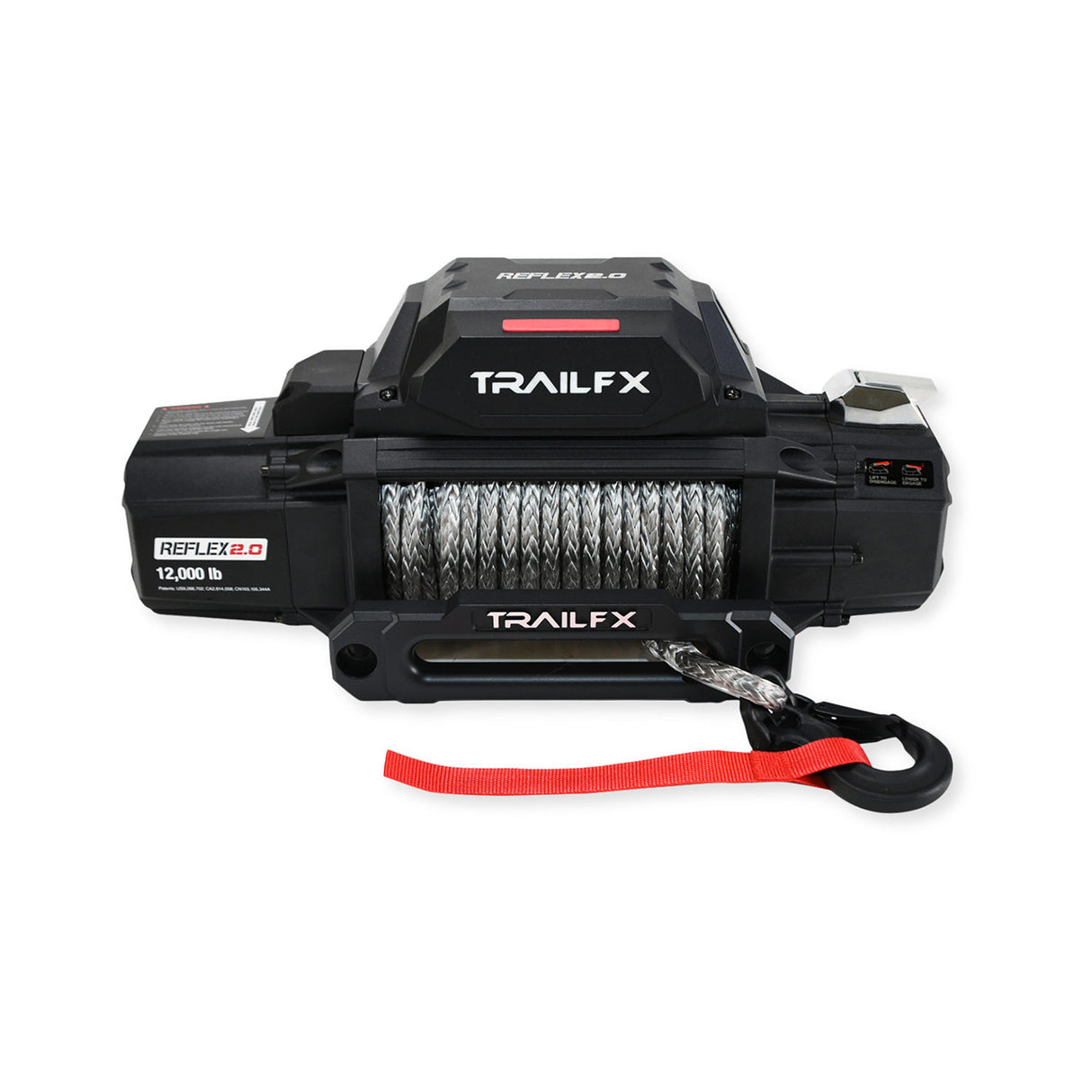

TrailFX WRS212B - Vehicle Recovery Winch
Vehicle Recovery Winch
3 Stage Planetary Gear Drive

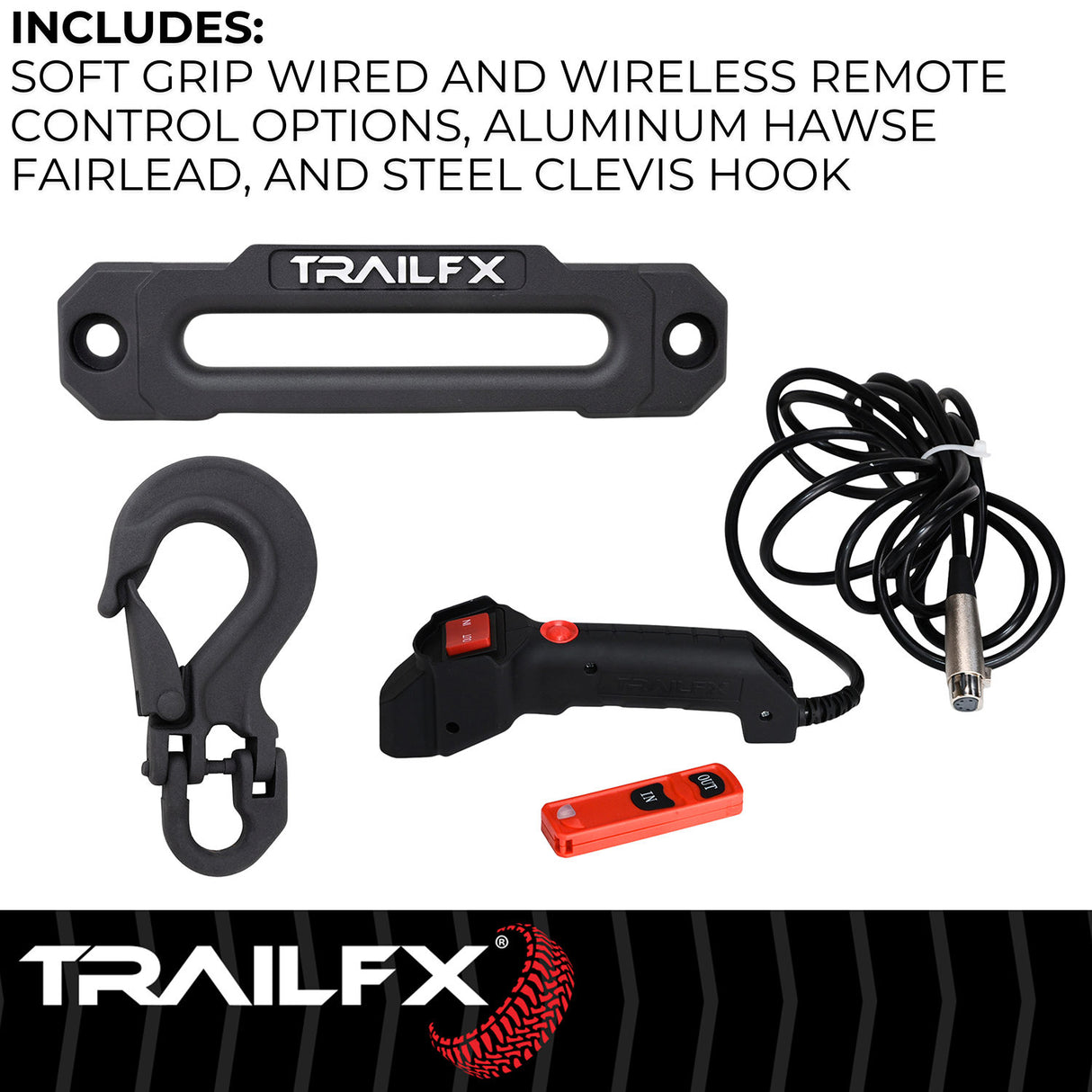

TrailFX Reflex 2.0 winches provide the power and performance needed to overcome challenges both on the trail and in a work environment. Reflex 2.0 winches include 94 feet of wire or synthetic rope, a wired/wireless hand-held remote, fairlead and clevis hook. Upgrades from the prior generation include a larger brake, improved line speed, daytime running light and load warning indication system.
- High Strength Dyneema Synthetic Rope With Upgraded Hawse Fairlead And Clevis Hook Are Designed To Pull Load Safely And Securely
- Wired Remote Includes 12 Foot Lead To Control Winch From Safe Distance While Recovering.
- Wireless Remote Allows User To Control From Up To 50 Feet, Is Stored Within The Handle Of The Wired Remote

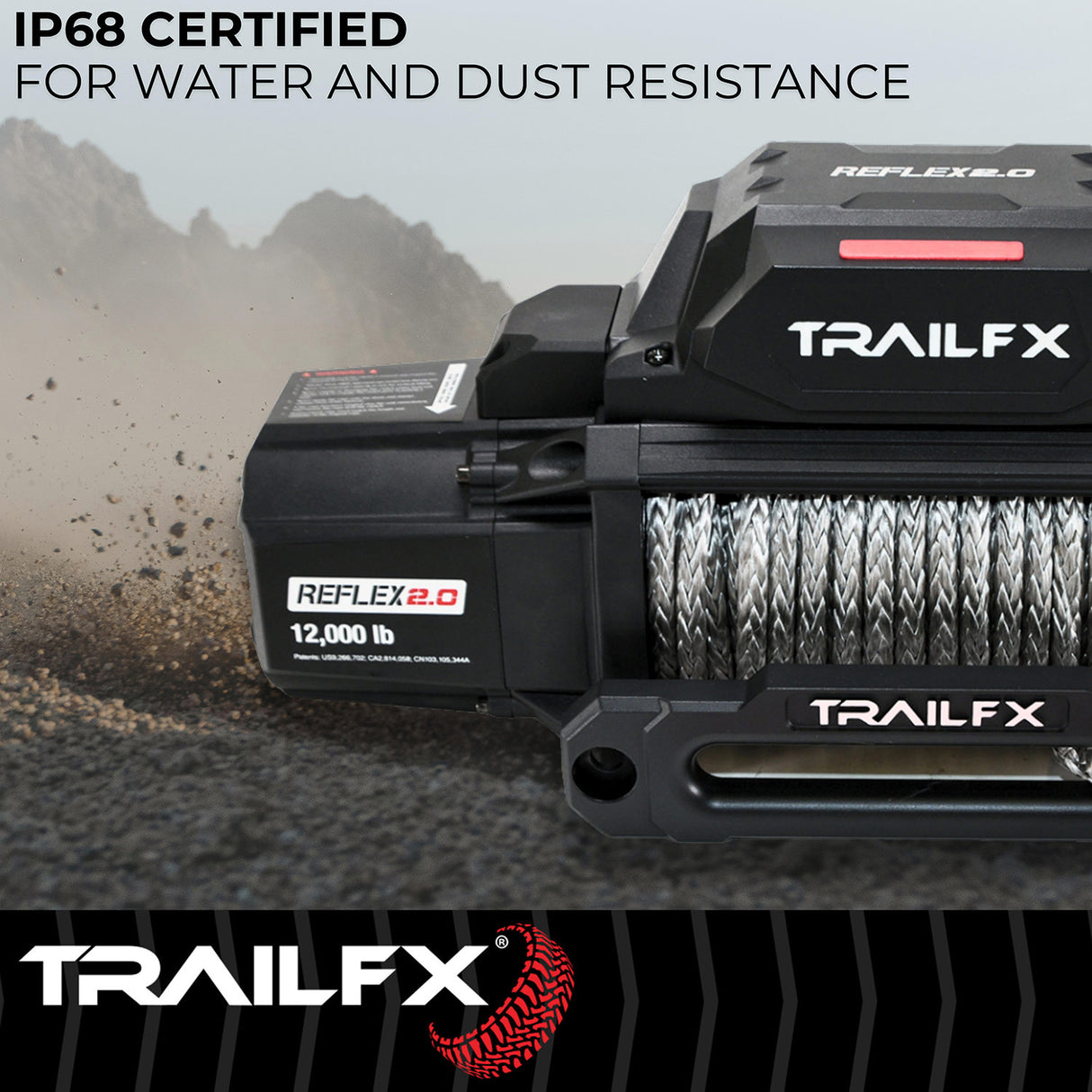

- Integraded Solenoid Housing Meets Ip68 Standards For Water And Dust Resistance

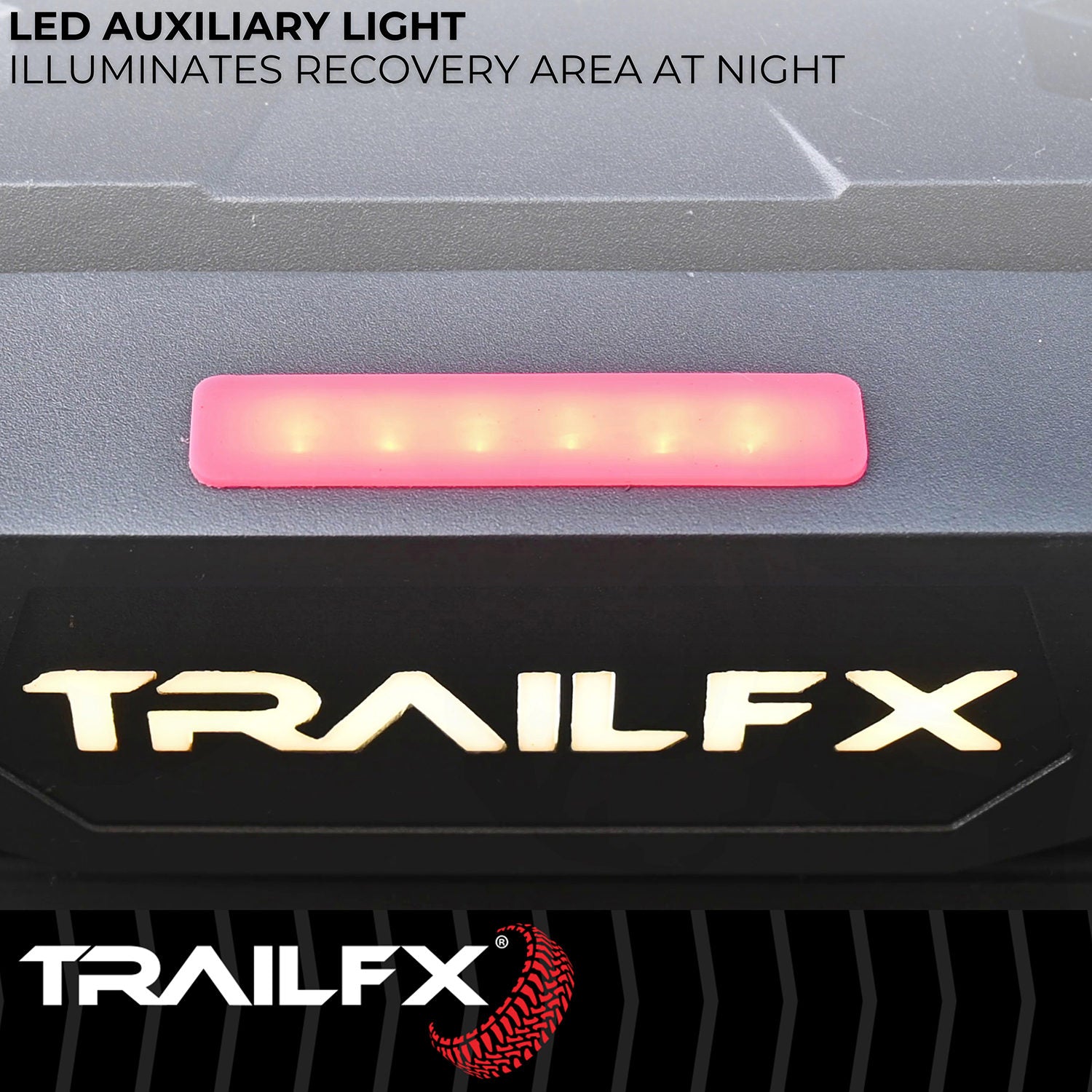

- Daytime Running Light Provides Additional Light To Assist With Recovery Vehicle

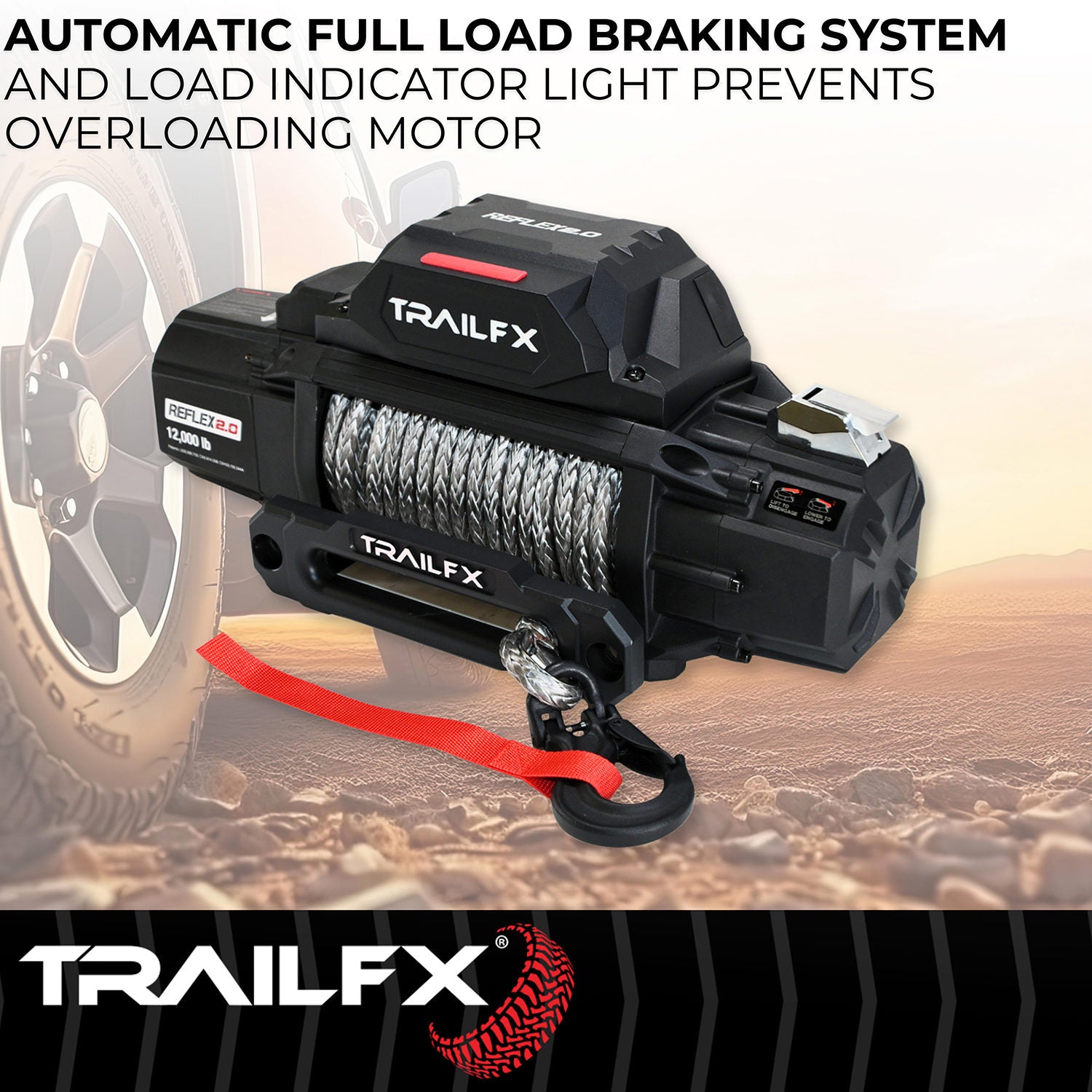

- Load Warning Indication Provides User When Winch Is Reaching Max Or Unsafe Load

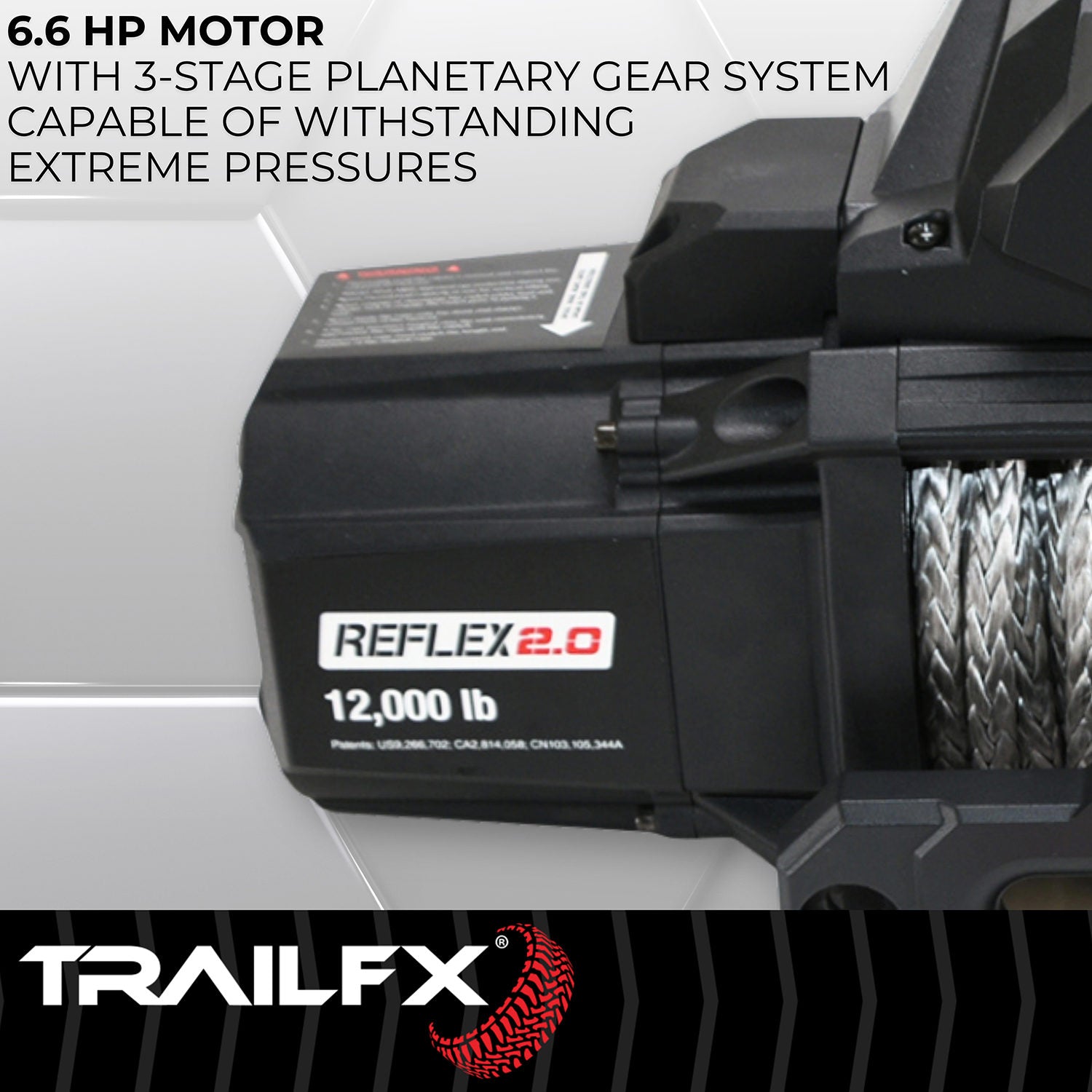

- 6.6 Horsepower Motor Combined With Larger Brake System Assist With Faster And Reliable Recovery
Free Spooling: Yes
Fairlead Type: Hawse
Cable Material: Synthetic
Cable Length: 94
Brake Type: Drum
Brake Activation: Electric
All Terrain Vehicle: No
Voltage: 12

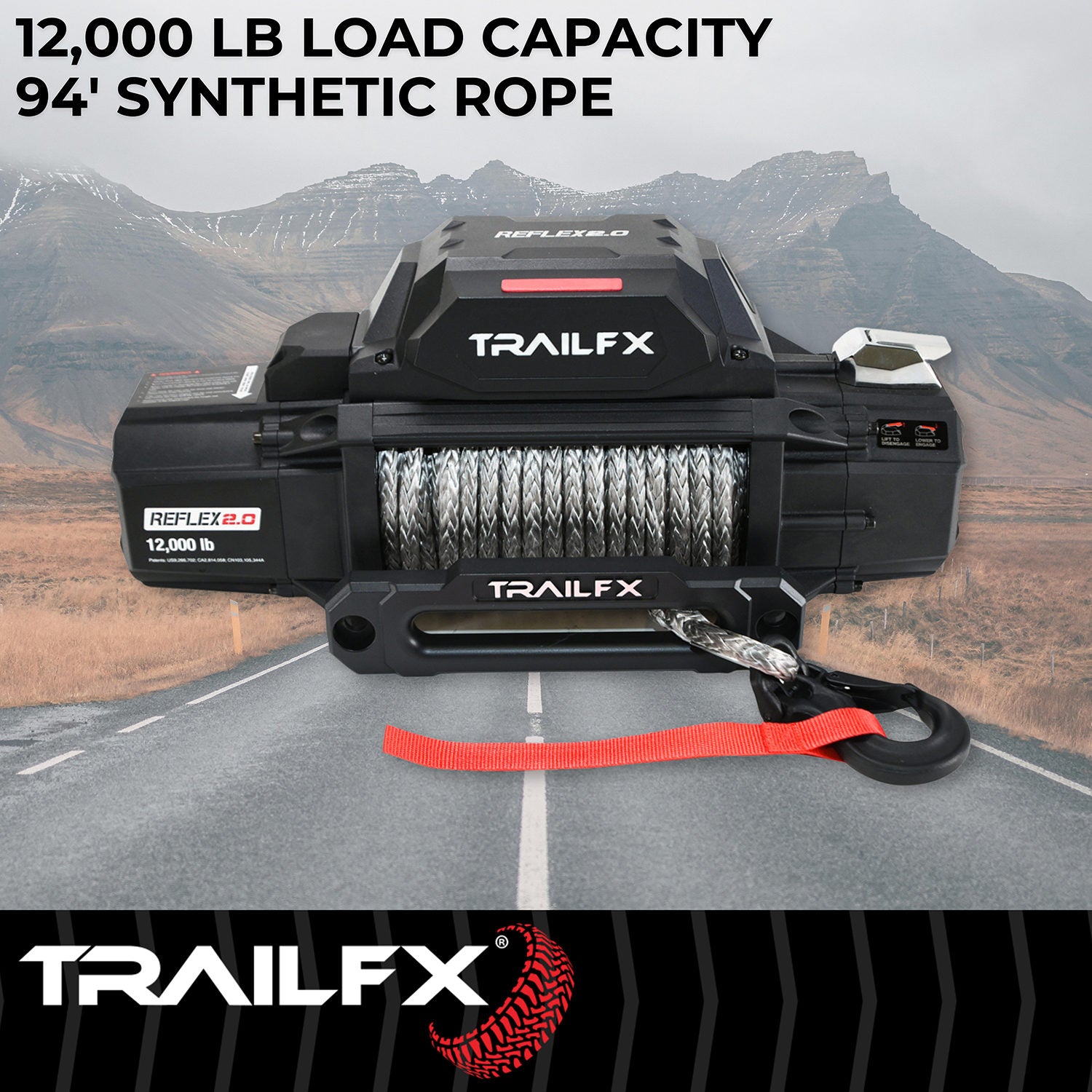

Winch Rating: 12000 Pound
Recommended Use: Self-recovery
Mount Type: Vehicle Mounted
Motor Horsepower: 6.6 Horsepower
Max Amp Draw: 405 Amp Max Draw At 12000 Pound
Line Speed At Max Pull: 3.8 Feet Per Minute At 12000 Pound
Electrical Control Type: Solenoid
Motor Type: Series Wound Motor
Thermal Shutoff: No
Drive Gear Type: 3-stage Planetary
Gear Reduction Ratio: 9.08
Free Spooling: Yes
Operation Type: Automatic
Brake Type: Automatic Full Load Brake
Line Diameter (in): 0.37 Inch / 9.5mm
Line Length (ft): 94 Feet
Line Material: Synthetic
Fairlead Type: Hawse
Conforms To J706 Standards: No
Remote Type: Wired / Wireless
Mounting Hole Quantity: 4
Mounting Pattern Length (in): 10 Inch
Mounting Pattern Width (in): 4-1/2 Inch
Includes Mounting Hardware: Yes
Color: Black
Drum Material: Steel
Mounting Bolt Pattern Length: 10
Type: Fixed Mount
Solenoid Type: Yes
Remote Type: Wireless
Remote Included: Yes
Rated Line Pull: 12000
Mounting Hole Quantity: 4
Mounting Bolt Pattern Width: 4.5
Gear Ratio: 136:1
Motor Type: Series Wound
Gearing: Planetary
