TrailFX 7SRSAUX - Die-Cast Almn Housing
TrailFX | SKU:
DXTX-7SRSAUX
Sale price
$22299
Regular price
$24529
Unit price
/
Unavailable
$22.30 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

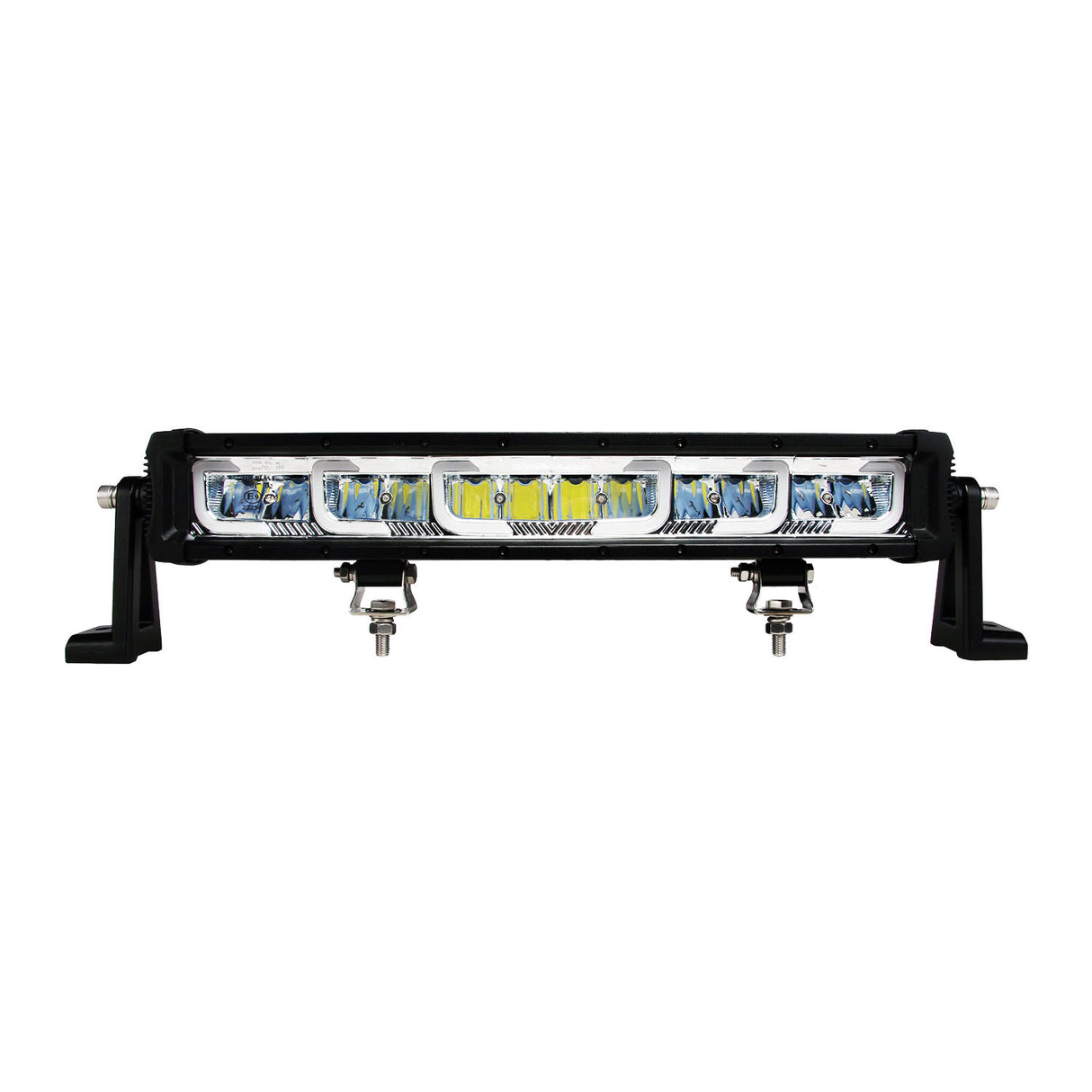

TrailFX 7SRSAUX - Die-Cast Almn Housing
Die-Cast Almn Housing
Single Light W/Wiring Hrns
TrailFX provides LED light solutions to perform for work, play, and everyday life. Quality materials and workmanship go into each of our applications, including use of Cree and OSRAM LED's providing our lights with 30,000+ working hours. Buy once and with confidence knowing all TrailFX LED light solutions are covered by a Limited Lifetime Warranty.
- Higher Effective Lumens Fully Illuminates The Night Sky
- Die-Cast Aluminum Housing For Durability And Long Life
- A Combination 30 Degree Spot Beam And 60 Degree Flood Beam Allows Driver To See Further Down The Path, As Well As Everything Off The Trail Around You
- Auxiliary Lights Operate Independently To Increase Vehicle Visibility
- IP67 Rating For Dust, Sand, And Dirt Protection, Along With A High Water Resistance To Keep The Lights At 100 Percent Functional Capacity Regardless Of The Outside Elements
- 30,000+ Hours Of Working Life Assures The Light Will Operate For Work, Play, And Everyday Life
- Lower Power Consumption Allows Extra System Wattage For Additional Accessories
Light Quantity: Single Row
Housing Shape: Rectangle
Lens Material: Polycarbonate
Lens Color: Clear
Housing Material: Aluminum
Housing Finish: Painted
Housing Color: Black
DOT Approved: Yes
Brightness: 2160
Wattage: 32
Smart Technology Compatible: Not Compatible With Smart Technology
Beam Type: Combination Flood And Spot Beam
Beam Angle (Deg): 30 Degree Spot/ 60 Degree Flood
Type: Straight
Number Of LED's: 4
Number Of Rows: Single
Wattage: 32 Watt
Voltage Rating: 12 Volt
Ampere Rating At 12 Volts: 0.33 Amp Draw Indicater Light / 3.408 Amp Draw High Beam
Ampere Rating At 24 Volts: 0.16 Amp Draw Indicater Light / 1.7 Amp Draw High Beam
Length (IN): 7 Inch
Width (IN): 2.84 Inch
Height (IN): 3.2 Inch
Mounting Length (IN): 9-1/2 Inch
Light Color: Clear
Lens Material: Polycarbonate
Housing Color: Black
Housing Material: Die-Cast Aluminum
Mounting Style: Side And Bottom Mounting
Connection Type: Deutsch Connector
Includes Light Cover: No
Includes Mounting Hardware: Yes
Light Beam Pattern: Combination
Voltage: 12
Street Legal: Yes
Relay Included: No
Mounting Hardware Included: Yes
