TCI 242950 - 4L80E/6X 3000-3200 Stall Triple-Disc Bolt-Together Converter

TCI  |  SKU: TCI-242950
$1,49595 $1,64554


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

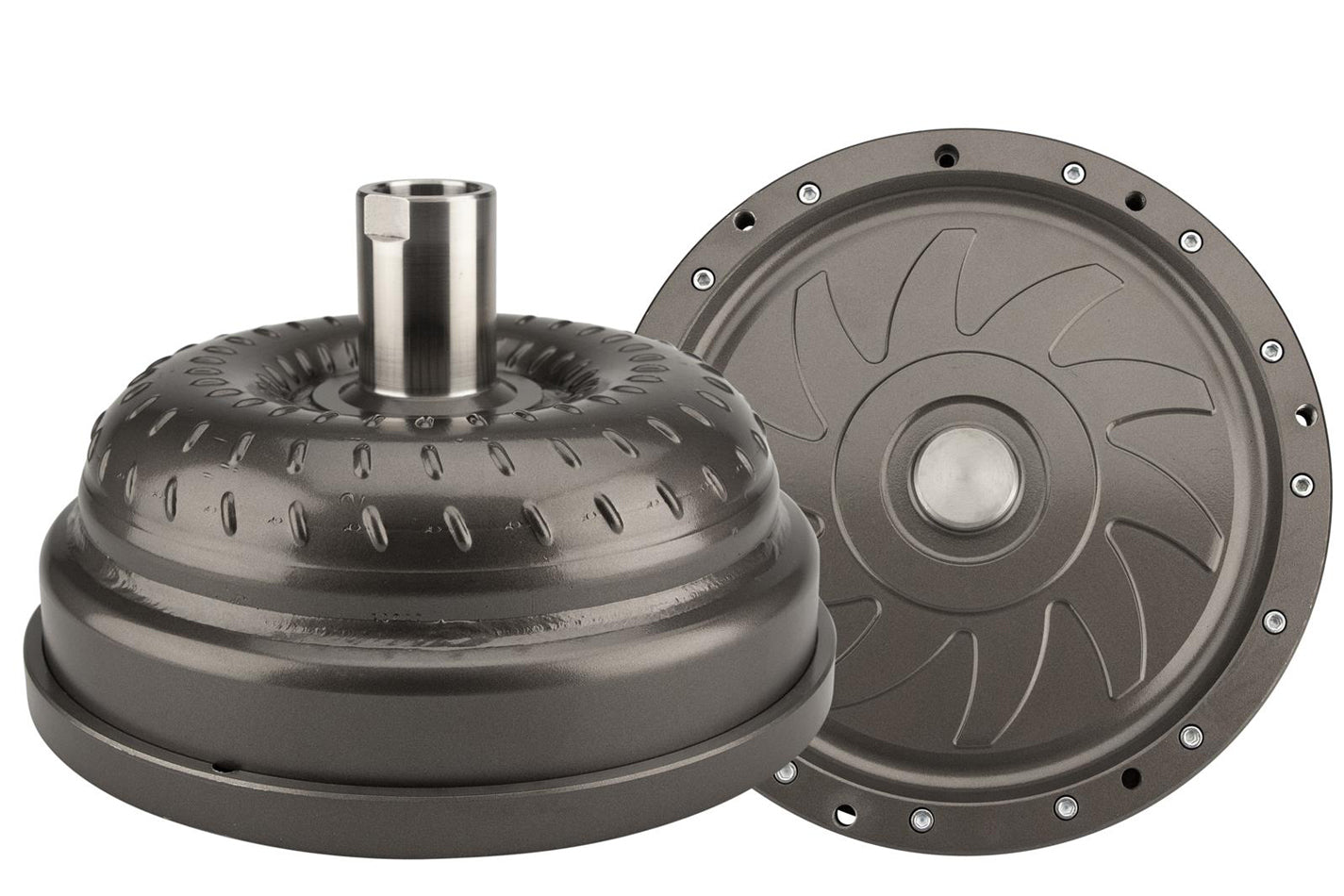

TCI 242950 - 4L80E/6X 3000-3200 Stall Triple-Disc Bolt-Together Converter

Torque Converter - Breakaway - 12 in Diameter - 3000-3200 RPM Stall - Lock Up - 4L80E - Each

This Bolt-Together 3-Disc Converter for 4L80E/6X features a 3000-3200 Stall with Woven-Carbon Friction material and cnc-machined billet front that can handle most punishing applications.

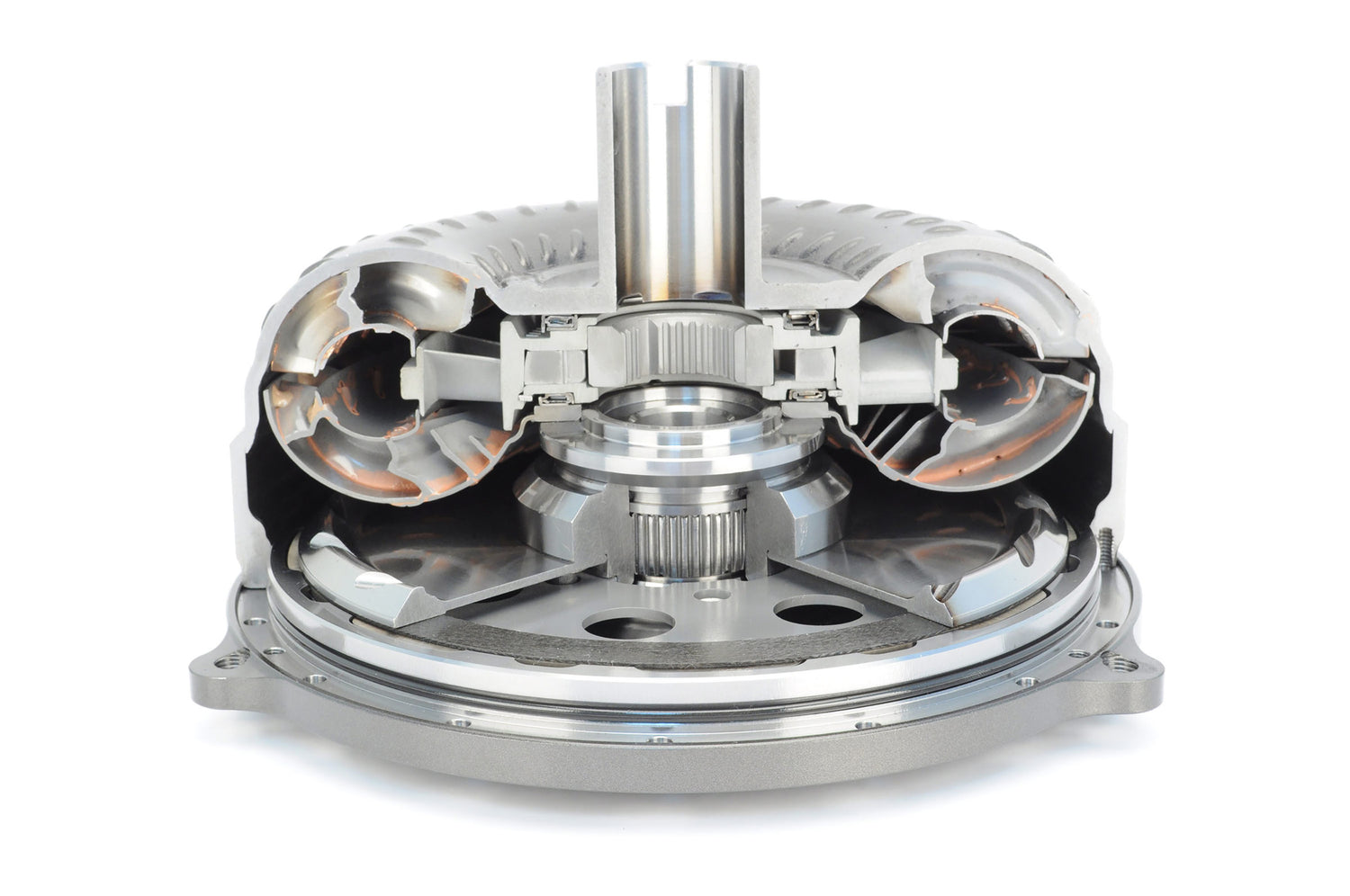

These high-stall torque converters feature woven-carbon friction and lock-up control technology which seamlessly applies the clutch. Each one features a removable billet front that allows access to the entire lock-up assembly, turbine, stator and bearings for servicing or re-stalling in the event of future vehicle modifications. The billet front is CNC-machined and made from pre-hardened steel. For added strength, TCI engineers included a pre-hardened billet turbine hub, lock-up piston and 50-spline clutch hub. The converters are fully furnace-brazed, computer-balanced and hand-assembled to precise tolerances.

Torque Converter Series: Bolt-Together Triple-Disc
Housing Material: Steel
Mounting Thread: M10x1.5
Mounting Hardware Included?: Yes
Disc Material: Carbon
Number of Discs: 3
Spline Quantity: 35
Slotted Center Hub?: N/A
Pilot Diameter: 1.702
Outside Diameter: 12
New or Remanufactured: New
Grade Type: Performance - Billet Steel
Lock Up Type: Yes
Fluid Capacity: 2
Color: HDT Gray
Center Shaft Material: n/a
Center Hub Outside Diameter: 2
Center Hub Length: 2.78
Center Hub Inside Diameter: 1.525
Expected Stall Speed: 3000
Engine Characteristics: High Horsepower
Bolt Pattern (Diameter): 11.5
