Superwinch S104103 - Industrial SH1000i Hoist
Superwinch | SKU:
SWINCH-S104103
Regular price
$000
Unit price
/
Unavailable
AVAILABILITY: This Item Is No Longer Orderable. Contact Us For More Details.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

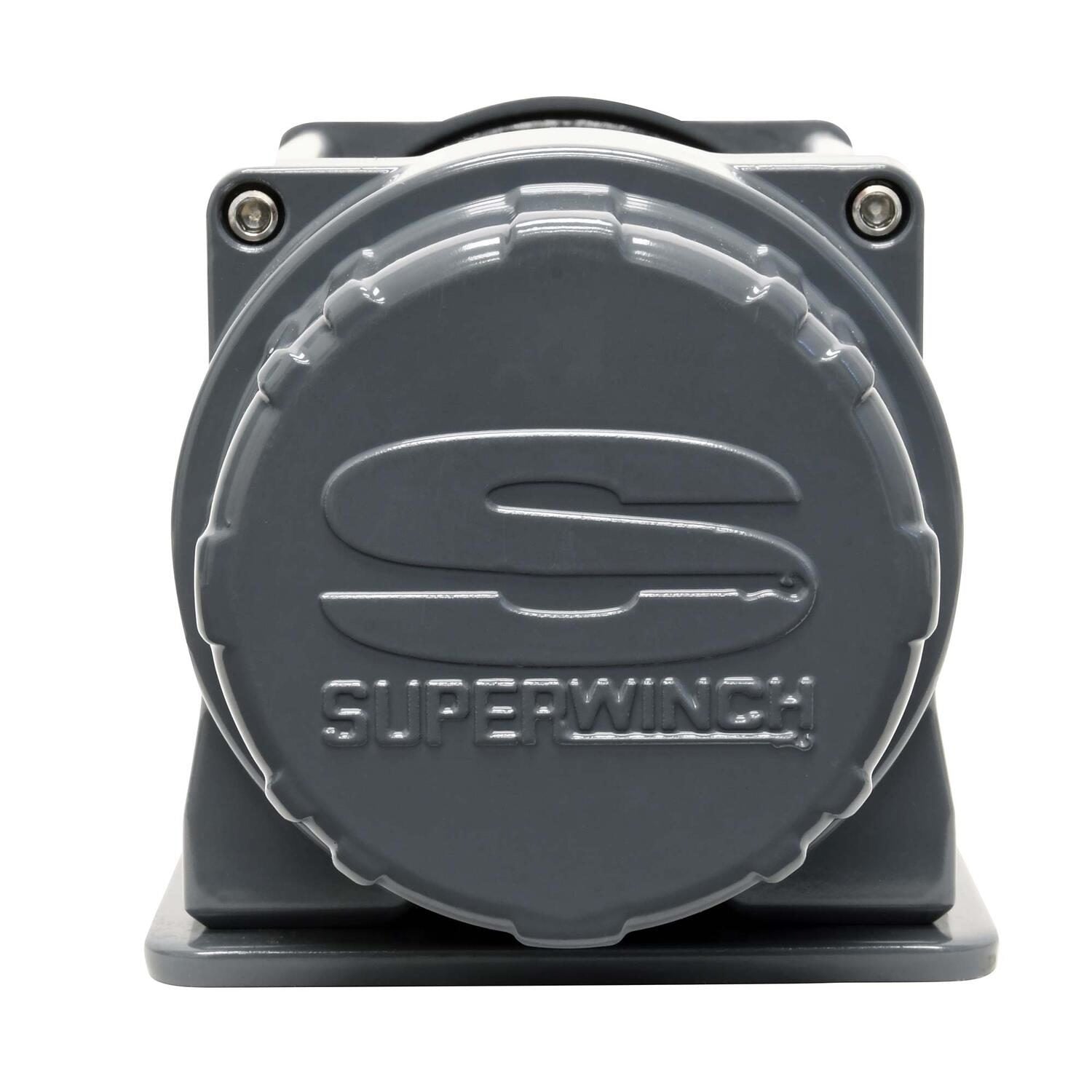

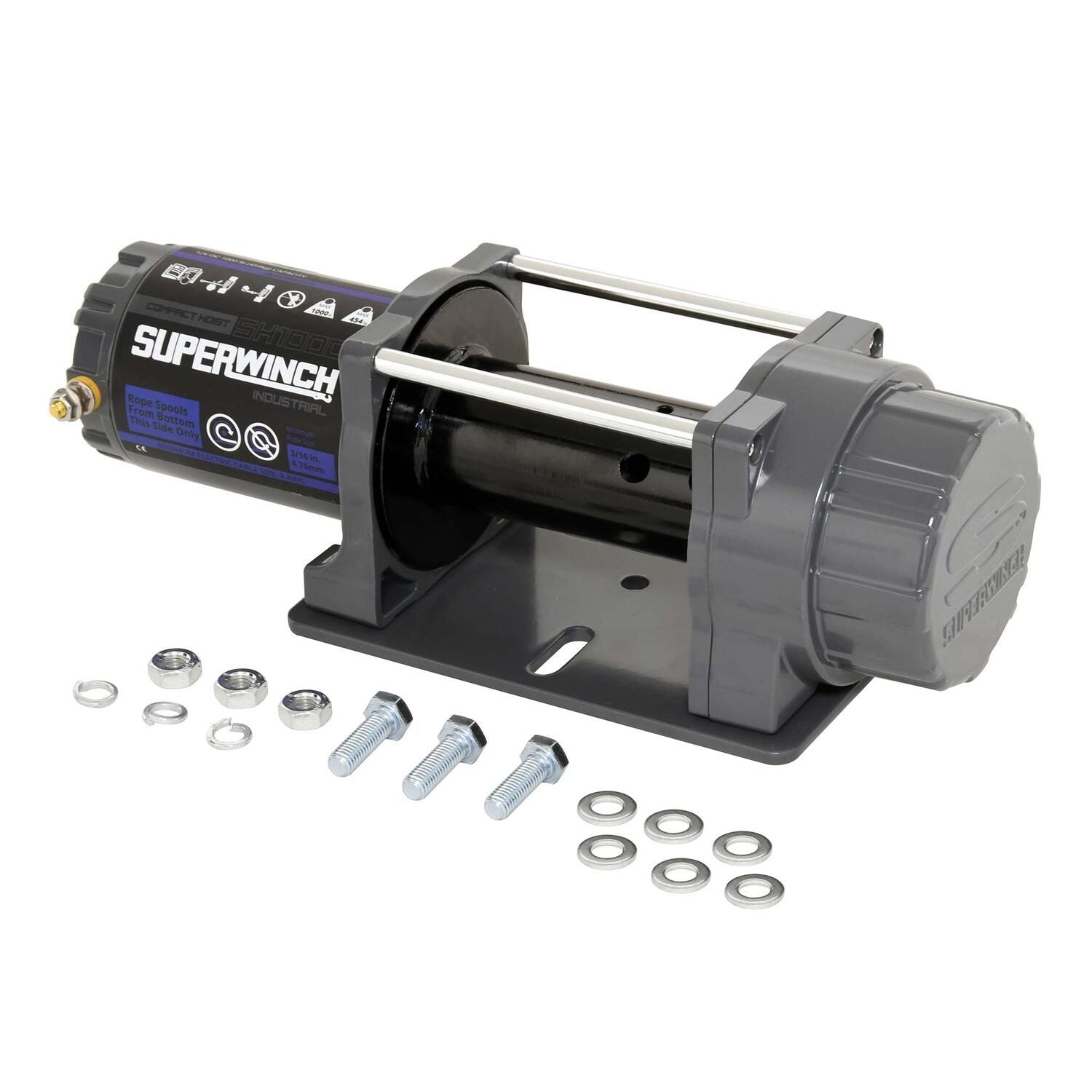

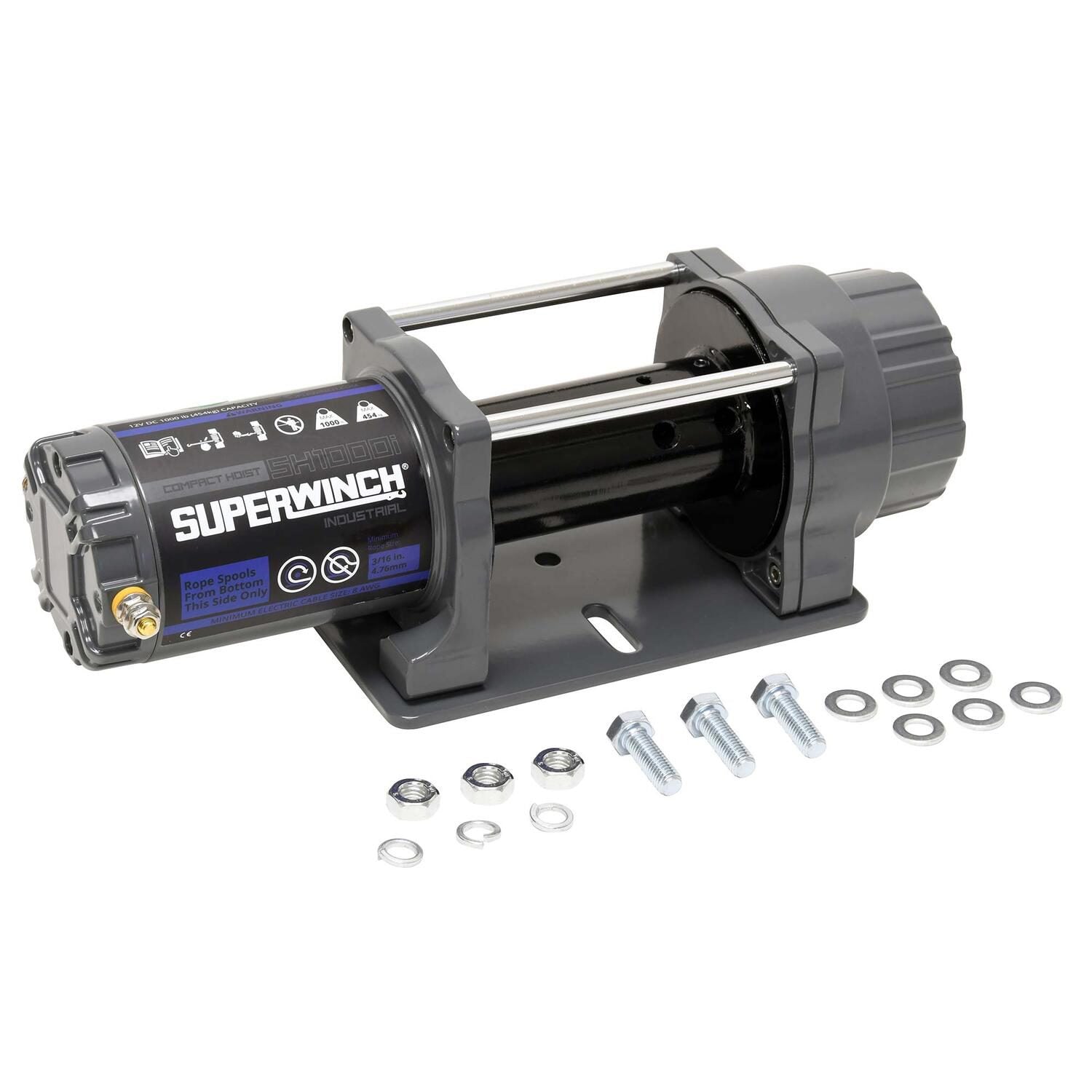

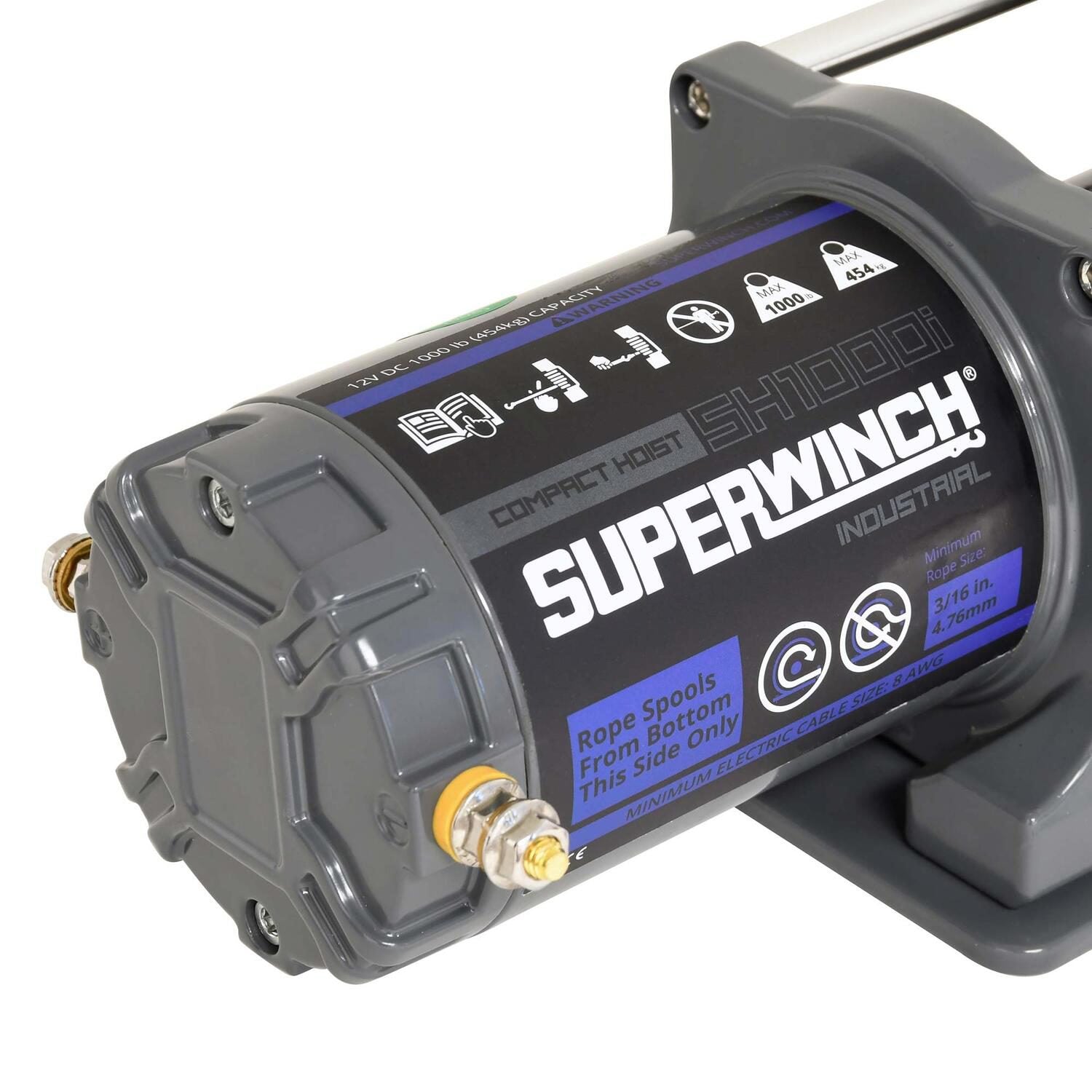

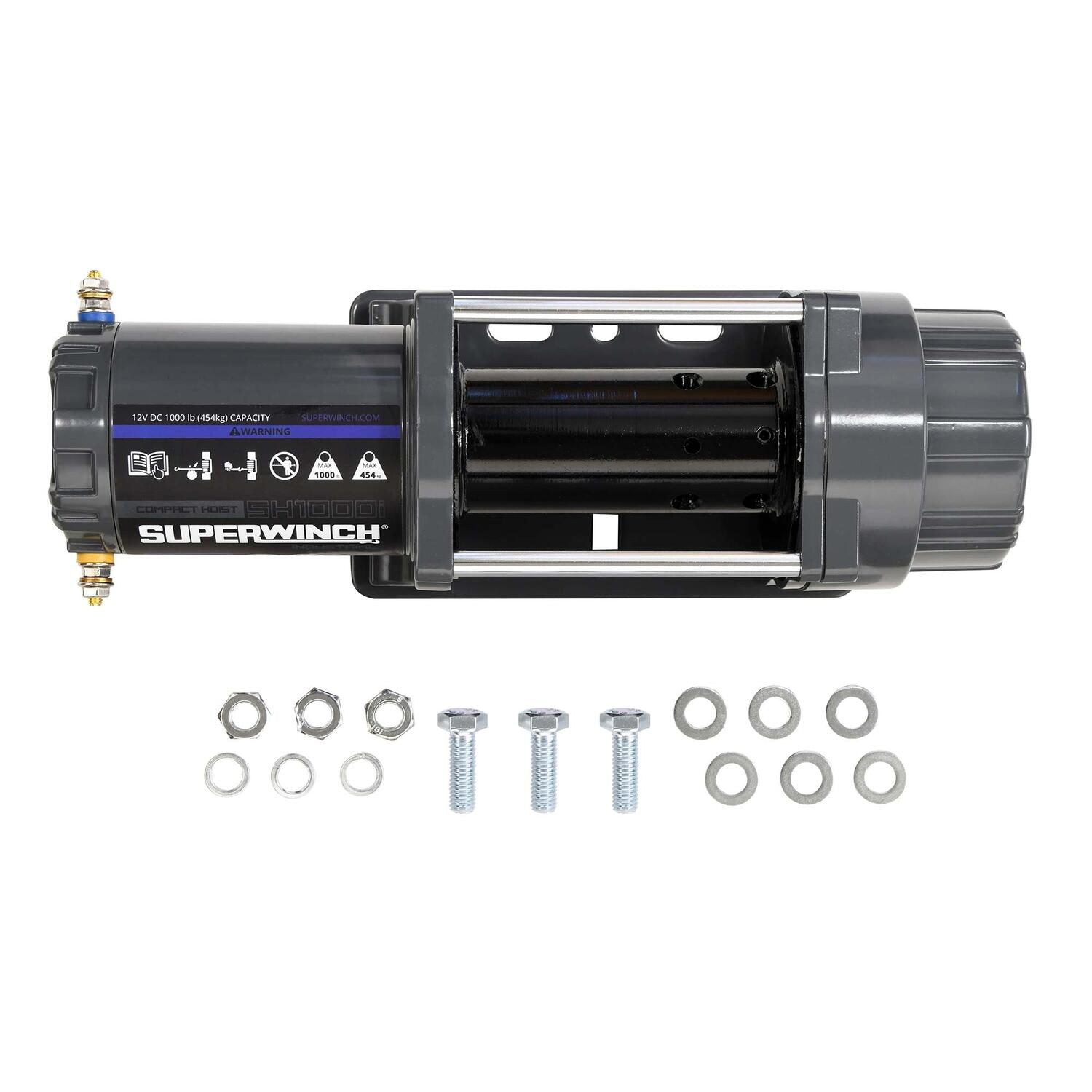

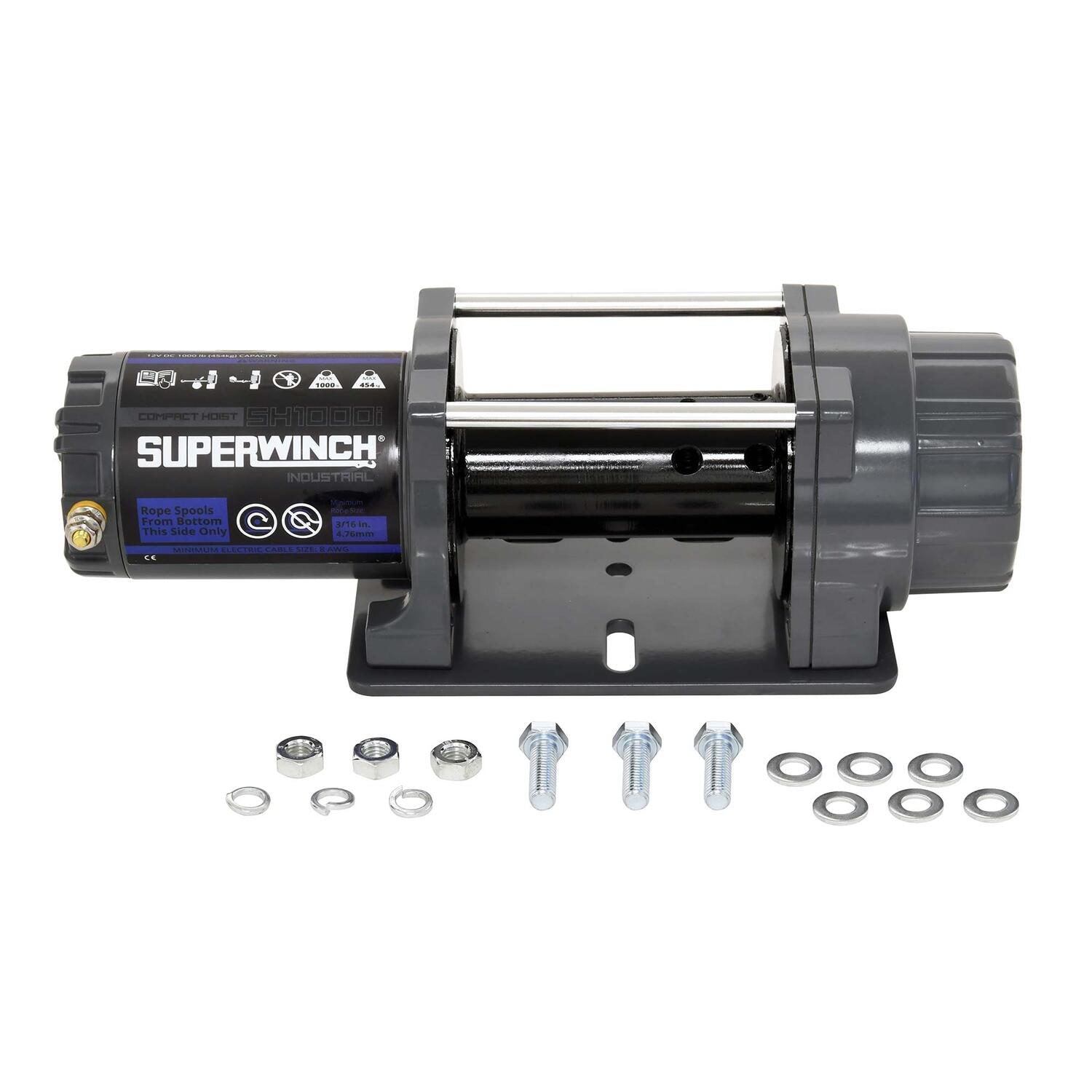

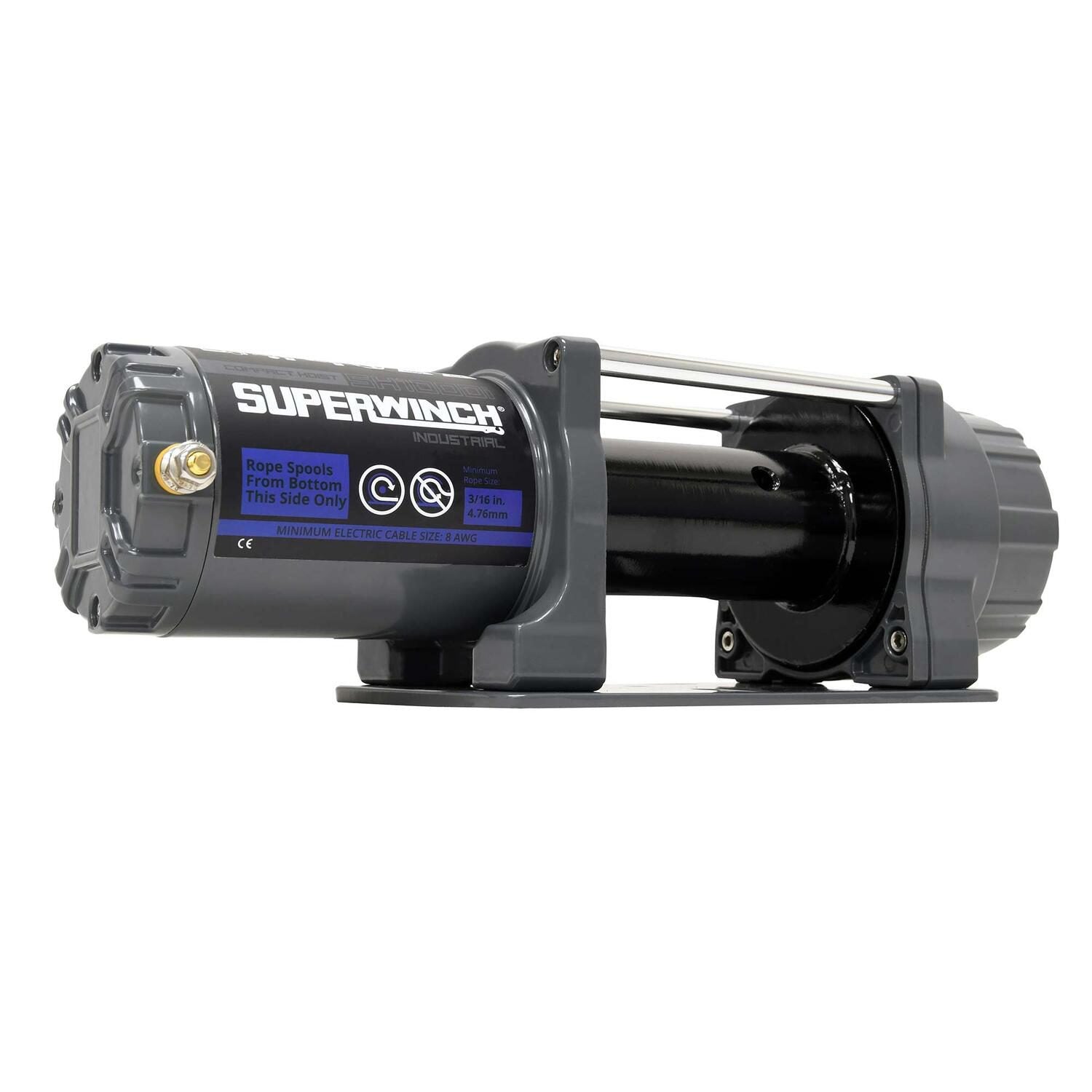

Superwinch S104103 - Industrial SH1000i Hoist
SH1000i Hoist; 1000 lbs; 12 VDC; Standard Drum; No Rope; 1.8 hp; Automatic Spring Brake; 3-Stage Planetary; 138:1 Gear Ratio; No Fairlead;
Superwinch's SH1000i Hoist is a great solution for a wide variety of jobs. Designed to lift and hold a full 1,000 lbs. payload, the SH1000i Hoist is an outstanding choice for do-it yourself mechanics, handyman work, and an array of construction jobs and other tasks. Works anywhere you have a 12 volt battery source, to power the robust 1.8 HP 12V DC motor. The compact design is powerful and built with a limited 2 year warranty.
- 1000 lbs. Capacity
- 1.8 hp 12V DC Motor
- Permanent Magnetic Motor Provides Dynamic Breaking
- 3-Stage Planetary Gearing w/138:1 Ratio

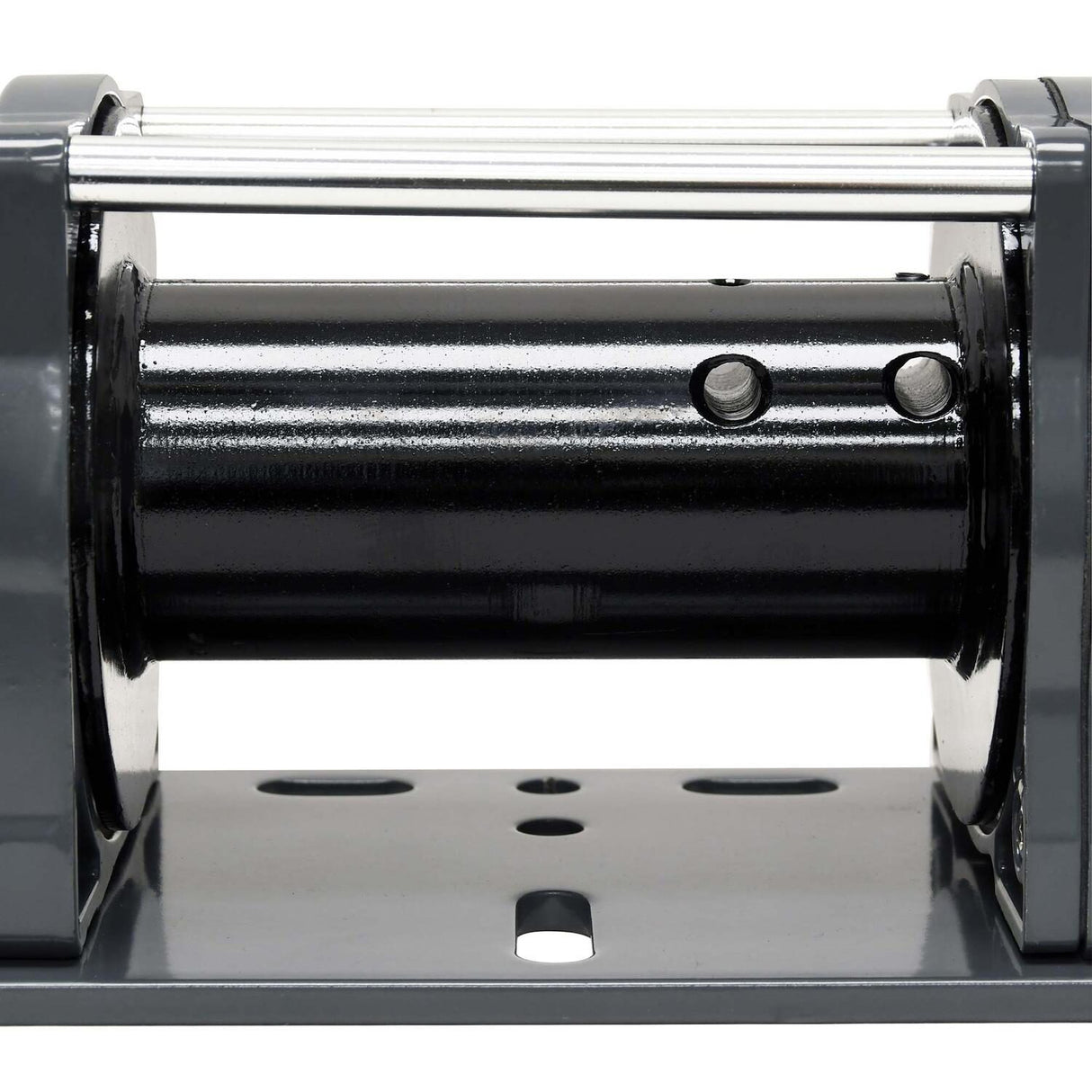

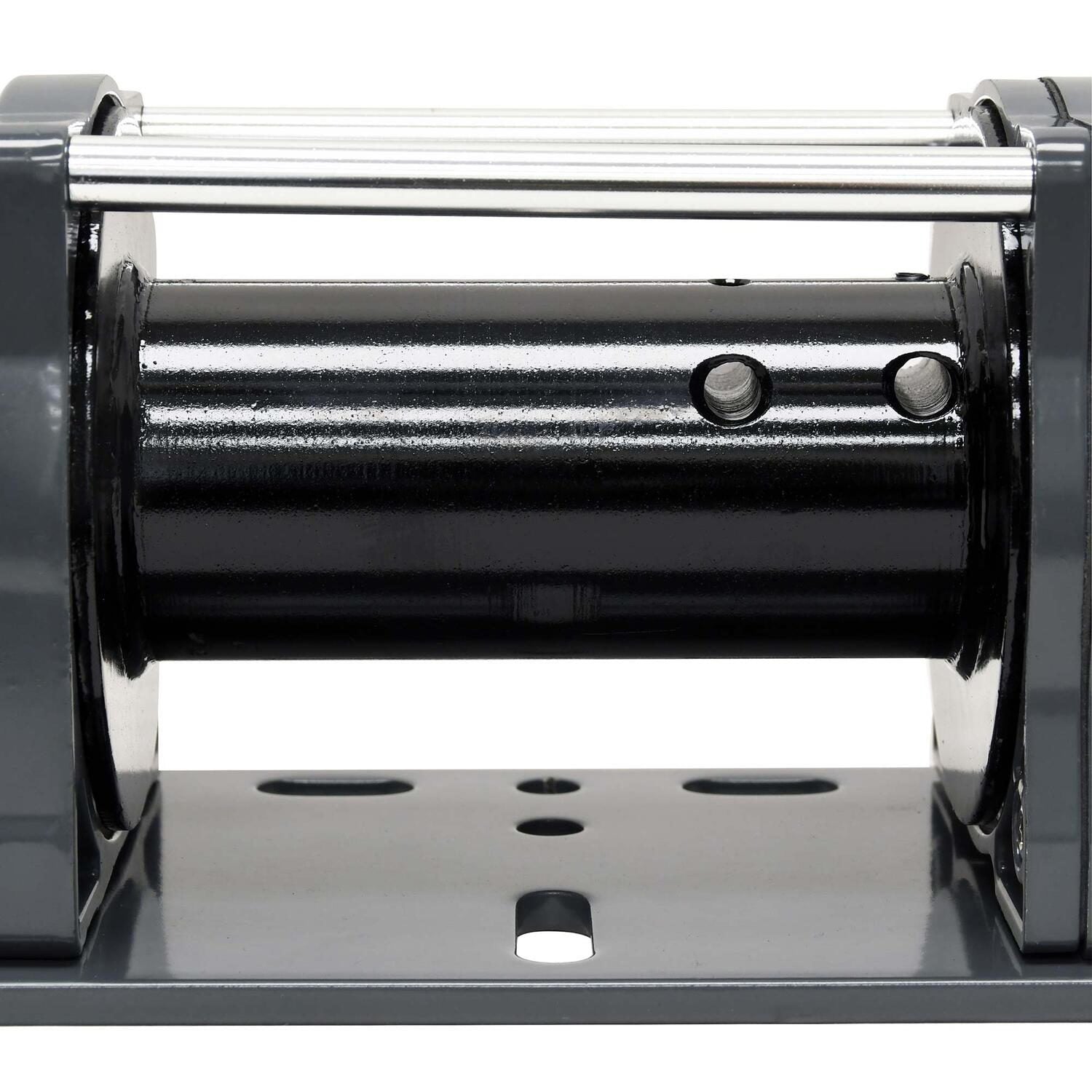

- Standard Drum
- Minimum Electric Cable Size Of 8 AWG
- 4:1 Safety Factor
- Minimum Rope Size Of 3/16 in. [4.76mm]
- Ip66 Protection From Water And Dust
- 2-Hole Mounting Bolt Pattern 3.1 in. On Center
- Gray Powder Coat Finish
Brake System: Automatic
Mounting Bolt Pattern: 2-Hole pattern 3.1in on center
Winch Model: SH1000
Warranty: 2 Year Limited Manufacturer
Voltage: 12V DC
Rope Length: Minimum 3/16 in. (4.76mm)
Net. Weight: 20 lbs (9kgs)
Mounting Type: Bolt-On
Motor: 1.8 HP, permanent magnet motor, 12V DC
Can Ship By Ground Delivery: Yes
Material: Steel
IP Rating: IP66 Waterproof and Dustproof
Gear System: 3-stage planetary
Gear Ratio: 198:1
First Layer Lifting Capacity: 1,000 lbs. (454 kg.)
Finish: Powder Coated
Electric Cable Size: Minimum 8 AWG
Drilling Required: No
Color: Textured Gray
Winch Series: SH Series Hoist
