StopTech 227.66017R - Select Sport 91-97 GMC Jimmy (ABS) Slotted & Drilled Right Front Rotor

StopTech  |  SKU: FLMN-227.66017R
Regular price $000


AVAILABILITY: This Item Is No Longer Orderable. Contact Us For More Details.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

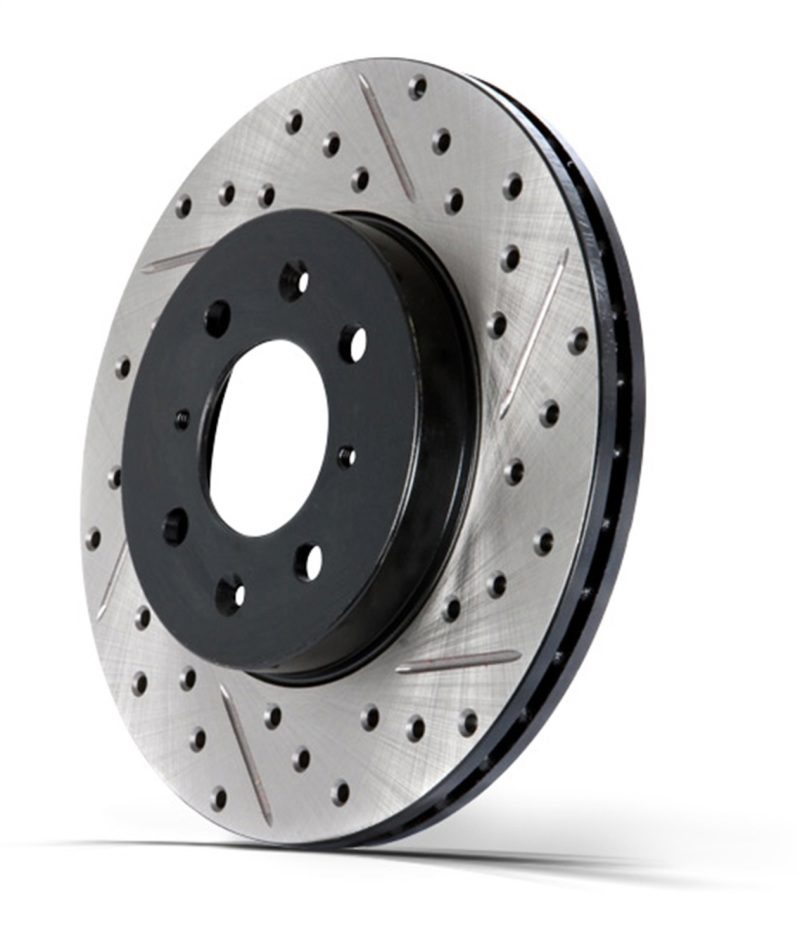

StopTech 227.66017R - Select Sport 91-97 GMC Jimmy (ABS) Slotted & Drilled Right Front Rotor

StopTech Select Sport Drilled and Slotted Brake Rotor; Front Right

Non-Directional Finishes. Machined non-friction surfaces. G11 metallurgy. Drilled & Slotted for increased bite, improved looks and better performance, Zinc coated corrosion protection

StopTech Drilled and Slotted Sport Rotors are 1-piece direct replacement brake discs for factory brake systems and stock calipers that look great behind your wheels – and offer significantly improved braking performance. The unique cross-drilling and slotting aids with heat and brake dust dispersal; prevents glazing of the pads; adds bite and improves wet and dry braking performance. Built to last; the black e-coating provides protection from corrosion and the high carbon metallurgy (in most applications) offers quieter operation; better crack resistance and increased performance.

  • Non-Directional Finishes
  • Machined Non-Friction Surfaces
  • G11H18 Metallurgy
  • Widest Application Coverage In The Market
Inner Seal # [cntrc]: 417.66004
Inner Bearing # [cntrc]: 410.91006
Outer Bearing # [cntrc]: 410.91034
Disc Mounting [cntrc]: Hub & Rotor
Weight [cntrc] lbs: 20.500
Misc Holes [cntrc]: 0
Vane Style [cntrc]: Straight
Weight [cntrc] kgs: 9.320
Bolt Thread Pitch: 1.500
Bearings Included: No
Center Hole Diameter: 72.000
Overall Height: 109.500
Overall Height: 4.311
Center Hole Diameter: 2.835
Nominal Thickness: 1.035
Discard Thickness: 0.965
Nominal Thickness: 26.300
Mounting Bolt Hole Circle Diameter: 120.700
Mounting Bolt Hole Circle Diameter: 4.752
Stud Thread Diameter: 12.000
ABS Tone Ring Included: Yes
Surface Type: Slotted X Drilled
Discard Thickness: 24.500
Stud/Lug Hole Quantity: 5
Outside Diameter: 10.472
Outside Diameter: 266.000
Solid Or Vented Type Rotor: Vented
