StopTech 129.62144.14 - Slotted Replacement AeroRotor & Hat

StopTech  |  SKU: FLMN-129.62144.14
Regular price $000


AVAILABILITY: This Item Is No Longer Orderable. Contact Us For More Details.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

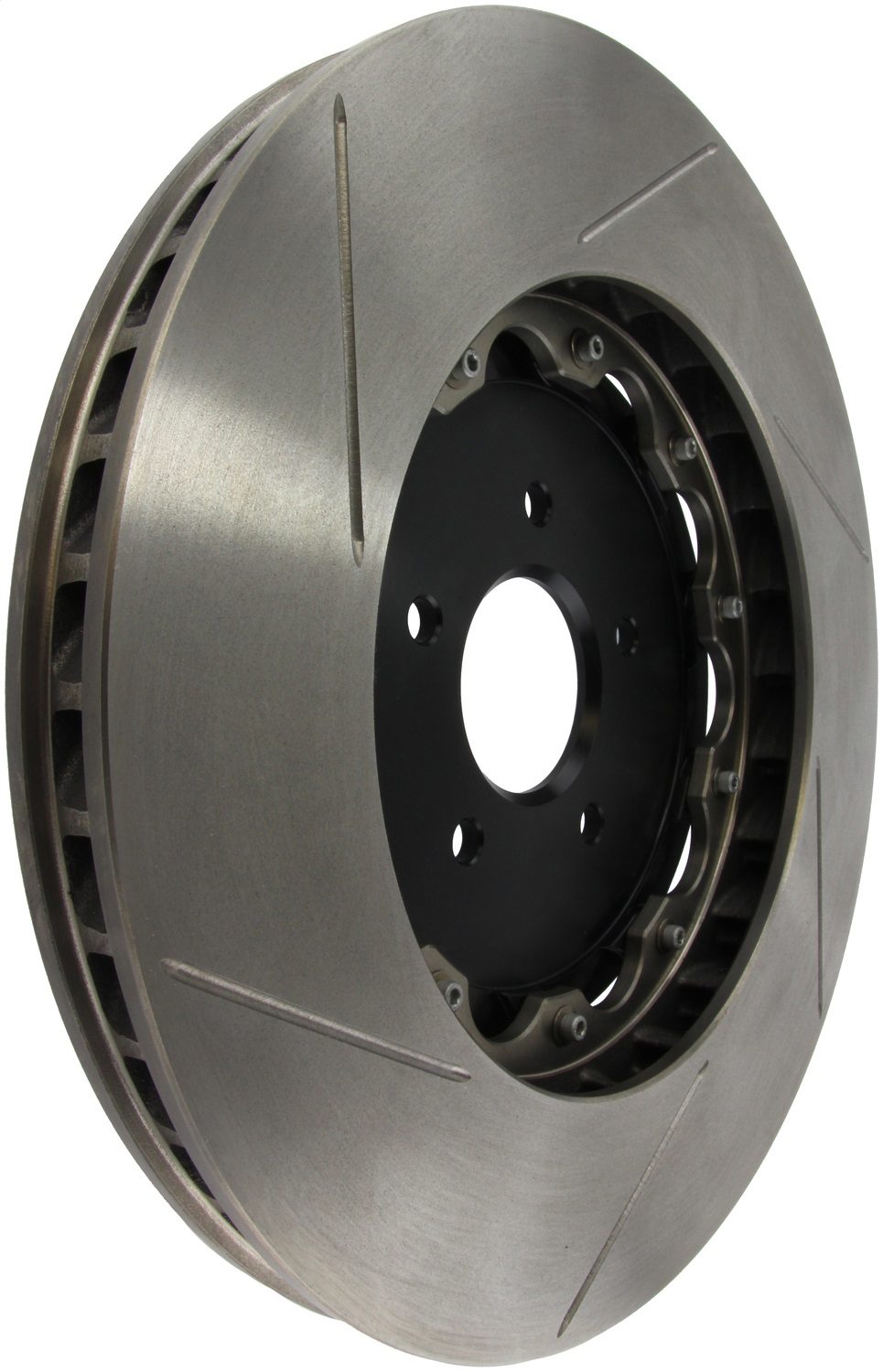

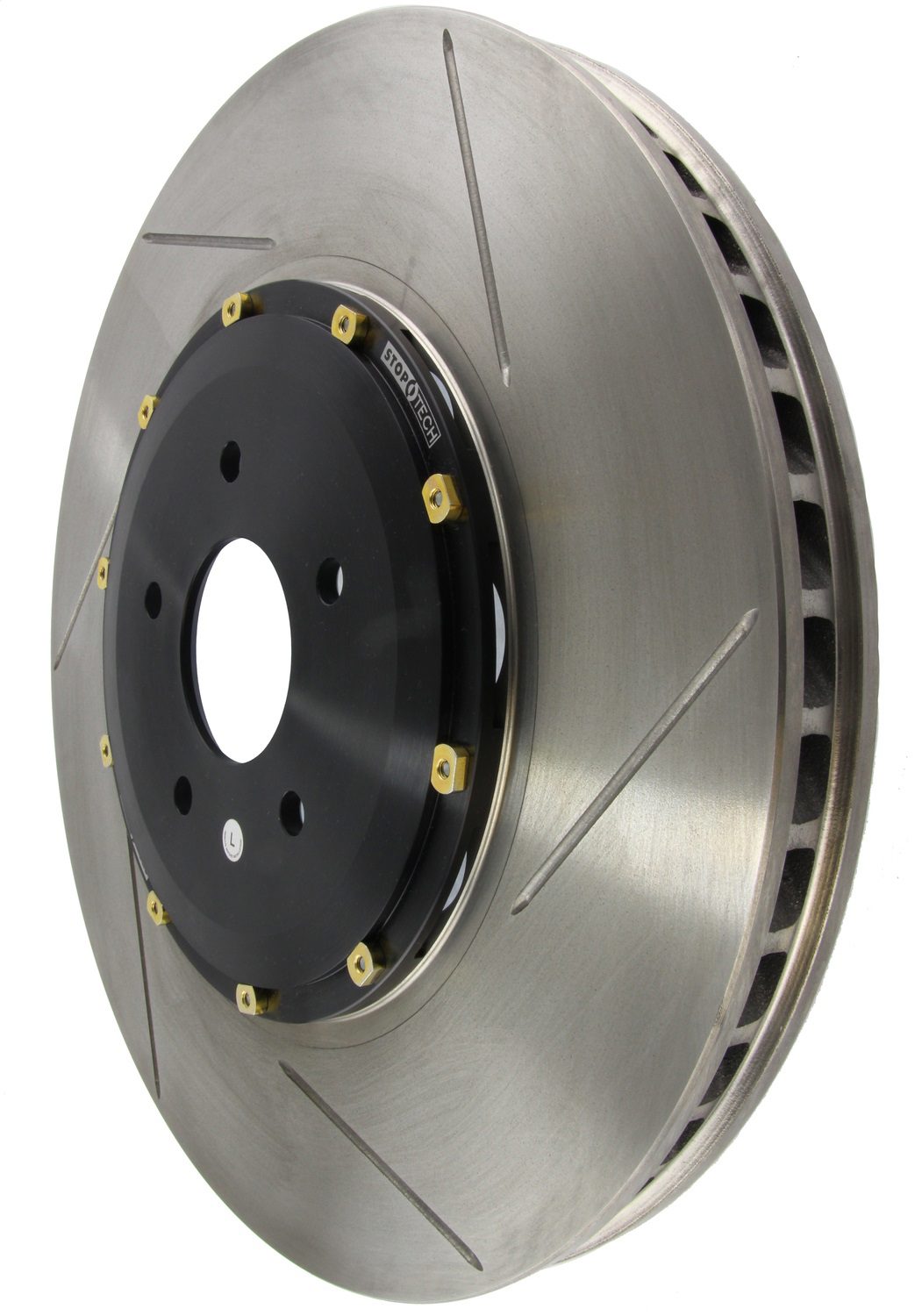

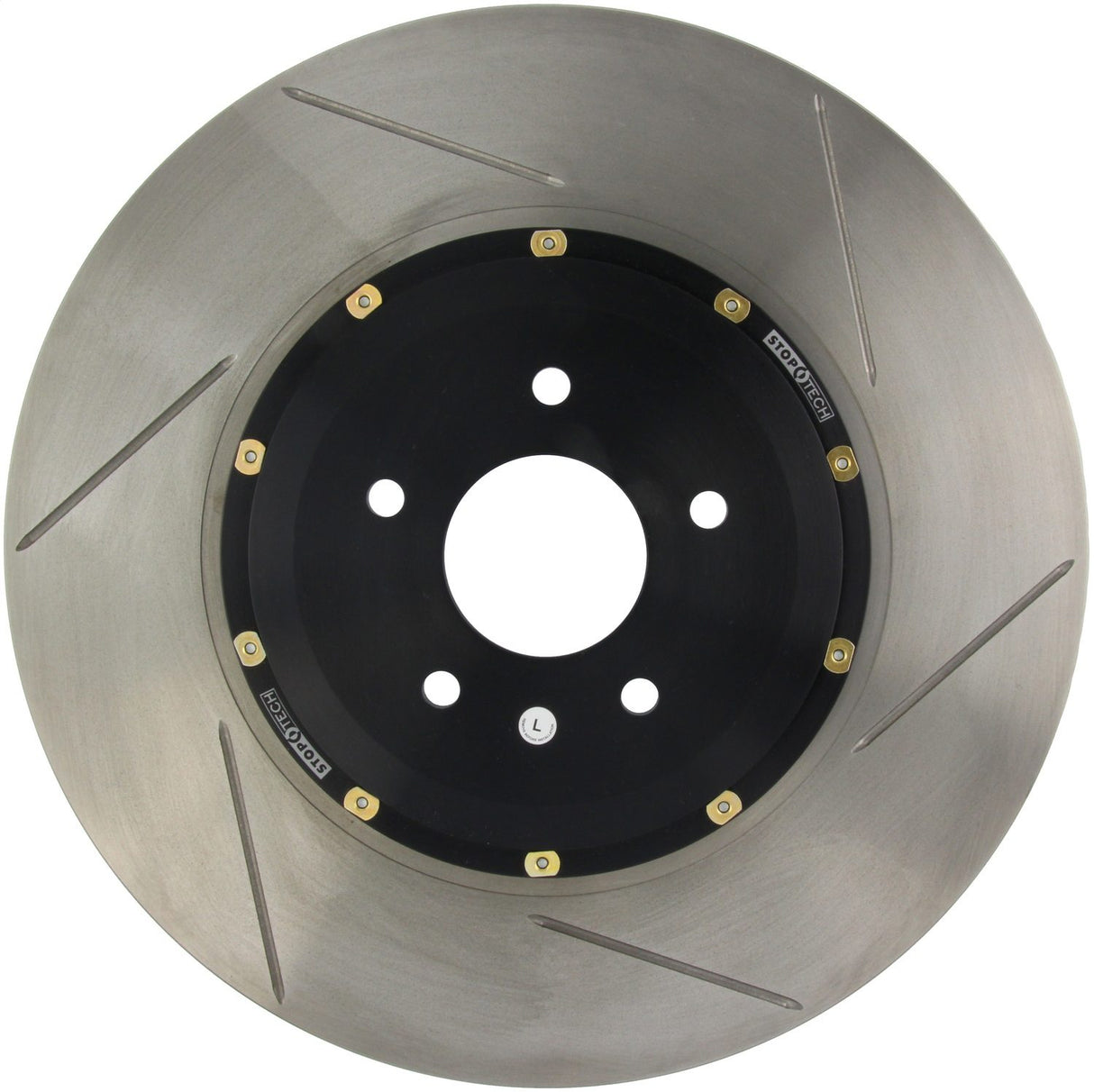

StopTech 129.62144.14 - Slotted Replacement AeroRotor & Hat

StopTech AeroRotor 2 Piece Black Hat No Rotor Coating Slotted; Front Right

Reduced Unsprung and Rotational Mass. Improved Thermal Capabilities. Optimized Heat Dissipation. Designed to Work with OE Calipers

StopTech AeroRotor Replacement Kits ARK are designed to replace your vehicle's original factory rotors; while retaining the factory brake calipers. Although the ARK is the same diameter and thickness as the factory rotors; it offers improved cooling; braking; and handling. The directional; floating AeroRotors allow independent expansion of the rotor and hat without "coning;" thanks to elongated drive pin holes. ARK components include AeroRotor friction rings with patented internal vane design; pre-assembled to billet aluminum AeroHats with directional stand-offs that optimize cooling airflow. The patented AeroRotor vane design pushes up to 80 percent more air than factory rotors for better cooling and reduced fade on the track. The aircraft-grade aluminum hats and 2-piece AeroRotors are up to 8 pounds lighter than stock rotors; allowing faster acceleration and deceleration; and improved handling. StopTech AeroRotors are available slotted or cross-drilled. These slots or holes allow better dissipation of heat; friction material and debris; assuring that fresh pad material is in contact with the rotor every time the brakes are applied. An optional anti-corrosion; zinc finish is available for customers in cold climates; where salt and chemicals are used to melt snow and ice. The zinc coating also benefits customers who prefer no visible surface rust on the vanes and outer circumference of the rotors. StopTech AeroRotors are 100 percent made in the USA.

  • Reduced Unsprung and Rotational Mass. Improved Thermal Capabilities. Optimized Heat Dissipation. Designed to Work with OE Calipers
Disc Mounting [cntrc]: Floating
Weight [cntrc] lbs: 21.400
Hat ID [cntrc] mm: 158.600
Weight [cntrc] kgs: 9.720
Hat ID [cntrc] in: 6.244
OEM Vane Count [cntrc]: 45
Misc Holes [cntrc]: 1
Vane Style [cntrc]: Straight
Bearings Included: No
Outside Diameter: 13.583
Discard Thickness: 27.000
Mounting Bolt Hole Circle Diameter: 4.724
Center Hole Diameter: 2.783
Mounting Bolt Hole Circle Diameter: 120.000
Nominal Thickness: 1.181
Discard Thickness: 1.063
Nominal Thickness: 30.000
Stud/Lug Hole Quantity: 5
Overall Height: 51.200
Overall Height: 2.016
Outside Diameter: 345.000
Center Hole Diameter: 70.700
Stud/Lug Hole Diameter: 15.100
Stud/Lug Hole Diameter: 0.594
ABS Tone Ring Included: No
Solid Or Vented Type Rotor: Vented
