StopTech 128.67074L - 12-20 Dodge Grand Caravan Sport Drilled Left Front Rotor

StopTech  |  SKU: FLMN-128.67074L
Regular price $000


AVAILABILITY: This Item Is No Longer Orderable. Contact Us For More Details.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

StopTech 128.67074L - 12-20 Dodge Grand Caravan Sport Drilled Left Front Rotor

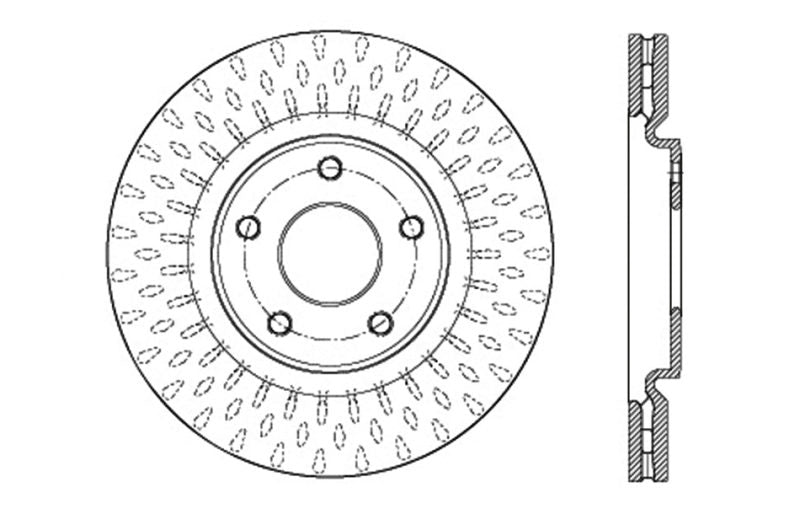

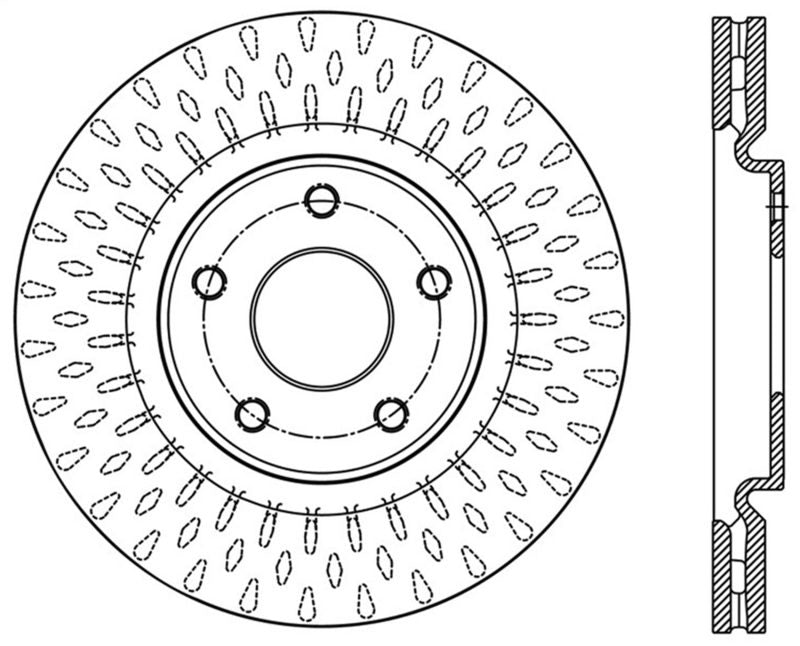

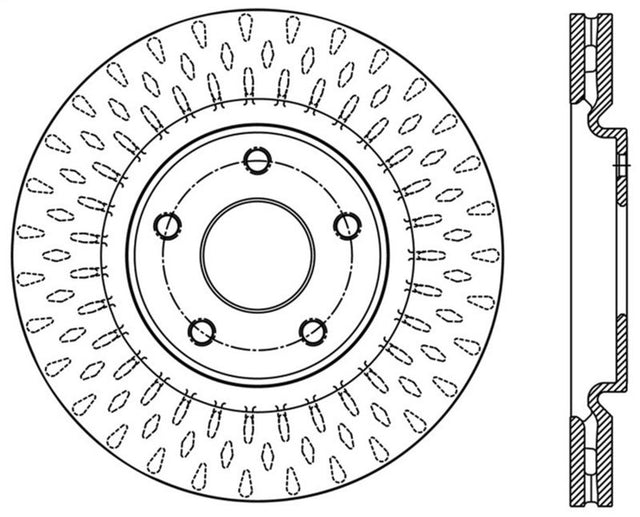

StopTech Sport Cross Drilled Brake Rotor; Front Left

Premium e-coated rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Drilled for increased bite; improved looks and better performance

StopTech Drilled Sport Rotors are 1-piece direct replacement brake discs for factory brake systems and stock calipers that look great behind your wheels – and offer significantly improved braking performance. The unique cross-drilling aids with heat and brake dust dispersal; prevents glazing of the pads; adds bite and improves wet and dry braking performance. Built to last; the black e-coating provides protection from corrosion and the high carbon metallurgy (in most applications) offers quieter operation; better crack resistance and increased performance.

  • Drilled/Slotted Helps Evacuate Gasses/Dust/Heat
  • Directional Curve Vane Designs On Selected Apps
  • Power Alloy Is Descendant Of Patented AeroRotor
  • Black E-Coated Non-Friction - Corrosion Protection
  • Increased Initial bite and Wet Weather Response
  • Superior Resistance To Cracks From Thermal Stress
  • Double Disk Ground For Consistent Friction Surface
  • Direct OE Replacement
Hat ID [cntrc] in: 6.461
Misc Holes [cntrc]: 0
Vane Style [cntrc]: Pillar
Disc Mounting [cntrc]: Floating
Weight [cntrc] lbs: 21.700
Weight [cntrc] kgs: 9.840
Hat ID [cntrc] mm: 164.100
Bearings Included: No
Solid Or Vented Type Rotor: Vented
Center Hole Diameter: 2.854
Mounting Bolt Hole Circle Diameter: 127.000
Hat Finish: Coated
Nominal Thickness: 1.098
Stud/Lug Hole Diameter: 14.500
Stud/Lug Hole Diameter: 0.571
ABS Tone Ring Included: No
Surface Type: X Drilled
Discard Thickness: 1.039
Nominal Thickness: 27.900
Stud/Lug Hole Quantity: 5
Overall Height: 38.500
Overall Height: 1.516
Center Hole Diameter: 72.500
Outside Diameter: 330.000
Outside Diameter: 12.992
Discard Thickness: 26.400
Mounting Bolt Hole Circle Diameter: 5.000
