Spicer SPL70-1550XC - Axle Shaft U-Joint; Non-Greaseable; Blue Coated U-Joint Kit SPL70/1550 ISR WJ
Spicer | SKU:
FSGR-SPL70-1550XC
Sale price
$12999
Regular price
$17502
Unit price
/
Unavailable
$45.03 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

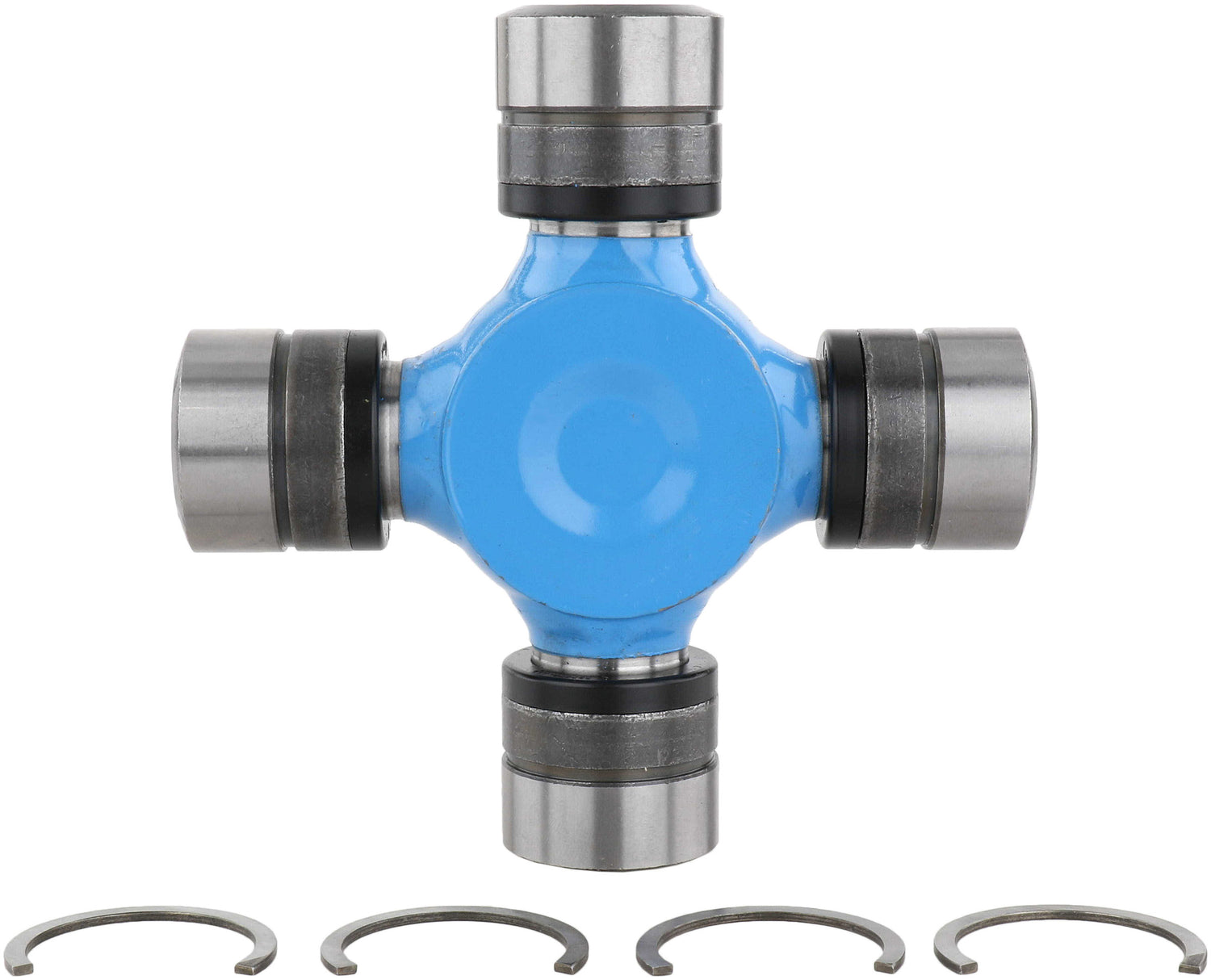

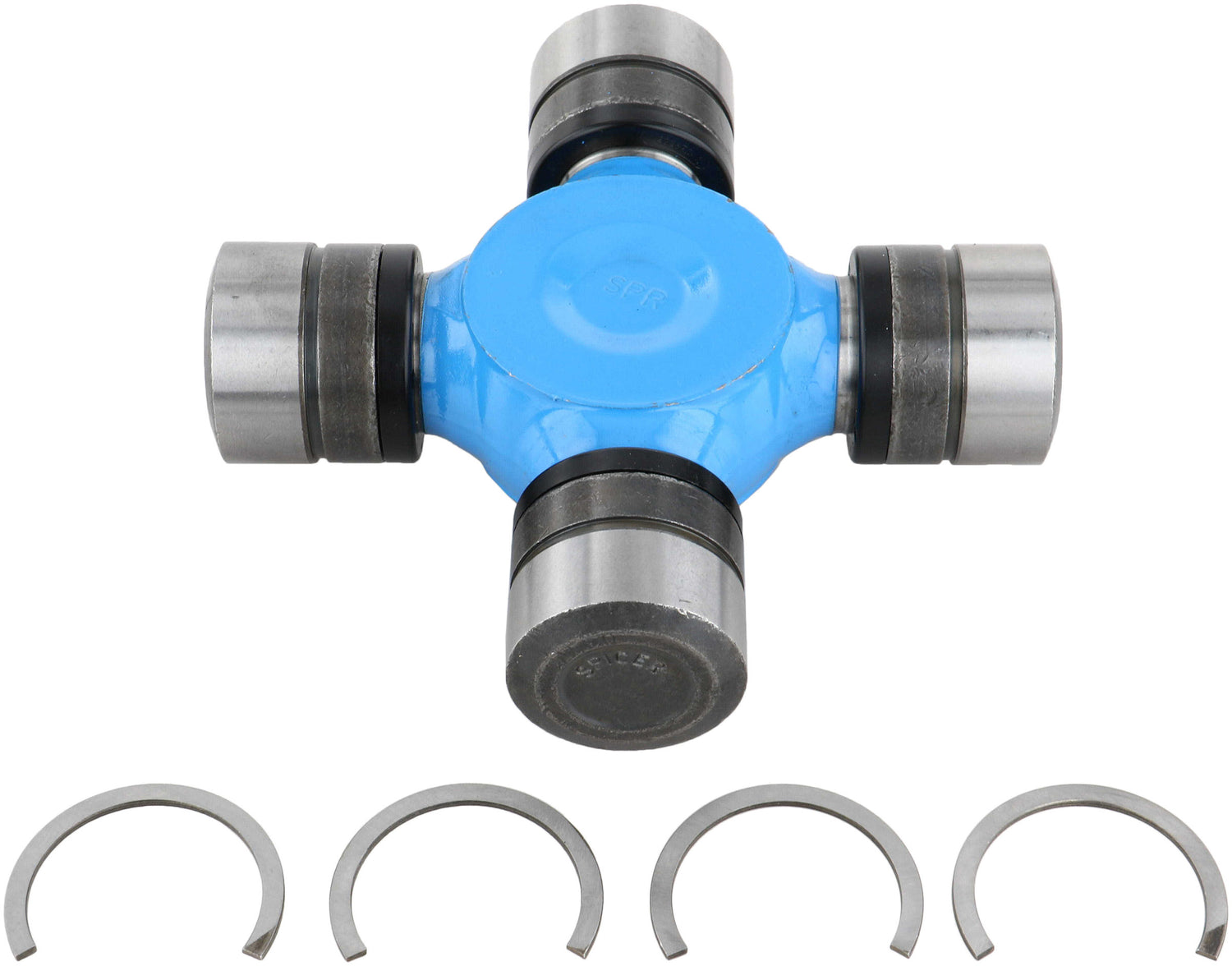

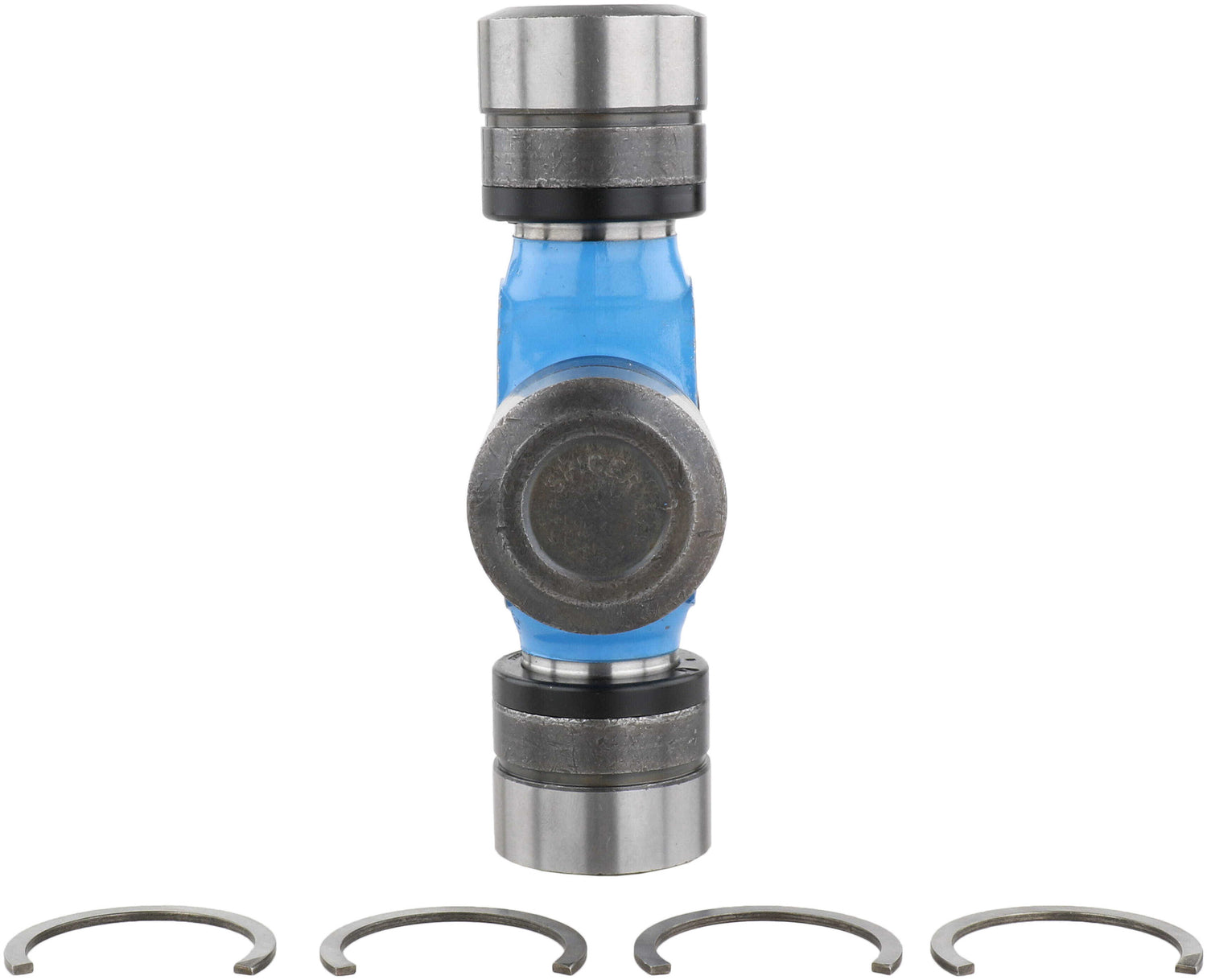

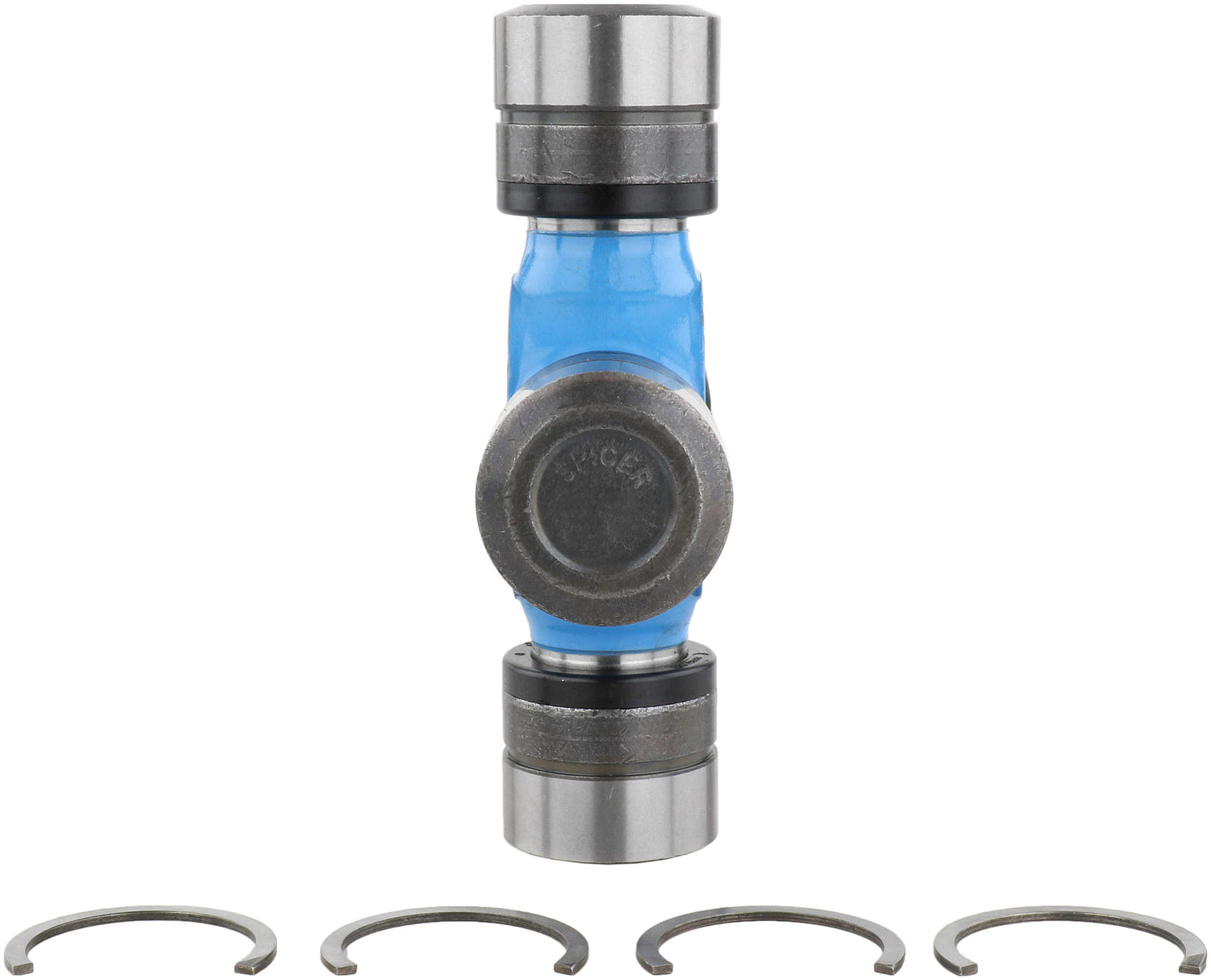

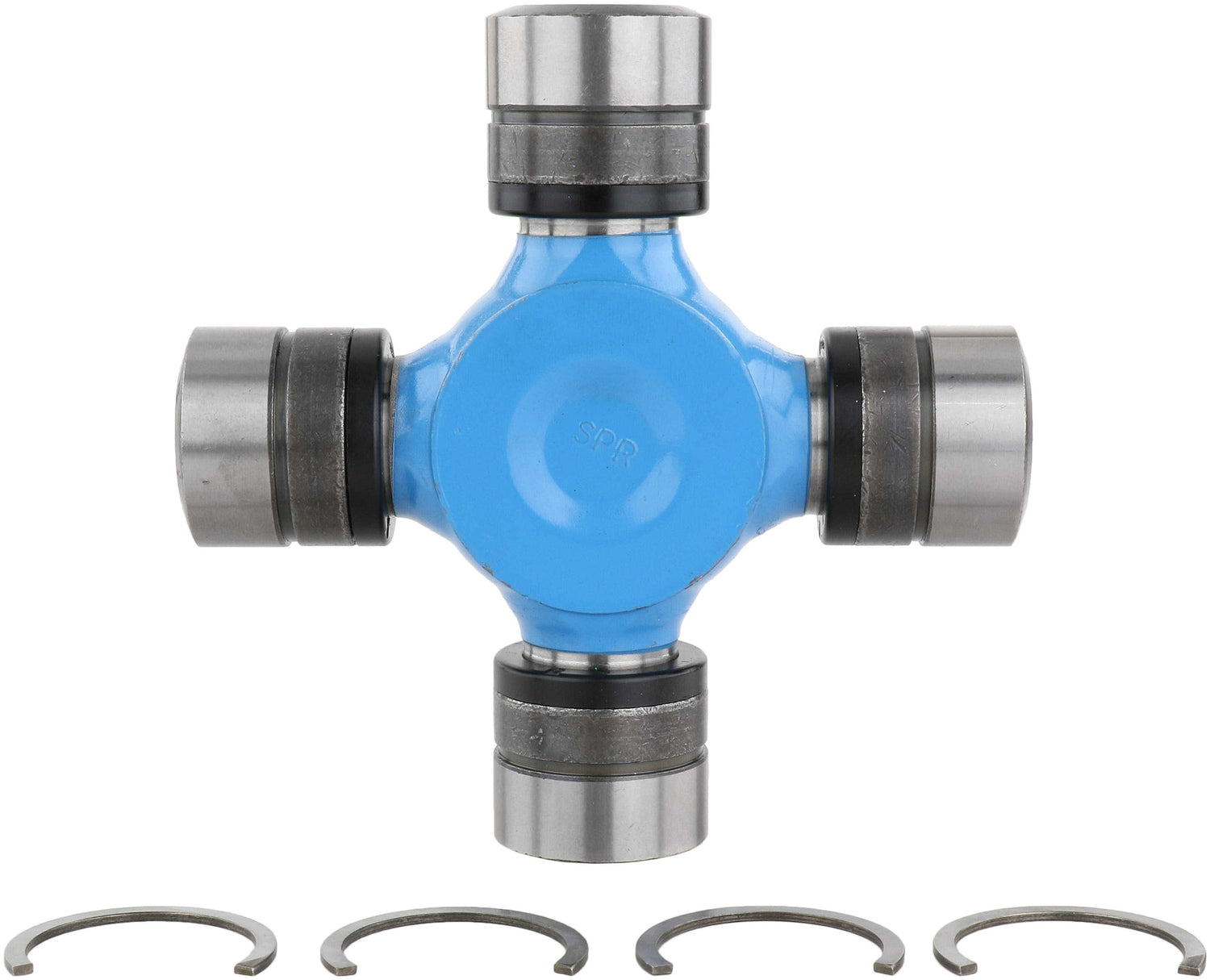

Spicer SPL70-1550XC - Axle Shaft U-Joint; Non-Greaseable; Blue Coated U-Joint Kit SPL70/1550 ISR WJ
Axle Shaft U-Joint; Non-Greaseable; Blue Coated U-Joint Kit SPL70/1550 ISR WJ
Demand genuine Spicer. Made in the USA. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- SPL journal cross is engineered with a solid cold-formed body to ensure better wear and overall strength
- Bearing cups are heat treated for strength; precision-ground and case-hardened for durability
- Multi-lip seal keeps grease in and contaminants out, and gets maximum retention in a wider range of environments
- Thrust washers eliminate metal-to-metal contact, prevent wear and lower the overall operating temperature
Material: Steel
Bearing Cap Diameter (1): 1.375
OEM Mfg: Spicer
OEM Series: SPL70/1550WJ
Type: ISR Style
Bearing Cap Diameter (2): 1.375
Bearing Cap Type: Round with ISR Groove

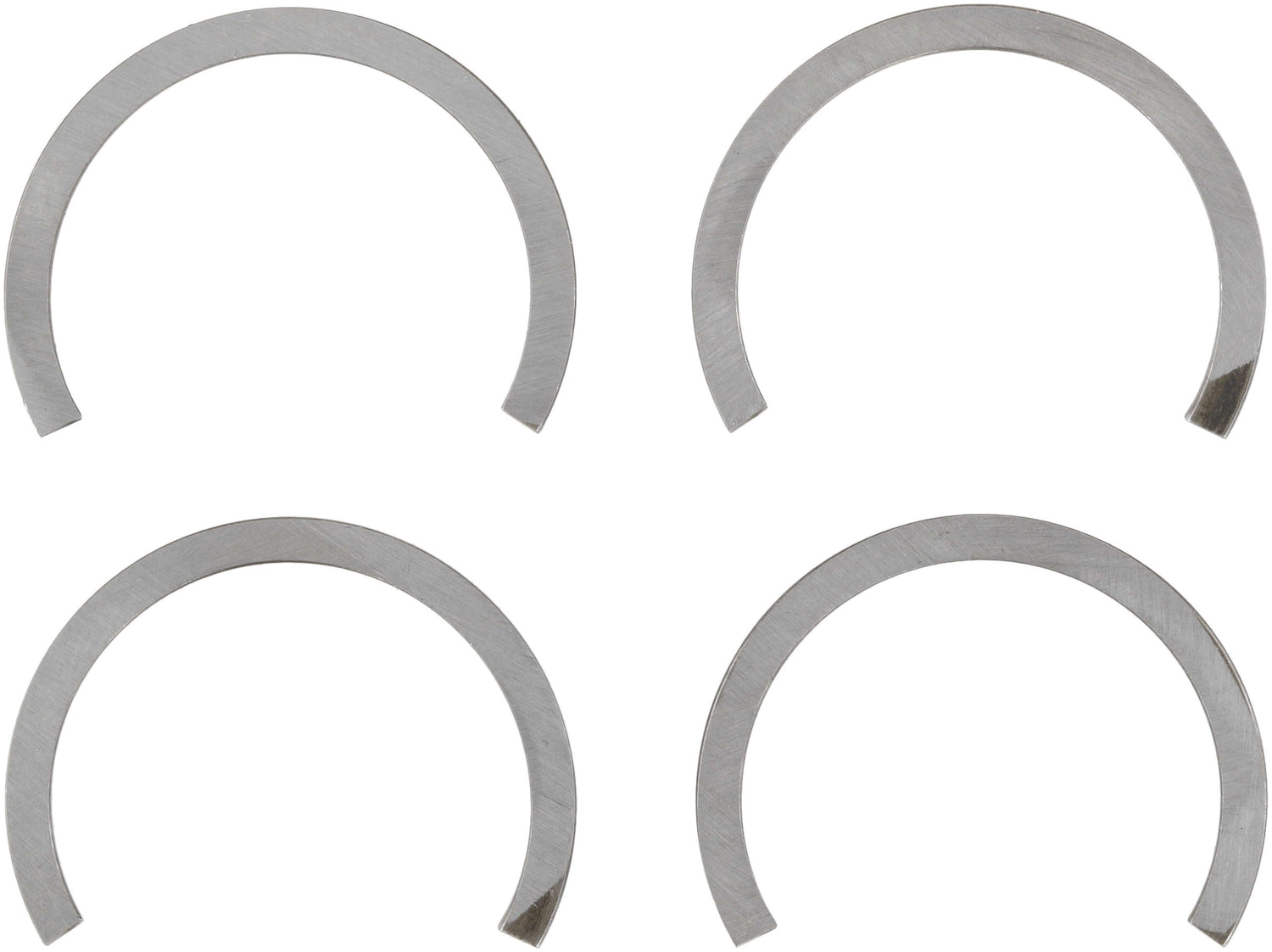

Snap Ring Included: Yes
Snap Ring Type: Internal
Grease Zerk Included: Not Required
Pre Greased: Yes
Seal Color/Finish: Blue
Greaseable: No
Bearing Cap Diameter A (mm): 34.925
Bearing Cap Diameter B (mm): 34.925
Bearing Cap Type A: ISR
Bearing Cap Type B: ISR
Hardware Included: No
Length A (In): 3.780
Length A (mm): 96.000
Length B (In): 3.780
Length B (mm): 96.000
Mounting Hardware Included: No
Distance Btw Snap Ring Grooves: 3.780
Distance Btw Snap Ring Grooves (ISR) (2): 3.780
