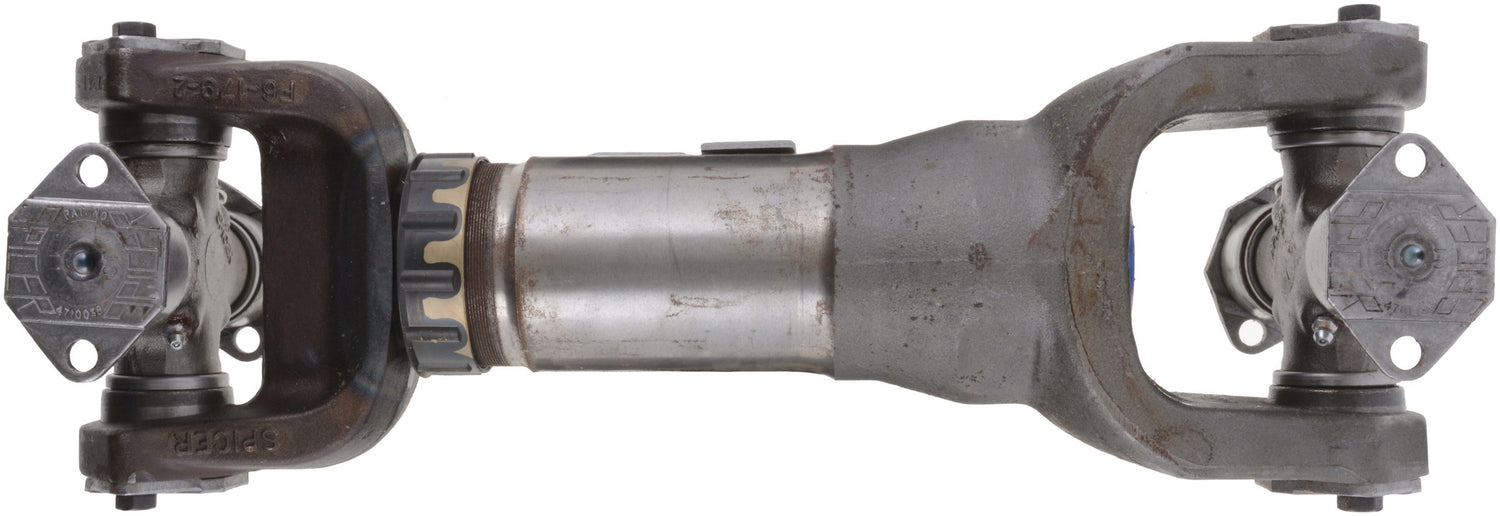

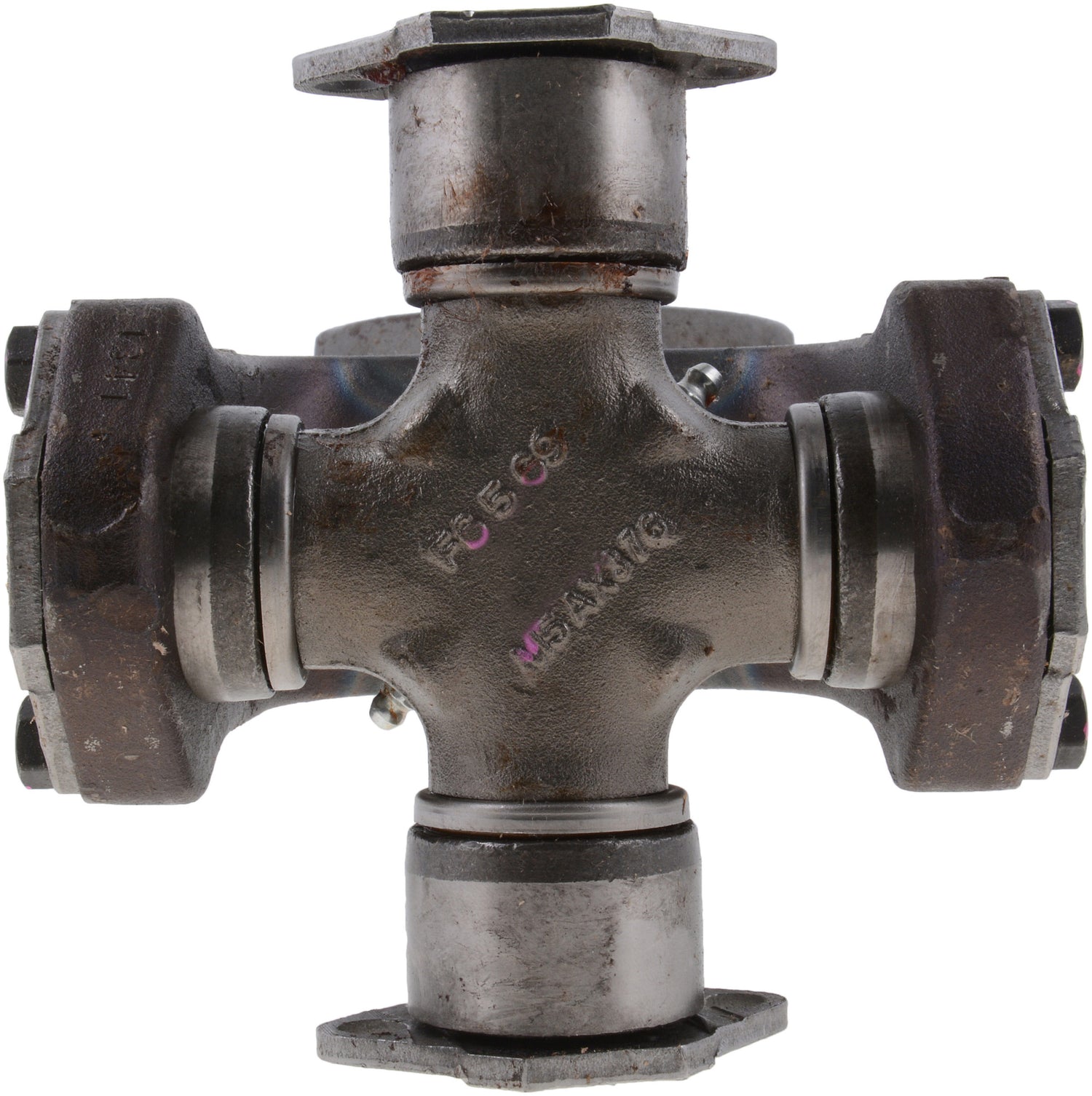

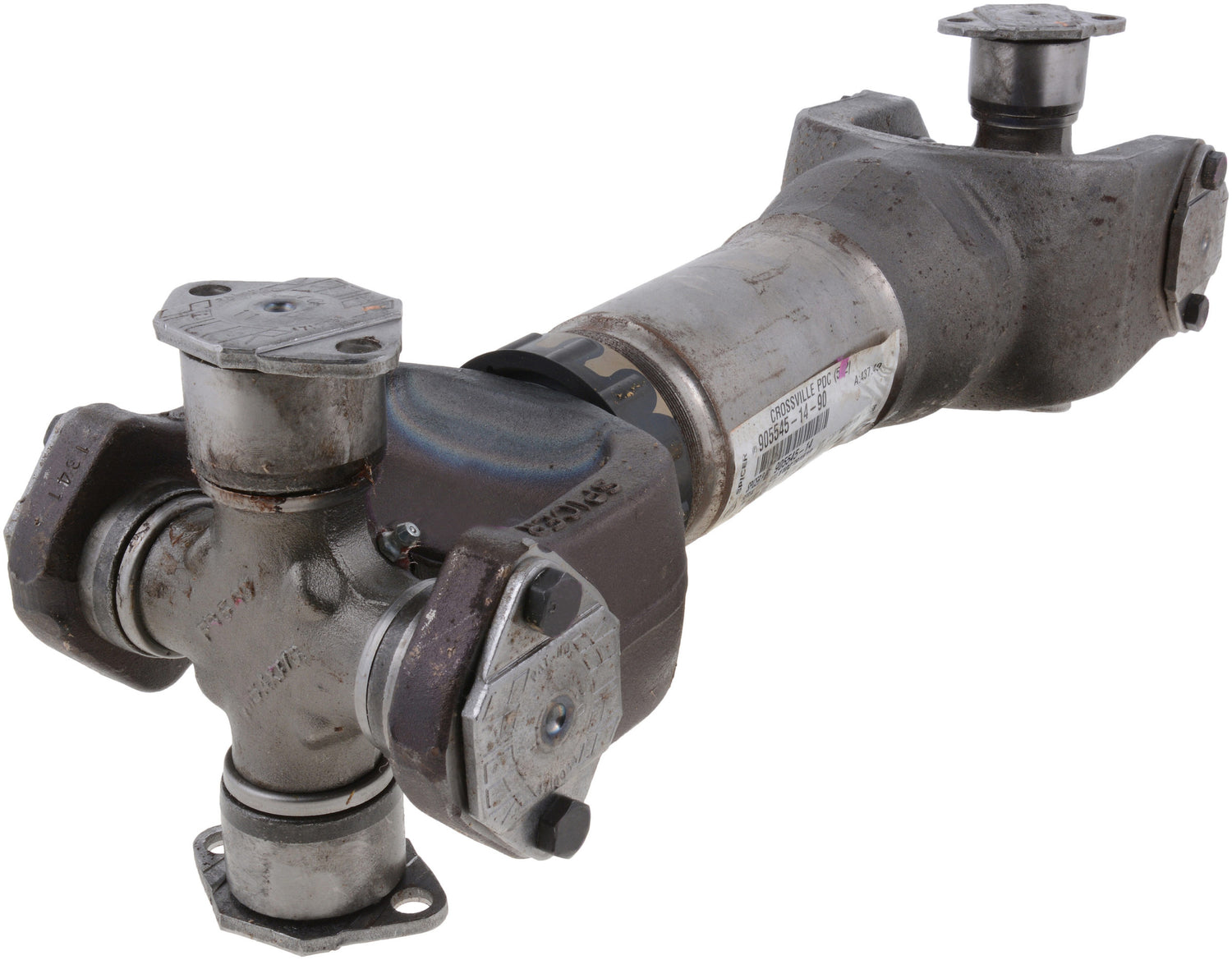

Spicer 919473-1 - Short Couple Drive Shaft; 1550 Series
Spicer | SKU:
FSGR-919473-1
Regular price
$000
Unit price
/
Unavailable
AVAILABILITY: This Item Is No Longer Orderable. Contact Us For More Details.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Spicer 919473-1 - Short Couple Drive Shaft; 1550 Series
Short Couple Drive Shaft; 1550 Series
Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- Dana manufactured Spicer Driveshafts are engineered, tested, and manufactured to meet or exceed OE requirements.
- Dana manufactured Spicer driveshafts are designed to be drop-in replacements, eliminating assembly time.
- Meets or exceeds the performance requirements of the original factory driveshaft
Series: 1550
Phased - Degrees: 0
Joint Angle: 18
Unwelded/Welded Assembly: 336.5500
Shaft Material: Steel
Max Slip (IN): 2.5000
Max Slip (MM): 63.5000
CL Yoke To CL Yoke (IN) - COLL: 10
CL Yoke To CL Yoke (MM) - COLL: 254.0000
Mid Slip (MM): 31.7500
Mid Slip (IN): 1.2500
FF(Flange Face) To FF (MM)-COLL: 355.6000
Phased (Yes/No): No
CL Yoke To Flange Face (MM)-INST: 4-2-679
CL Yoke To Flange Face (IN)-INST: Welded
FF(Flange Face) To FF (IN)-INST: 15.2500
FF(Flange Face) To FF (MM)-INST: 387.3500
1/2 Max Slip (IN): 1.2500
1/2 Max Slip (MM): 31.7500
CL Yoke To Flange Fac e(IN)-COLL: 4-2-669
CL Yoke To Flange Face (MM)-COLL: 8
FF(Flange Face) To FF (IN)-COLL: 14.0000
Slip Assembly: No
CL Yoke To End Of Spline Sleeve (IN)-COLL: 11.2500
End 2 TJ Side: 12.0000
End 1 Type SJ Side: 304.8000
Slip Yoke: CL to End of Spline (MM): No
