Spicer 906052-1 - Short Couple Drive Shaft
Spicer | SKU:
FSGR-906052-1
Regular price
$000
Unit price
/
Unavailable
AVAILABILITY: This Item Is No Longer Orderable. Contact Us For More Details.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

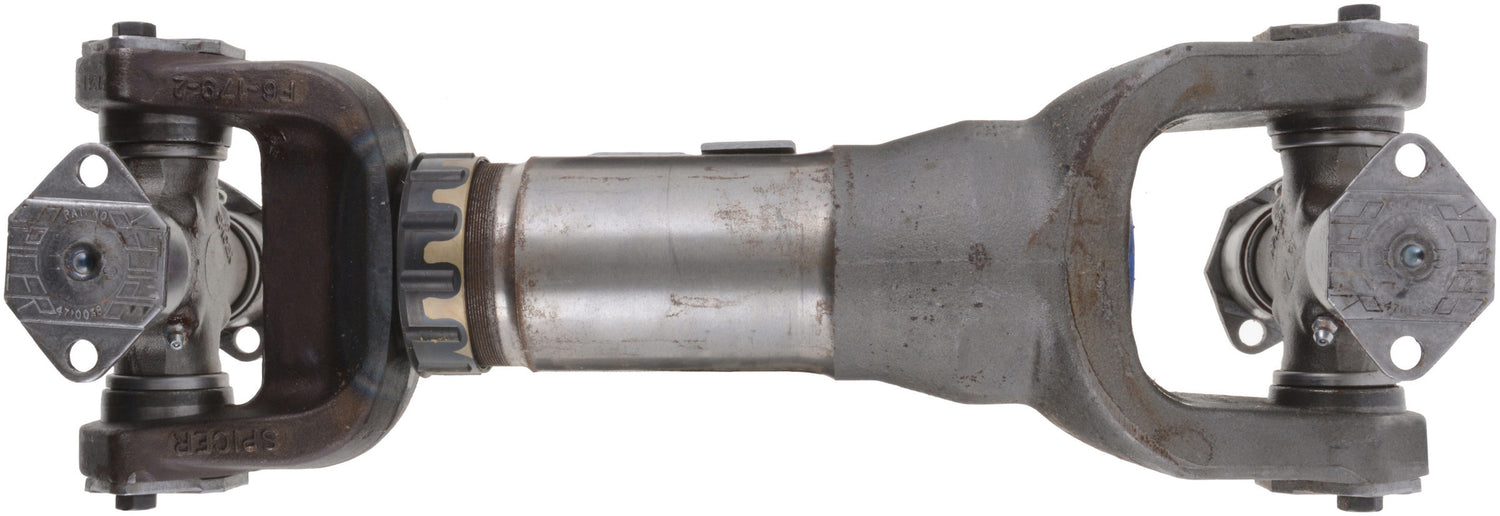

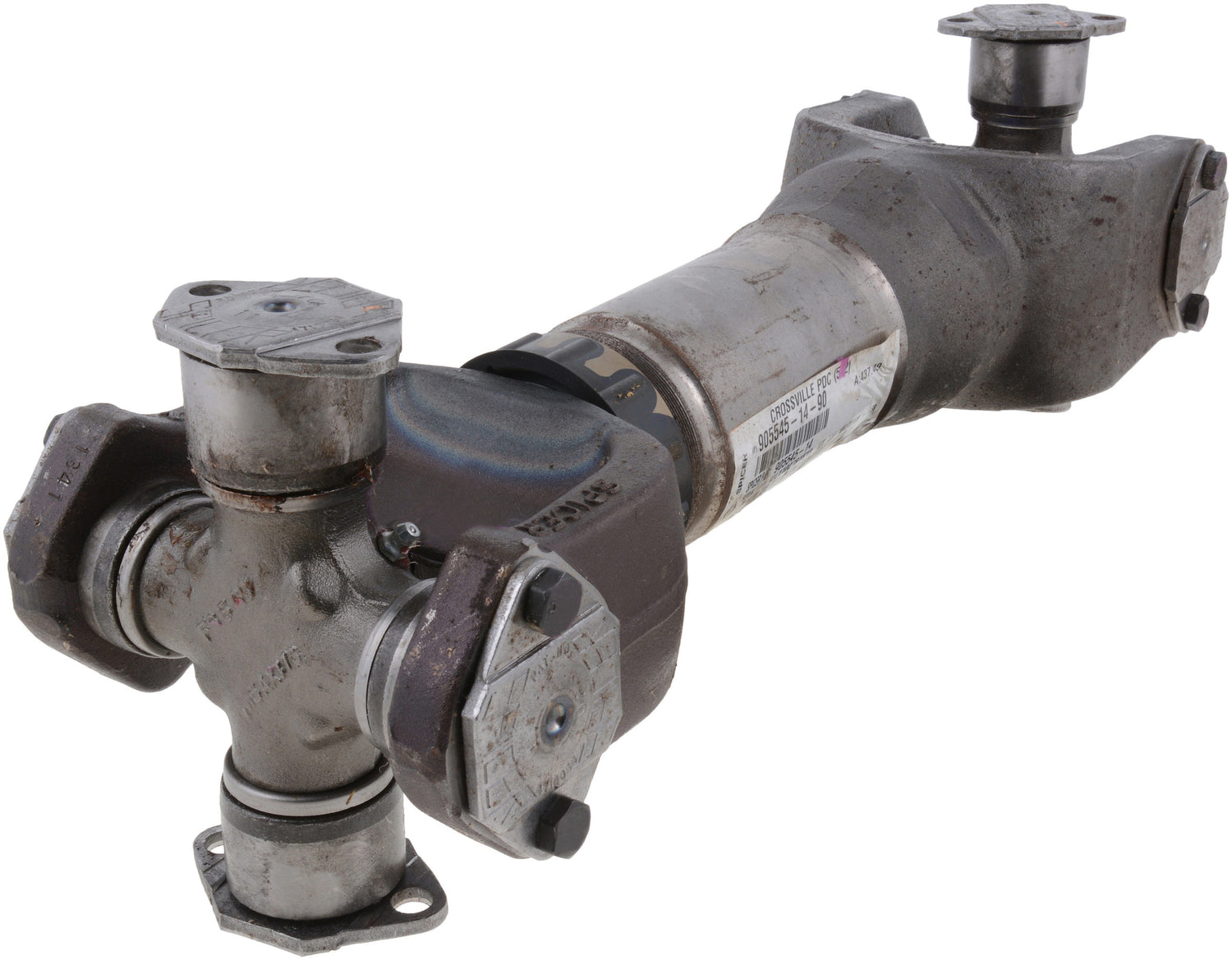

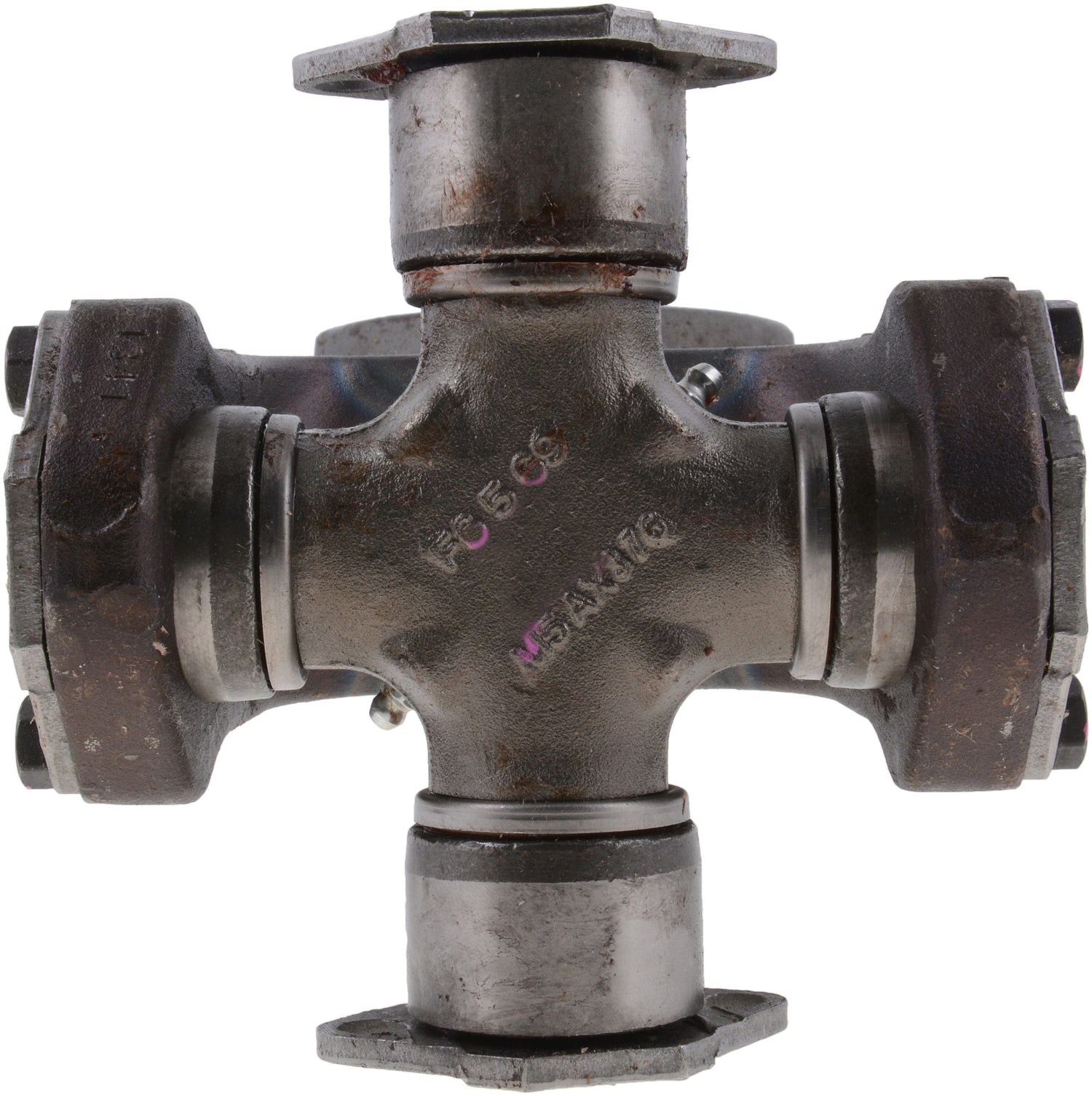

Spicer 906052-1 - Short Couple Drive Shaft
Short Couple Drive Shaft
Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- Dana manufactured Spicer Driveshafts are engineered, tested, and manufactured to meet or exceed OE requirements.
- Dana manufactured Spicer driveshafts are designed to be drop-in replacements, eliminating assembly time.
- Meets or exceeds the performance requirements of the original factory driveshaft
1/2 Max Slip (MM): 9.5250
CL Yoke To Flange Fac e(IN)-COLL: 10.8120
Series: 1810
Phased - Degrees: 0.0000
Unwelded/Welded Assembly: Unwelded
Shaft Material: Steel
Max Slip (IN): 1.1250
Max Slip (MM): 28.5750
Notes: Short Couple
CL Yoke To CL Yoke (IN) - COLL: 8.2180
CL Yoke To CL Yoke (MM) - COLL: 208.7372
Mid Slip (MM): 9.5250
Mid Slip (IN): 0.3750
FF(Flange Face) To FF (MM)-COLL: 340.5124
End 1 Type SJ Side: 6.5-2-359
CV Joints Included: No
End 2 TJ Side: 6.5-2-359
Slip Assembly: No
FF(Flange Face) To FF (IN)-COLL: 13.4060
CL Yoke To Flange Face (MM)-COLL: 274.6248
Phased (Yes/No): No
CL Yoke To Flange Face (MM)-INST: 284.1498
FF(Flange Face) To FF (IN)-INST: 13.7810
FF(Flange Face) To FF (MM)-INST: 350.0374
1/2 Max Slip (IN): 0.3750
