Spicer 76089X - DIFFERENTIAL RING AND PINION - DANA 60 - BUILDER AXLE COMPATIBLE - 3.73 RATIO

Spicer  |  SKU: FSGR-76089X
Sale price $31799 Regular price $42804

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

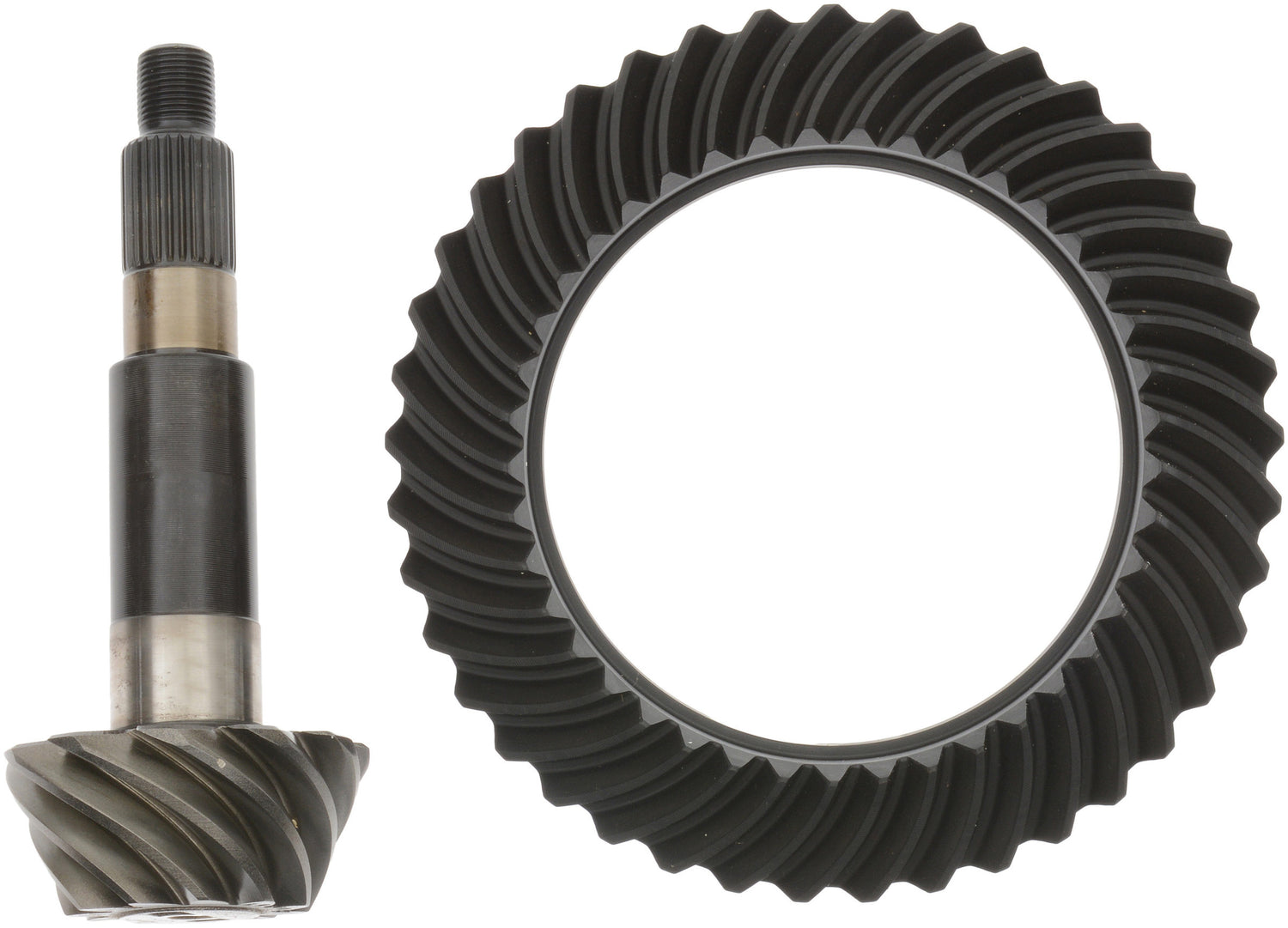

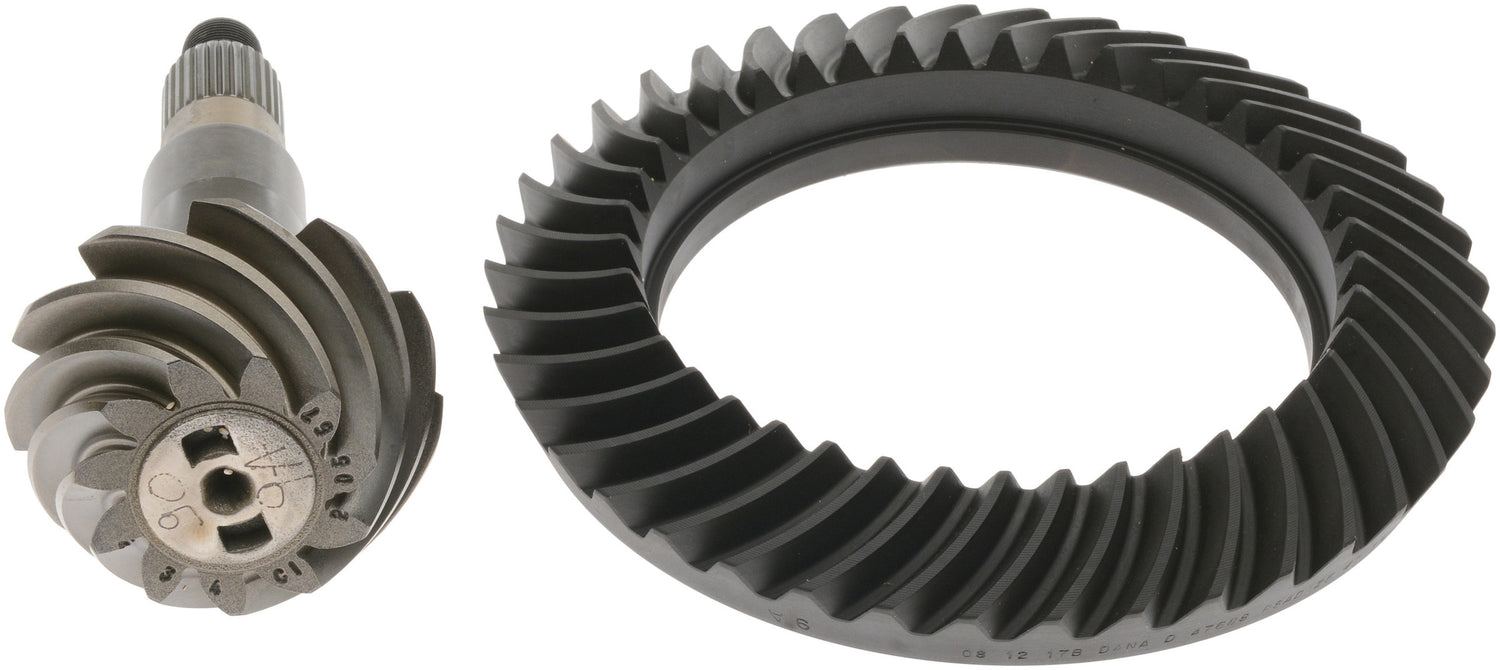

Spicer 76089X - DIFFERENTIAL RING AND PINION - DANA 60 - BUILDER AXLE COMPATIBLE - 3.73 RATIO

DIFFERENTIAL RING AND PINION - DANA 60 - BUILDER AXLE COMPATIBLE - 3.73 RATIO

All Spicer ring and pinion gears are designed and tested to meet original equipment specifications. When you purchase genuine Spicer ring and pinion gear sets, you can be confident the ring and pinion set will meet or exceed the exact Dana standards that original equipment manufacturers have relied upon for more than a hundred years.

  • Superior metallurgy: Ensures more consistent, higher quality product.
  • Hobbed and shaved gearing: Provides optimal mating to minimize stress and maximize life.
  • Precision heat-treating and shot-peening delivers consistent quality, enhanced life by reducing residual stress doubling the fatigue life of the gear.
  • High-grade steel for maximum durability.
Ring Gear Rotation: Standard
New Or Remanufactured: New
Pinion Gear Included: Y
Ring Gear Included: Y
Pinion Nut Included: N
Axle Model: DANA 60
Gear Ratio: 3.73
Ring Teeth Count: 41
Carrier Breaks: 4.10 And Down
Cover Bolt Quantity: 10
Include Installation Kit: Y
On Vehicle Location: Front/Rear
Pinion Gear Tooth Quantity: 11
Pinion Shaft Diameter: 1.625
Pinion Spline Count: 29
Ring Gear Bolt Qty: 12
Ring Gear Bolt Thread In.: .500-20
Ring Gear Diameter (In.): 9.750
