Spicer 6.5-4-5181-1X - End Yoke Assembly
Spicer | SKU:
FSGR-6.5-4-5181-1X
Sale price
$27099
Regular price
$36455
Unit price
/
Unavailable
$93.56 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

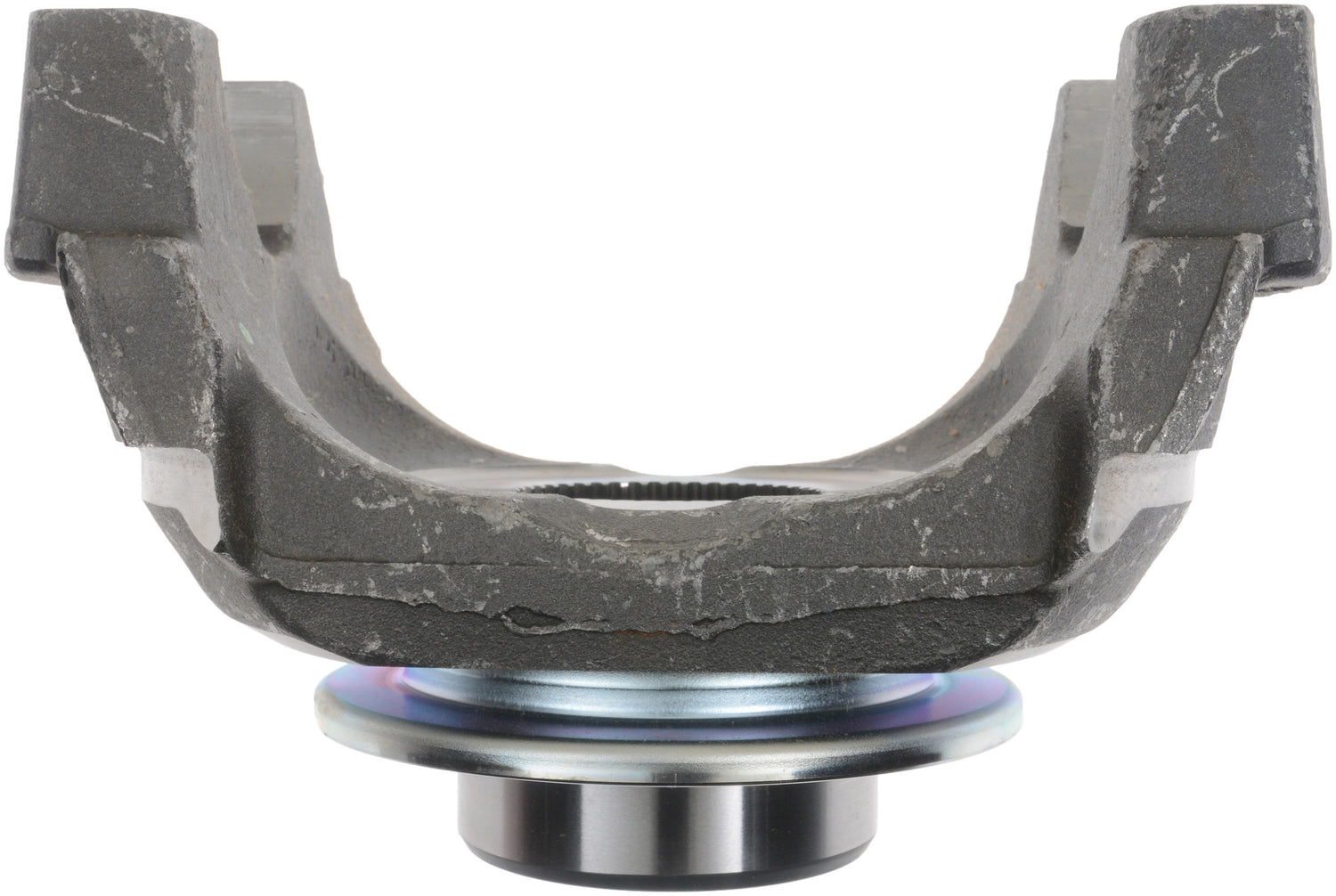

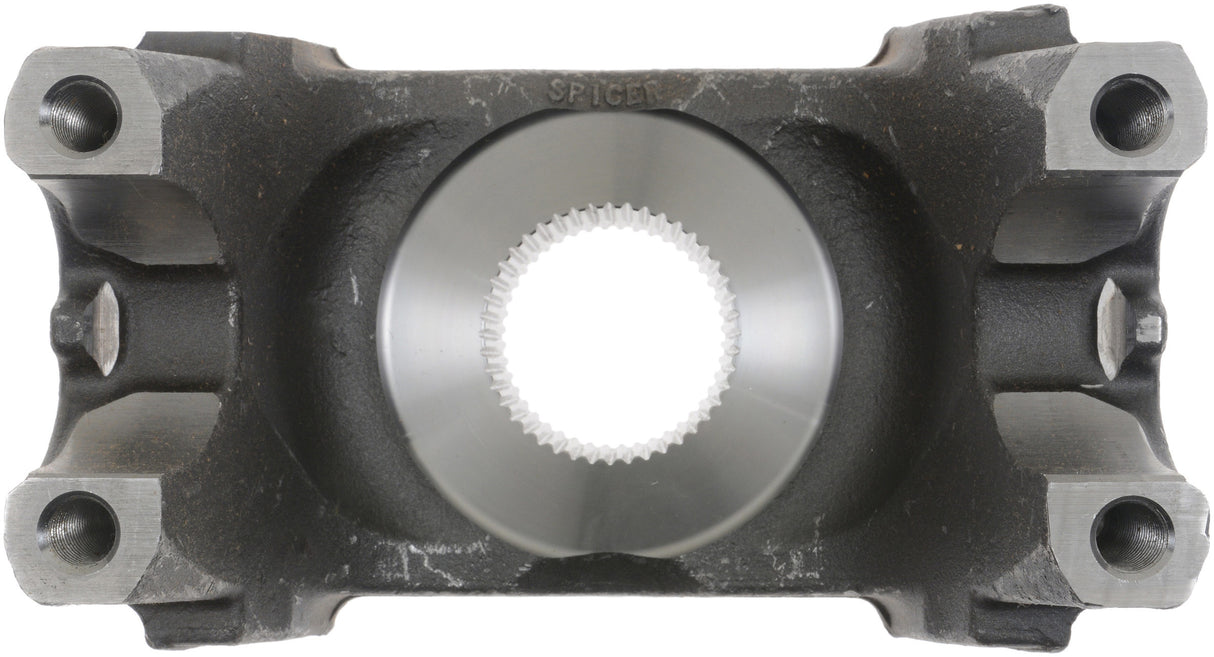

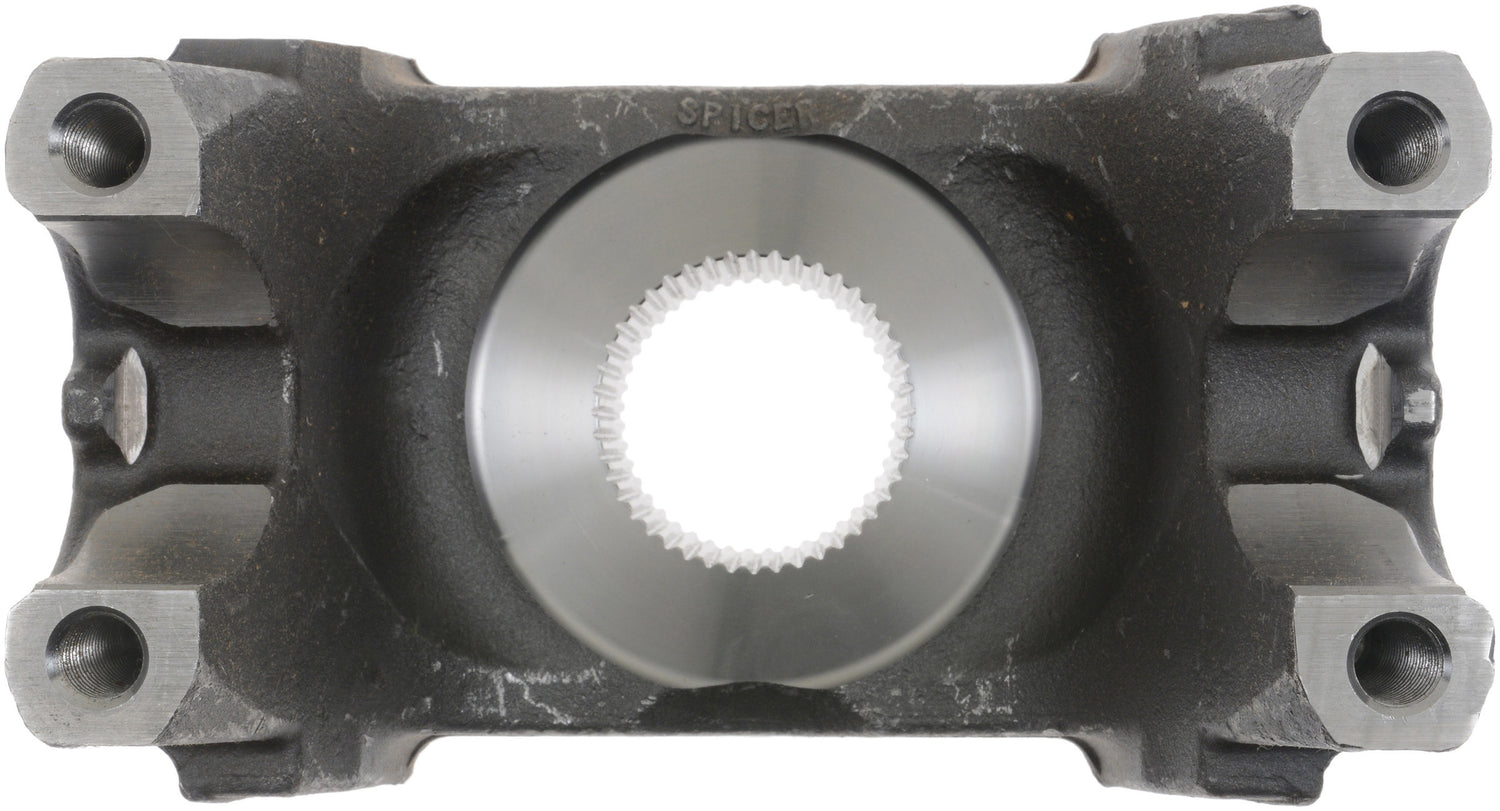

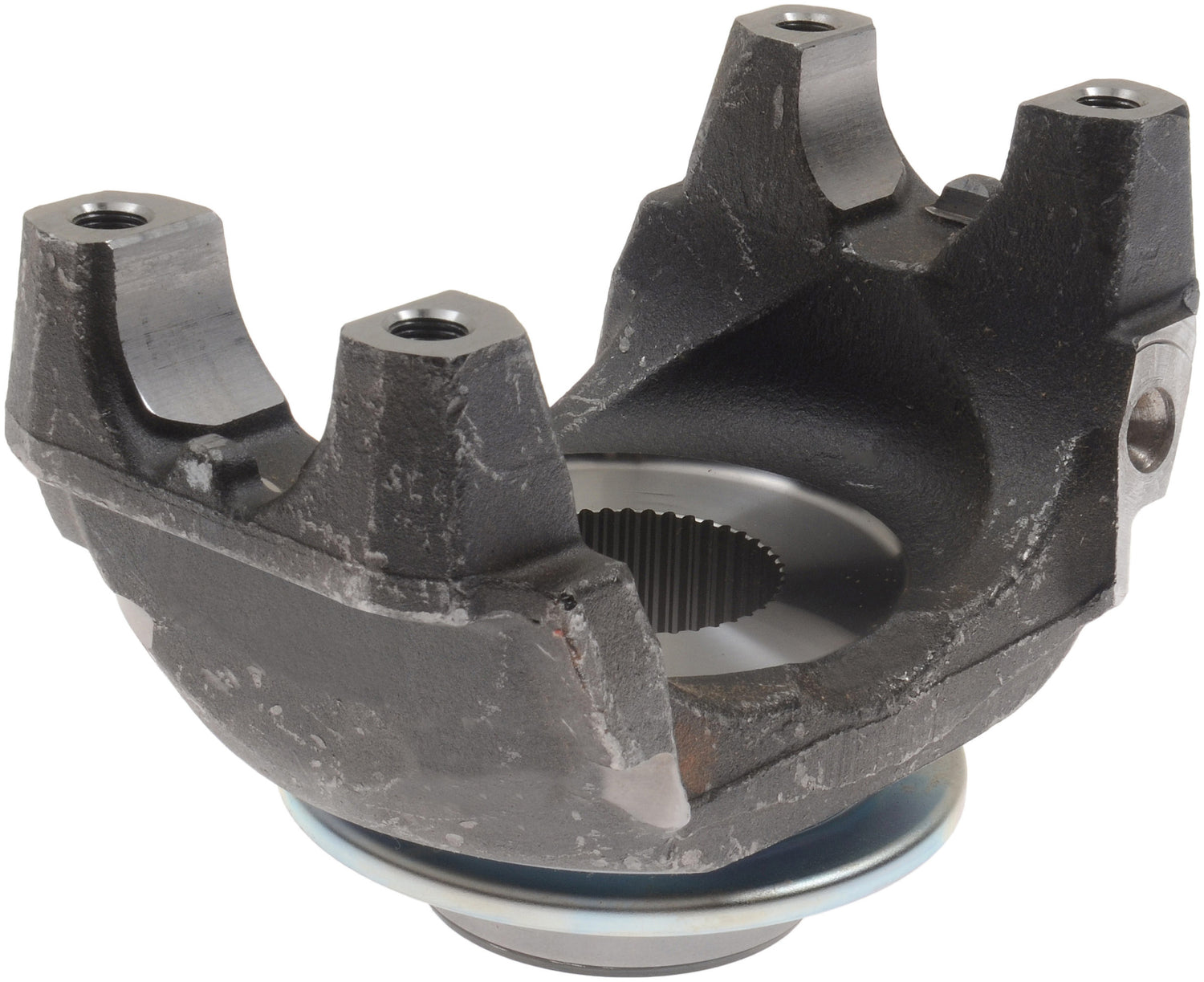

Spicer 6.5-4-5181-1X - End Yoke Assembly
End Yoke Assembly
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- Genuine OE quality. Tested and proven.
- Built to meet OE standards set by Dana
- Tested and validated to rigorous OE specifications
- Latest production upgrades ensure genuine Spicer parts are as good or better than the OE parts they replace
- Dana engineering-approved for fit, form and function
Series: 1810
Material: Steel
Spline Count: 44
Type: Splined Hole
Assembly: Y
Hub Diameter R: 3
Includes Slinger/Plug: Y
C/L To End Hub S: 5.25
C-Bore Depth: 0.236
Major Diameter: 2.274
Yoke Style: HR
Yoke Bearing Dimension (In) D: 1.938
Outside Yoke Dimension (In) E: 7.643
Length Thru Hole Q: 2.5
Involute Spline: Y
