Spicer 5006813 - Axle Shaft Universal Joint Non-Greaseable AAM 1485WJ SPL Series ISR

Spicer  |  SKU: FSGR-5006813
Sale price $8299 Regular price $9129

PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

Spicer 5006813 - Axle Shaft Universal Joint Non-Greaseable AAM 1485WJ SPL Series ISR

Universal Joint - 1485 Series - 1.375 in Bearing Caps - Clips Included - Steel - Natural - Each

Axle Shaft Universal Joint Non-Greaseable AAM 1485WJ SPL Series ISR

When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.

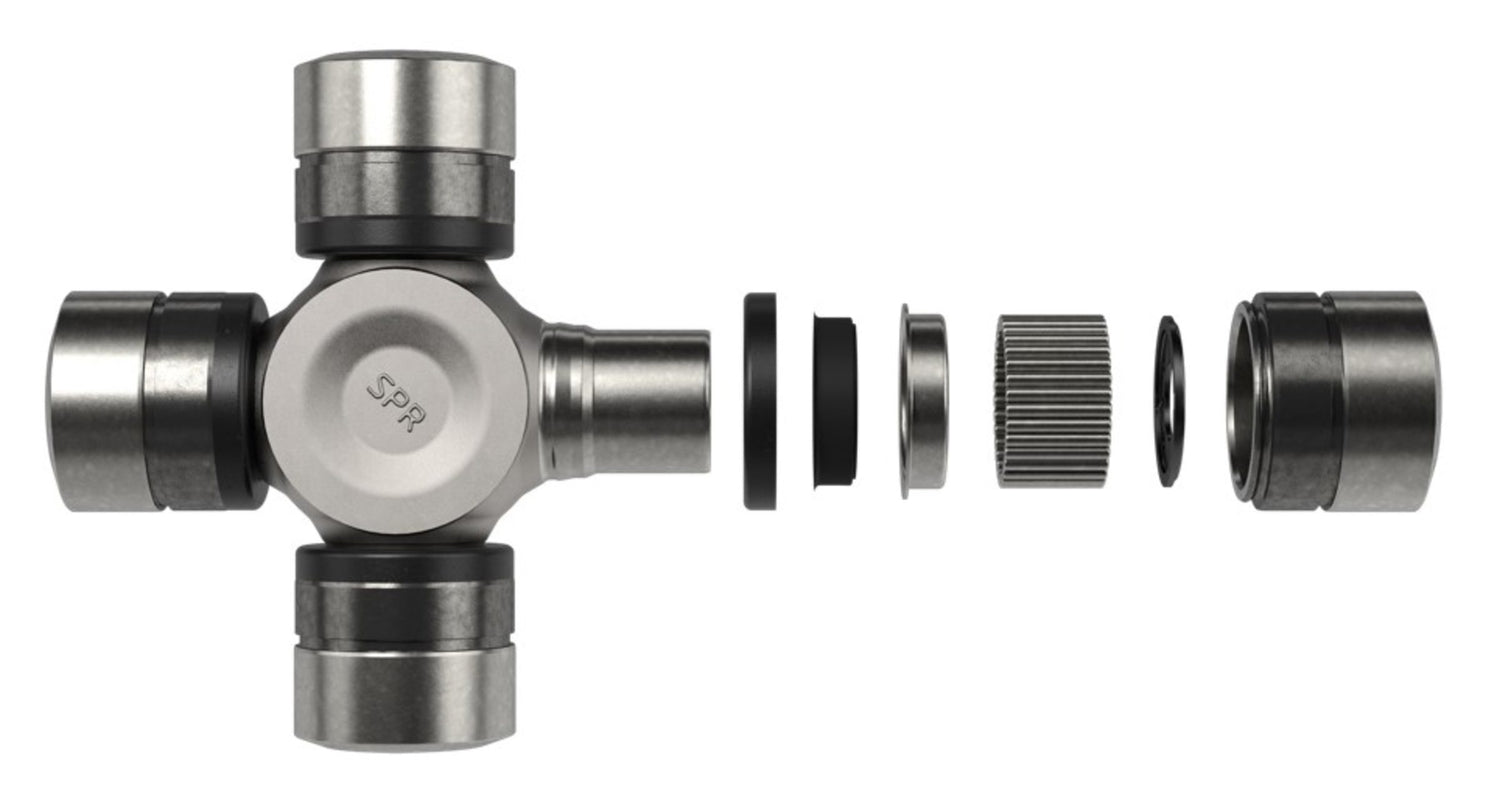

  • Journal cross is engineered with a solid cold-formed body to ensure better wear and overall strength.
  • Bearing cups are heat treated for strength; precision-ground and case-hardened for durability.
  • Multi-lip seal keeps grease in and contaminants out, and gets maximum retention in a wider range of environments.
  • Thrust washers eliminate metal-to-metal contact, prevent wear and lower the overall operating temperature.
Material: Steel

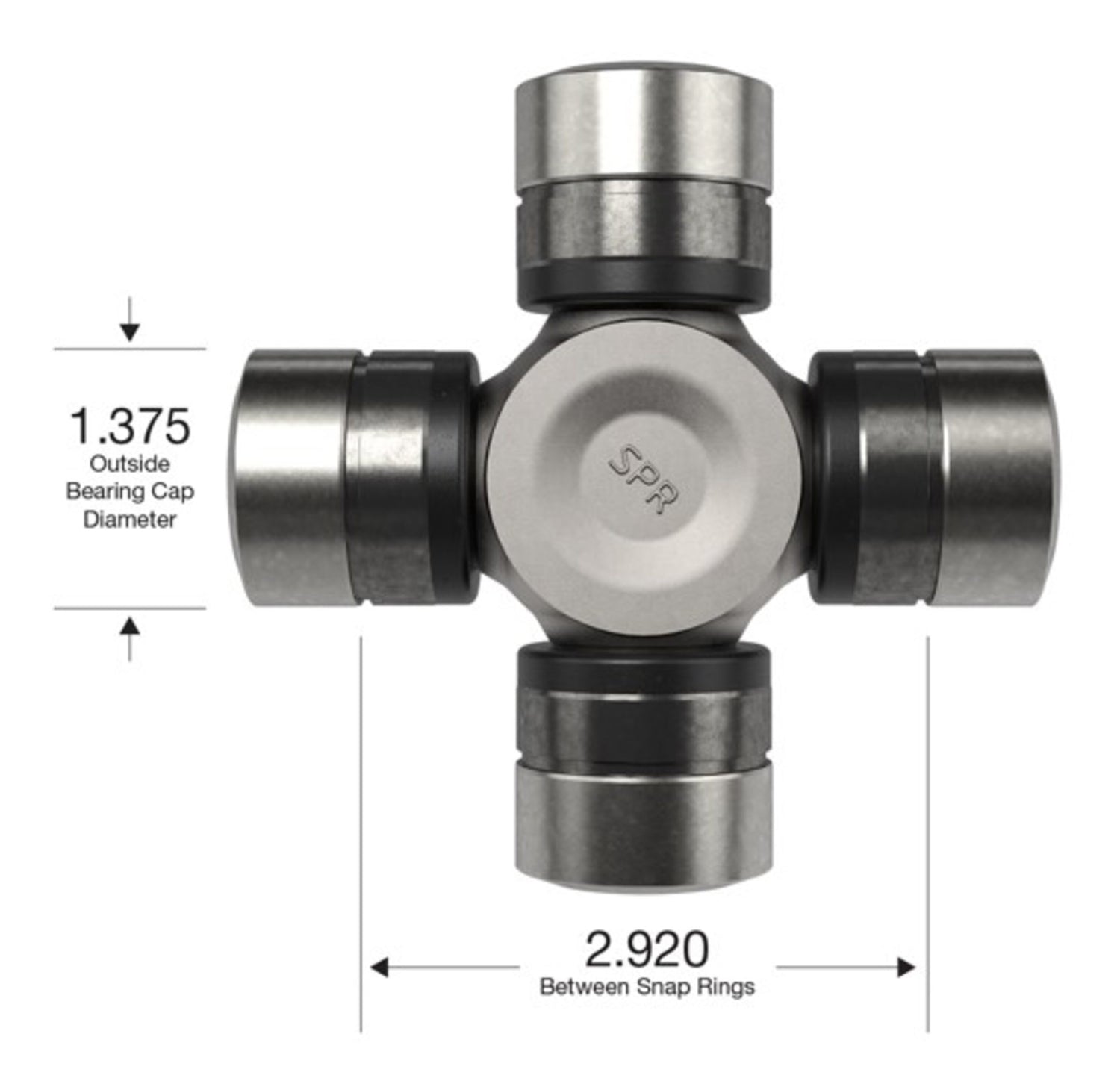

Bearing Cap Diameter (1): 1.375
OEM Mfg: AAM
OEM Series: 1485WJ
Type: ISR Style
Bearing Cap Diameter (2): 1.375
Bearing Cap Type: Round with ISR Groove

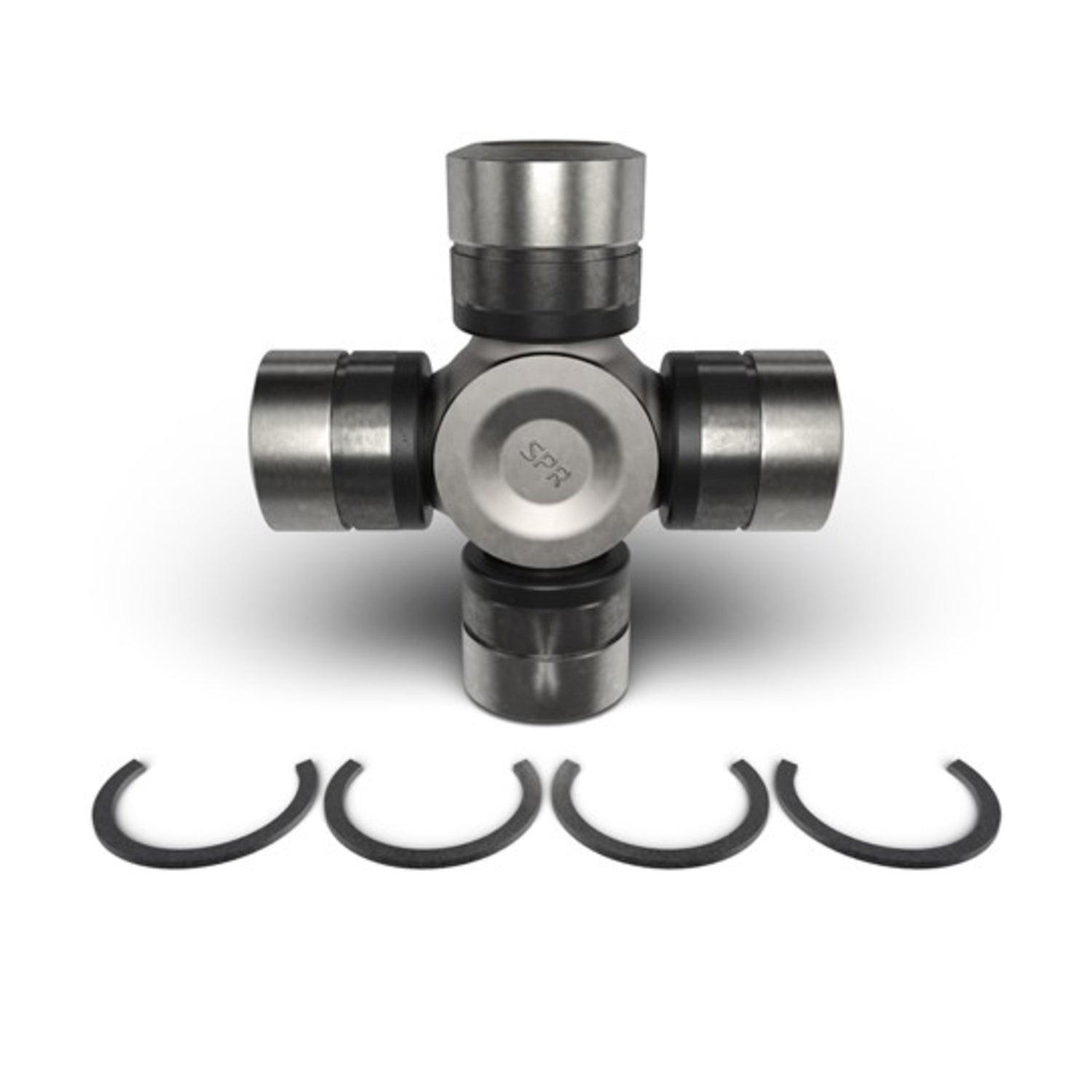

Snap Ring Included: Y
Snap Ring Type: Internal
Grease Zerk Included: Not Required
Pre Greased: N
Bearing Cap Finish: Ground
Coating Type: None
Grease Type: N.L.G.I. Grade 2
Model Number: AAM 1485WJ
Seal Color/Finish: Black
Seal Material: Rubber
Greaseable: N
Bearing Cap Diameter A (mm): 34.925
Bearing Cap Diameter B (mm): 34.925
Bearing Cap Type A: ISR
Bearing Cap Type B: ISR
Hardware Included: N
Length A (In): 2.92
Length A (mm): 74.2
Length B (In): 2.92
Length B (mm): 74.2
Mounting Hardware Included: N
