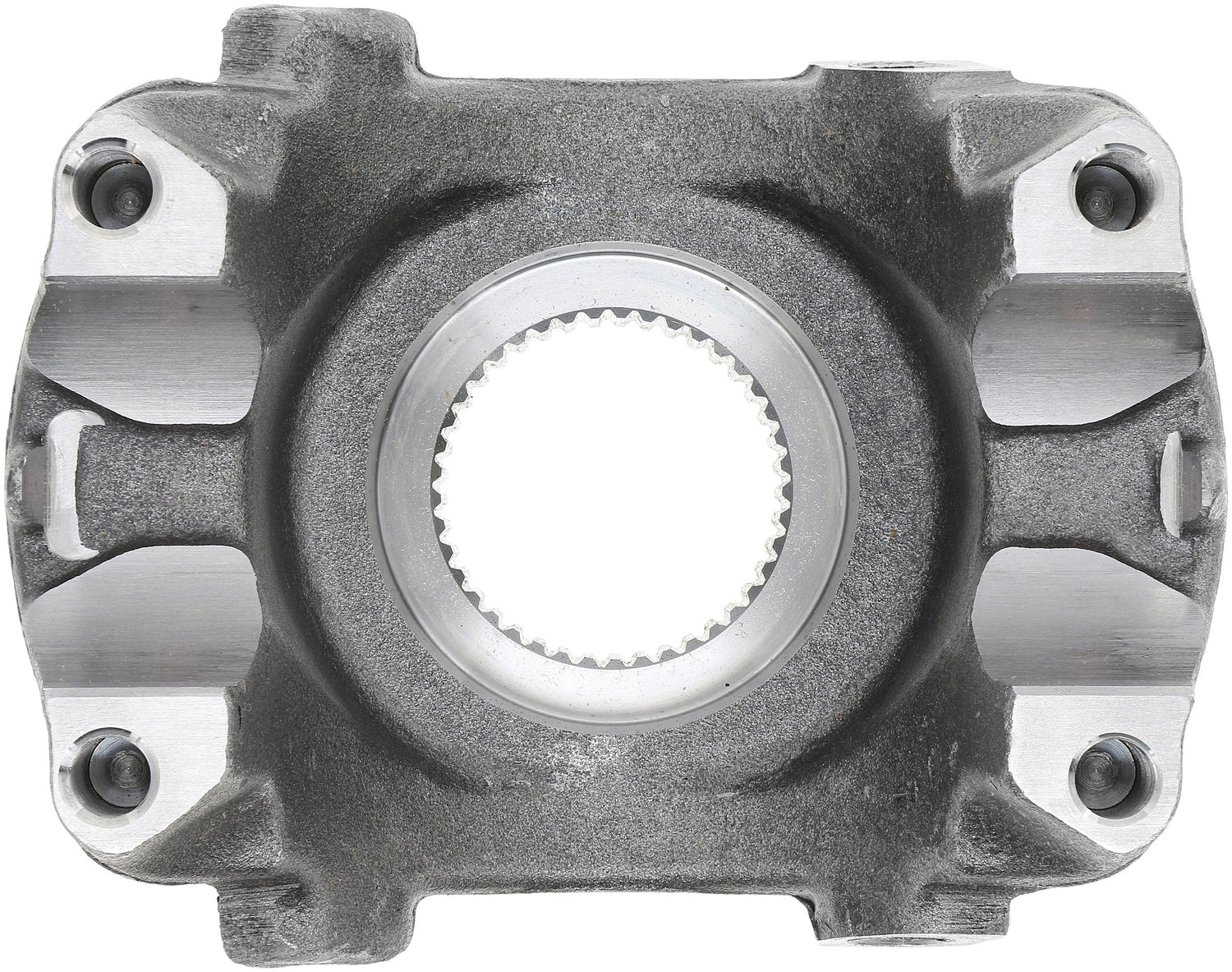

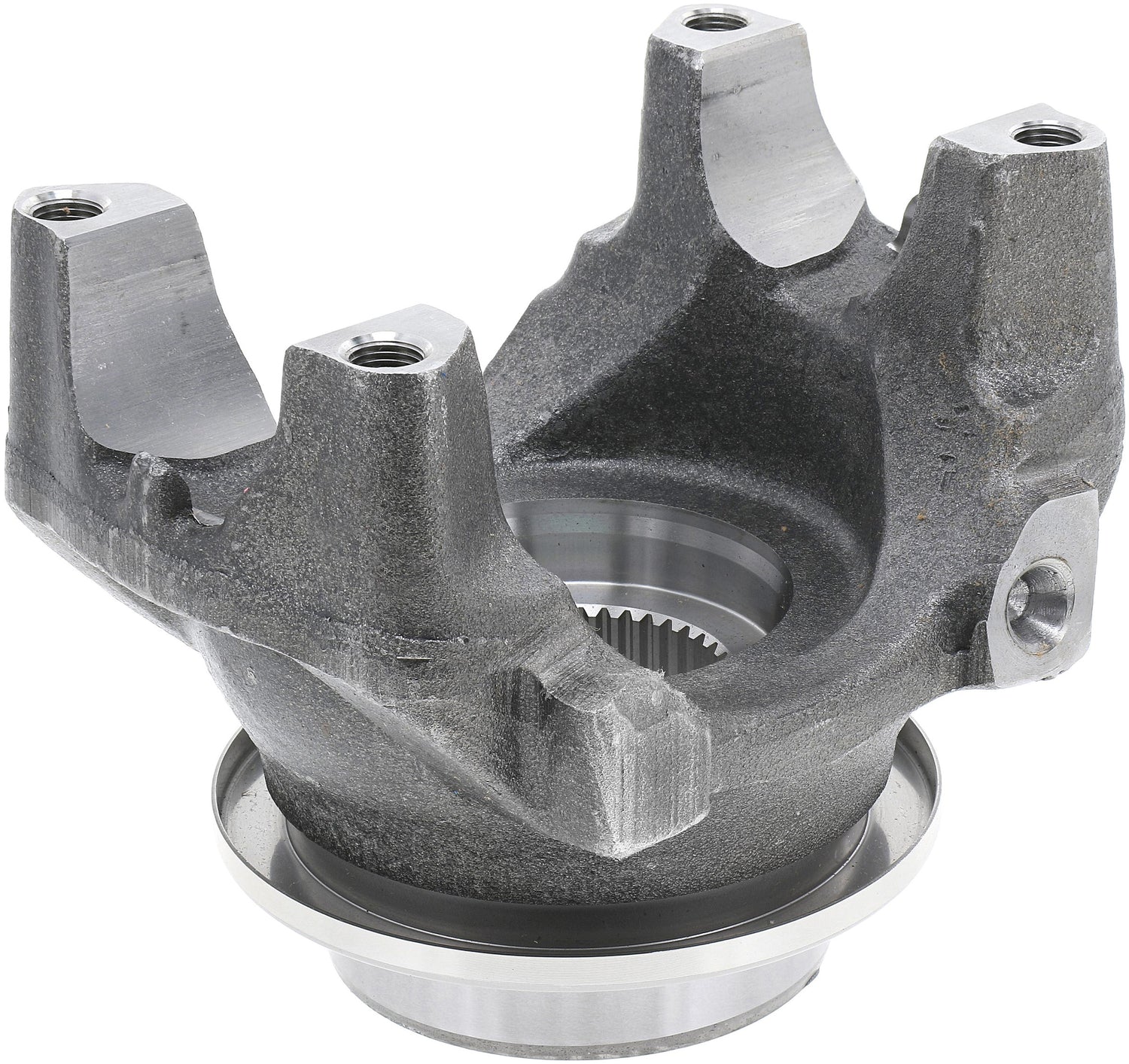

Spicer 5001048 - Automatic Transmission End Yoke Assembly - SPL170 Series; Half Round
Spicer | SKU:
FSGR-5001048
Sale price
$73399
Regular price
$99042
Unit price
/
Unavailable
$256.43 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Spicer 5001048 - Automatic Transmission End Yoke Assembly - SPL170 Series; Half Round
Automatic Transmission End Yoke Assembly - SPL170 Series; Half Round
Demand genuine Spicer with all the components needed for the repair. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- Dana manufactured Spicer components are designed, engineered, tested, and manufactured to meet or exceed OE requirements.
- Spicer components are engineered to meet or exceeds the performance requirements of the original factory driveline component
- Tested for unparalleled reliability
- Strength and durability for long life
- Dana engineering-approved for fit, form and function
Length Thru Hole Q: 1.874
Outside Yoke Dimension (In) E: 6.456
Yoke Bearing Dimension (In) D: 2.166
Yoke Style: HR
Major Diameter: 2.178
Involute Spline: Y
Includes Slinger/Plug: 5001045
Hub Diameter R: 3.540
Type: Splined Hole
Spline Count: 41
Material: Steel
Note: Allison No. 29540320
C/L To End Hub S: 5.280
C-Bore Depth: 0.118
C-Bore Diameter: 3.268
Joint Angle #1: 26
Series: SPL170
