Spicer 5-155X - Universal Joint Greaseable 1550 Series

Spicer  |  SKU: FSGR-5-155X
$7599 $8359

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

Spicer 5-155X - Universal Joint Greaseable 1550 Series

Universal Joint Greaseable Spicer 1550 Series

When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.

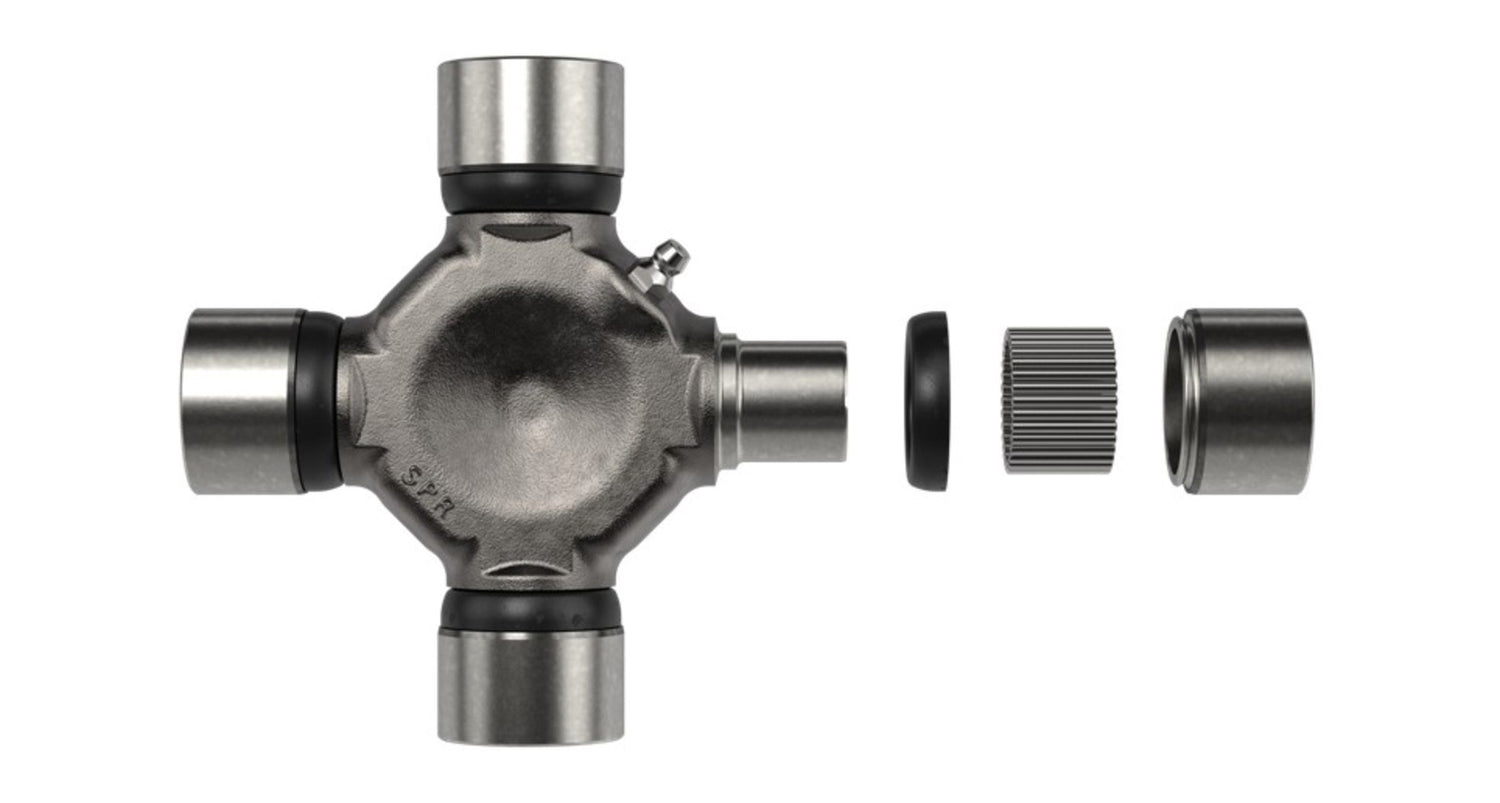

  • Journal cross is engineered with a solid cold-formed body to ensure better wear and overall strength.
  • Bearing cups are heat treated for strength; precision-ground and case-hardened for durability.
  • Multi-lip seal keeps grease in and contaminants out, and gets maximum retention in a wider range of environments.
  • Thrust washers eliminate metal-to-metal contact, prevent wear and lower the overall operating temperature.
Material: Steel
Bearing Cap Diameter (1): 1.375
OEM Mfg: Spicer
OEM Series: 1550
Type: OSR Style
Bearing Cap Diameter (2): 1.375
Bearing Cap Type: Round

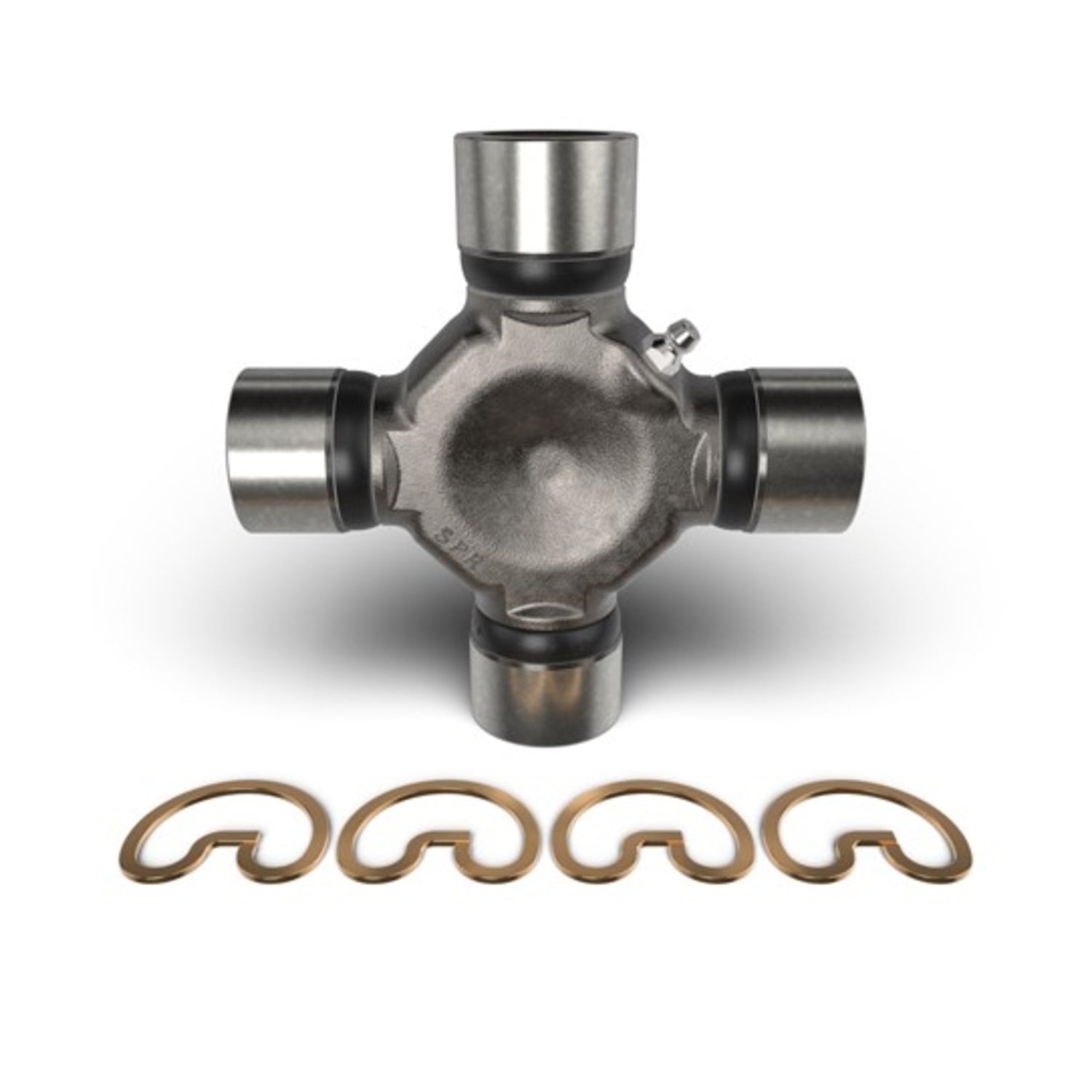

Snap Ring Included: Y
Snap Ring Type: External
Grease Zerk Included: Y
Grease Fitting Location: Side of Cross
Greaseable: Y
Bearing Cap Diameter A (mm): 34.9
Bearing Cap Diameter B (mm): 34.9
Bearing Cap Type A: OSR
Bearing Cap Type B: OSR
Hardware Included: N

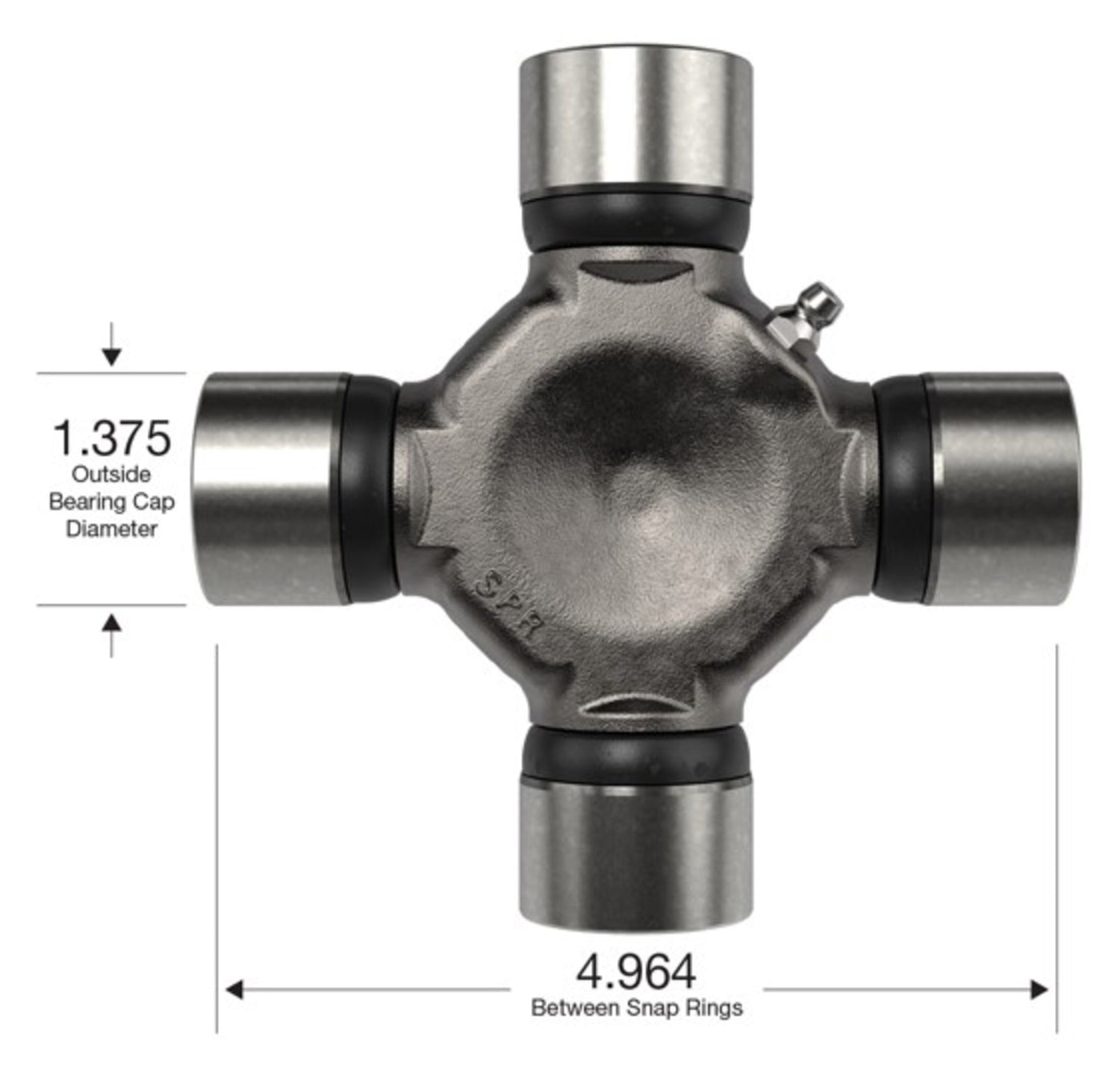

Length A (In): 4.964
Length A (mm): 126.1
Length B (In): 4.964
Length B (mm): 126.1
Mounting Hardware Included: N
SR(1)Brng Cap to Brng Cap(OSR): 4.964
SR(2)Brng Cap to Brng Cap(OSR): 4.964
