Spicer 5-1514X - Universal Joint Greaseable Mazda Series for GLC

Spicer  |  SKU: FSGR-5-1514X
Sale price $5199 Regular price $6123

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

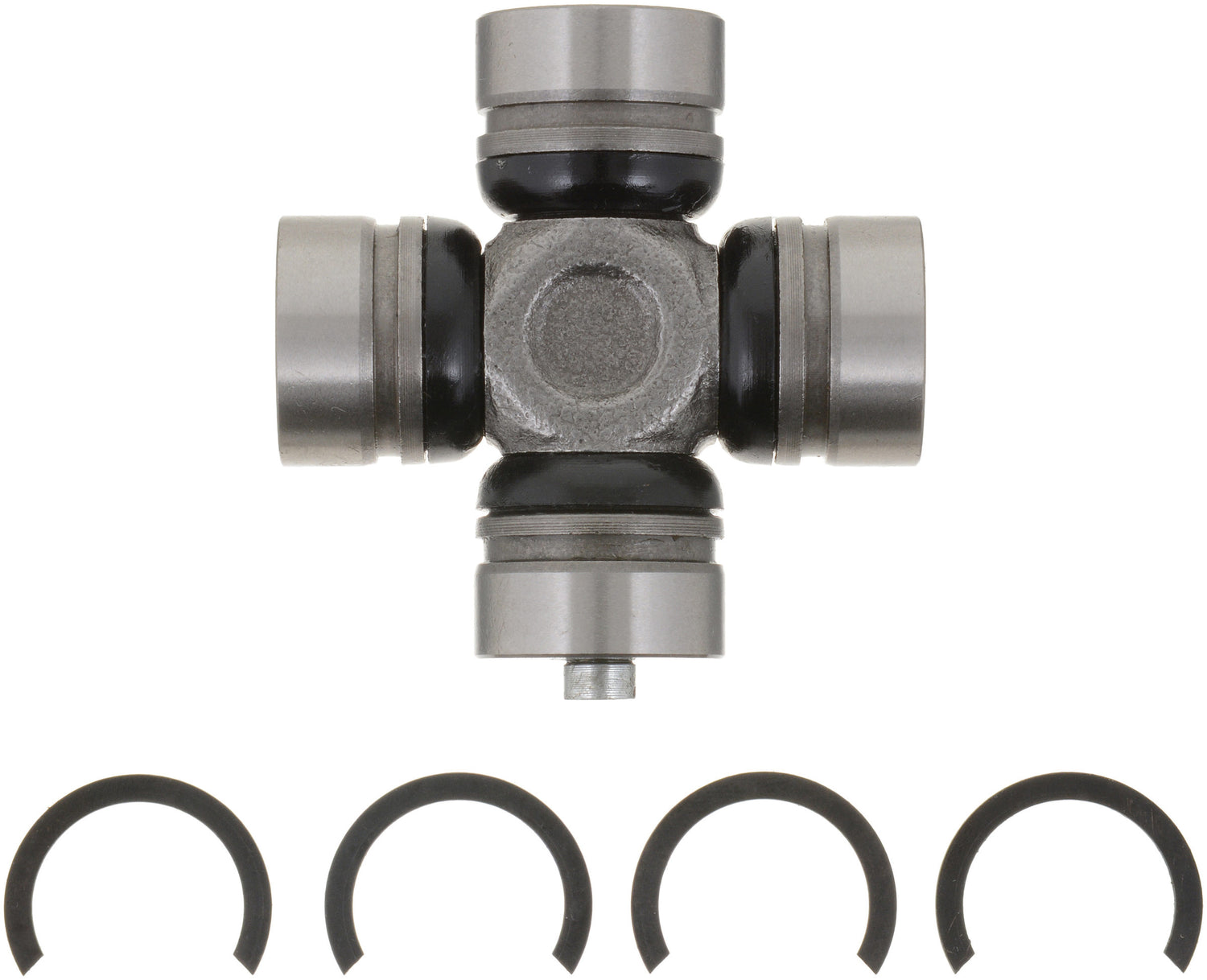

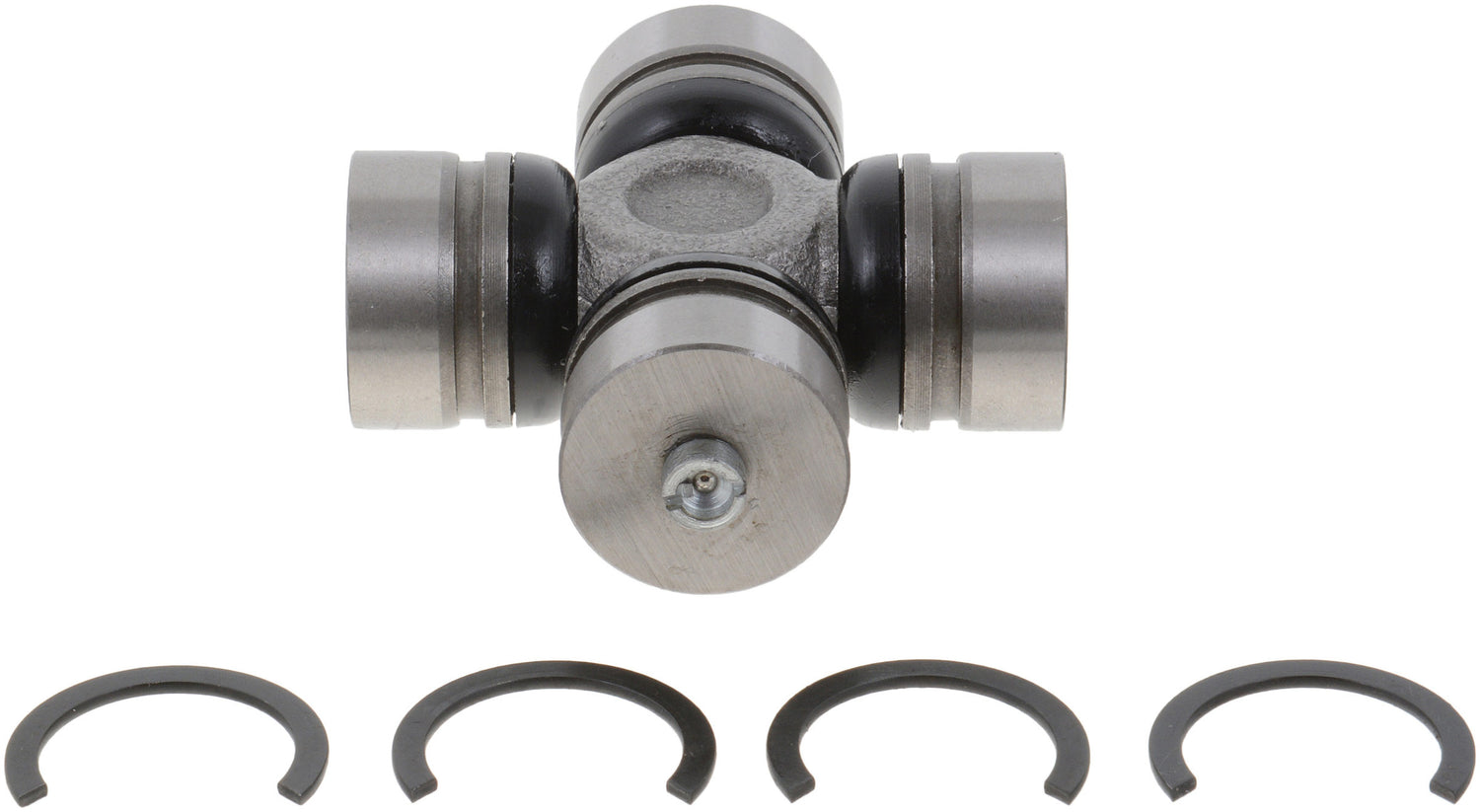

Spicer 5-1514X - Universal Joint Greaseable Mazda Series for GLC

Universal Joint Greaseable Mazda Series for GLC

When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.

  • Journal cross is engineered with a solid cold-formed body to ensure better wear and overall strength.
  • Bearing cups are heat treated for strength; precision-ground and case-hardened for durability.
  • Multi-lip seal keeps grease in and contaminants out, and gets maximum retention in a wider range of environments.
  • Thrust washers eliminate metal-to-metal contact, prevent wear and lower the overall operating temperature.
Material: Steel
Bearing Cap Diameter (1): 0.886
OEM Mfg: Mazda
OEM Series: Mazda
Type: ISR Style
Bearing Cap Diameter (2): 0.886
Bearing Cap Type: Round with ISR Groove
Snap Ring Included: Yes
Snap Ring Type: Internal
Grease Zerk Included: Yes
Pre Greased: No
Grease Fitting Location: In Bearing Cap
Greaseable: Yes
Bearing Cap Diameter A (mm): 22.504
Bearing Cap Diameter B (mm): 22.504
Bearing Cap Type A: ISR
Bearing Cap Type B: ISR
Hardware Included: No
Length A (In): 1.482
Length A (mm): 37.643
Length B (In): 1.482
Length B (mm): 37.643
Mounting Hardware Included: No
Distance Btw Snap Ring Grooves: 1.482
Distance Btw Snap Ring Grooves (ISR) (2): 1.482
