Spicer 5-1510X - Universal Joint Greaseable Toyota Series ISR

Spicer  |  SKU: FSGR-5-1510X
$4099 $4655

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

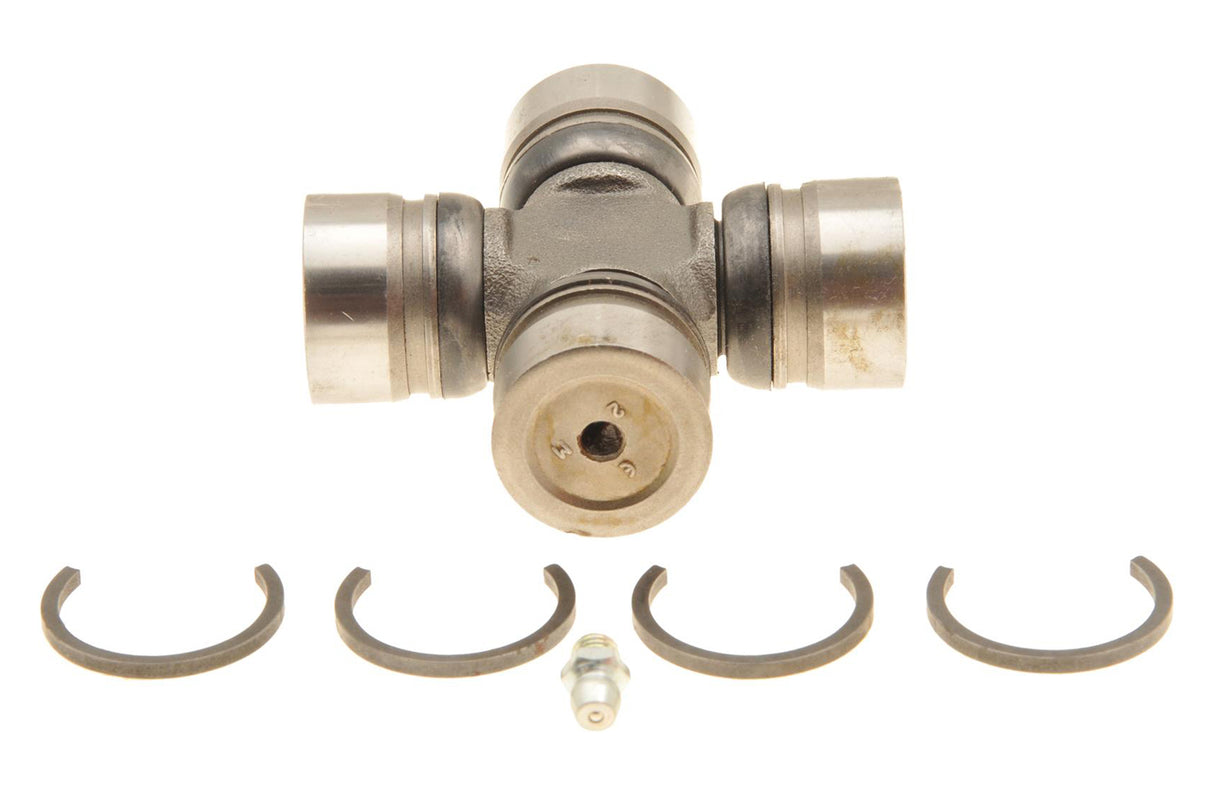

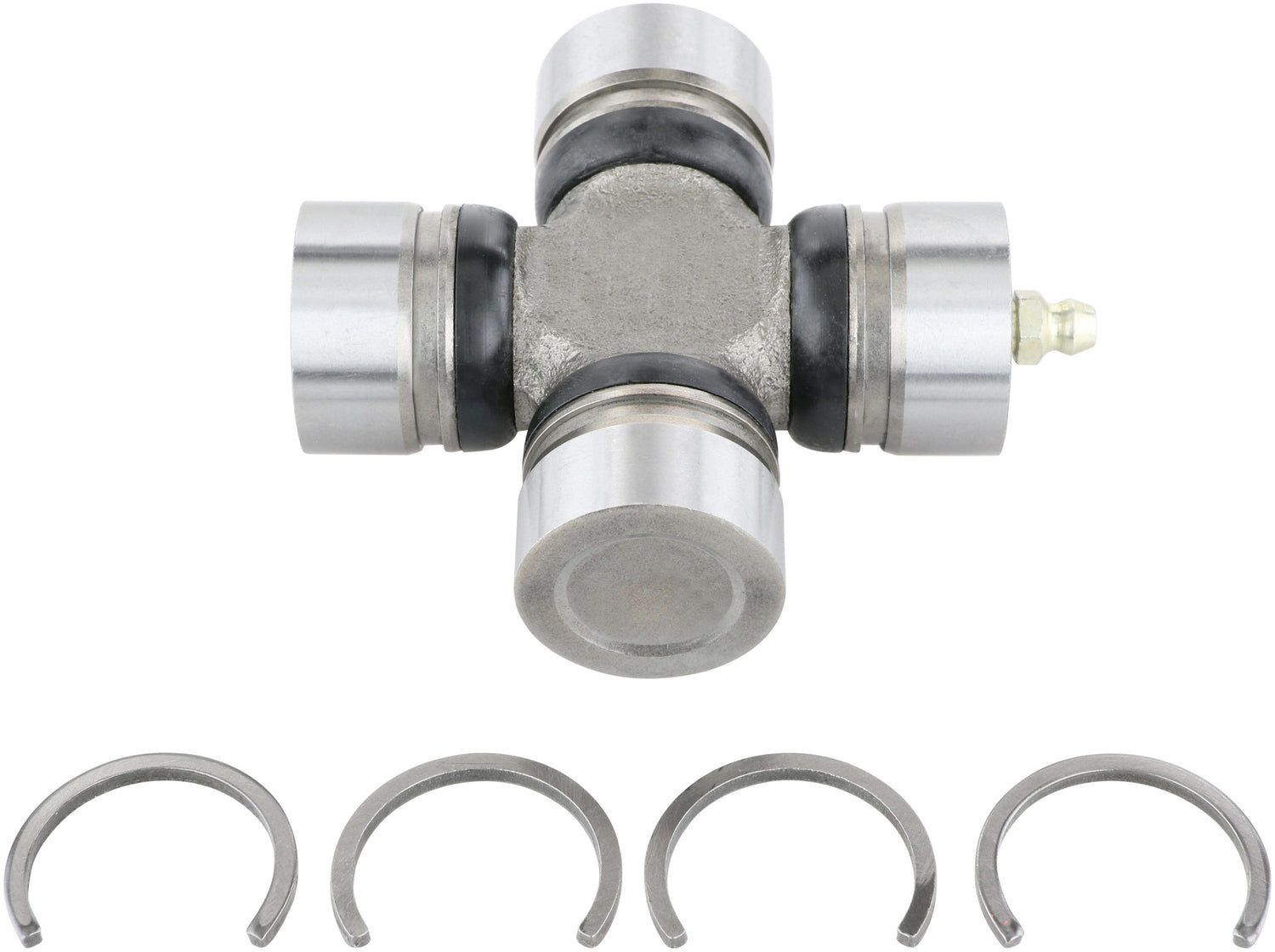

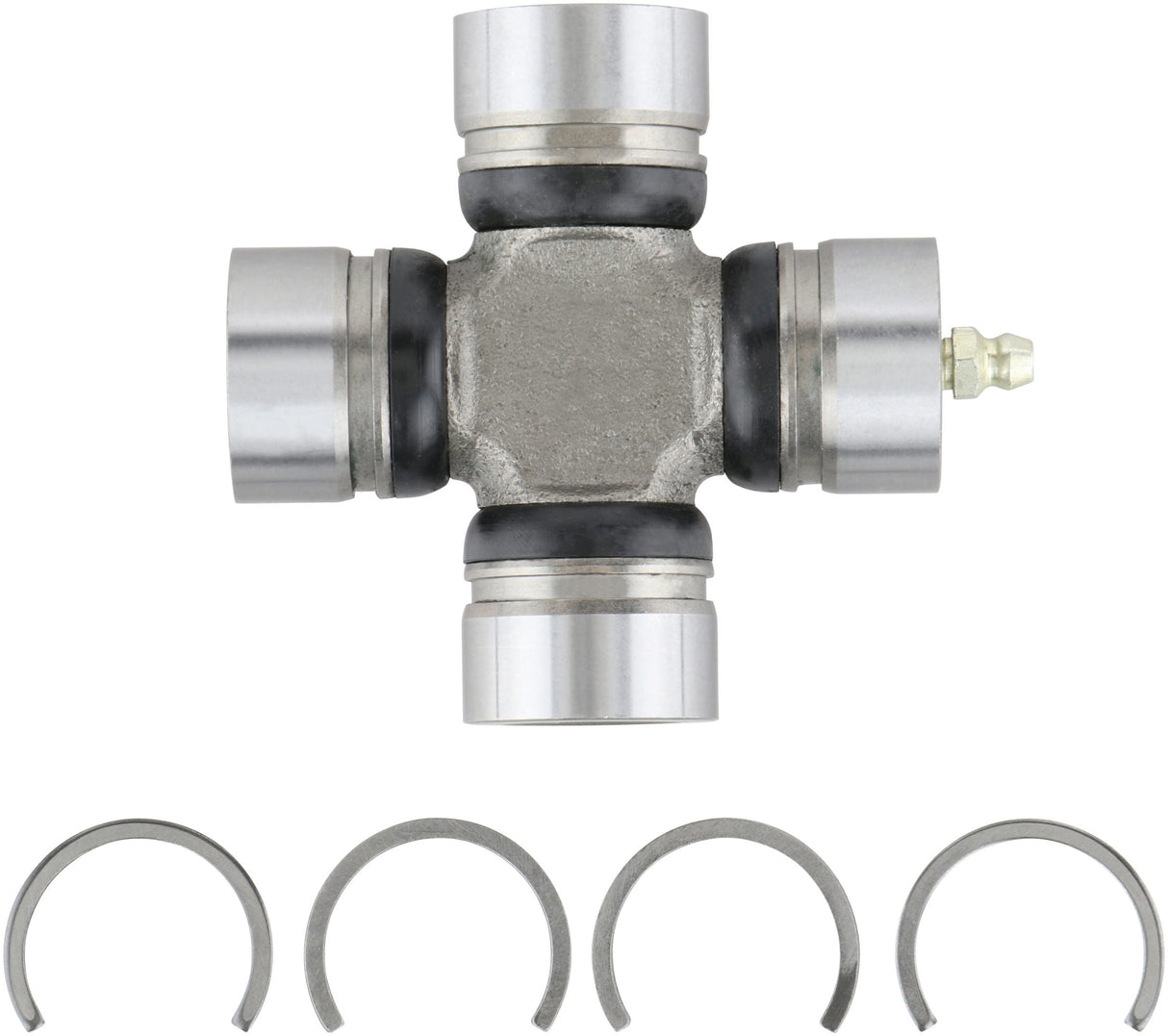

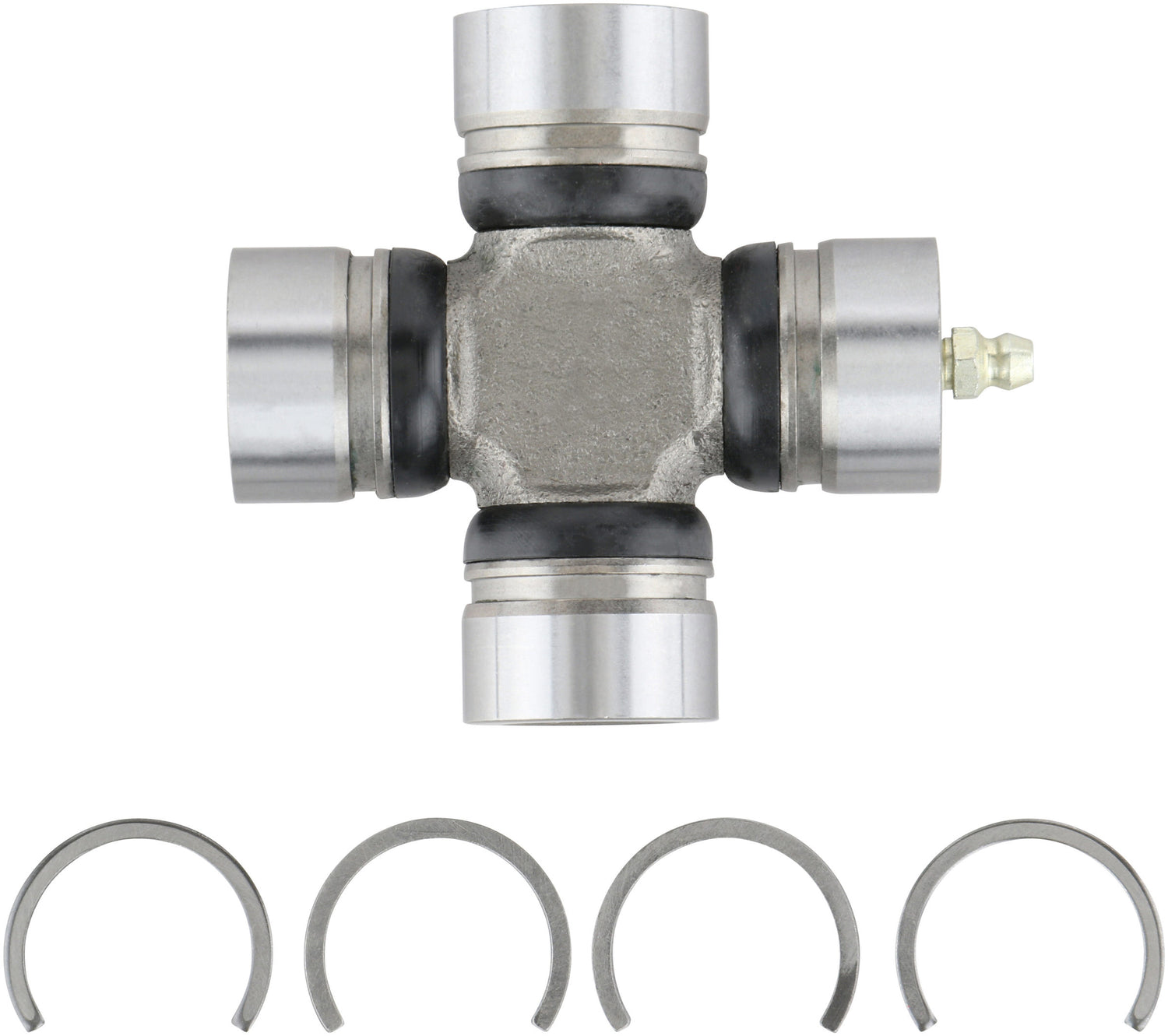

Spicer 5-1510X - Universal Joint Greaseable Toyota Series ISR

Universal Joint - Toyota Series - 1.142 in Bearing Caps - Clips Included - Greasable - Steel - Natural - Each

Universal Joint Greaseable Toyota Series ISR

When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.

  • Genuine OE quality. Tested and proven.
  • Built to meet OE standards set by Dana
  • Tested and validated to rigorous OE specifications
  • Backed by Dana design and engineering standards you trust to ensure your customers only come back satisfied.
Material: Steel
Bearing Cap Diameter (1): 1.142
OEM Mfg: Toyota
OEM Series: Ford/Mazda
Type: ISR Style
Bearing Cap Diameter (2): 1.142
Bearing Cap Type: Round with ISR Groove
Snap Ring Included: Yes
Snap Ring Type: Internal
Grease Zerk Included: Yes
Pre Greased: No
Bearing Cap Finish: Ground
Coating Type: None
Grease Fitting Location: In Bearing Cap
Grease Type: N.L.G.I. Grade 2
Model Number: TOYOTA
Seal Color/Finish: Black
Seal Material: Rubber
Greaseable: Yes
Bearing Cap Diameter A (mm): 29.000
Bearing Cap Diameter B (mm): 29.000
Bearing Cap Type A: ISR
Bearing Cap Type B: ISR
Hardware Included: No
Length A (In): 2.047
Length A (mm): 52.000
Length B (In): 2.047
Length B (mm): 52.000
Mounting Hardware Included: No
Distance Btw Snap Ring Grooves: 2.047
Distance Btw Snap Ring Grooves (ISR) (2): 2.047
