Spicer 5-1480SPX-MK - SPX 1480 M60 Extreme Universal Wheel Joint Master Kit

Spicer  |  SKU: FSGR-5-1480SPX-MK
Sale price $1,09679 Regular price $1,20647

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

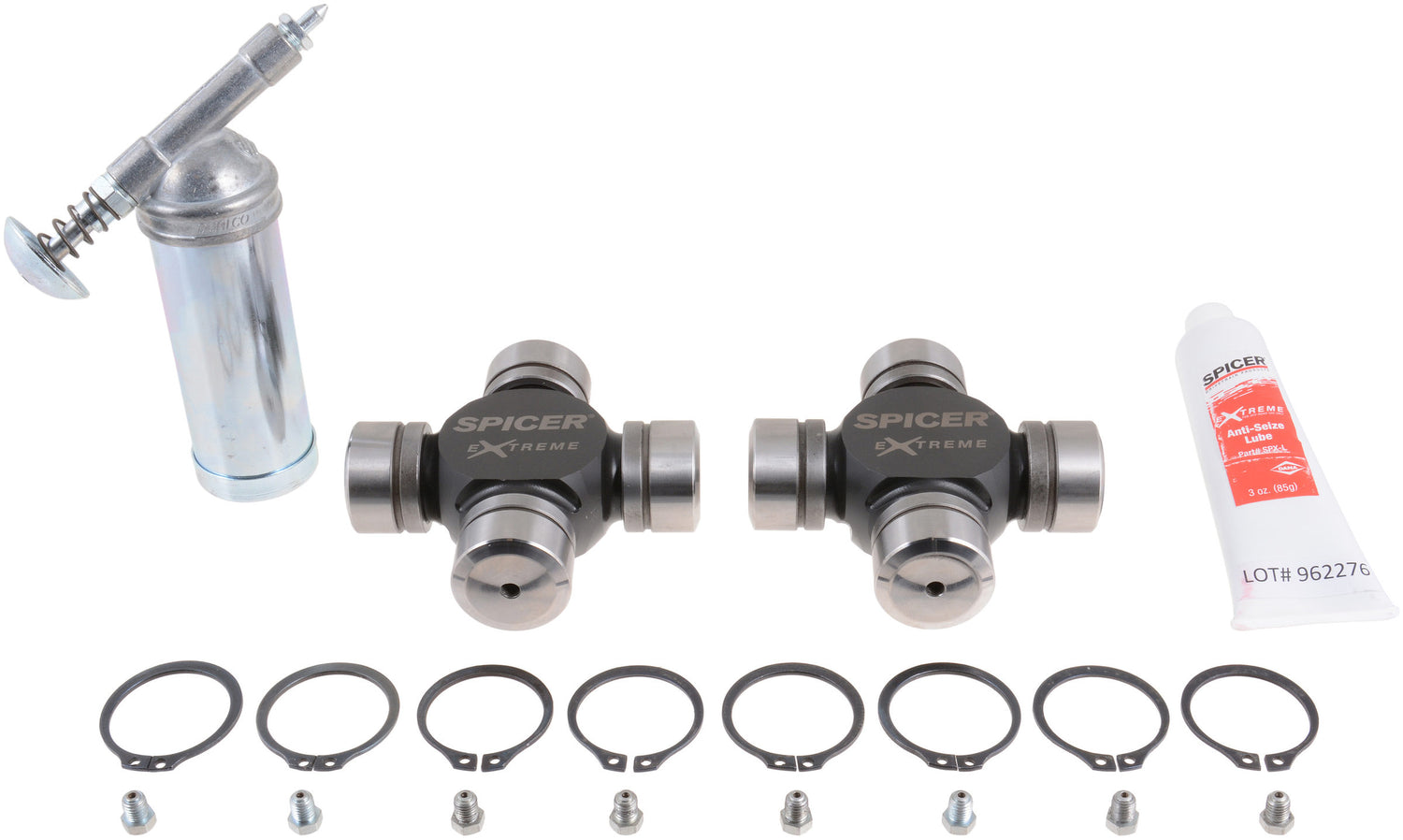

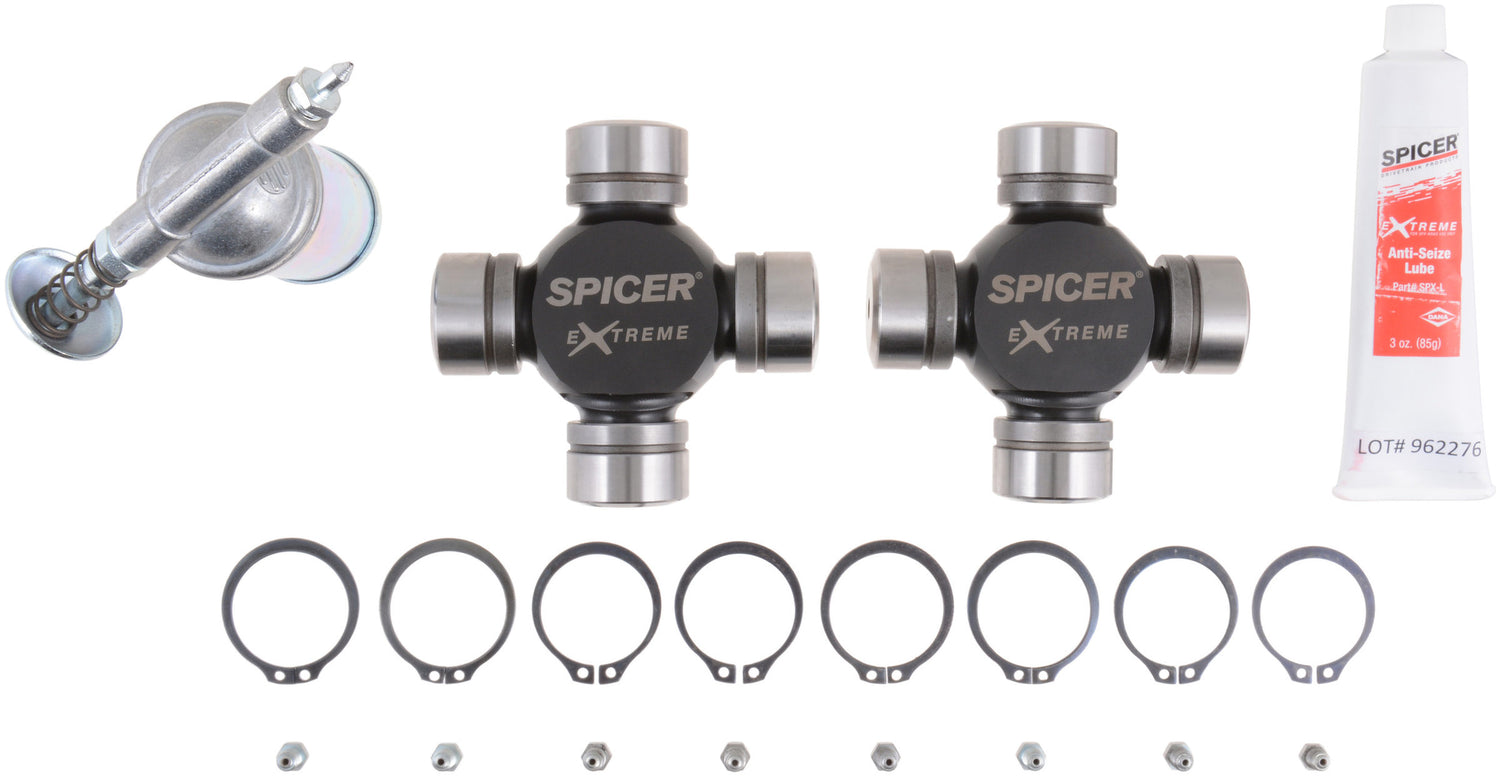

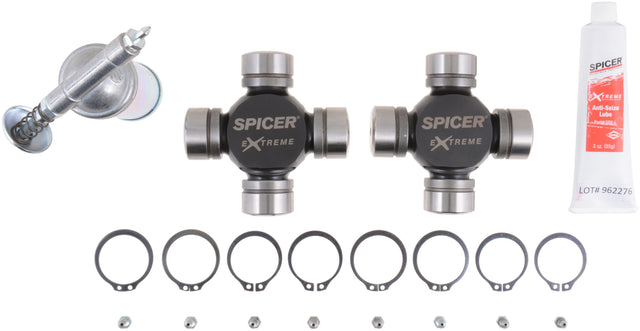

Spicer 5-1480SPX-MK - SPX 1480 M60 Extreme Universal Wheel Joint Master Kit

SPX 1480 M60 Spicer Extreme Universal Wheel Joint Master Kit

Spicer parts from Dana are trusted around the world for their high performance and outstanding durability, and now Spicer brings you their toughest u-joint yet: the Spicer Extreme u-joint. These u-joints can take any off-roading punishment you can dish out. They are virtually indestructible! Featuring a SAE-4340 nickel chromoly steel cross with an enlarged trunnion diameter for added strength, Spicer Extreme u-joints allow you to crawl over every boulder and come back for more. For off-road use only.

  • Journal cross is engineered with a solid cold-formed body to ensure better wear and overall strength
  • Bearing cups are heat treated for strength; precision-ground and case-hardened for durability
  • Multi-lip seal keeps grease in and contaminants out, and gets maximum retention in a wider range of environments
  • Thrust washers eliminate metal-to-metal contact, prevent wear and lower the overall operating temperature
Material: Steel
Bearing Cap Diameter (1): 1.375
OEM Mfg: Spicer
OEM Series: SPL55/1480WJ
Type: ISR Style
Bearing Cap Diameter (2): 1.375
Bearing Cap Type: Round with ISR Groove
Snap Ring Included: Yes
Snap Ring Type: Internal
Grease Zerk Included: Yes
Pre Greased: No
Grease Fitting Location: All 4 Bearing Caps
Greaseable: Yes
Bearing Cap Diameter A (mm): 34.925
Bearing Cap Diameter B (mm): 34.925
Bearing Cap Type A: ISR
Bearing Cap Type B: ISR
Hardware Included: No
Length A (In): 3.000
Length A (mm): 76.200
Length B (In): 3.000
Length B (mm): 76.200
Mounting Hardware Included: No
SR(1)Brng Cap to Brng Cap(OSR): 3.010
Distance Btw Snap Ring Grooves: 3.000
Distance Btw Snap Ring Grooves (ISR) (2): 3.010
