Spicer 4-4-5611-1X - PINION SHAFT END YOKE
Spicer | SKU:
FSGR-4-4-5611-1X
Sale price
$21099
Regular price
$28458
Unit price
/
Unavailable
$73.59 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

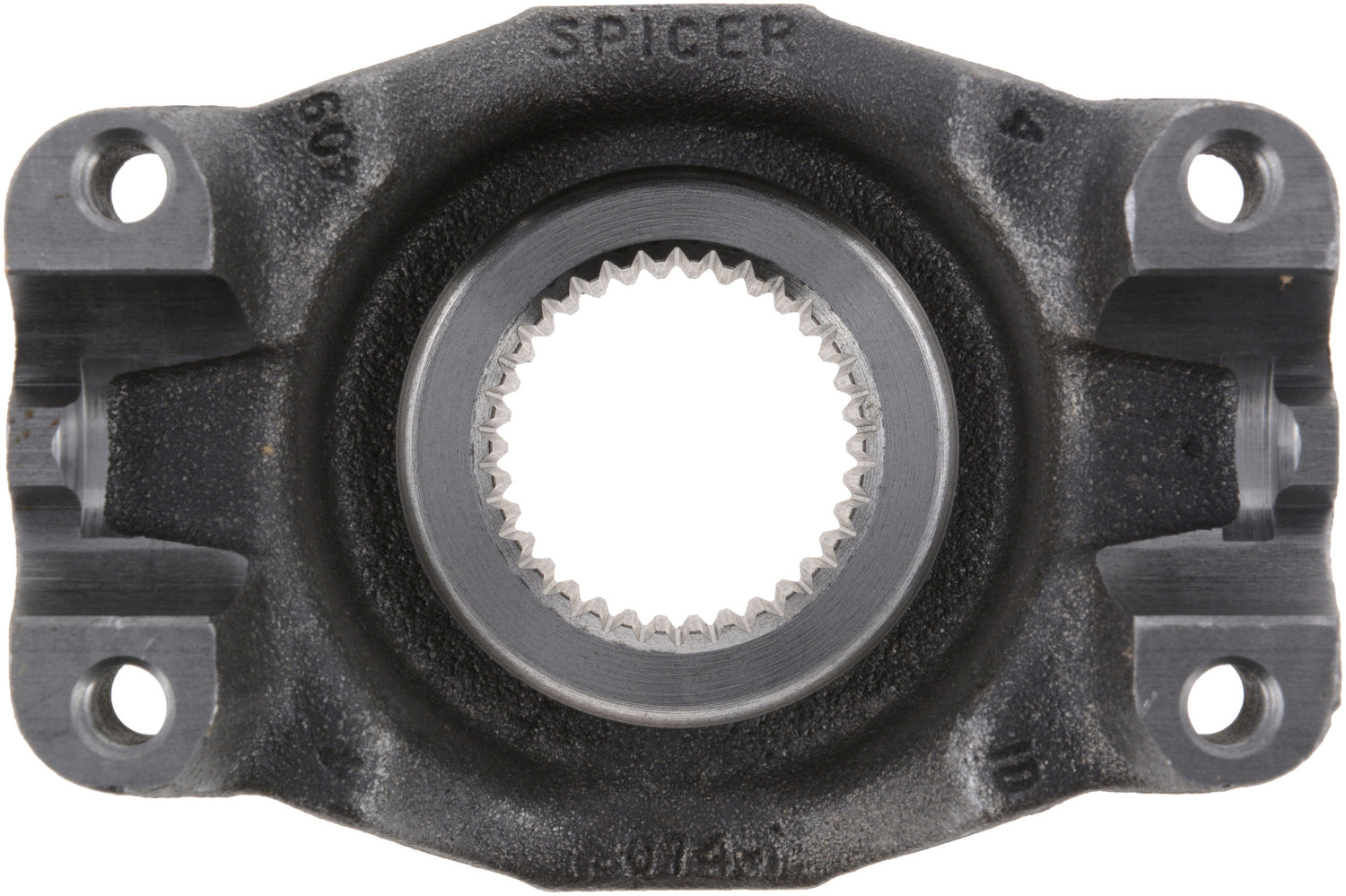

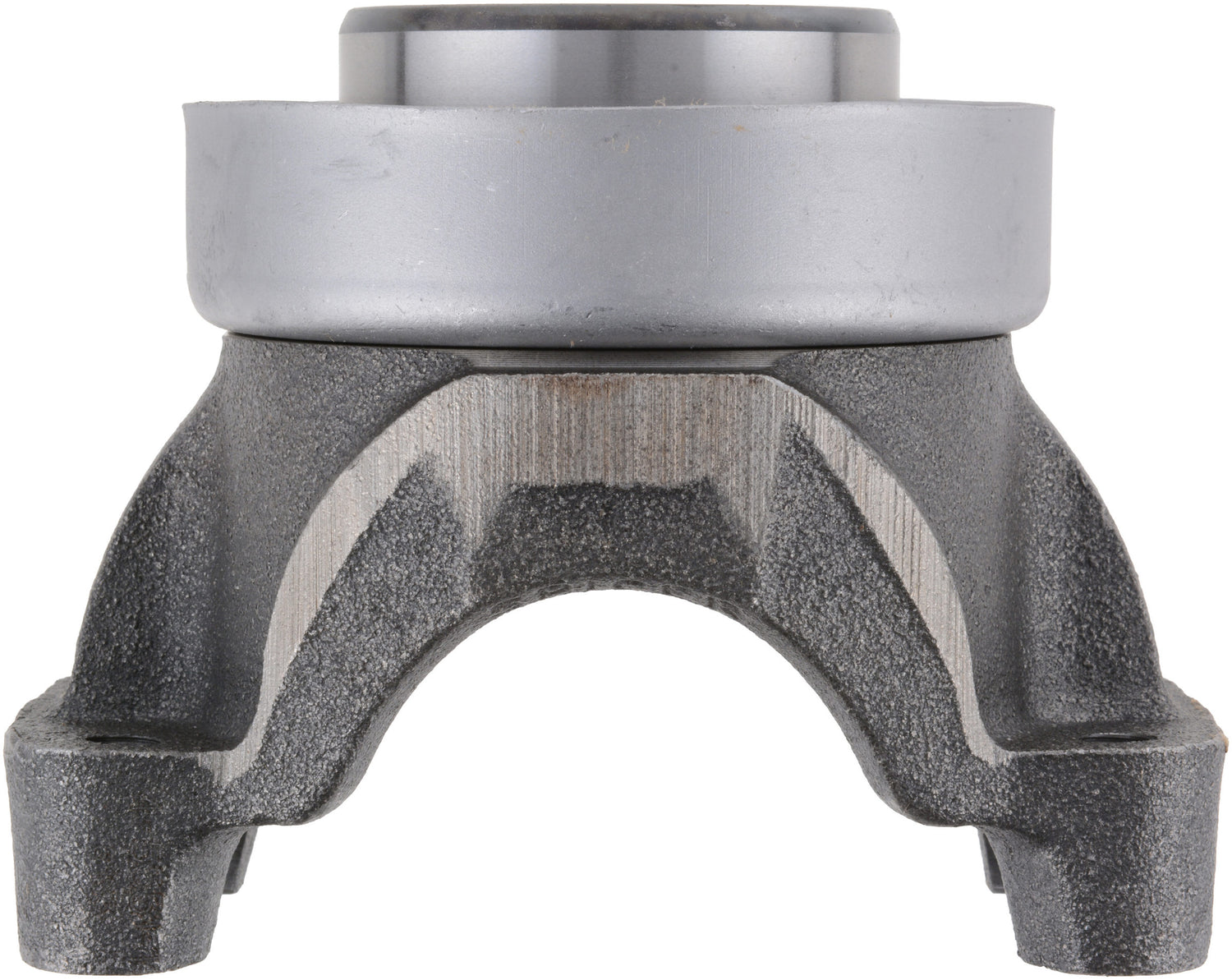

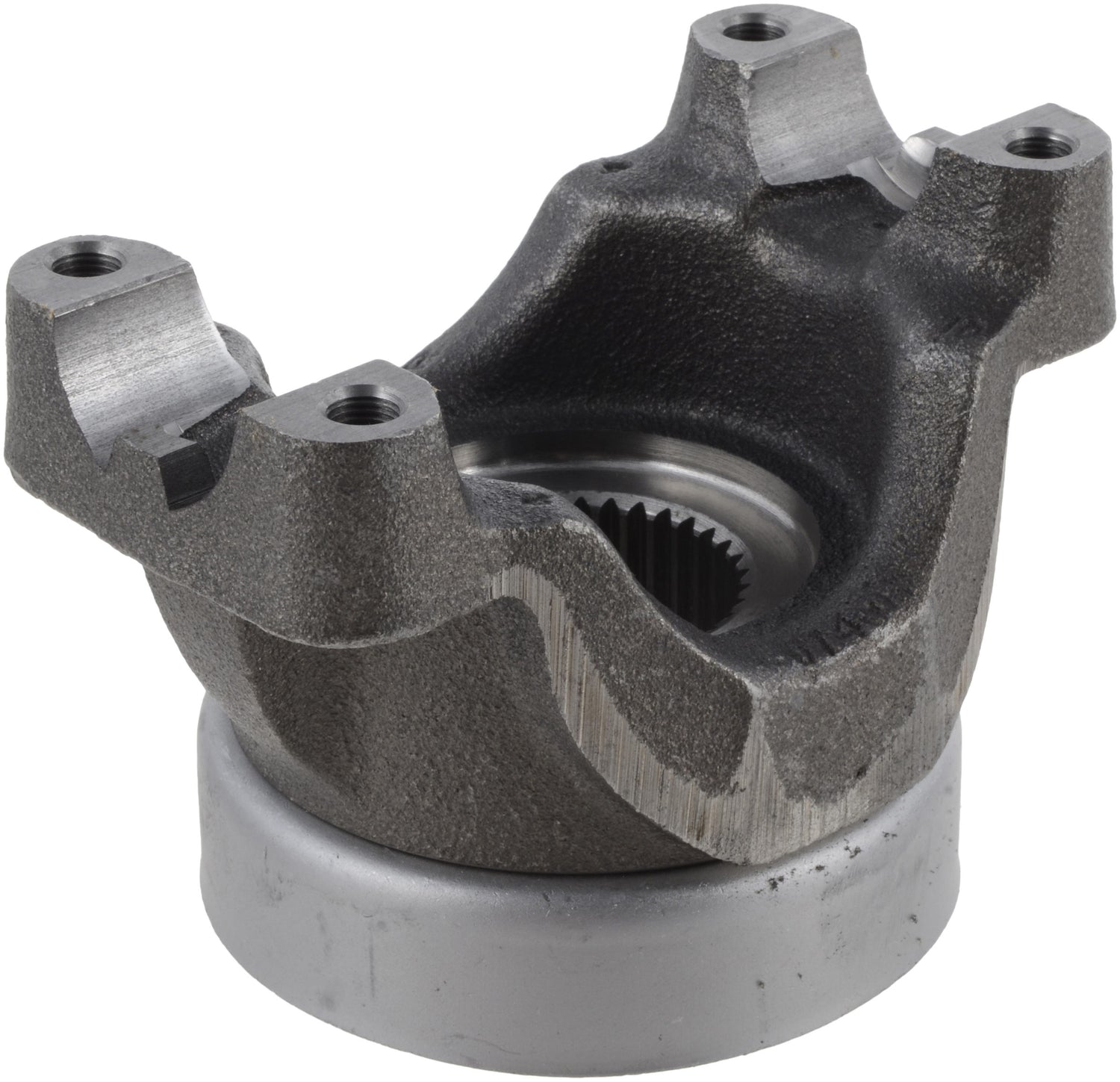

Spicer 4-4-5611-1X - PINION SHAFT END YOKE
PINION SHAFT END YOKE
Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- Genuine OE quality. Tested and proven.
- Built to meet OE standards set by Dana
- Tested and validated to rigorous OE specifications
- Latest production upgrades ensure genuine Spicer parts are as good or better than the OE parts they replace
- Dana engineering-approved for fit, form and function
Series: 1550
Material: Steel
Spline Count: 34
Type: Splined Hole
Hub Diameter R: 2.625
Involute Spline: Y
Length Thru Hole Q: 2.185
Outside Yoke Dimension (In) E: 4.964
Yoke Bearing Dimension (In) D: 1.375
Yoke Style: BS
Major Diameter: 1.790
C/L To End Hub S: 4.275
