Spicer 3-53-2541 - DRIVE SHAFT MIDSHIP STUB SHAFT
Spicer | SKU:
FSGR-3-53-2541
Sale price
$9699
Regular price
$12992
Unit price
/
Unavailable
$32.93 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

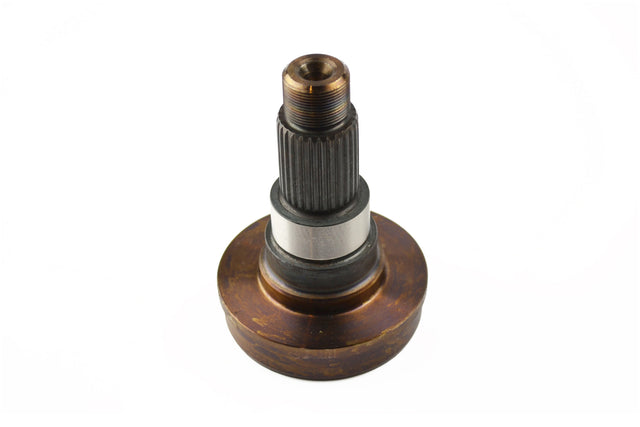

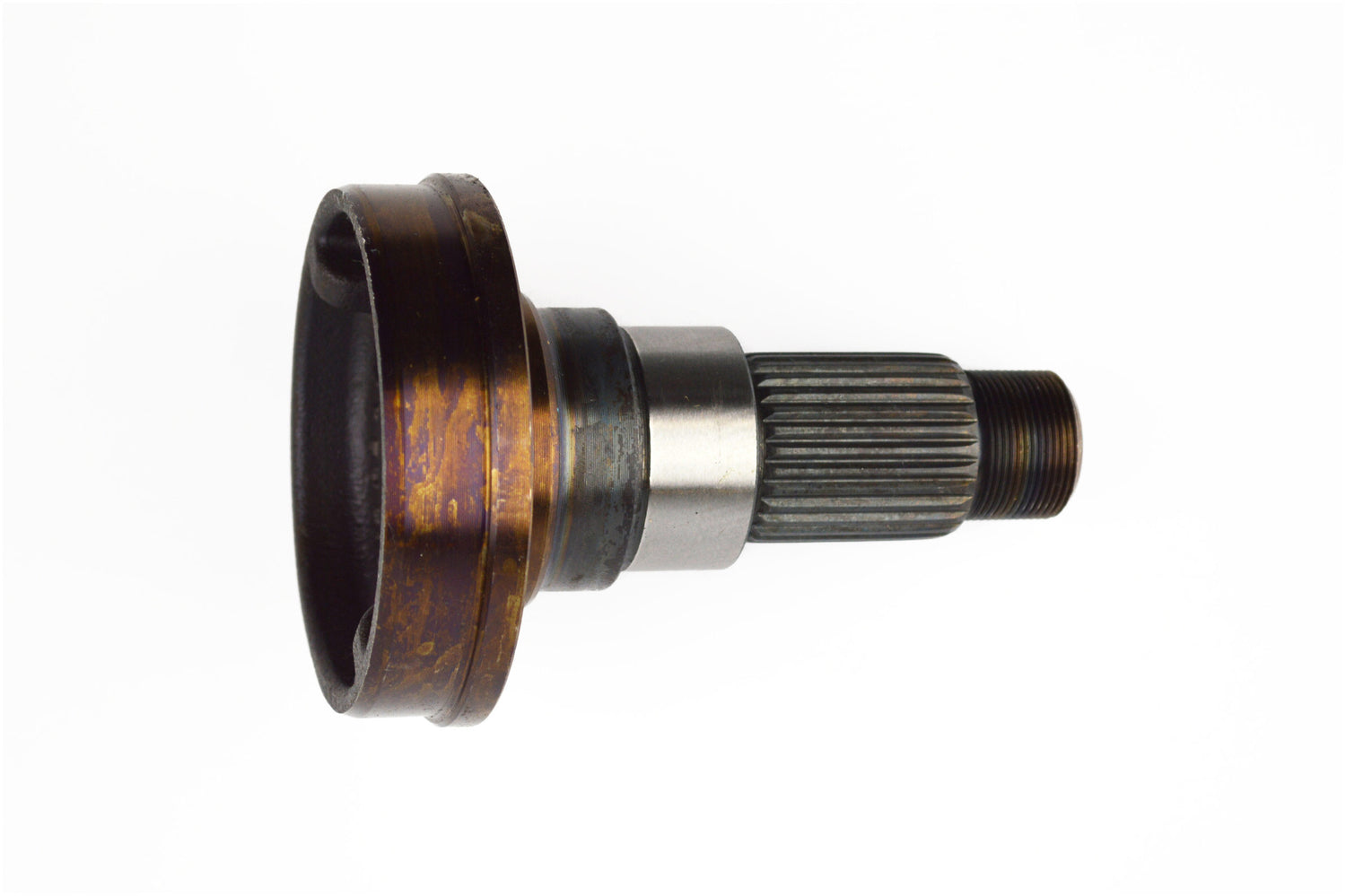

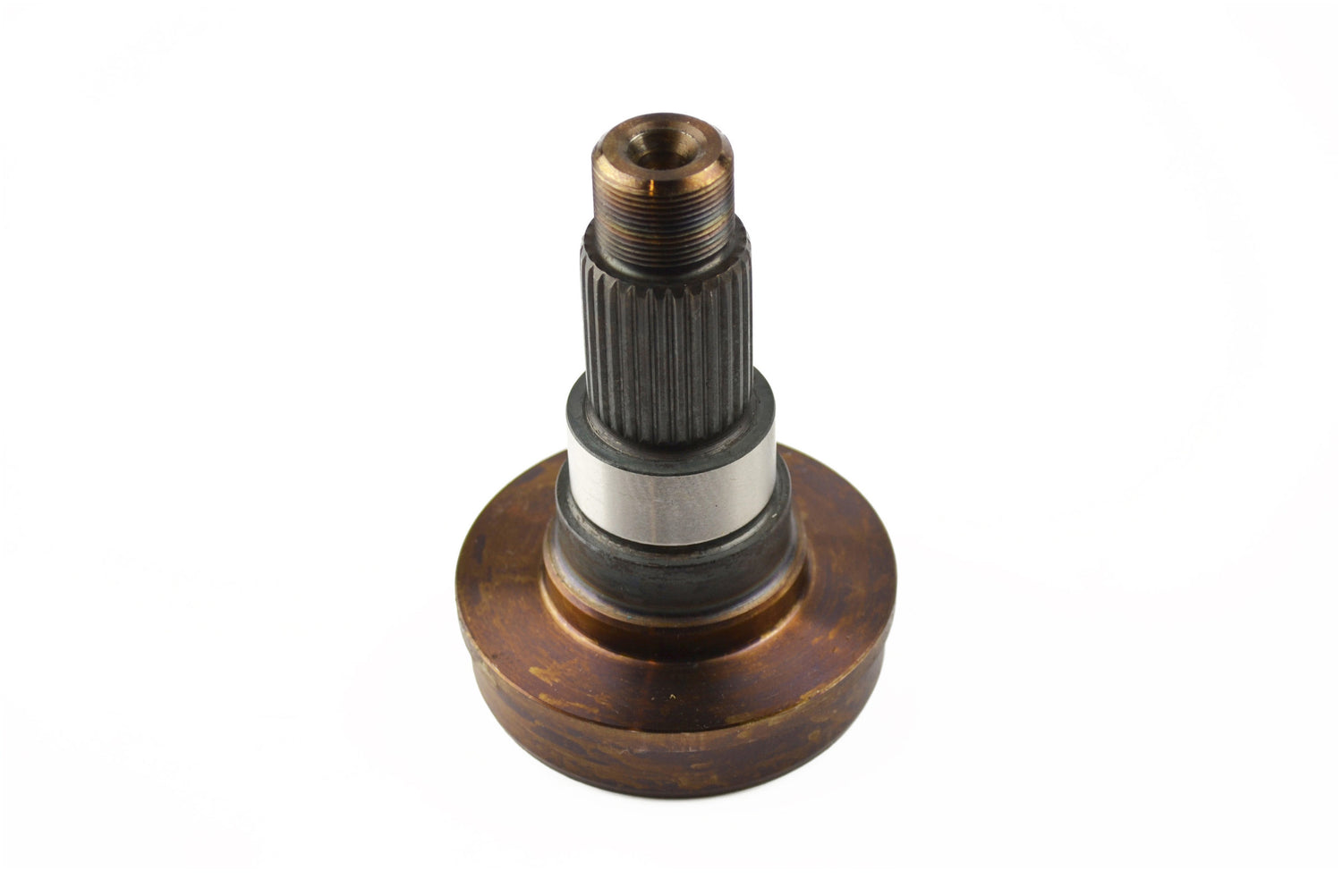

Spicer 3-53-2541 - DRIVE SHAFT MIDSHIP STUB SHAFT
DRIVE SHAFT MIDSHIP STUB SHAFT
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.
- Dana manufactured Spicer components are designed, engineered, tested, and manufactured to meet or exceed OE requirements.
- Spicer components are engineered to meet or exceeds the performance requirements of the original factory driveline component
- Tested for unparalleled reliability
- Strength and durability for long life
- Dana engineering-approved for fit, form and function
Bearing Diameter (Max): 1.5748
Spline End To Weld (K) In.: 3.460
Spline Length (L) In.: 1.530
Spline O.D.: 1.250
Bearing Diameter (Min): 1.5743
For Use With: End Yoke Or Companion Flange
Shoulder Diameter (B) In.: 1.810
Shoulder Length (G) In.: .880
Spline End To Brg Shoulder (Y): 2.340
Bearing Diameter (C) In.: 1.574
Butt Diameter: 3.345
Fits Tube Wall: .083
Involute: Y
Number of Splines: 29 I
Fits Tube Diameter: 3.500
Series: 1310-1410
Material: Steel
Thread Size: 1.000-20
Style: 2
