Spicer 3-53-2291 - DRIVE SHAFT MIDSHIP STUB SHAFT
Spicer | SKU:
FSGR-3-53-2291
Sale price
$22499
Regular price
$30245
Unit price
/
Unavailable
$77.46 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

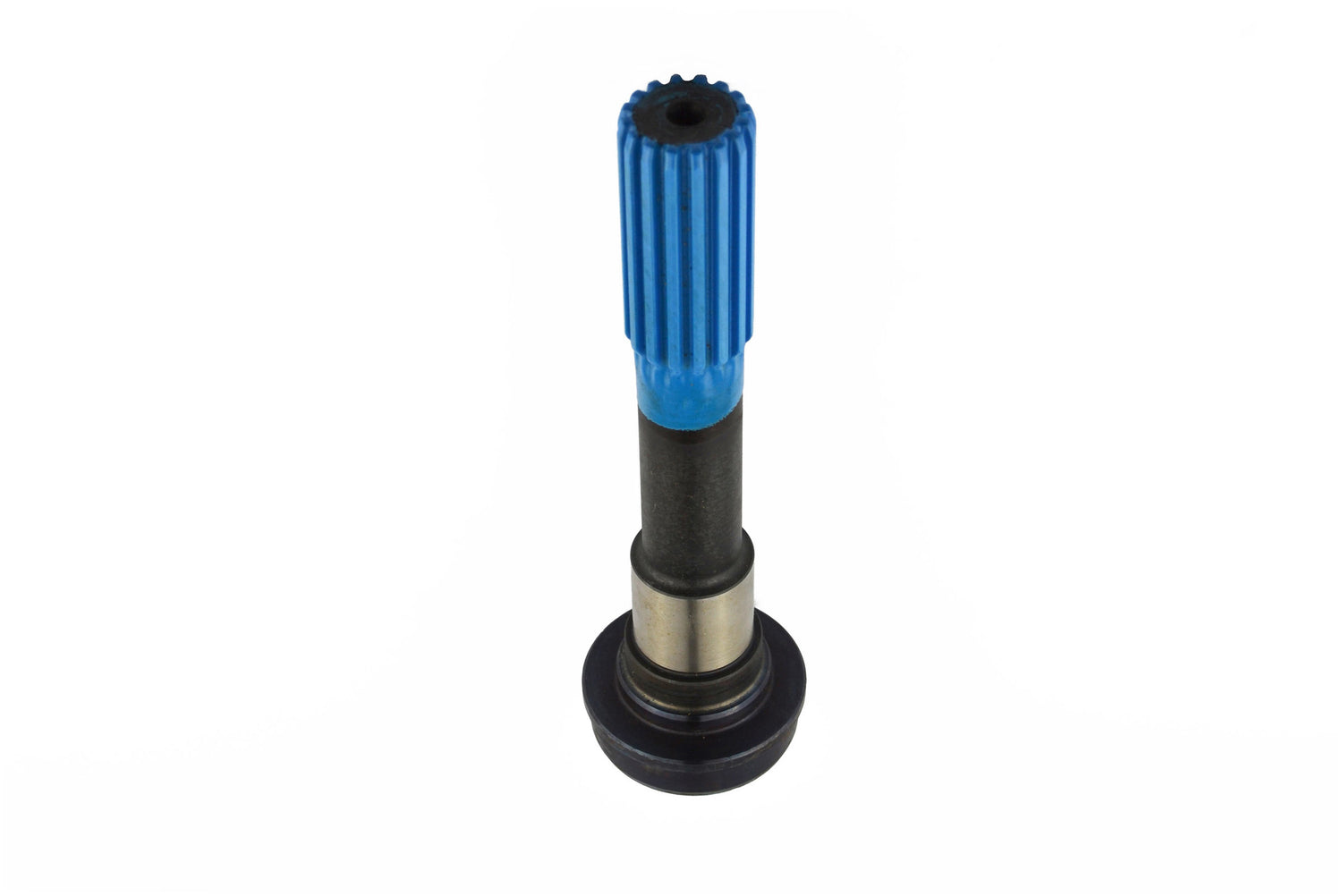

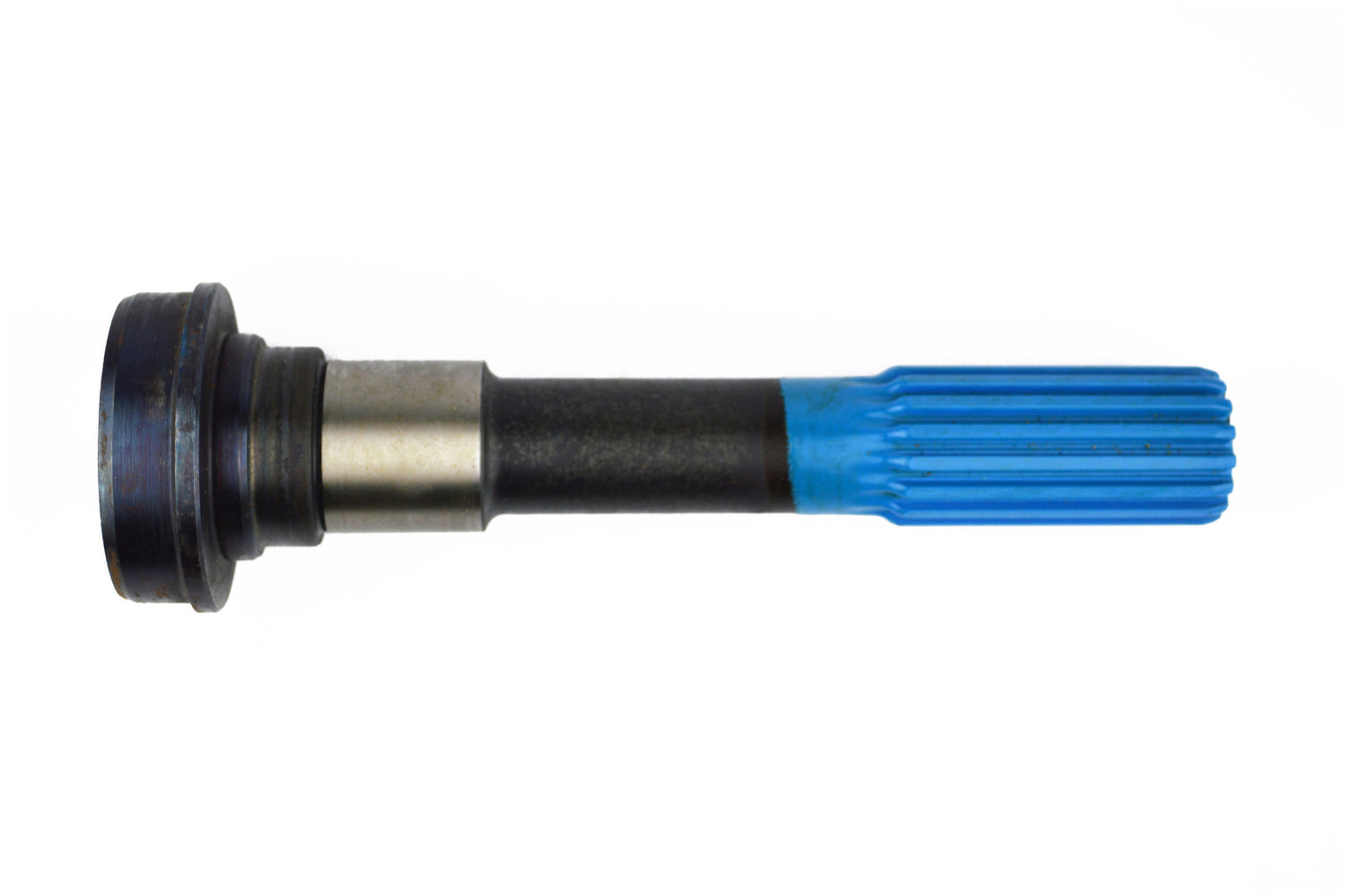

Spicer 3-53-2291 - DRIVE SHAFT MIDSHIP STUB SHAFT
DRIVE SHAFT MIDSHIP STUB SHAFT
Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- Dana manufactured Spicer components are designed, engineered, tested, and manufactured to meet or exceed OE requirements.
- Spicer components are engineered to meet or exceeds the performance requirements of the original factory driveline component
- Tested for unparalleled reliability
- Strength and durability for long life
- Dana engineering-approved for fit, form and function
Style: 2
Fits Tube Diameter: 3
Number of Splines: 15/16
Involute: N
Fits Tube Wall: 0.095
Butt Diameter: 2.821
Bearing Diameter (C) In.: 1.575
Bearing Diameter (Max): 1.5752
Spline End To Weld (K) In.: 9.350
Spline Length (L) In.: 3.000
Spline O.D.: 1.5000
Bearing Diameter (Min): 1.5747
For Use With: SLIP YOKE
Shoulder Diameter (B) In.: 1.812
Shoulder Length (G) In.: 0.875
Spline End To Brg Shoulder (Y): 8.234
Bearing Diameter Length: 1.5
Bearing Diameter Radius: 0.19
