Spicer 3-53-1991 - DRIVE SHAFT MIDSHIP STUB SHAFT
Spicer | SKU:
FSGR-3-53-1991
Sale price
$43999
Regular price
$59281
Unit price
/
Unavailable
$152.82 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

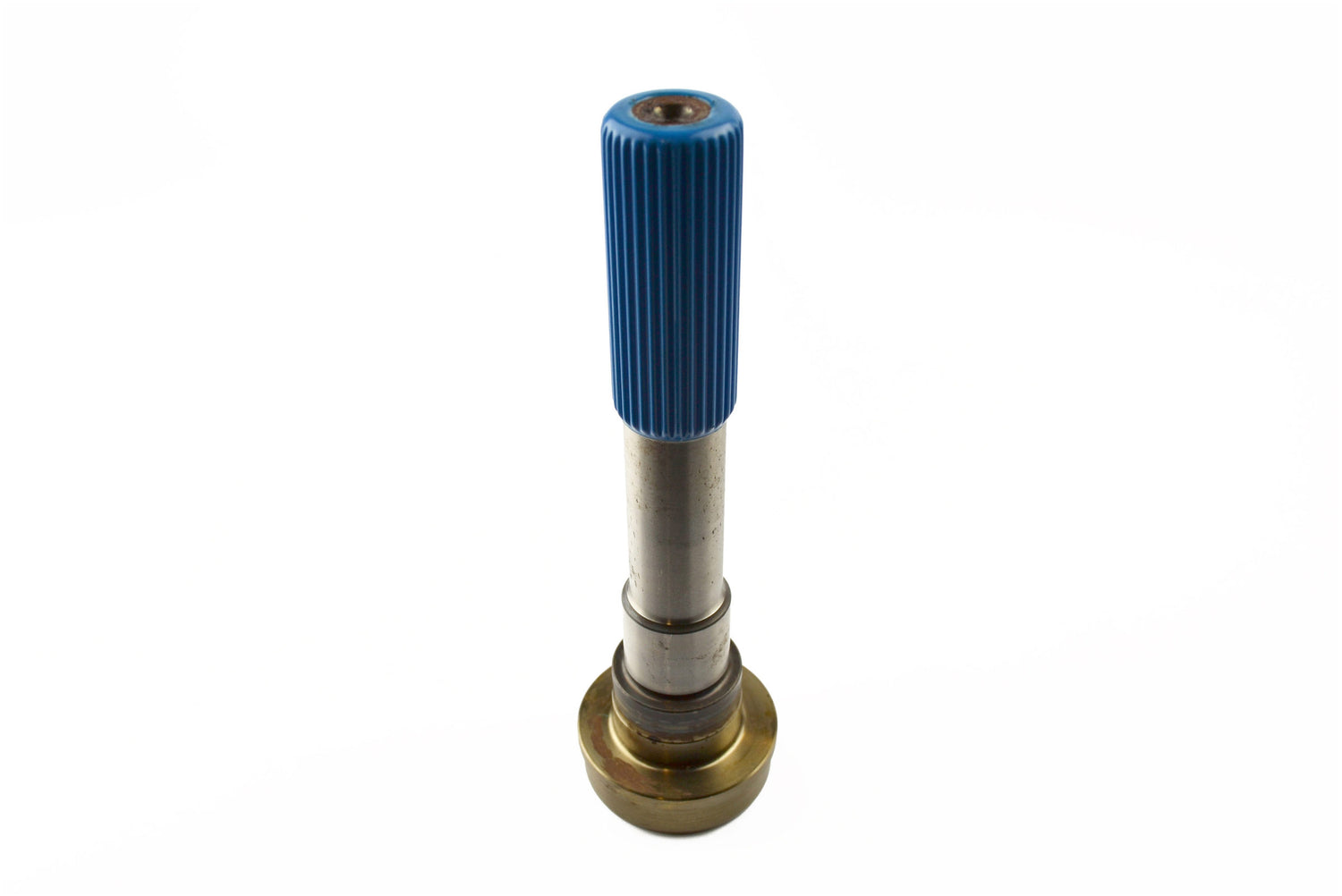

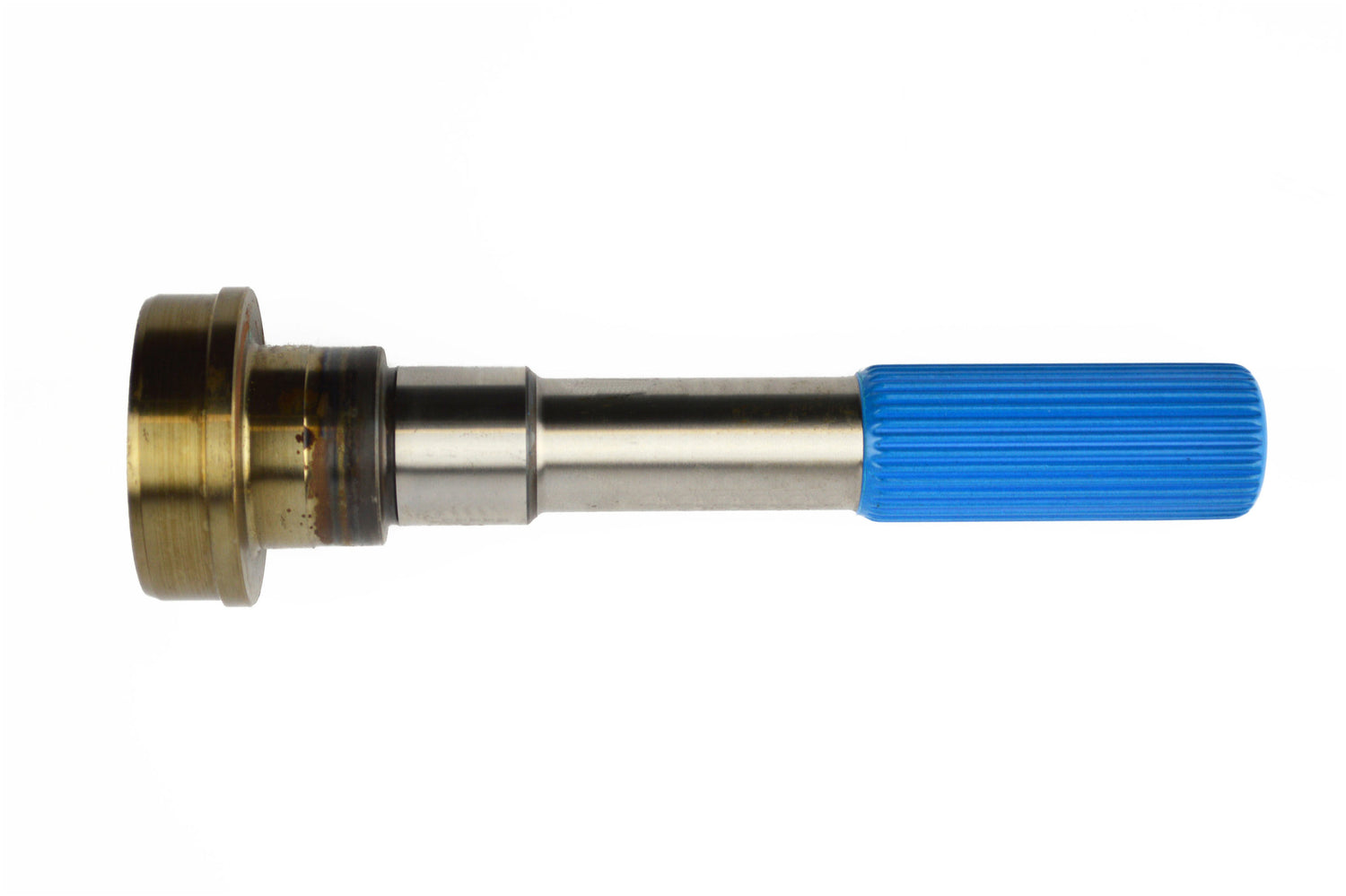

Spicer 3-53-1991 - DRIVE SHAFT MIDSHIP STUB SHAFT
DRIVE SHAFT MIDSHIP STUB SHAFT
Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- Dana manufactured Spicer components are designed, engineered, tested, and manufactured to meet or exceed OE requirements.
- Spicer components are engineered to meet or exceeds the performance requirements of the original factory driveline component
- Tested for unparalleled reliability
- Strength and durability for long life
- Dana engineering-approved for fit, form and function
Spline End To Weld (K) In.: 8.812
Spline Length (L) In.: 3.344
Spline O.D.: 1.3760
Bearing Diameter (Min): 1.3779
For Use With: SLIP YOKE
Shoulder Diameter (B) In.: 1.719
Shoulder Length (G) In.: 1.125
Spline End To Brg Shoulder (Y): 7.469
Bearing Diameter Length: 1.25
Bearing Diameter Radius: 0.19
Style: 2
Fits Tube Diameter: 2.75
Number of Splines: 31/32 I
Involute: Y
Fits Tube Wall: 0.065
Butt Diameter: 2.631
Bearing Diameter (C) In.: 1.378
Bearing Diameter (Max): 1.3784
