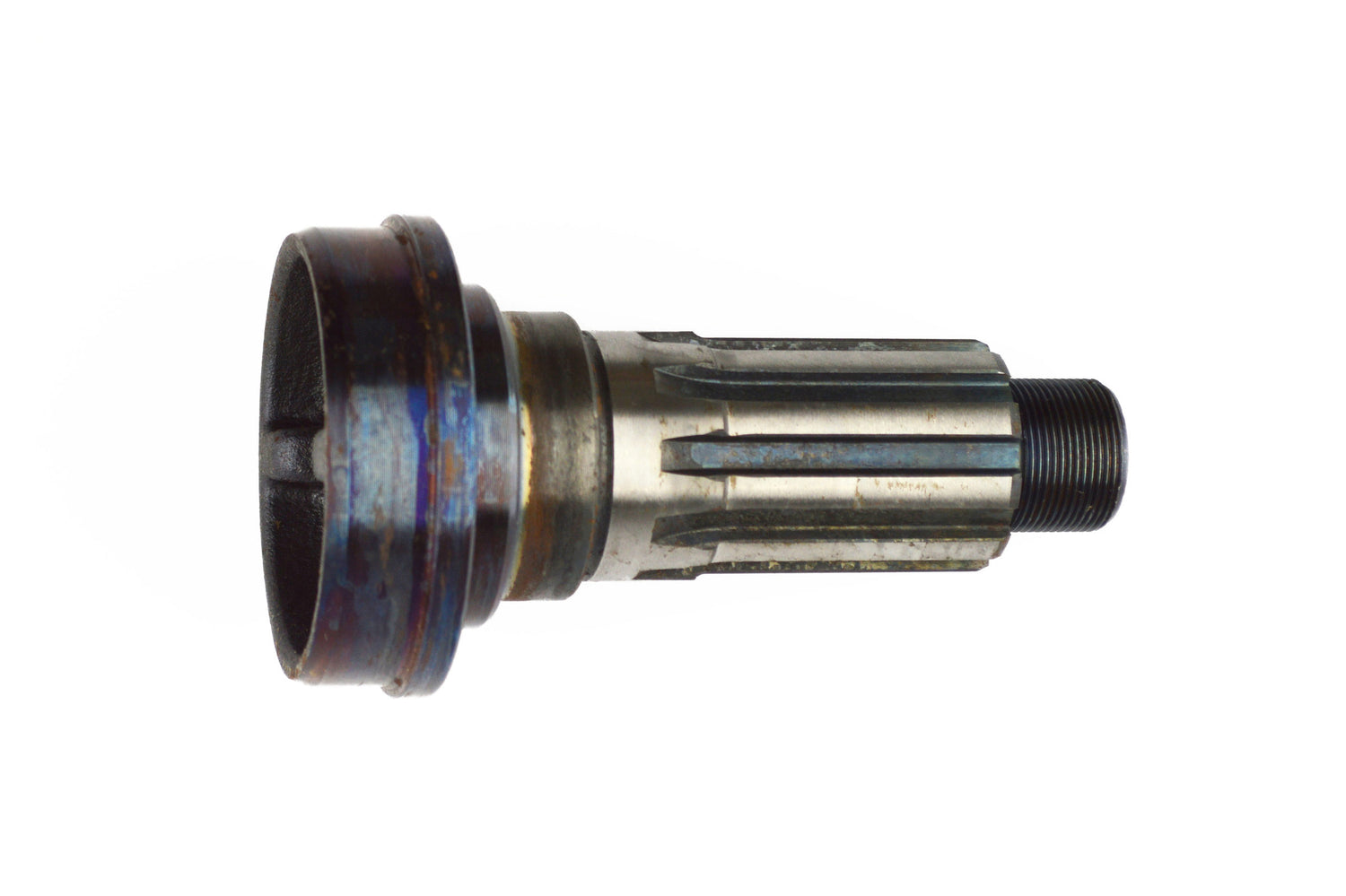

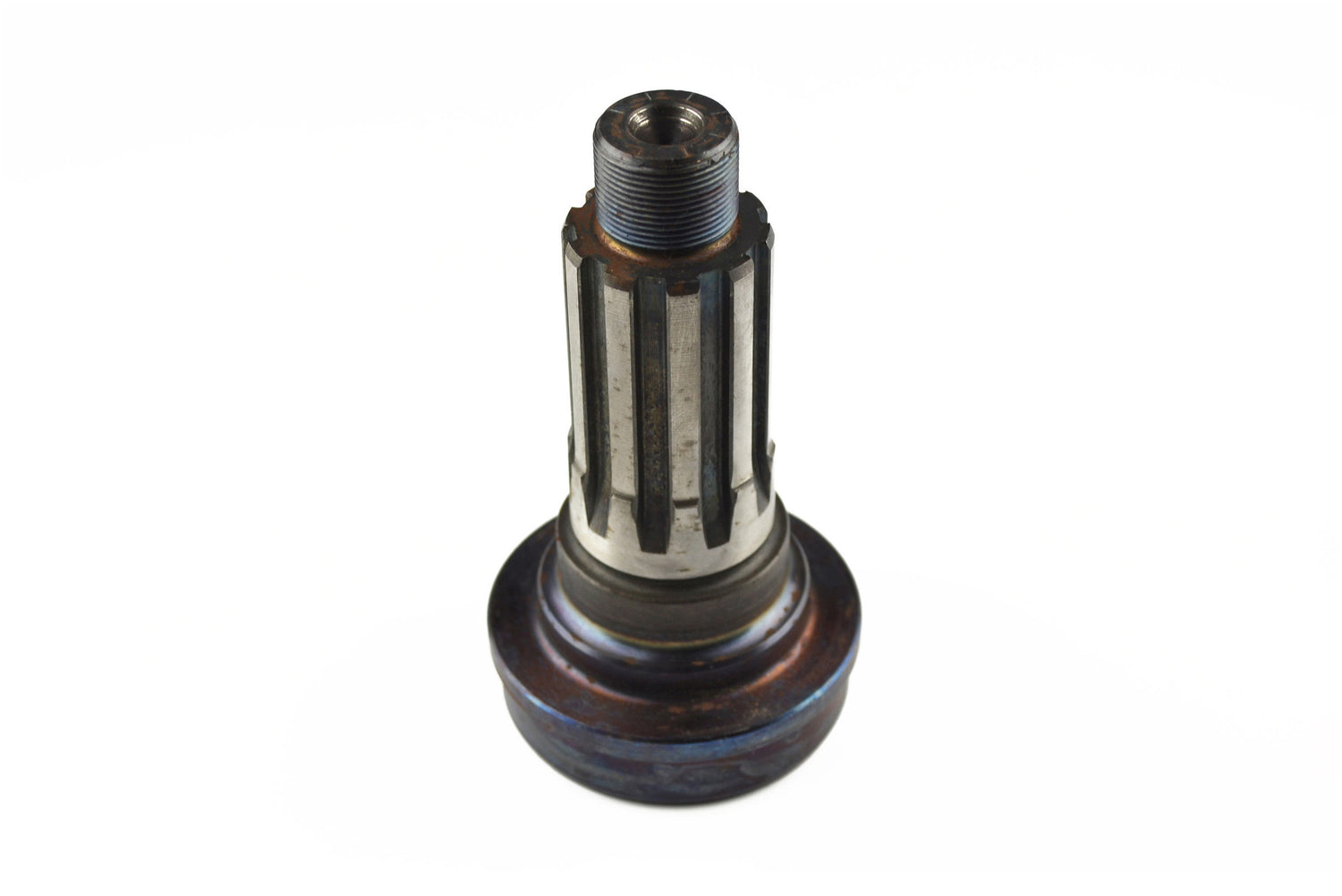

Spicer 3-53-1781 - DRIVE SHAFT MIDSHIP STUB SHAFT
Spicer | SKU:
FSGR-3-53-1781
Sale price
$11099
Regular price
$14932
Unit price
/
Unavailable
$38.33 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Spicer 3-53-1781 - DRIVE SHAFT MIDSHIP STUB SHAFT
DRIVE SHAFT MIDSHIP STUB SHAFT
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.
- Dana manufactured Spicer components are designed, engineered, tested, and manufactured to meet or exceed OE requirements.
- Spicer components are engineered to meet or exceeds the performance requirements of the original factory driveline component
- Tested for unparalleled reliability
- Strength and durability for long life
- Dana engineering-approved for fit, form and function
Series: 1310-1410
Material: Steel
Thread Size: 1.000-20
Style: 2
Fits Tube Diameter: 3.000
Number of Splines: 10
Involute: N
Fits Tube Wall: .083
Butt Diameter: 2.845
Bearing Diameter (C) In.: 1.574
Bearing Diameter (Max): 1.5748
Spline End To Weld (K) In.: 3.875
Spline Length (L) In.: 1.940
Spline O.D.: 1.500
Bearing Diameter (Min): 1.5743
For Use With: End Yoke Or Companion Flange
Shoulder Diameter (B) In.: 1.810
Shoulder Length (G) In.: .875
Spline End To Brg Shoulder (Y): 2.750
