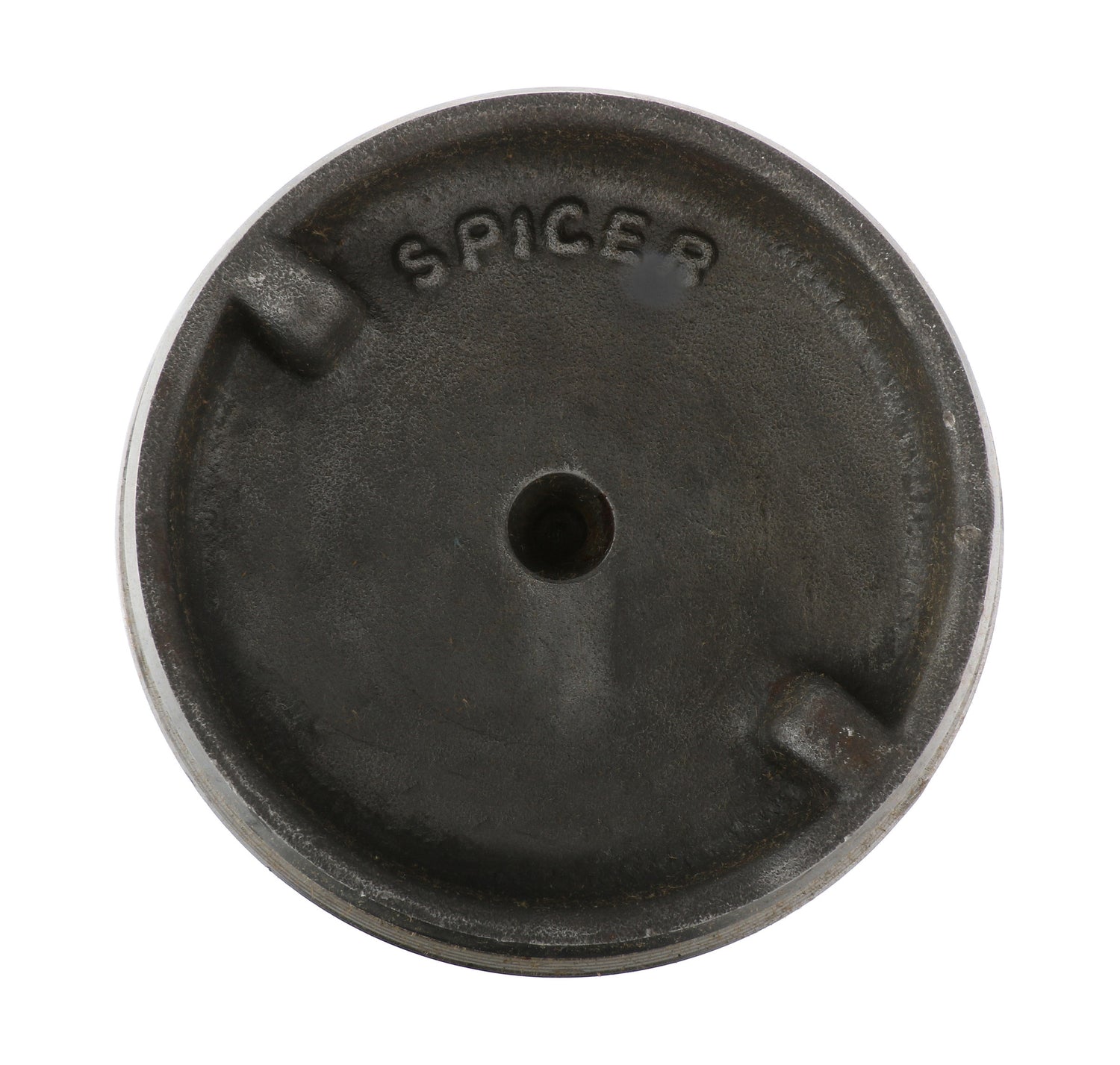

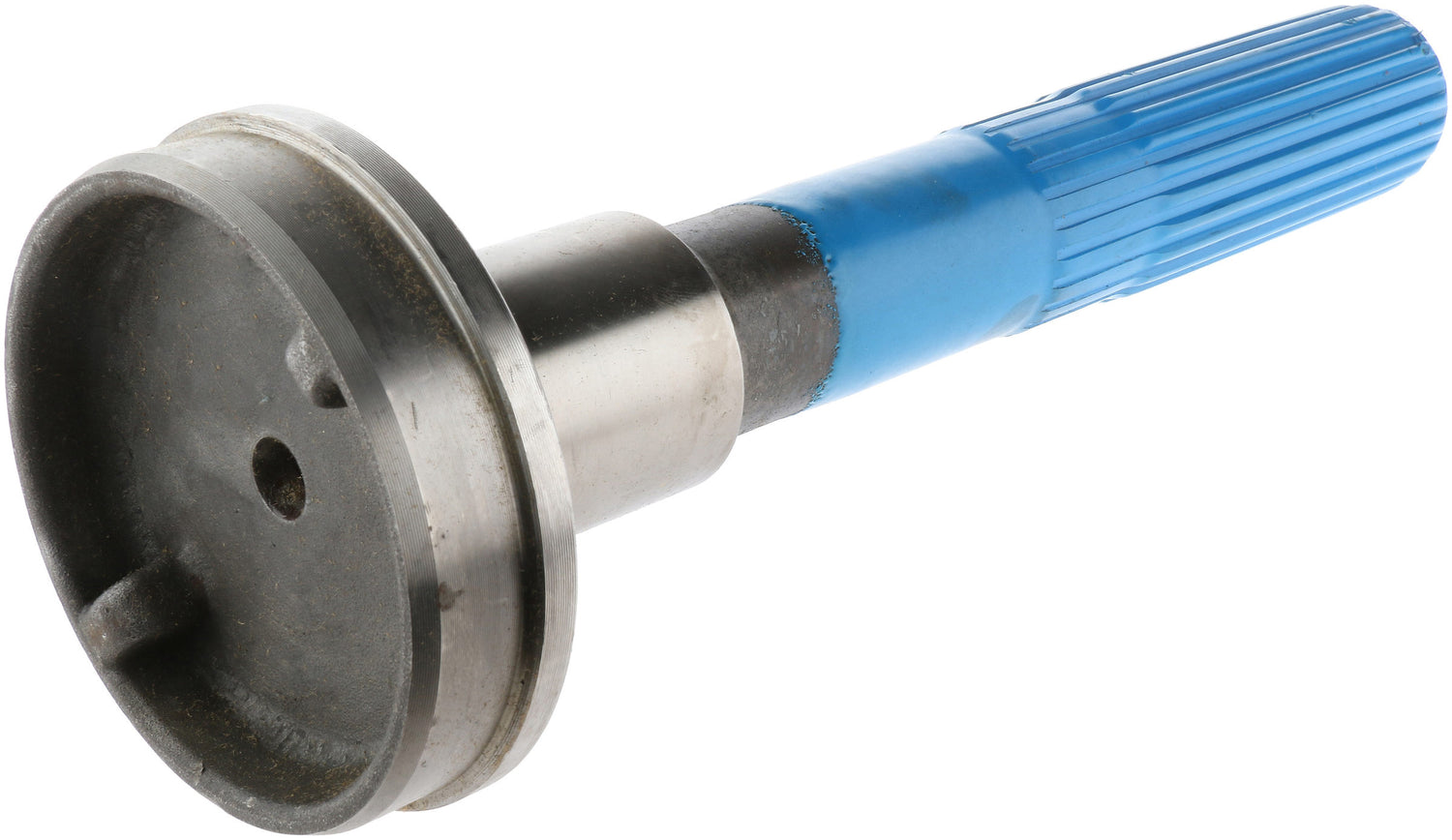

Spicer 3-53-08002 - DRIVE SHAFT MIDSHIP STUB SHAFT
Spicer | SKU:
FSGR-3-53-08002
Sale price
$16999
Regular price
$22926
Unit price
/
Unavailable
$59.27 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Spicer 3-53-08002 - DRIVE SHAFT MIDSHIP STUB SHAFT
DRIVE SHAFT MIDSHIP STUB SHAFT
Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- Dana manufactured Spicer components are designed, engineered, tested, and manufactured to meet or exceed OE requirements.
- Spicer components are engineered to meet or exceeds the performance requirements of the original factory driveline component
- Tested for unparalleled reliability
- Strength and durability for long life
- Dana engineering-approved for fit, form and function
Style: 2
Fits Tube Diameter: 3.5
Involute: Y
Fits Tube Wall: 0.083
Butt Diameter: 3.345
Bearing Diameter (C) In.: 1.575
Bearing Diameter (Max): 0.0151
Spline End To Weld (K) In.: 9.618
Spline Length (L) In.: 3.500
Spline O.D.: 1.4370
Bearing Diameter (Min): 1.5747
For Use With: SLIP YOKE
Shoulder Diameter (B) In.: 1.809
Shoulder Length (G) In.: 0.540
Spline End To Brg Shoulder (Y): 8.838
Bearing Diameter Length: 1.5
Bearing Diameter Radius: 0.04
