Spicer 3-4-283-1 - DRIVE SHAFT END YOKE
Spicer | SKU:
FSGR-3-4-283-1
Sale price
$7099
Regular price
$9474
Unit price
/
Unavailable
$23.75 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

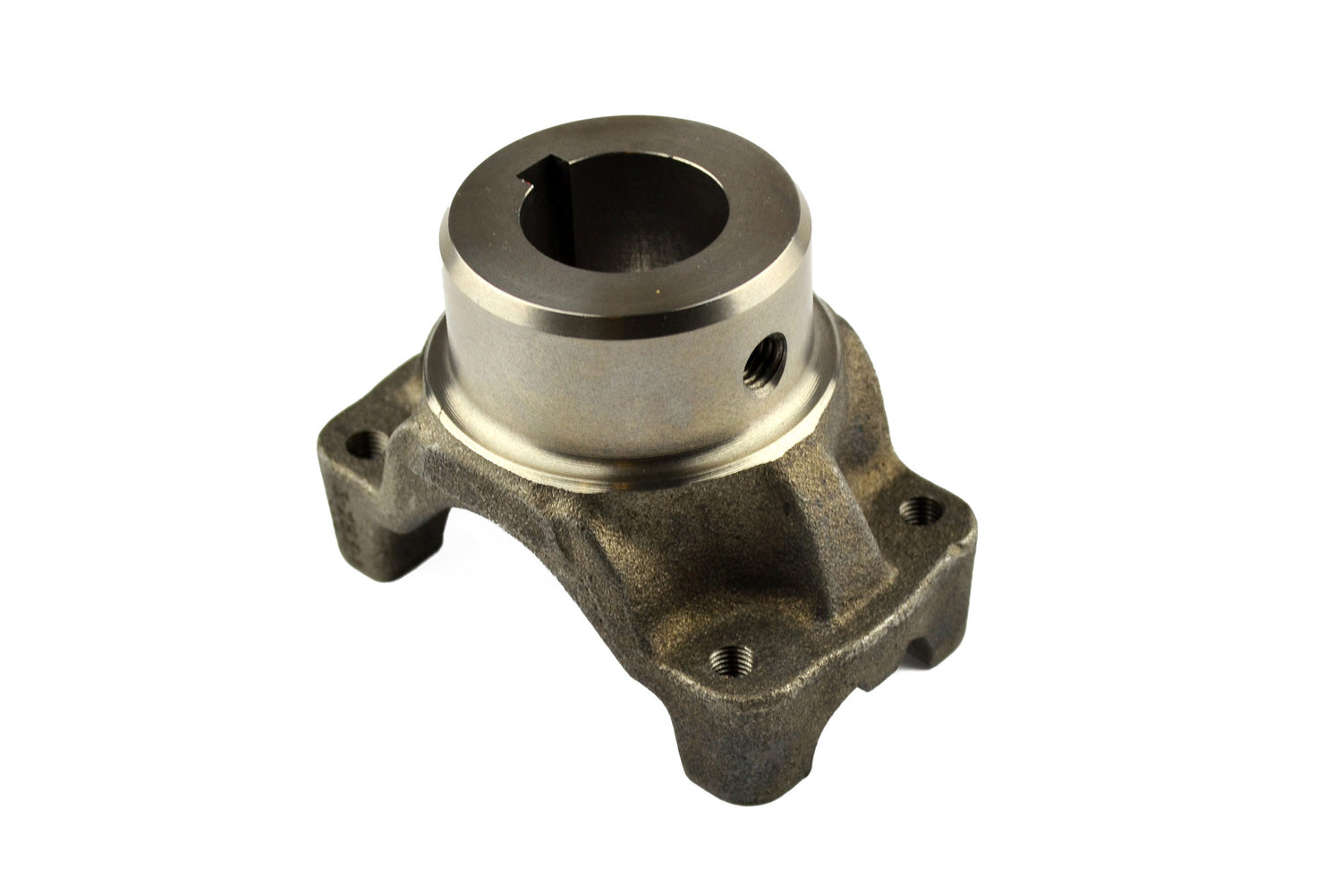

Spicer 3-4-283-1 - DRIVE SHAFT END YOKE
DRIVE SHAFT END YOKE
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.
- Uses high-grade Dana approved materials to ensure optimal quality.
- Dana designed, tested and engineered.
- Genuine OE quality. Tested and proven.
Yoke Style: BS
Keyway Location W: 12
Sae Keyway Width (In) X: 0.314
Set Screw Location W: 6
C/L To End Hub S: 3.000
Joint Angle #1: 22
Set Screw Hole Diameter (In): 0.375
Hole Diameter - Max: 1.2505
Hole Diameter - Min: 1.2495
Keyway Width - Max: 0.3155
Keyway Width - Min: 0.3135
Series: 1350
Material: Steel
Type: Straight Round Hole
Hole Diameter (In) P: 1.250
Hub Diameter R: 2.250
Involute Spline: N
Length Thru Hole Q: 1.500
Outside Yoke Dimension (In) E: 3.625
Yoke Bearing Dimension (In) D: 1.188
