Spicer 3-4-273-1 - DRIVE SHAFT END YOKE
Spicer | SKU:
FSGR-3-4-273-1
Sale price
$20099
Regular price
$27098
Unit price
/
Unavailable
$69.99 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

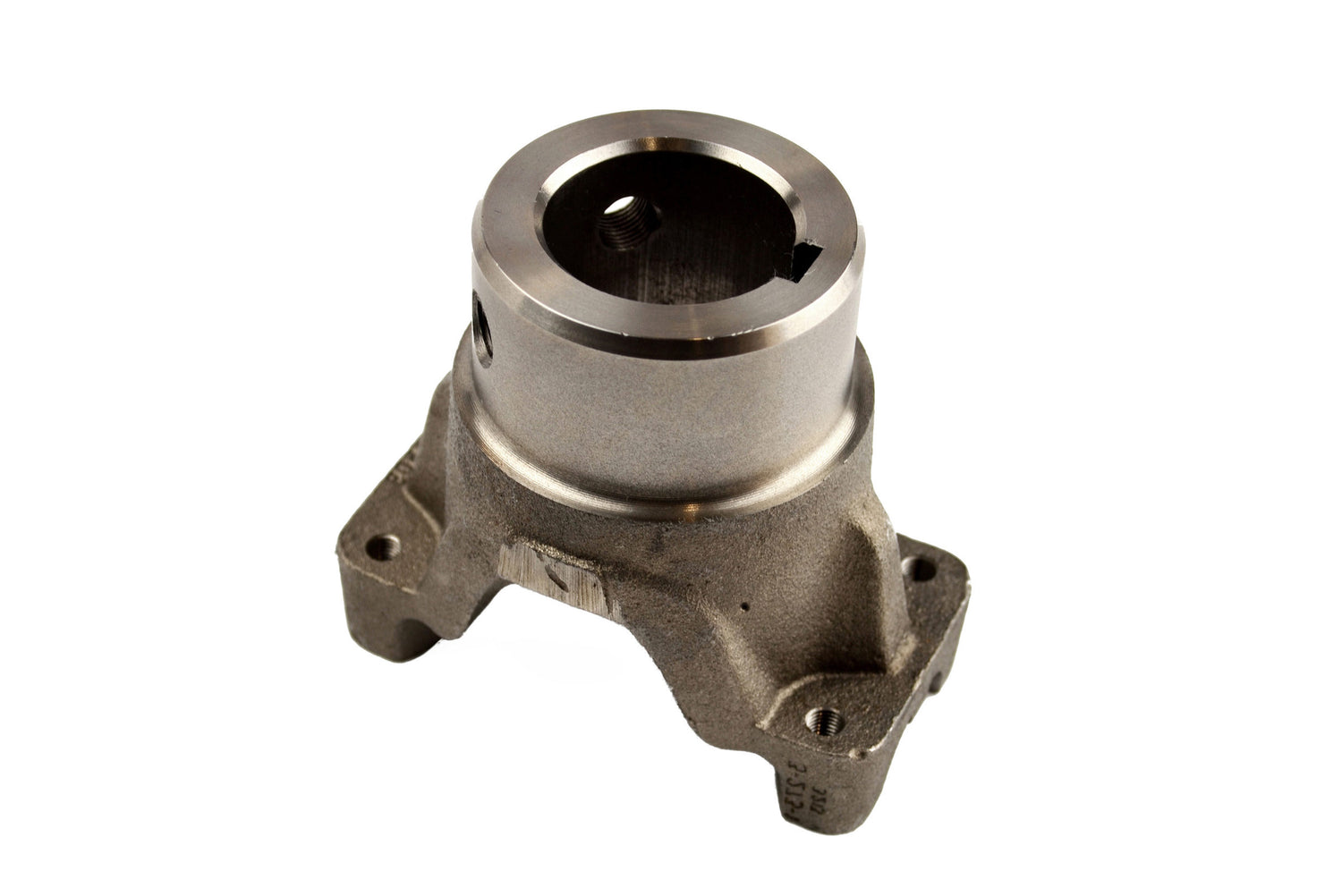

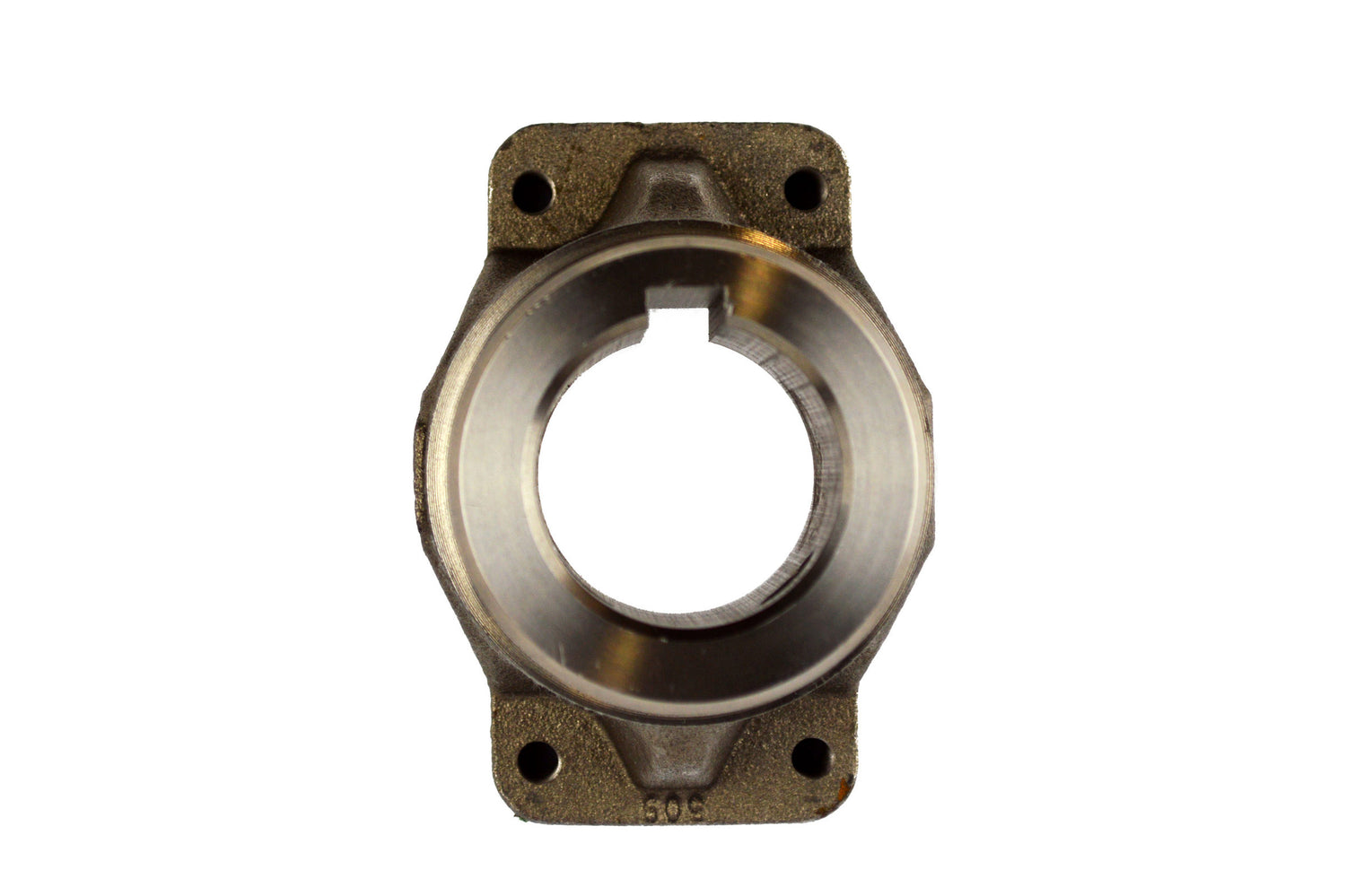

Spicer 3-4-273-1 - DRIVE SHAFT END YOKE
DRIVE SHAFT END YOKE
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.
- Uses high-grade Dana approved materials to ensure optimal quality.
- Dana designed, tested and engineered.
- Genuine OE quality. Tested and proven.
Series: 1410
Material: Steel
Type: Straight Round Hole
Hole Diameter (In) P: 1.750
Hub Diameter R: 2.750
Involute Spline: N
Length Thru Hole Q: 2.500
Outside Yoke Dimension (In) E: 4.188
Yoke Bearing Dimension (In) D: 1.188
Yoke Style: BS
Keyway Location W: 12
Sae Keyway Width (In) X: 0.439
C/L To End Hub S: 4.250
Joint Angle #1: 30
Set Screw Hole Diameter (In): 0.500
Hole Diameter - Max: 1.7505
Hole Diameter - Min: 1.7495
Keyway Width - Max: 0.440
Keyway Width - Min: 0.438
