Spicer 3-4-243-1 - DRIVE SHAFT END YOKE
Spicer | SKU:
FSGR-3-4-243-1
Sale price
$26399
Regular price
$35577
Unit price
/
Unavailable
$91.78 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

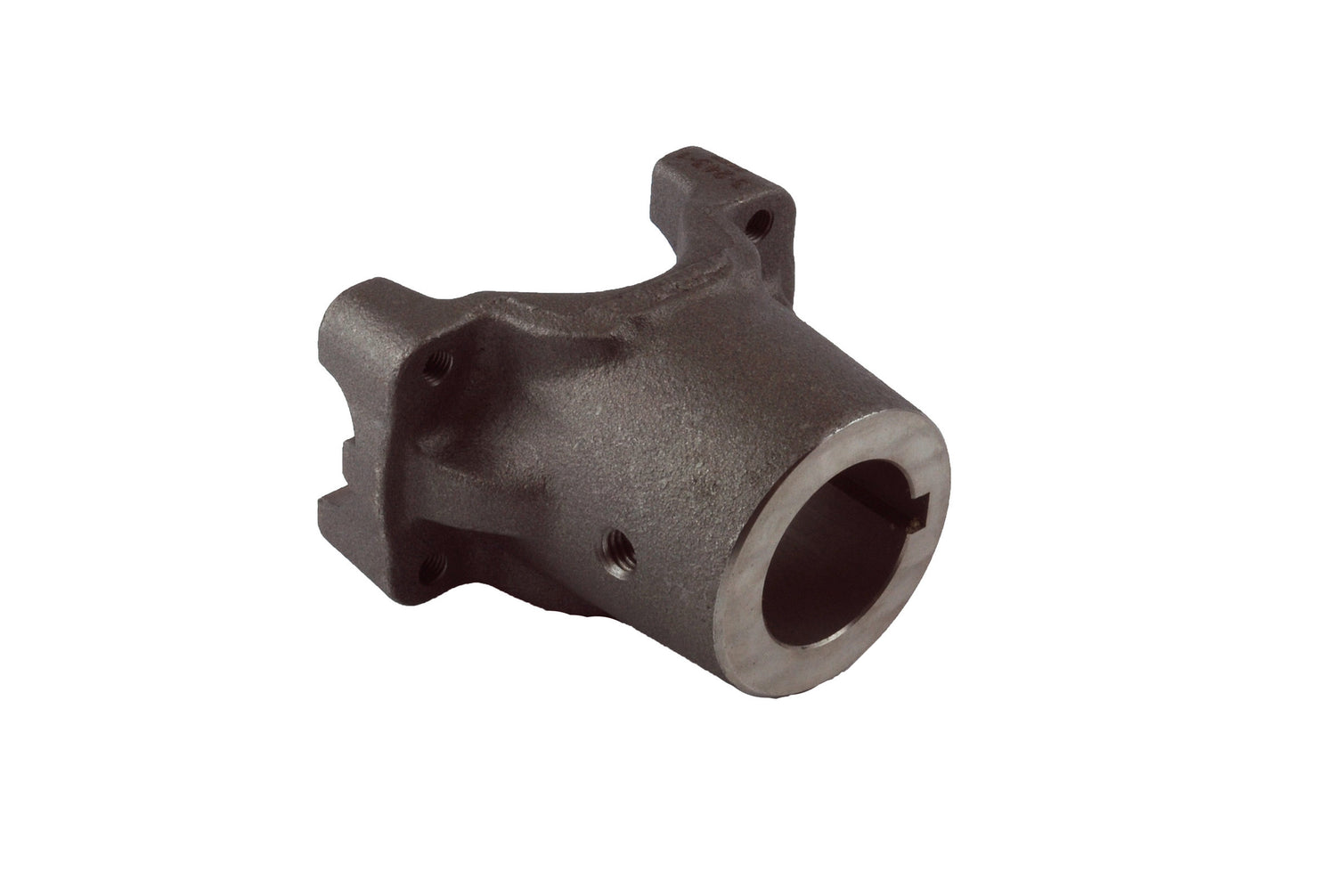

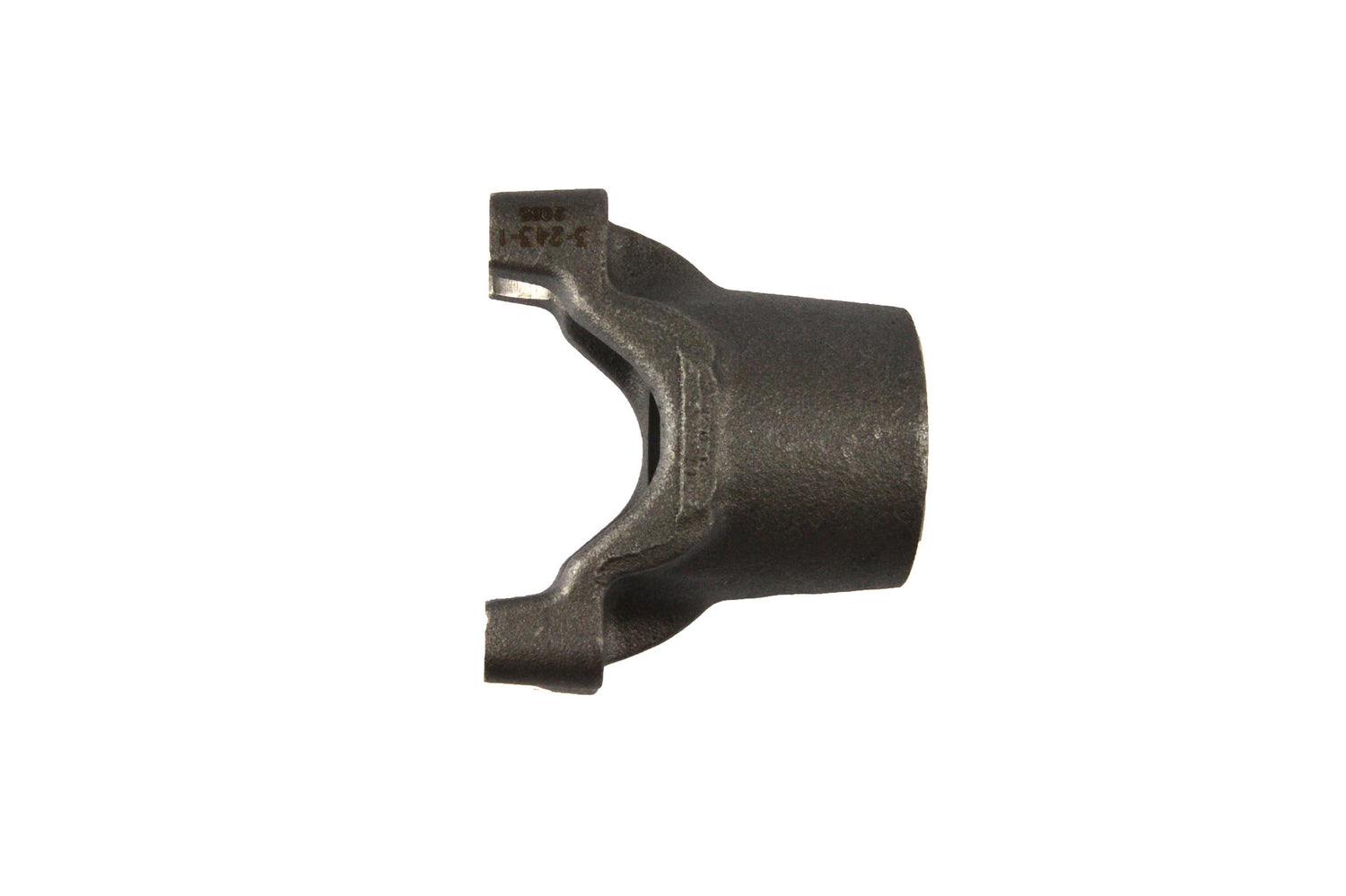

Spicer 3-4-243-1 - DRIVE SHAFT END YOKE
DRIVE SHAFT END YOKE
Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- Uses high-grade Dana approved materials to ensure optimal quality.
- Dana designed, tested and engineered.
- Genuine OE quality. Tested and proven.
Series: 1350
Material: Steel
Type: Straight Round Hole
Involute Spline: N
Outside Yoke Dimension (In) E: 3.953
Yoke Bearing Dimension (In) D: 1.250
Yoke Style: BS
Keyway Location W: 12
Sae Keyway Width (In) X: 0.313
C/L To End Hub S: 3.500
Set Screw Hole Diameter (In): 0.375
Hole Diameter - Max: 1.5005
Hole Diameter - Min: 1.4995
Keyway Width - Max: 0.3155
Keyway Width - Min: 0.3135
