Spicer 3-4-13761-1 - Differential End Yoke - 1350 Series
Spicer | SKU:
FSGR-3-4-13761-1
Sale price
$30499
Regular price
$41077
Unit price
/
Unavailable
$105.78 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

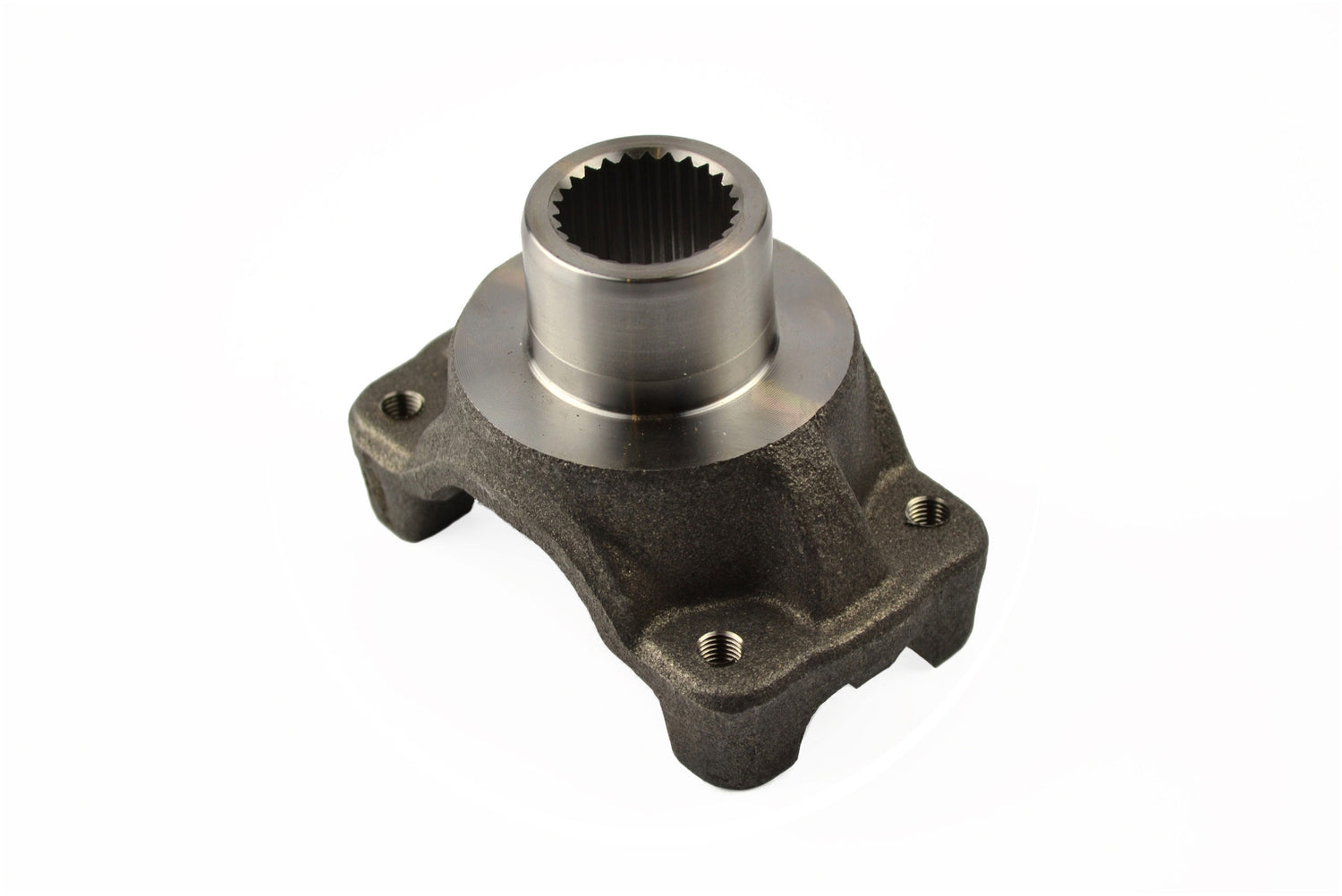

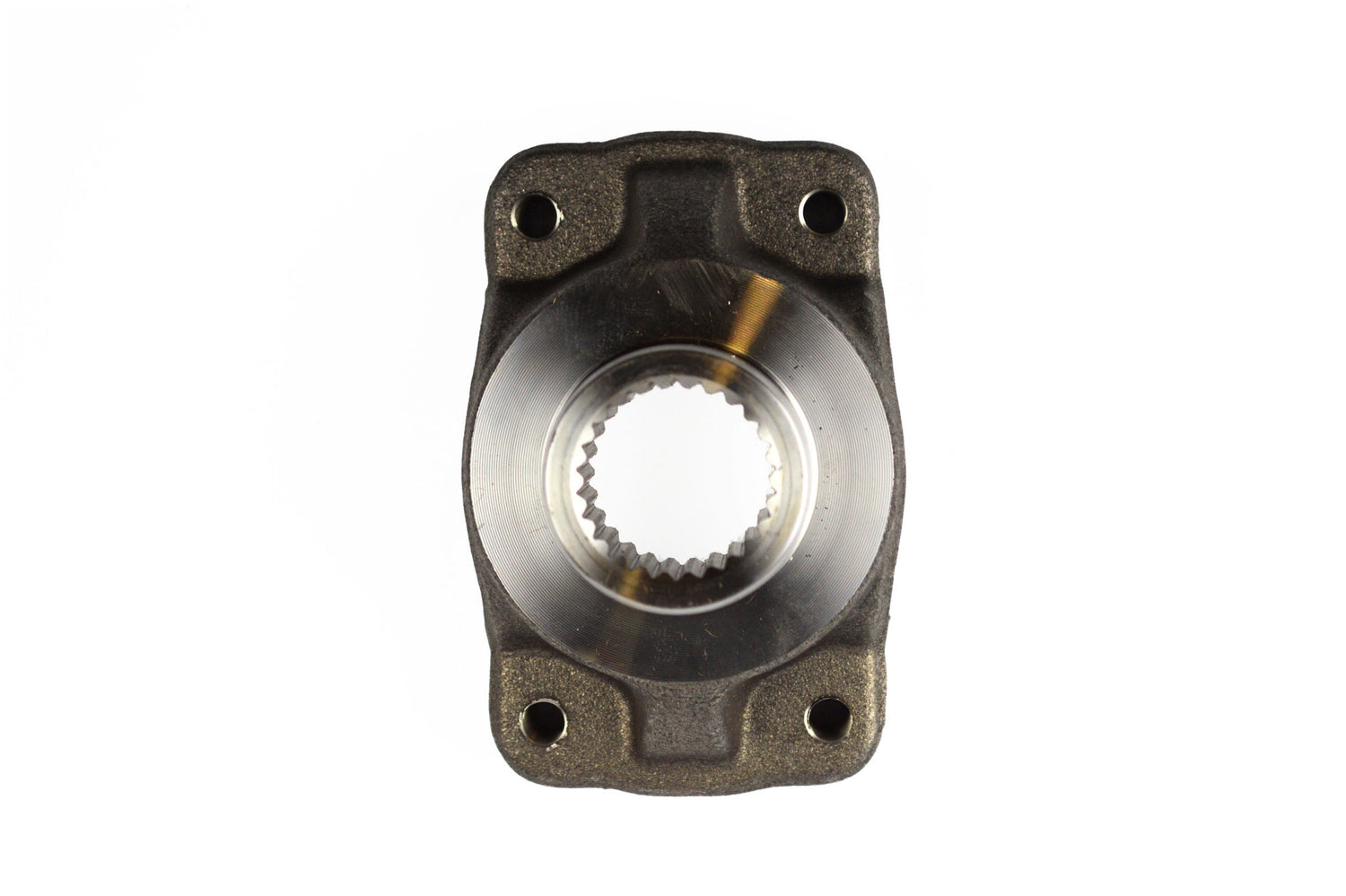

Spicer 3-4-13761-1 - Differential End Yoke - 1350 Series
Differential End Yoke - 1350 Series
Spicer end yokes deliver the same quality and reliability you expect from your original equipment parts. That is because they are OE parts, manufactured to the same standards and specifications as the end yokes that were installed in your vehicle in the first place.
- Uses high-grade Dana approved materials to ensure optimal quality.
- Dana designed, tested and engineered.
- Genuine OE quality. Tested and proven.
Series: 1350
Material: Steel
Spline Count: 26
Type: Splined Hole
Hub Diameter R: 1.550
Involute Spline: I
Length Thru Hole Q: 1.500
Outside Yoke Dimension (In) E: 3.625
Yoke Bearing Dimension (In) D: 1.188
Yoke Style: BS
Major Diameter: 1.146
C/L To End Hub S: 3.000
Joint Angle #1: 20.5
