Spicer 3-4-11471-1 - End Yoke

Spicer  |  SKU: FSGR-3-4-11471-1
$24299 $32725

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

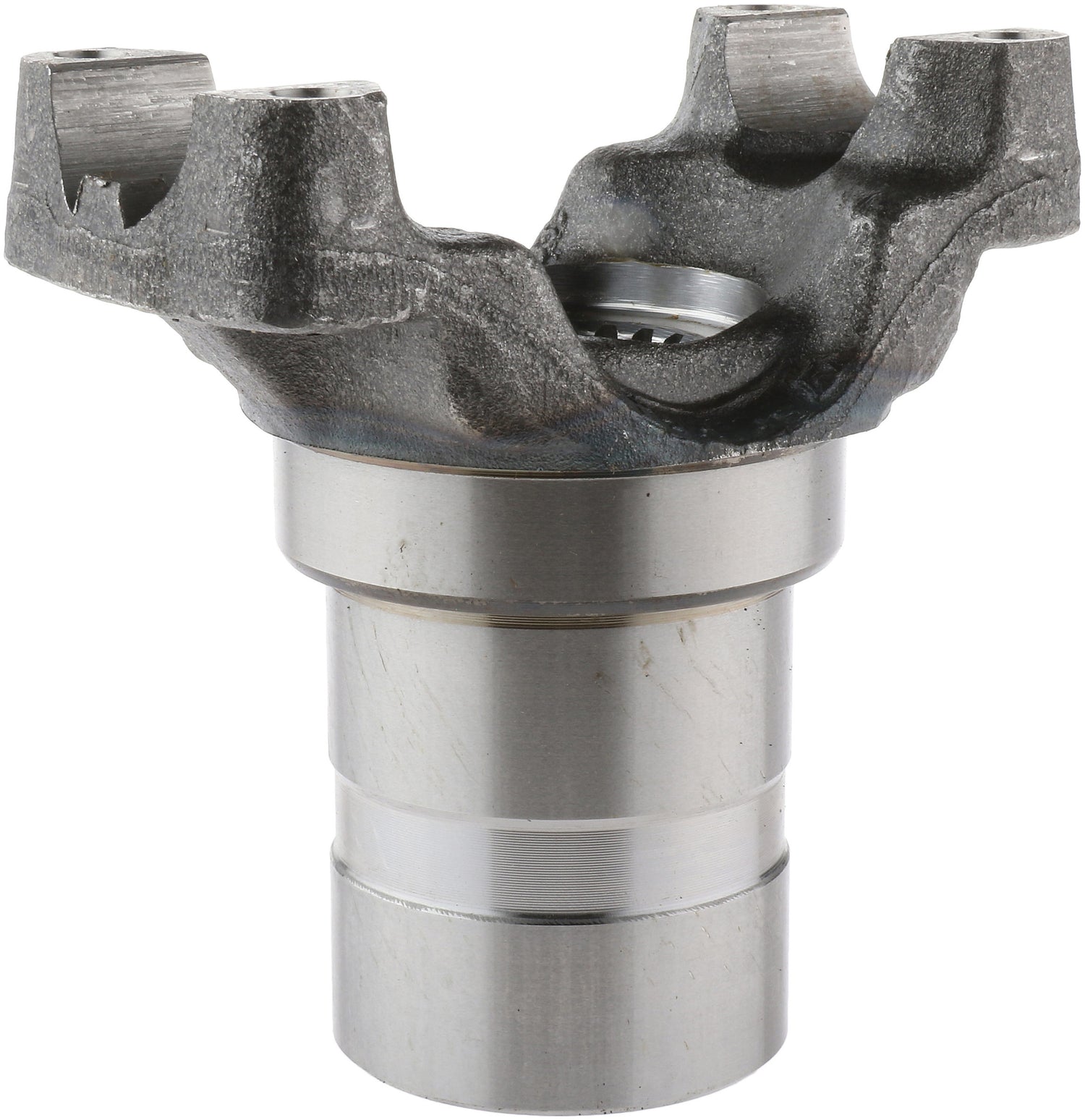

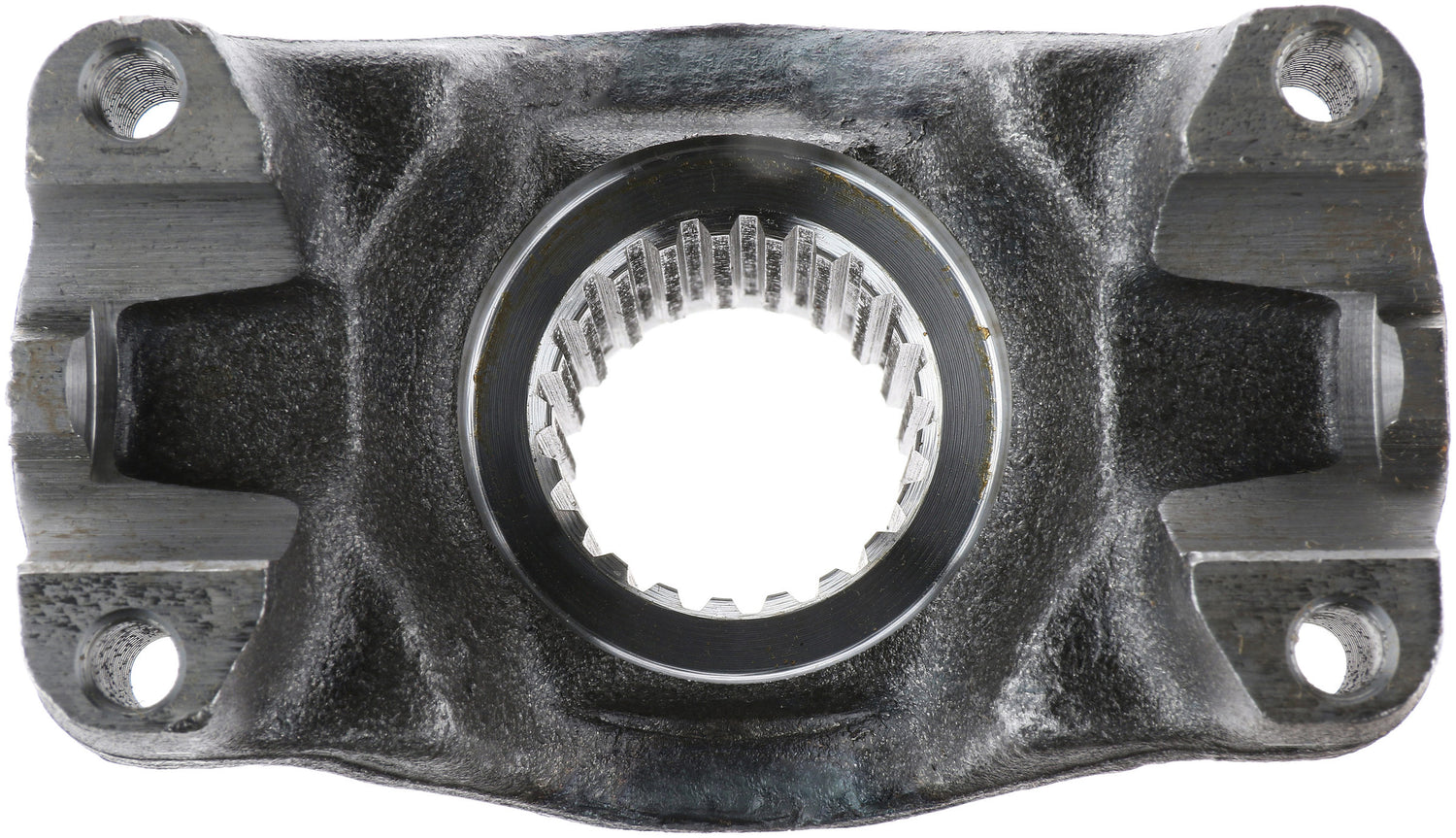

Spicer 3-4-11471-1 - End Yoke

End Yoke

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

  • Uses high-grade Dana approved materials to ensure optimal quality.
  • Dana designed, tested and engineered.
  • Genuine OE quality. Tested and proven.
Series: 1410
Material: Steel
Spline Count: 21
Type: Splined Hole
Hub Diameter R: 2.625
Involute Spline: I
Length Thru Hole Q: 3.312
Yoke Style: BS
Major Diameter: 1.383
C/L To End Hub S: 4.641
C-Bore Depth: 1.190
C-Bore Diameter: 1.500
Joint Angle #1: 25
