Spicer 3-1-751 - Drive Shaft Companion Flange
Spicer | SKU:
FSGR-3-1-751
Sale price
$21299
Regular price
$28736
Unit price
/
Unavailable
$74.37 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

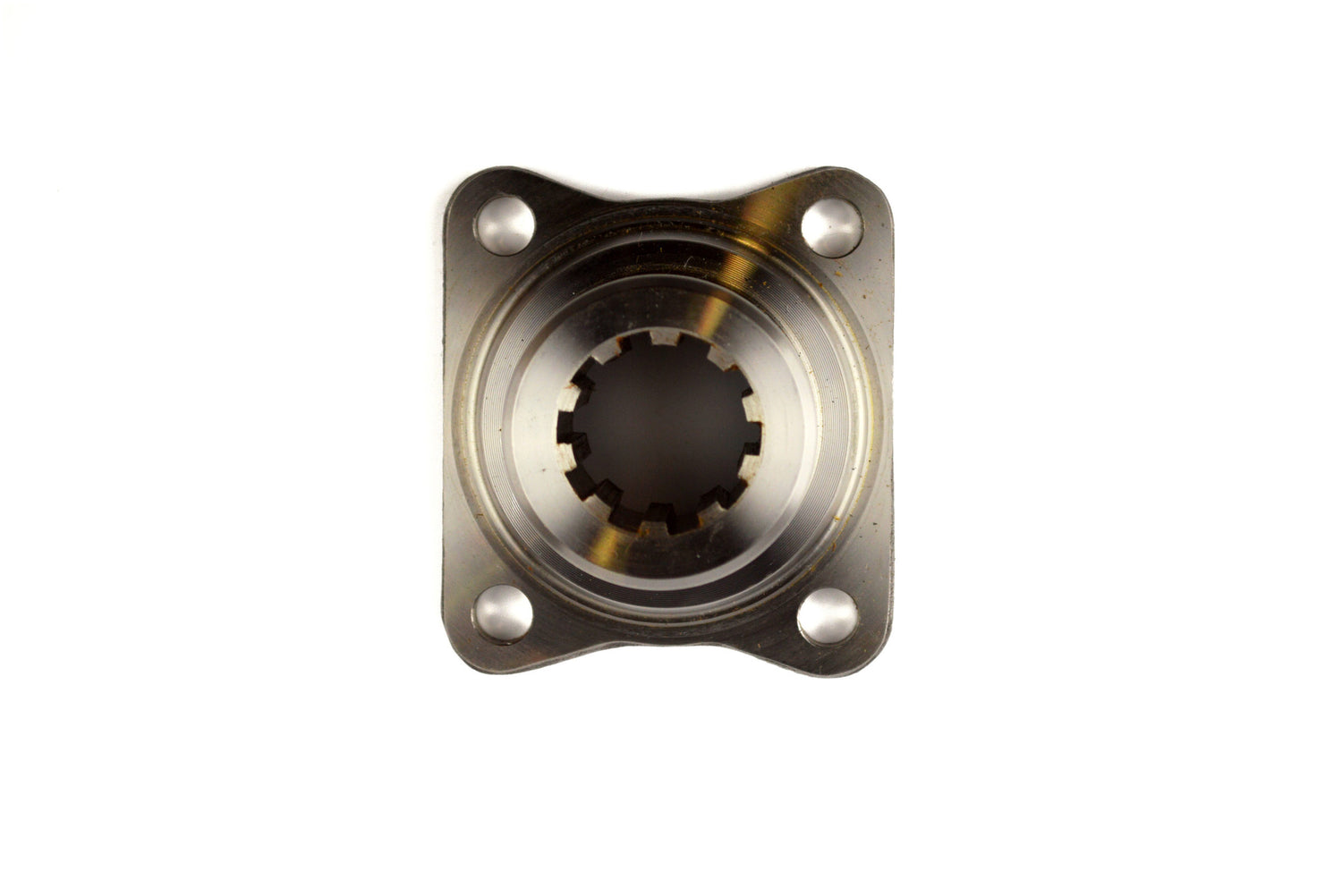

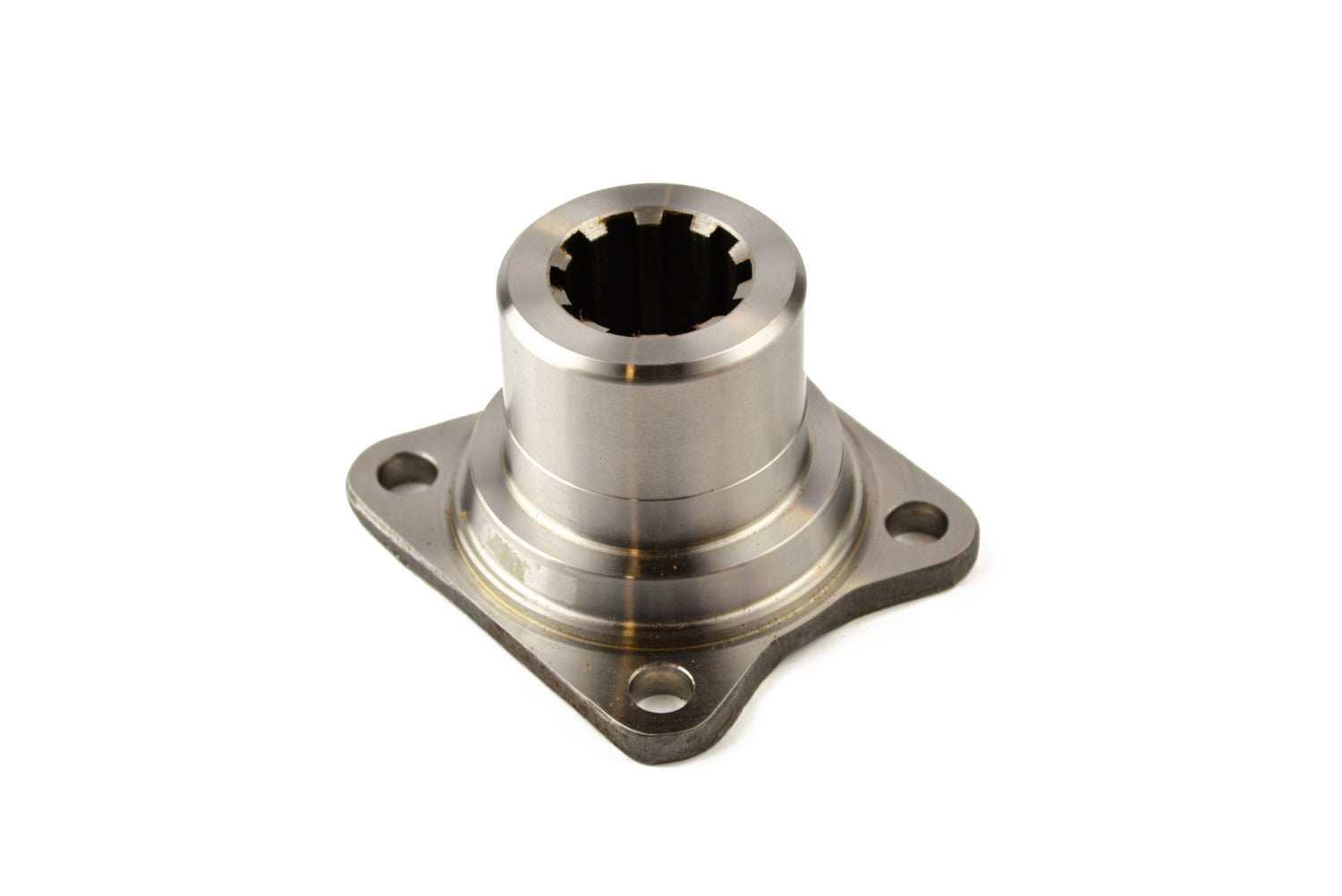

Spicer 3-1-751 - Drive Shaft Companion Flange
Drive Shaft Companion Flange
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- Genuine OE quality. Tested and proven.
- Built to meet OE standards set by Dana.
- Tested and validated to rigorous OE specifications.
- Latest production upgrades ensure genuine Spicer parts are as good or better than the OE parts they replace.
Series: 1350
Material: Steel
Spline Count: 10
Involute Spline: N
Companion Flange Assembly: N
Flange Face To End Of Hub (G): 2.438
Ground Hub Diameter In.: 2.125
Length Thru Hole (F) In.: 2.000
Major Diameter (D) In.: 1.375
Pilot Diameter (C) In.: 2.750 - FEMALE
Brake Drum Pilot Diameter In.: 3.000
Bolt Circle Dia.(B) In.(FL YK): 3.750
Bolt Hole Diameter In (FL YK): 0.438 - DRILLED
Number Of Holes (FL YK): 4
