Spicer 3-1-604 - Drive Shaft Companion Flange
Spicer | SKU:
FSGR-3-1-604
Sale price
$41299
Regular price
$55708
Unit price
/
Unavailable
$144.09 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

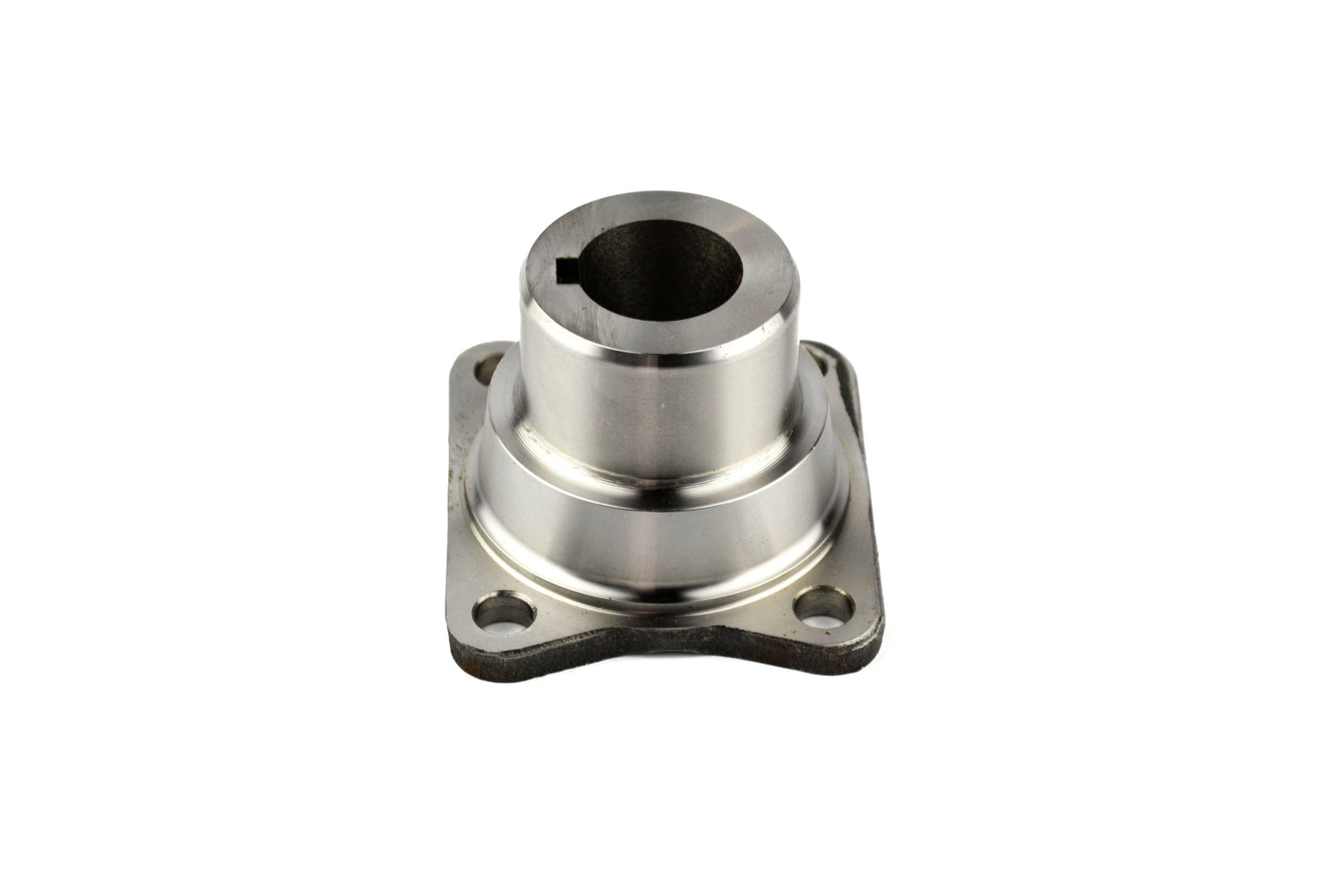

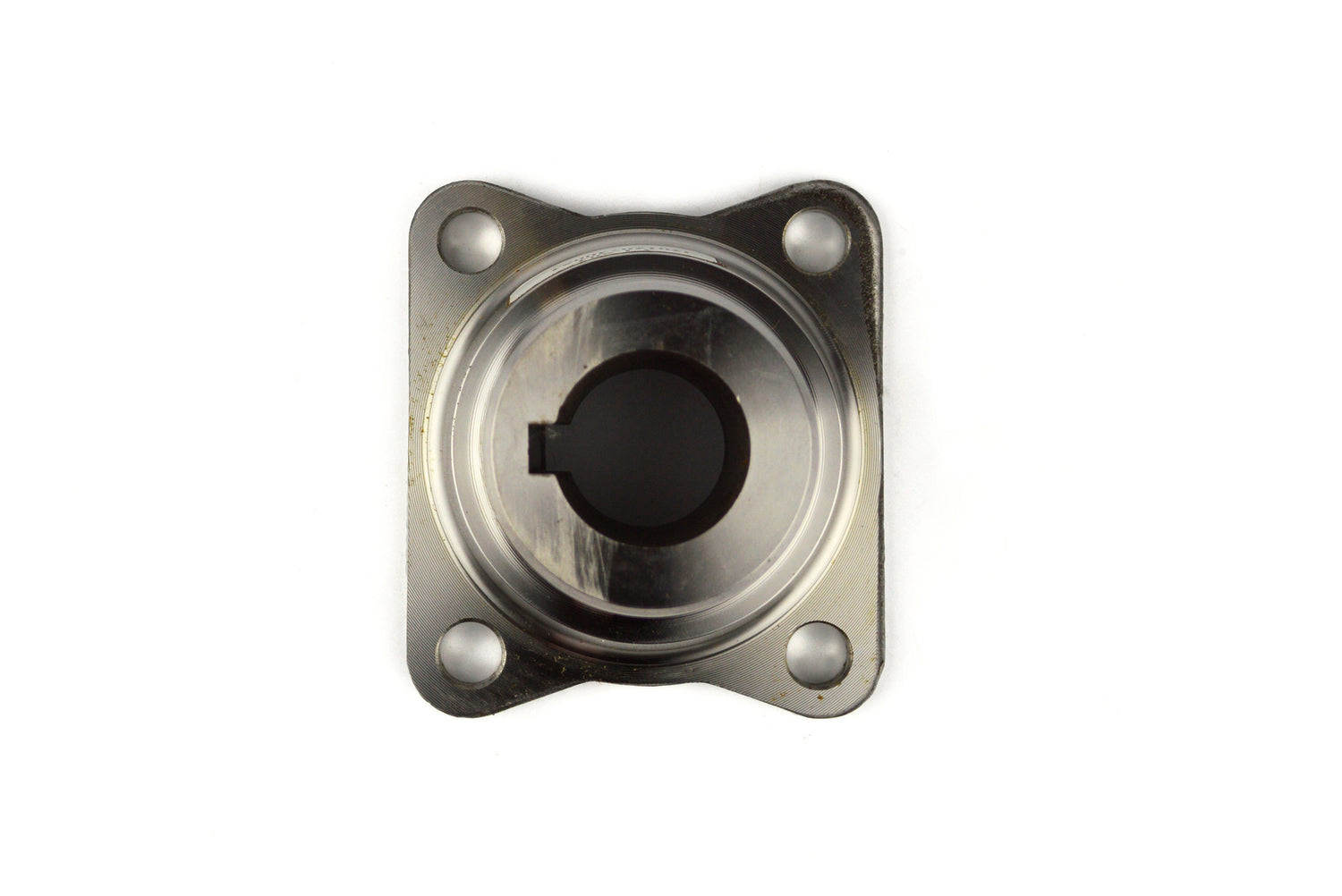

Spicer 3-1-604 - Drive Shaft Companion Flange
Drive Shaft Companion Flange
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- Genuine OE quality. Tested and proven.
- Built to meet OE standards set by Dana.
- Tested and validated to rigorous OE specifications.
- Latest production upgrades ensure genuine Spicer parts are as good or better than the OE parts they replace.
Series: 1350
Flange Face To End Of Hub (G): 2.437
Length Thru Hole (F) In.: 1.500
Number Of Holes: 4
Bolt Hole Circle Diameter In: 3.750
Flange Diameter/Width: 4.625
Flange Hole Diameter: 0.438
Flange Type: Rectangle
Ground Hub Diameter (E) In.: 2.125
Keyway Width In.: 0.312
Major Bore Diameter (D) In.: 1.250
Pilot Diameter In.: 2.750 - FEMALE
SAE Taper: 1.250 SAE TAPER
Brake Drum Pilot Diameter: 3.000
