Spicer 3-1-303-7 - Drive Shaft Companion Flange
Spicer | SKU:
FSGR-3-1-303-7
Sale price
$19299
Regular price
$26000
Unit price
/
Unavailable
$67.01 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

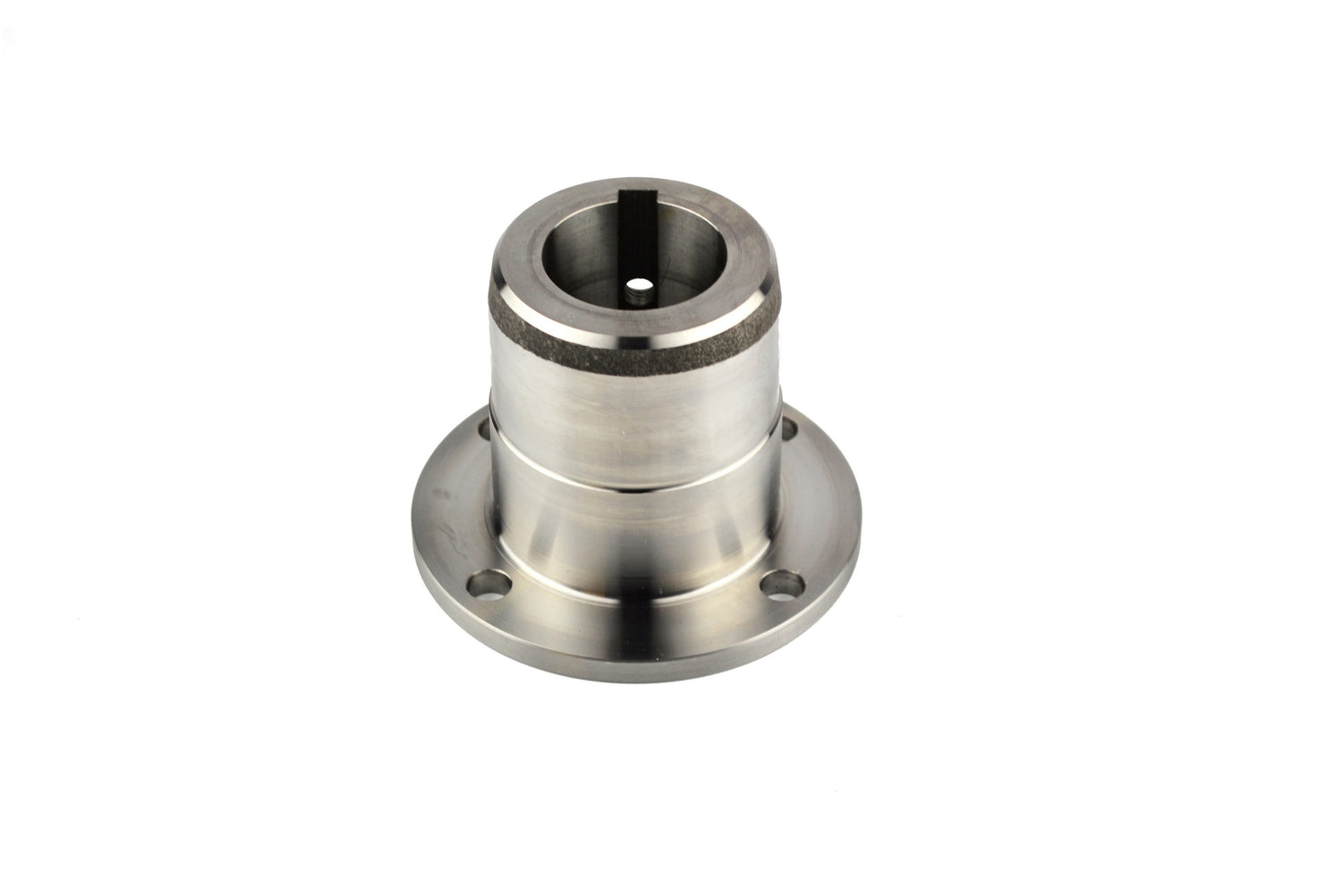

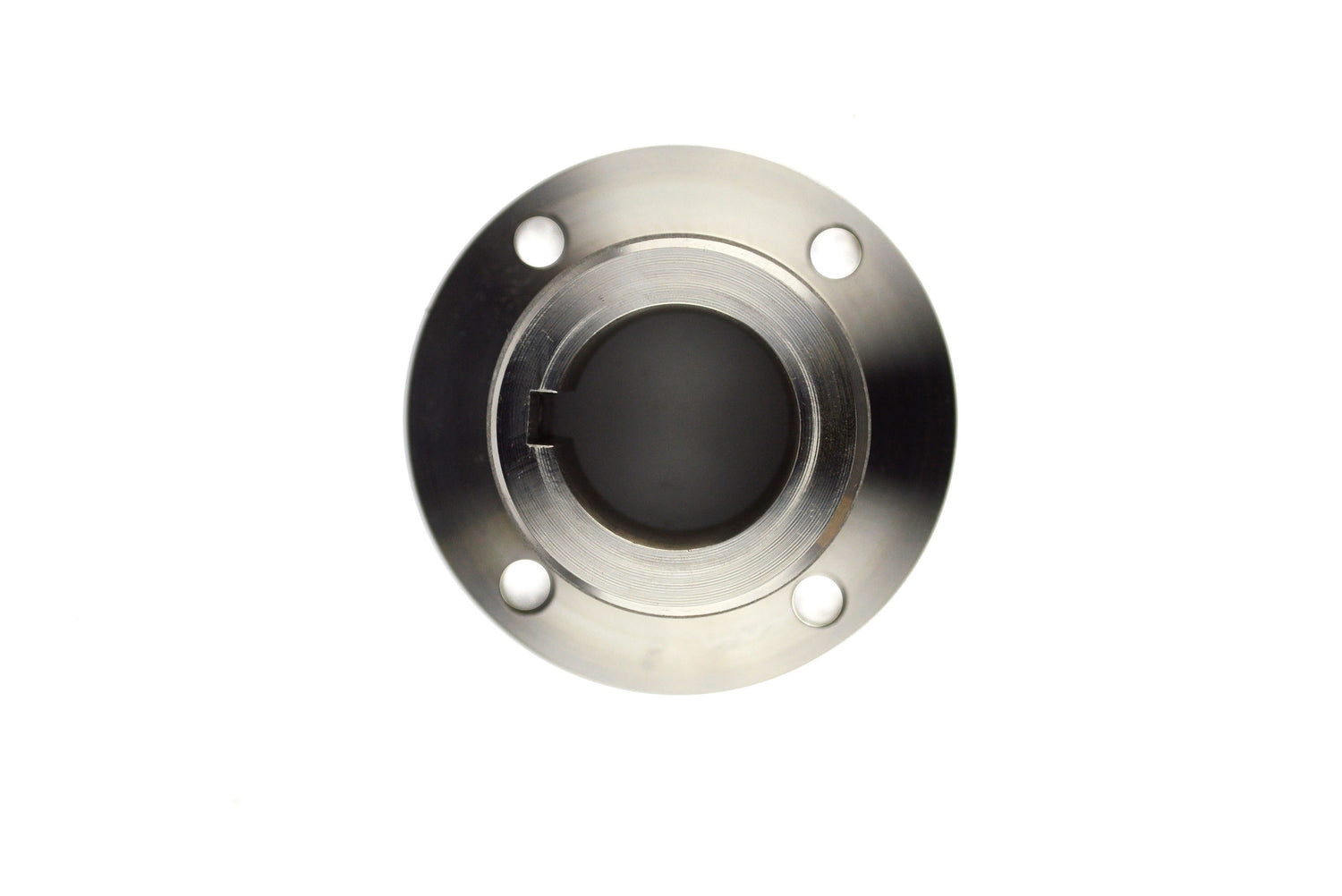

Spicer 3-1-303-7 - Drive Shaft Companion Flange
Drive Shaft Companion Flange
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.
- Genuine OE quality. Tested and proven.
- Built to meet OE standards set by Dana.
- Tested and validated to rigorous OE specifications.
- Latest production upgrades ensure genuine Spicer parts are as good or better than the OE parts they replace.
Bolt Circle Diameter (B) In.: 3.750
Flange Type: Circular
Actual Hole Diameter (Max): 1.750
Actual Hole Diameter (Min): 1.749
Actual Keyway Width (Max): 0.378
Actual Keyway Width (Min): 0.376
Bore Diameter (D) In.: 1.750
Circ Flnge Face To End Of Hub: 3.440
Pilot Diameter (C) In.: 2.750 - FEMALE
Number Of Holes: 4
Material: Steel
Series: 1350
Flange Width Diameter (A) In.: 4.56
Hub Diameter (E) In.: 2.875
Key Width (K) In.: 0.377
Set Screw Hole Diameter In.: 0.375
Bolt Hole Diameter (In.): .440 - DRILLED
