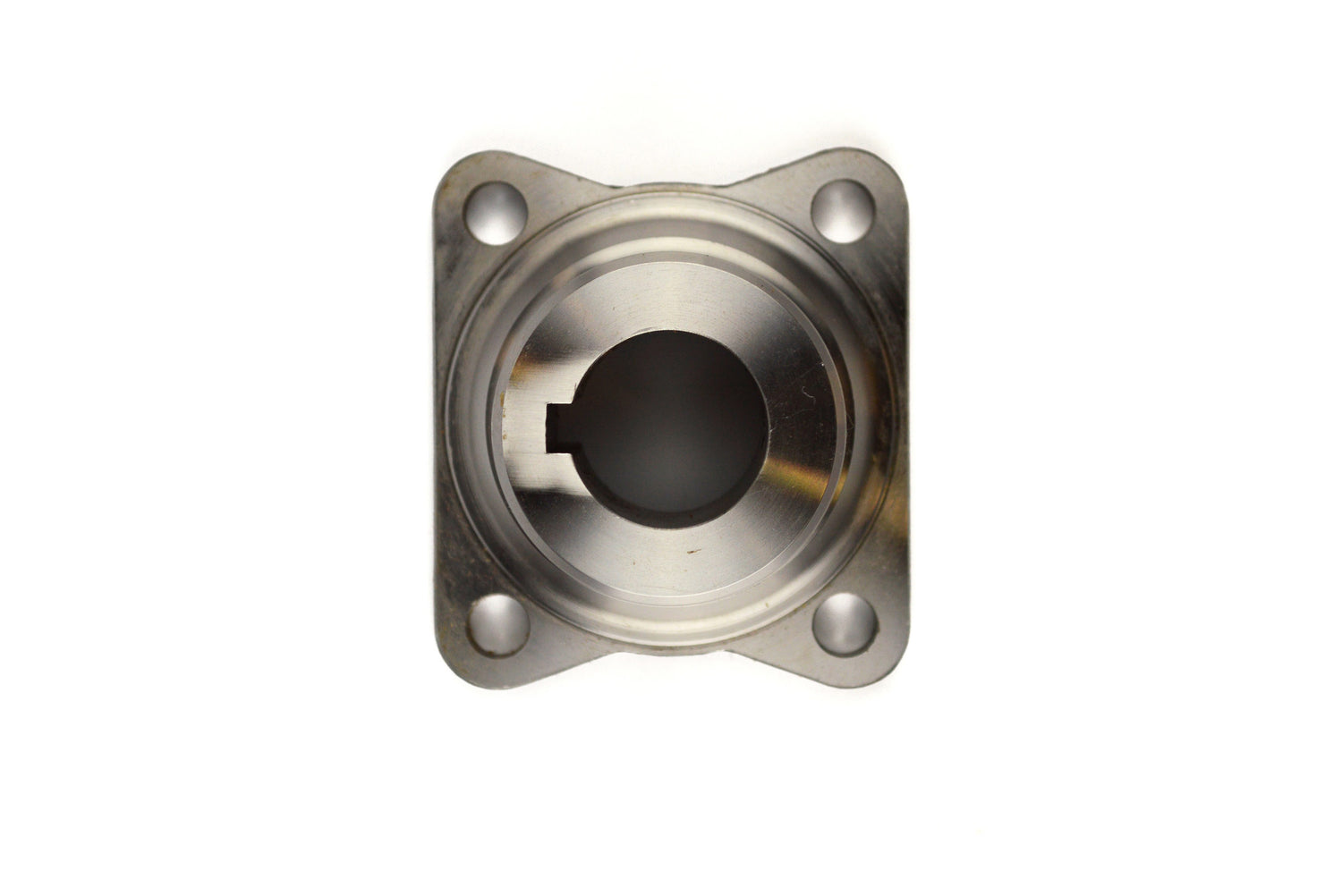

Spicer 3-1-163 - Drive Shaft Companion Flange

Spicer  |  SKU: FSGR-3-1-163
$43799 $58968

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Spicer 3-1-163 - Drive Shaft Companion Flange

Drive Shaft Companion Flange

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.

  • Genuine OE quality. Tested and proven.
  • Built to meet OE standards set by Dana.
  • Tested and validated to rigorous OE specifications.
  • Latest production upgrades ensure genuine Spicer parts are as good or better than the OE parts they replace.
Series: 1350
Material: Steel
Number Of Holes: 4
Pilot Diameter (C) In.: 2.750 - FEMALE
Bolt Circle Diameter (B) In.: 3.750
Flange Type: Rectangular
Actual Hole Diameter (Max): 1.2505
Actual Hole Diameter (Min): 1.2495
Actual Keyway Width (Max): 0.3155
Actual Keyway Width (Min): 0.3135
Bore Diameter (D) In.: 1.25
Circ Flnge Face To End Of Hub: 2.562
Flange Width Diameter (A) In.: 4.562
Hub Diameter (E) In.: 2.250
Key Width (K) In.: 0.312
Rect Flnge Face End Of Hub (G): 2.562
Rect Lngth Thru Hole (F): 2.000
Set Loc. ( Hub & Keyway At 12): 6
Set Screw Hole Diameter In.: 0.375
Bolt Hole Diameter (In.): .438-20 - TAPPED
