Spicer 3-1-1013 - Drive Shaft Companion Flange
Spicer | SKU:
FSGR-3-1-1013
Sale price
$19999
Regular price
$26975
Unit price
/
Unavailable
$69.76 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

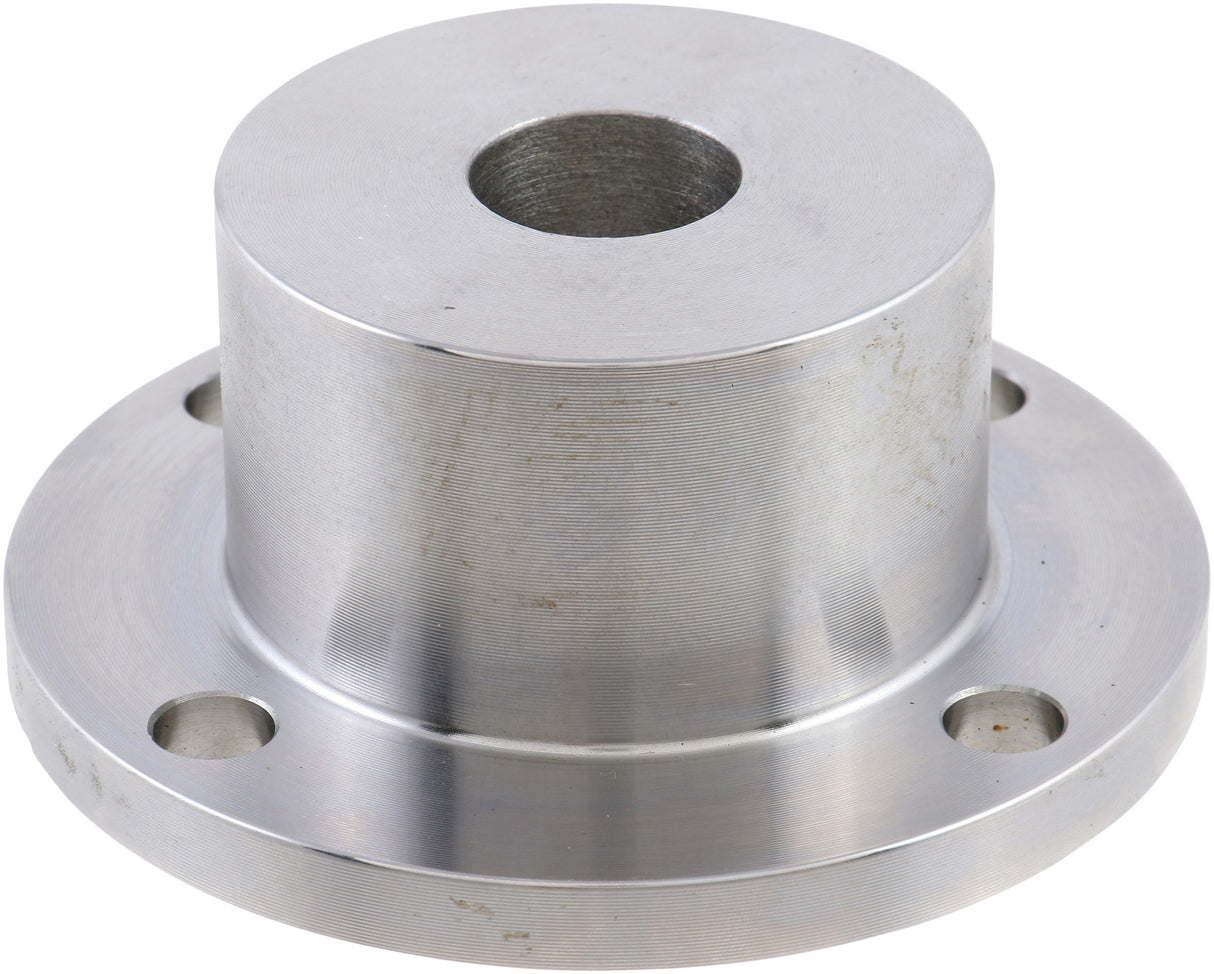

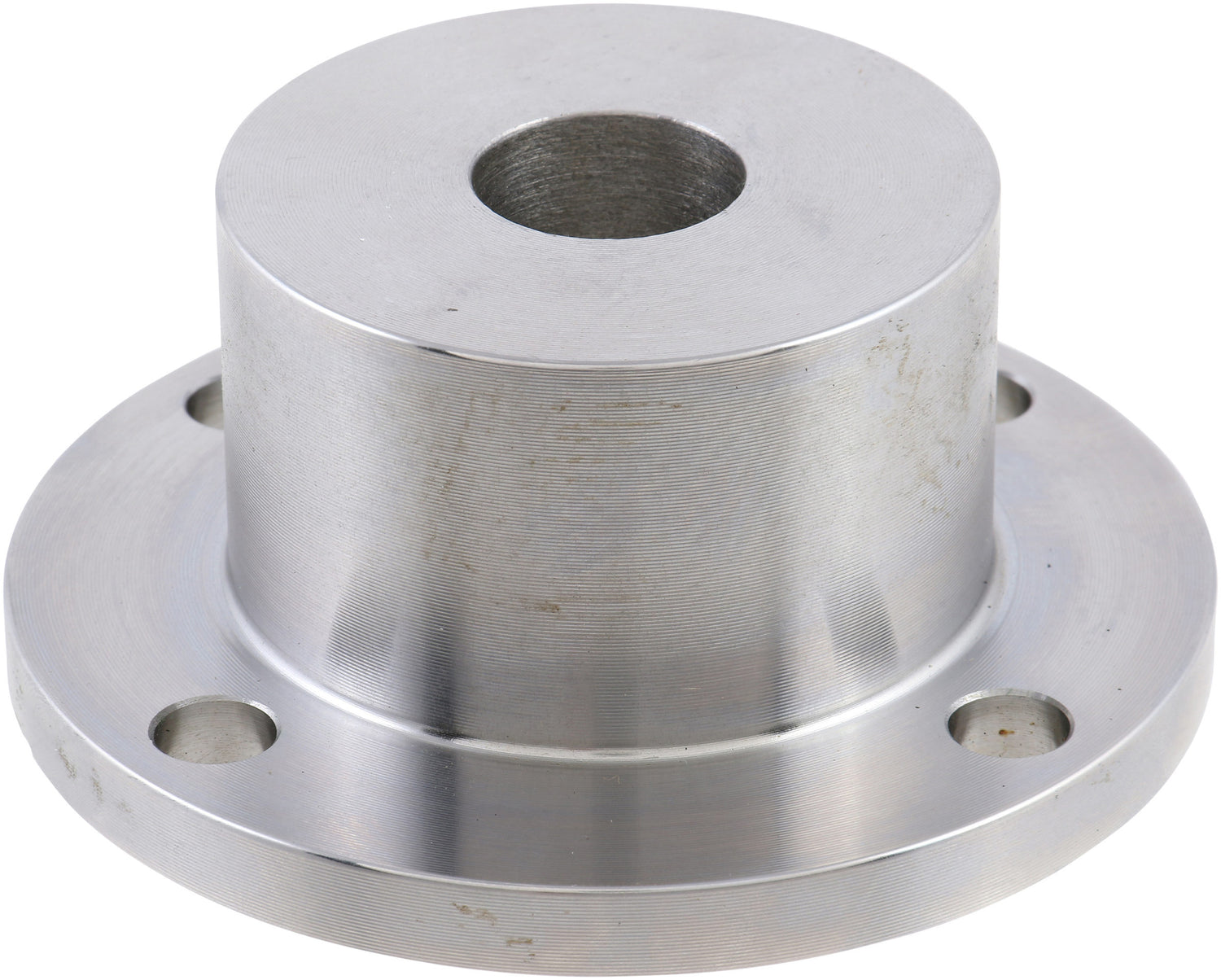

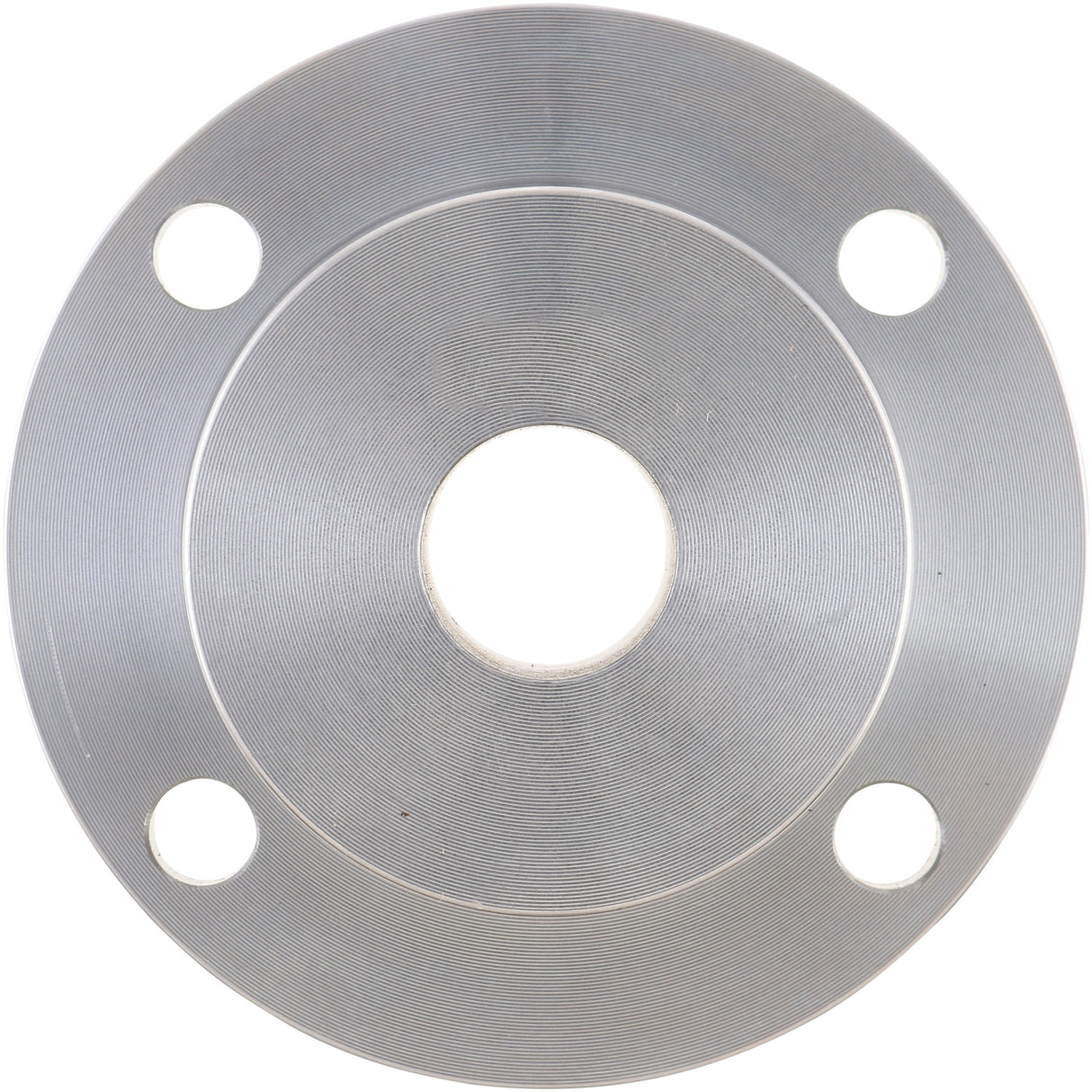

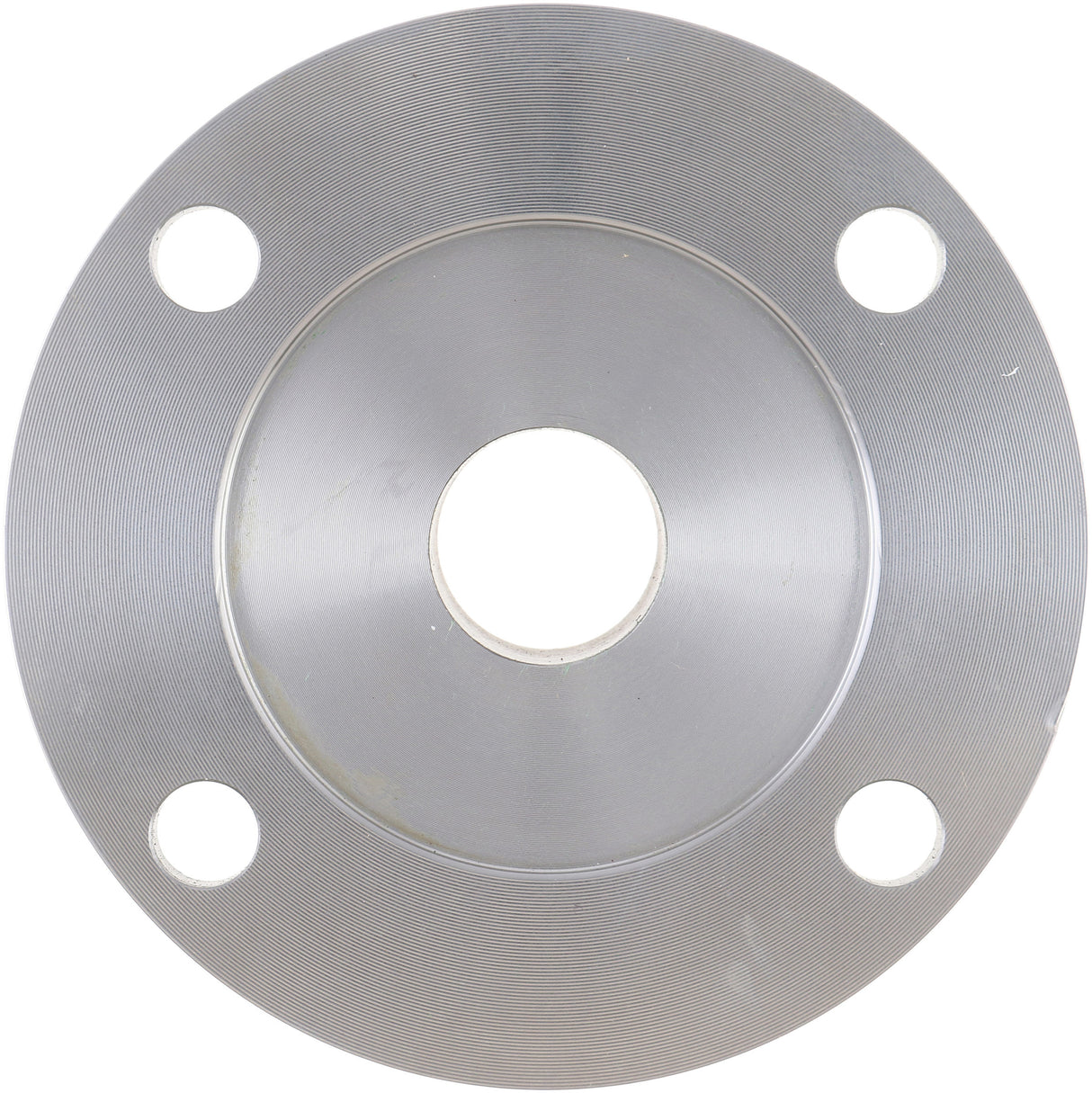

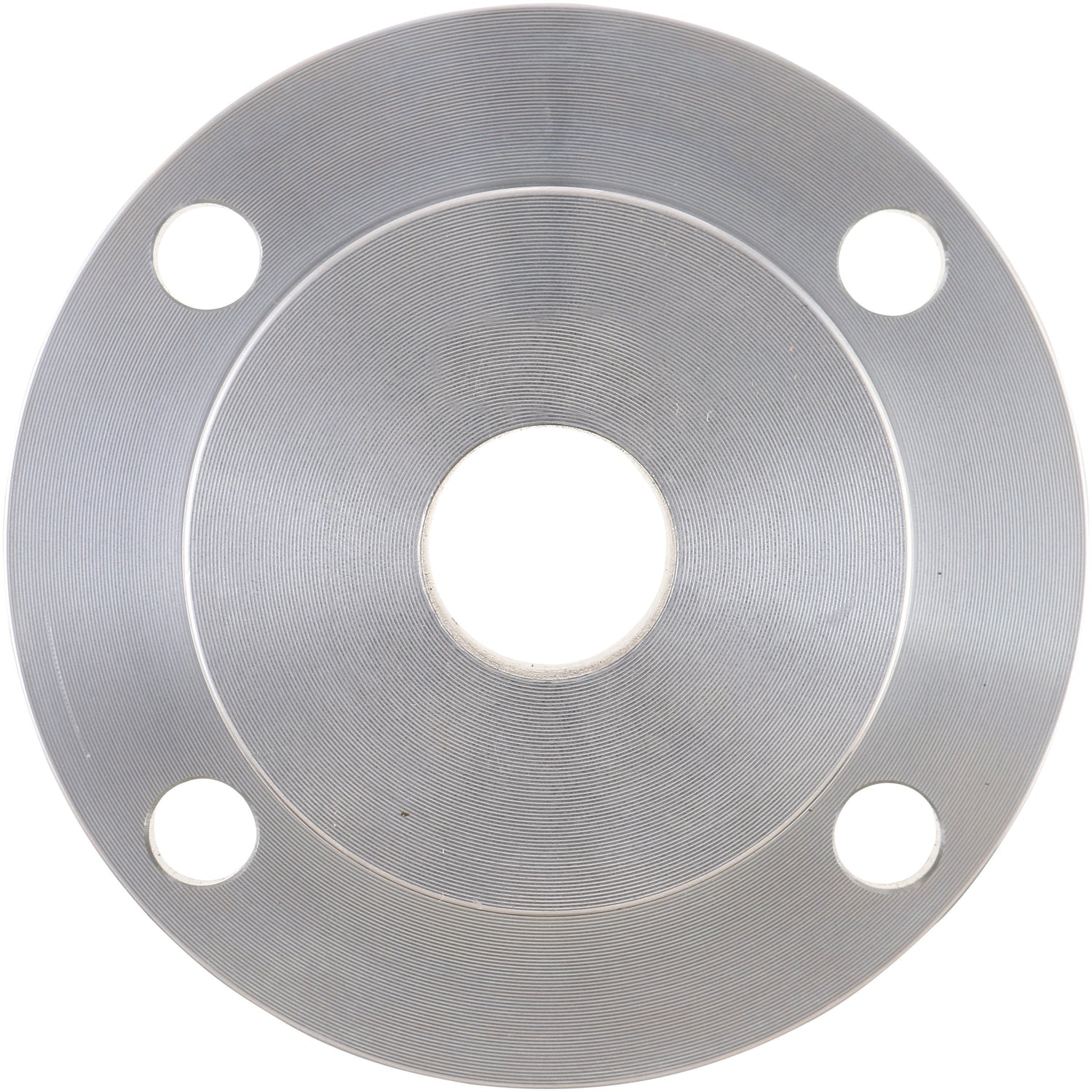

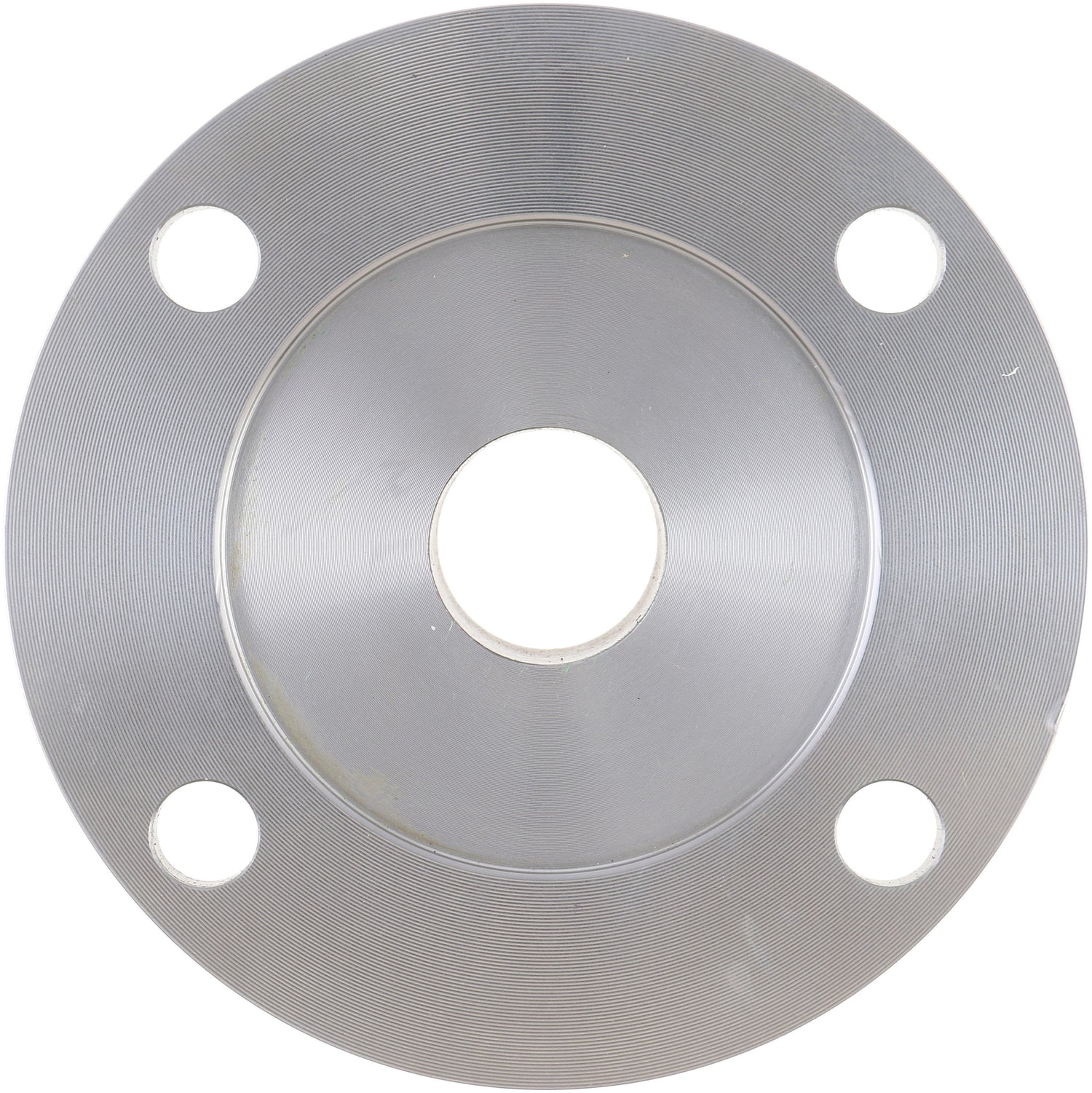

Spicer 3-1-1013 - Drive Shaft Companion Flange
Drive Shaft Companion Flange
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- Genuine OE quality. Tested and proven.
- Built to meet OE standards set by Dana.
- Tested and validated to rigorous OE specifications.
- Latest production upgrades ensure genuine Spicer parts are as good or better than the OE parts they replace.
Bolt Hole Diameter (In.): .438 - DRILLED
Set Screw Hole Diameter In.: 0.443
Hub Diameter (E) In.: 2.875
Flange Width Diameter (A) In.: 4.56
Circ Flnge Face To End Of Hub: 2.000
Bore Diameter (D) In.: 1
Series: 1350
Material: Steel
Number Of Holes: 4
Pilot Diameter (C) In.: 2.750 - FEMALE
Bolt Circle Diameter (B) In.: 3.750
Flange Type: Circular
Actual Hole Diameter (Max): 1.000
