Spicer 3-1-1013-6 - Drive Shaft Companion Flange
Spicer | SKU:
FSGR-3-1-1013-6
Sale price
$30699
Regular price
$41394
Unit price
/
Unavailable
$106.95 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

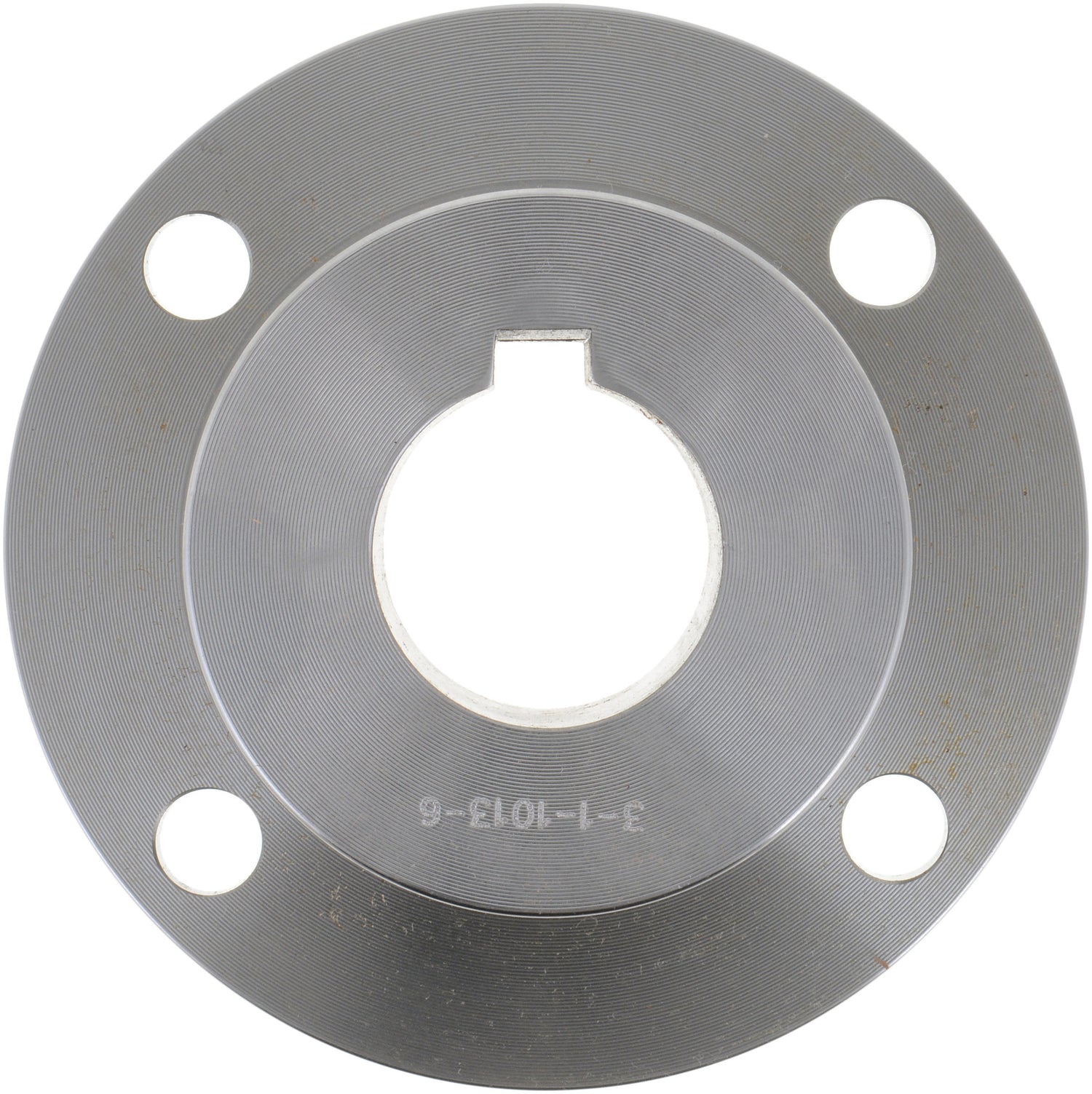

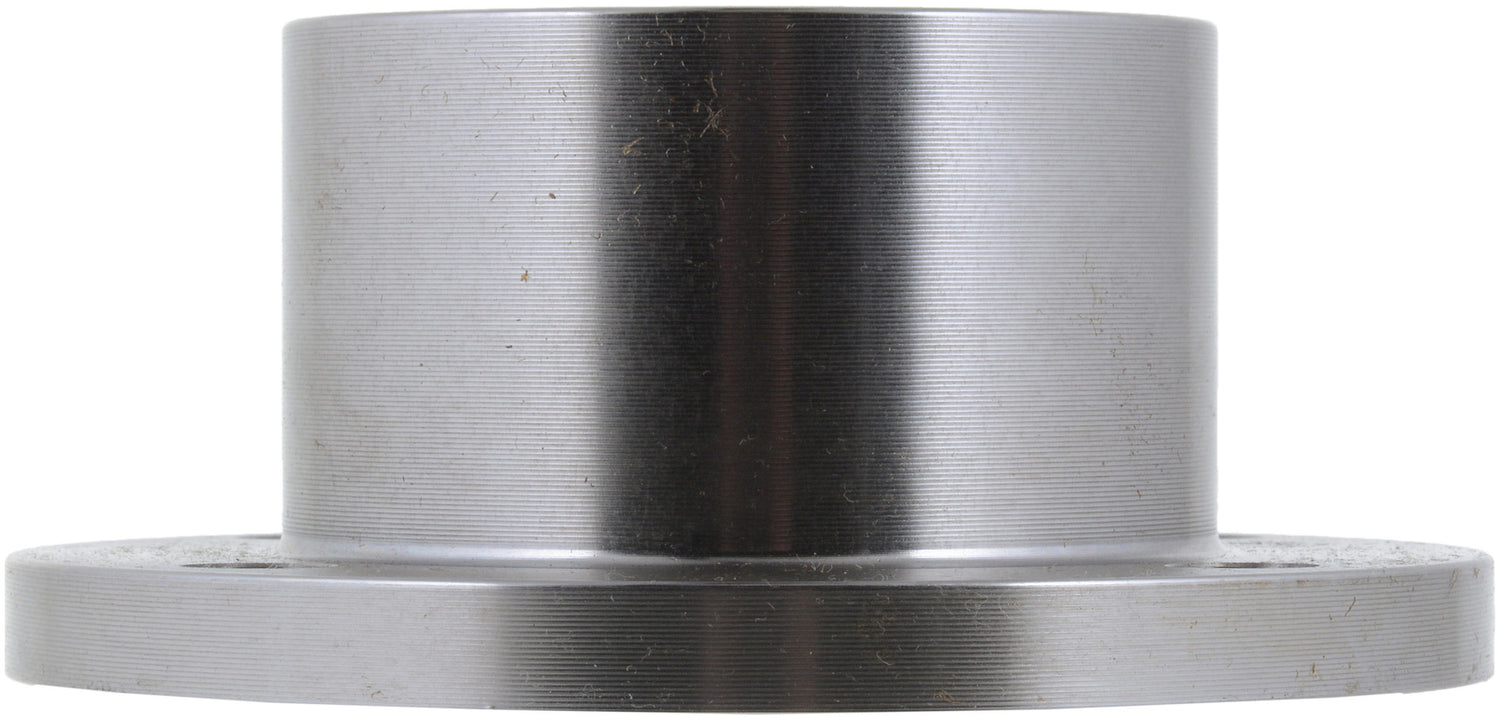

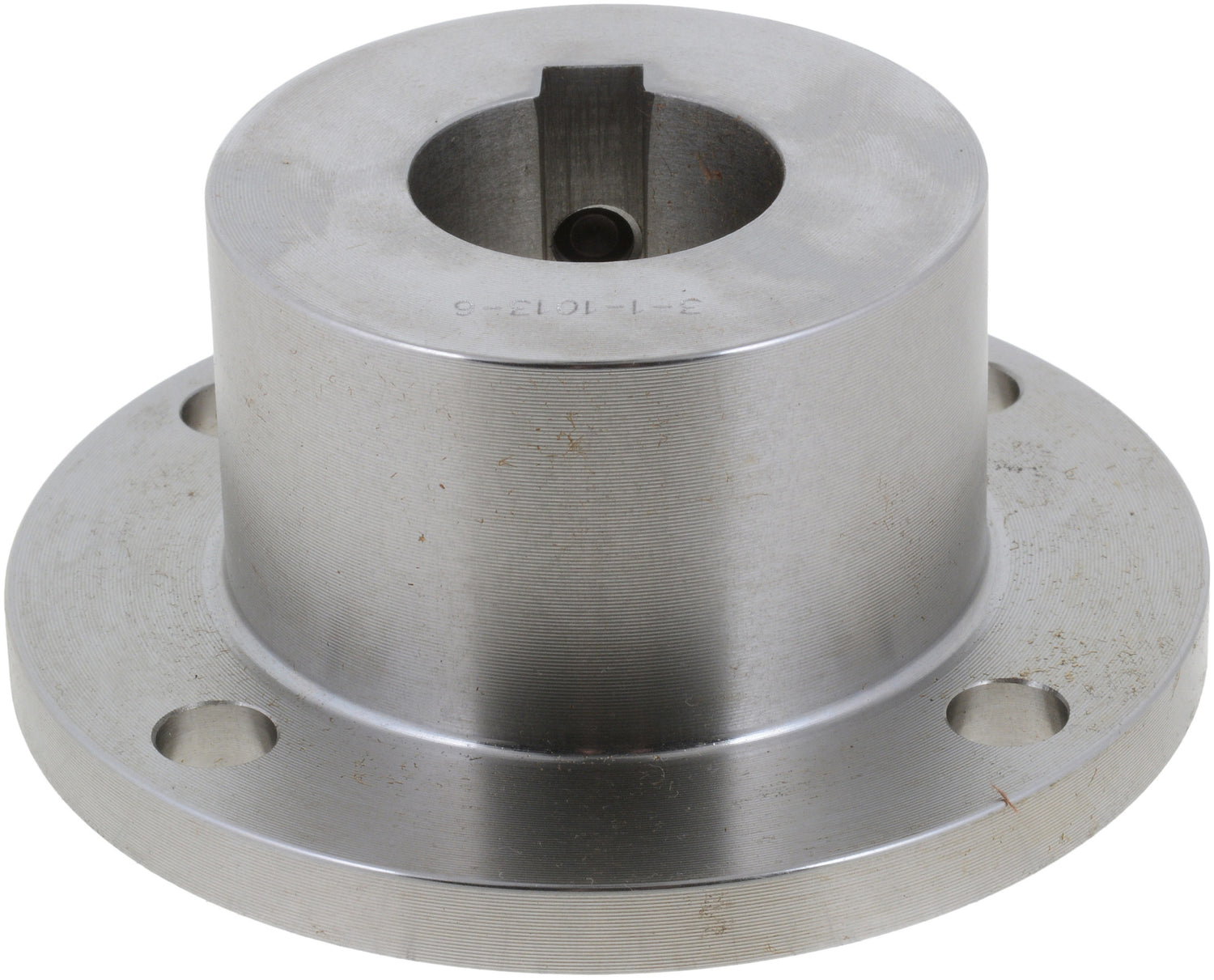

Spicer 3-1-1013-6 - Drive Shaft Companion Flange
Drive Shaft Companion Flange
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- Genuine OE quality. Tested and proven.
- Built to meet OE standards set by Dana.
- Tested and validated to rigorous OE specifications.
- Latest production upgrades ensure genuine Spicer parts are as good or better than the OE parts they replace.
Series: 1350
Material: Steel
Number Of Holes: 4
Pilot Diameter (C) In.: 2.750 - FEMALE
Bolt Circle Diameter (B) In.: 3.750
Flange Type: Circular
Actual Hole Diameter (Max): 1.376
Actual Hole Diameter (Min): 1.375
Bore Diameter (D) In.: 1.375
Circ Flnge Face To End Of Hub: 2.000
Flange Width Diameter (A) In.: 4.56
Hub Diameter (E) In.: 2.875
Key Width (K) In.: 0.375
Set Screw Hole Diameter In.: 0.375
Bolt Hole Diameter (In.): .438 - DRILLED
