Spicer 250-4-1261-1X - End Yoke Assembly
Spicer | SKU:
FSGR-250-4-1261-1X
Sale price
$39599
Regular price
$53404
Unit price
/
Unavailable
$138.05 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

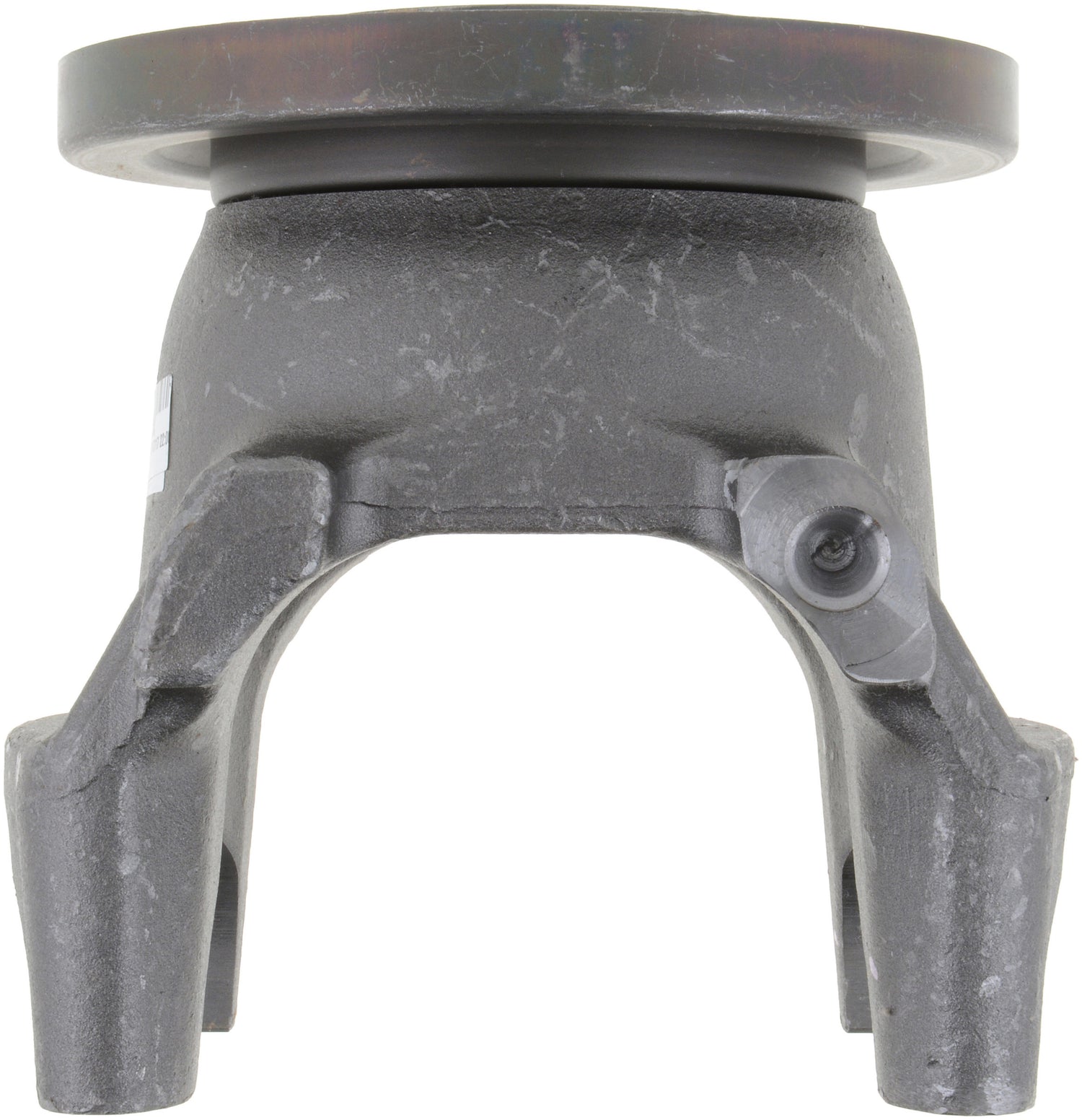

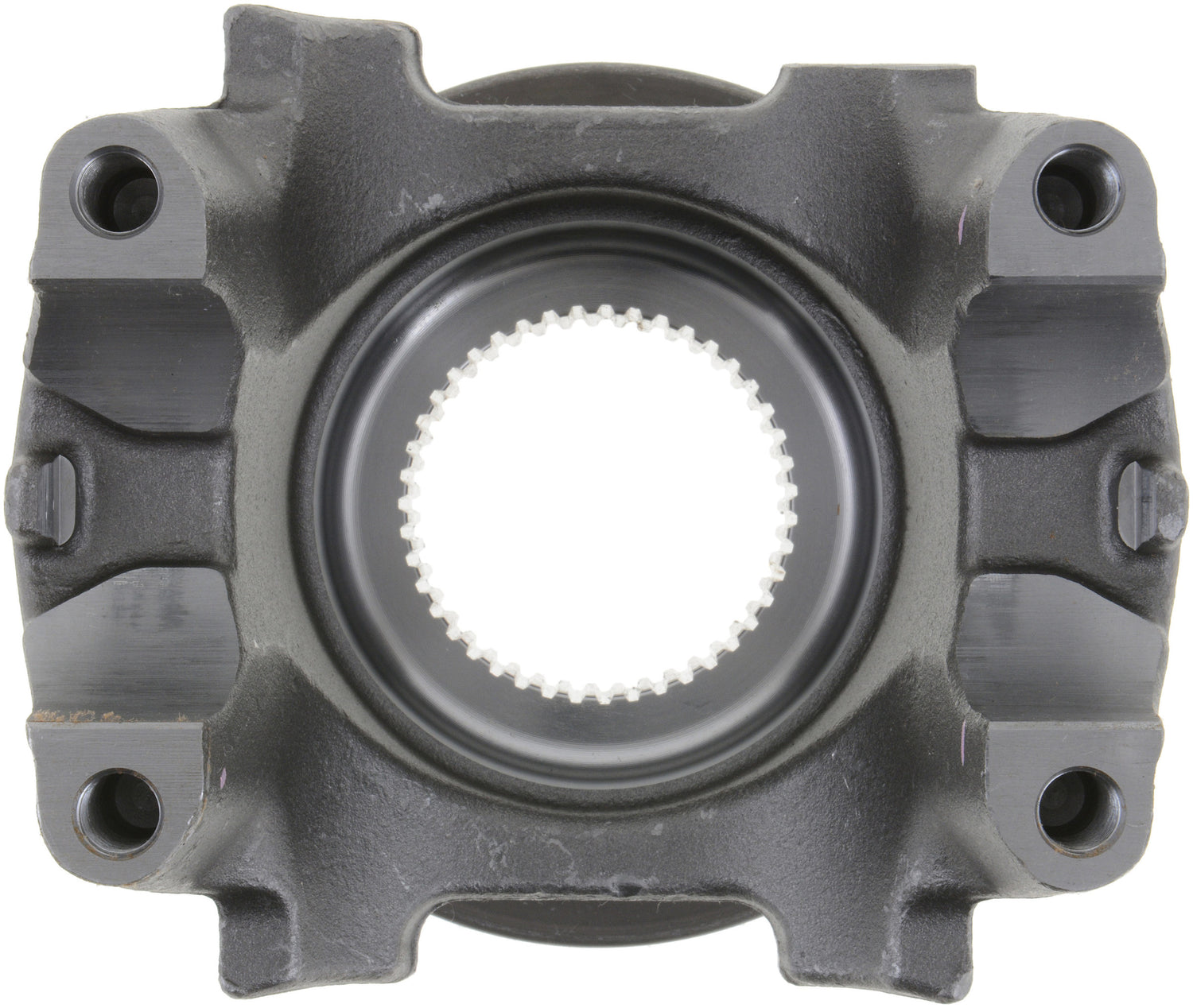

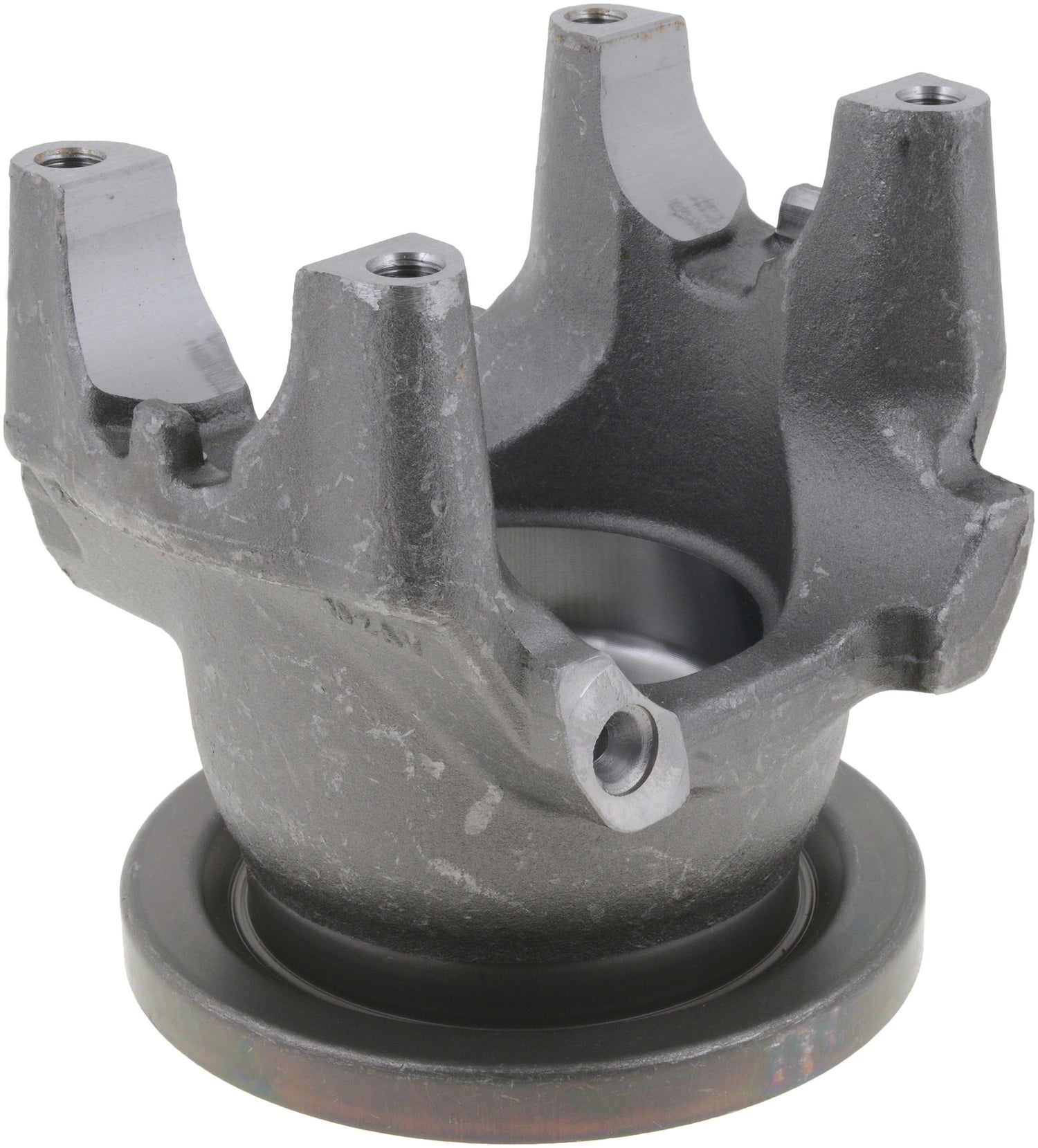

Spicer 250-4-1261-1X - End Yoke Assembly
End Yoke Assembly
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- Uses high-grade Dana approved materials to ensure optimal quality.
- Dana designed, tested and engineered.
- Genuine OE quality. Tested and proven.
Series: SPL250
Material: Steel
Spline Count: 43
Type: Half Round End Yoke
Assembly: 250-4-1261-1X
Hub Diameter R: 3.75
Includes Slinger/Plug: 5010092
Involute Spline: N
Length Thru Hole Q: 1.795
Outside Yoke Dimension (In) E: 6.2
Yoke Bearing Dimension (In) D: 2.362
Yoke Style: HR
Major Diameter: 2.7530
Inside Yoke Dimension (In) K: 3.75
C/L To End Hub S: 6.417
