Spicer 250-4-1241-1 - End Yoke
Spicer | SKU:
FSGR-250-4-1241-1
Sale price
$34999
Regular price
$47130
Unit price
/
Unavailable
$121.31 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

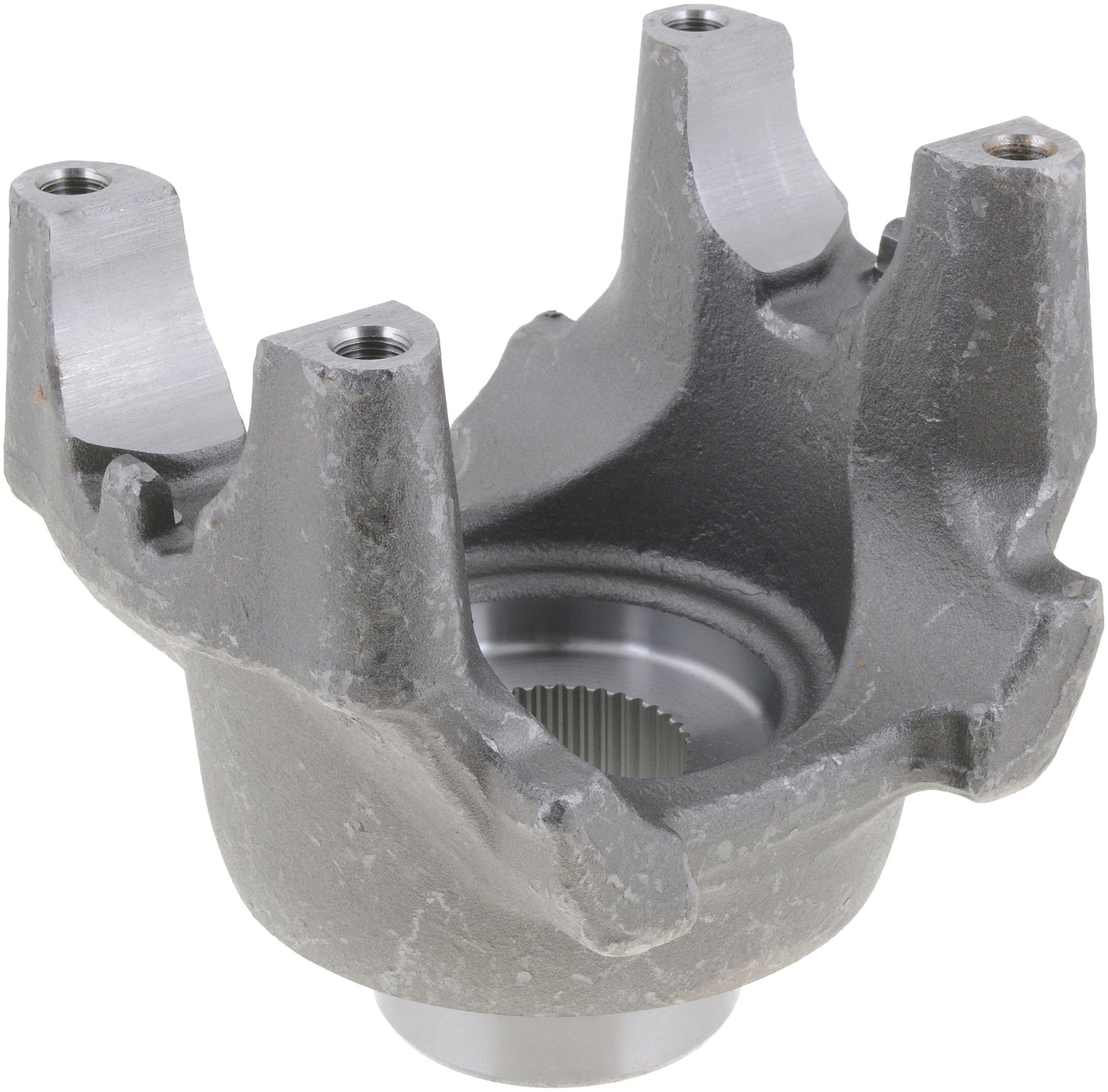

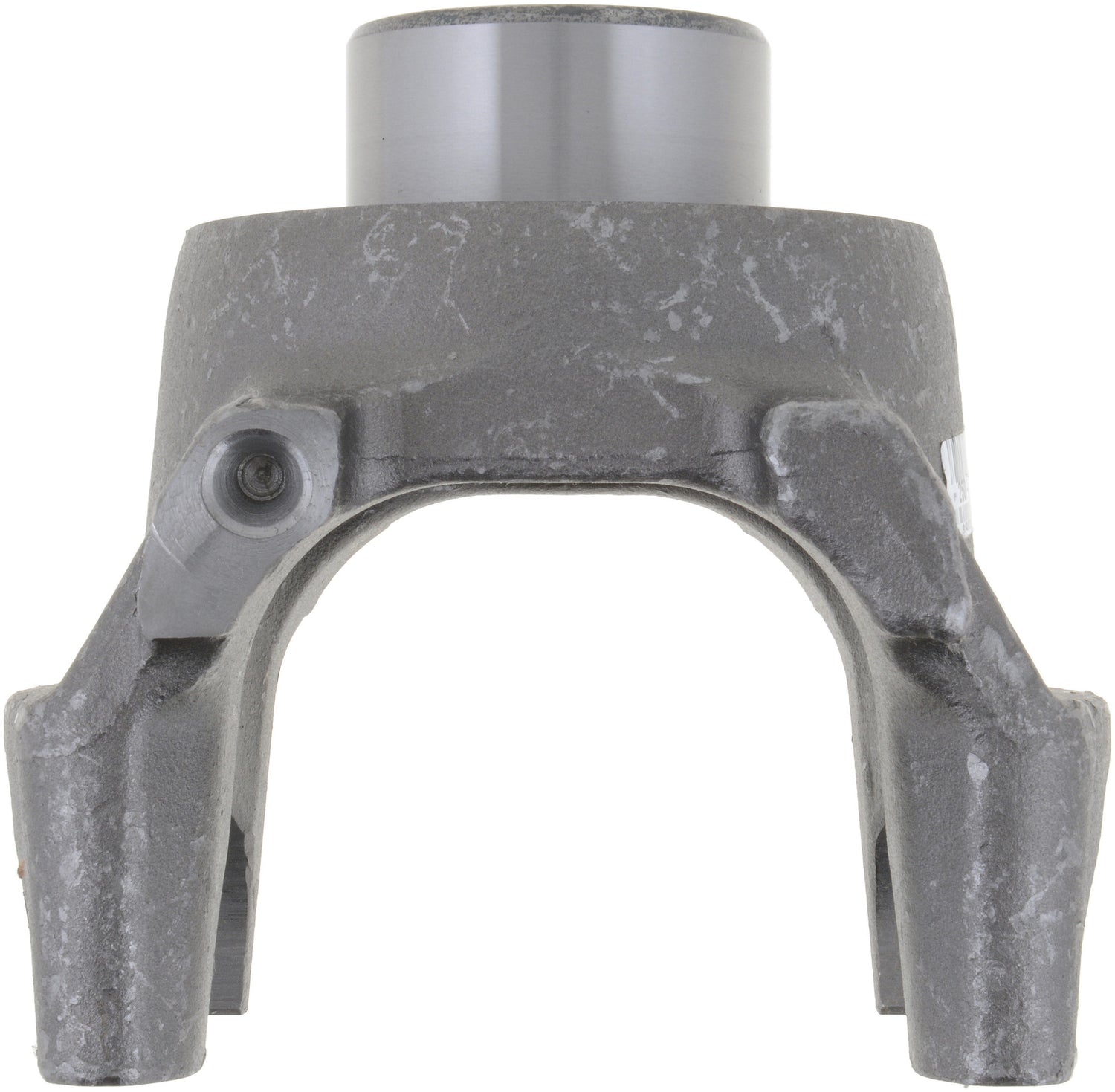

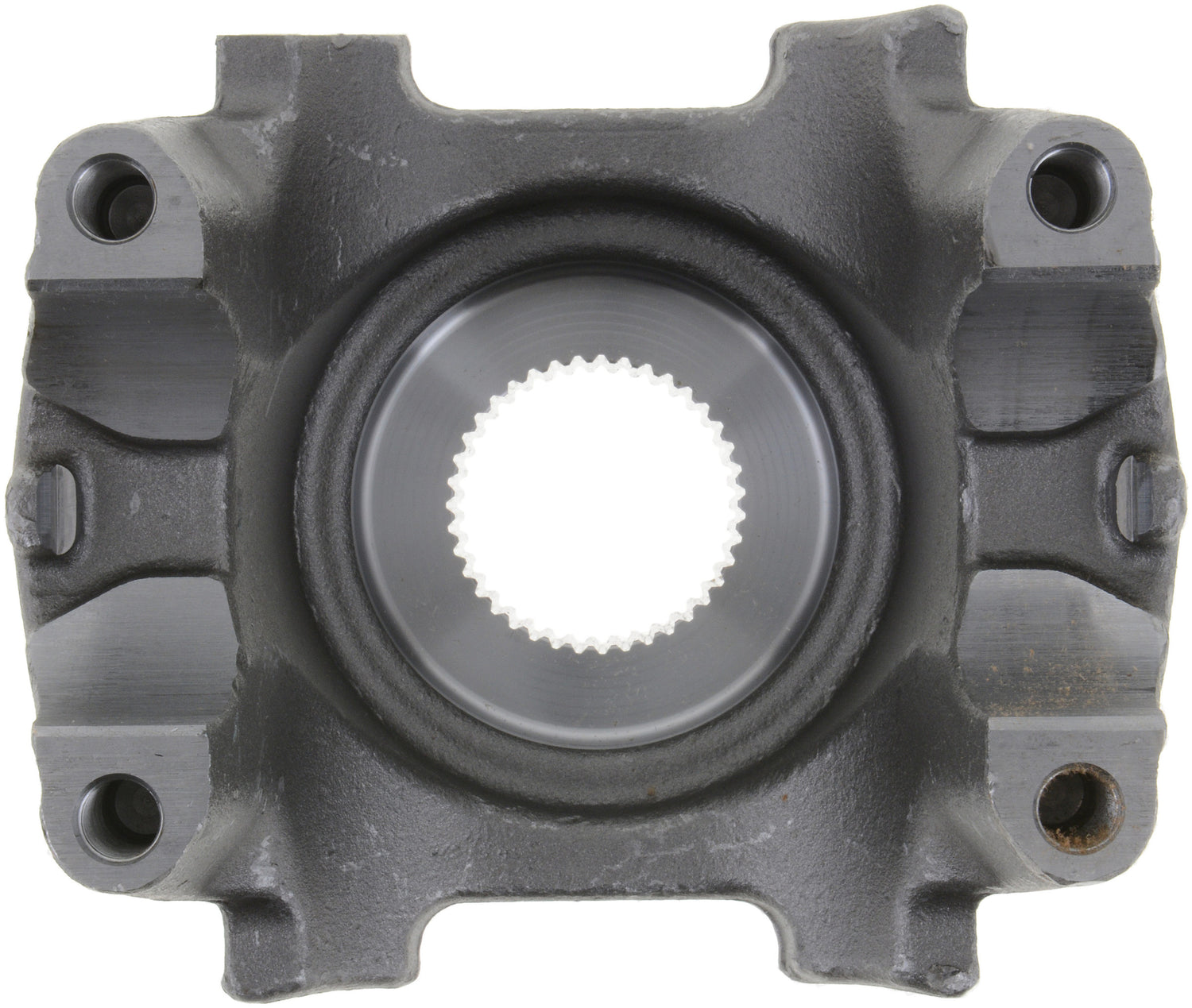

Spicer 250-4-1241-1 - End Yoke
End Yoke
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- Uses high-grade Dana approved materials to ensure optimal quality.
- Dana designed, tested and engineered.
- Genuine OE quality. Tested and proven.
Series: SPL250
Material: Steel
Spline Count: 39
Type: Splined Hole
Assembly: Y
Hub Diameter R: 2.750
Includes Slinger/Plug: Y
Involute Spline: N
Length Thru Hole Q: 2.312
Outside Yoke Dimension (In) E: 6.417
Yoke Bearing Dimension (In) D: 2.362
Yoke Style: HR
Major Diameter: 2.024
C/L To End Hub S: 6.11
C-Bore Depth: 0.09
