Spicer 2014616-1 - DANA FRONT AXLE SHAFT

Spicer  |  SKU: FSGR-2014616-1
$40299 $54357

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

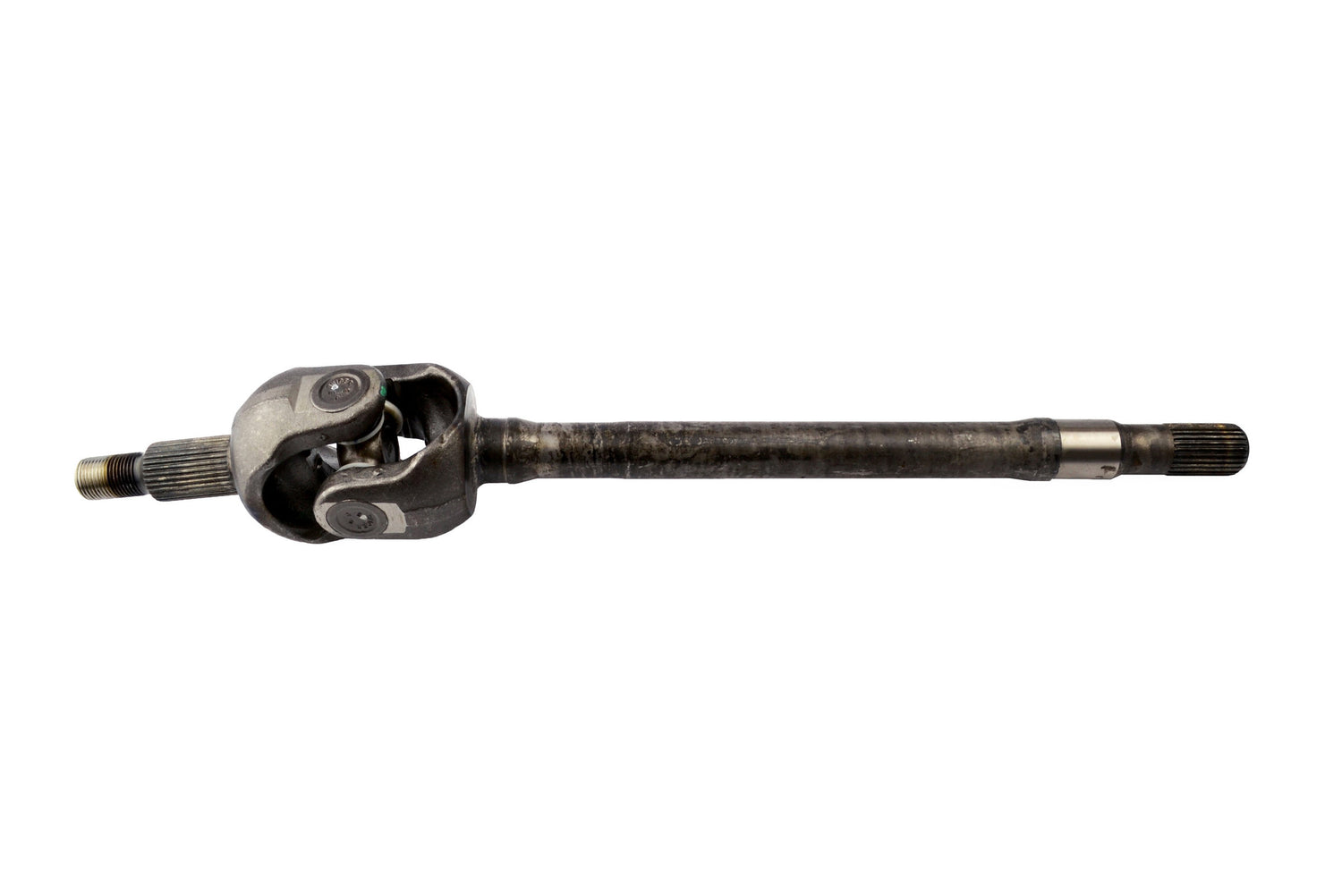

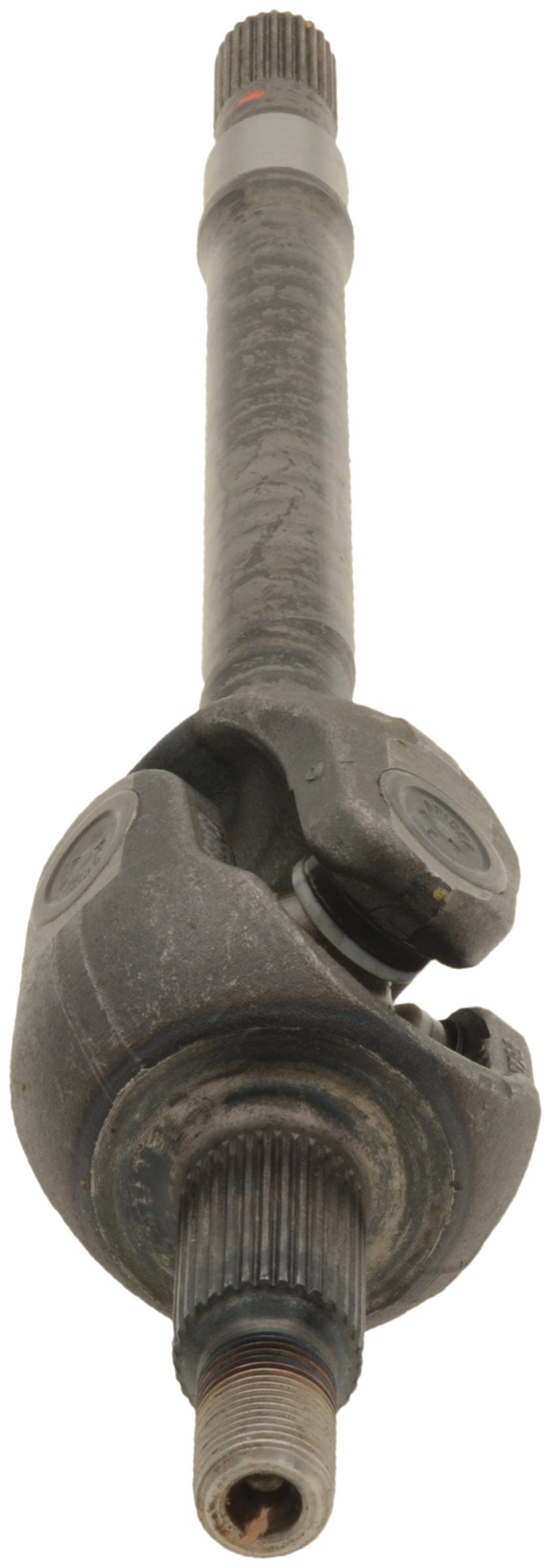

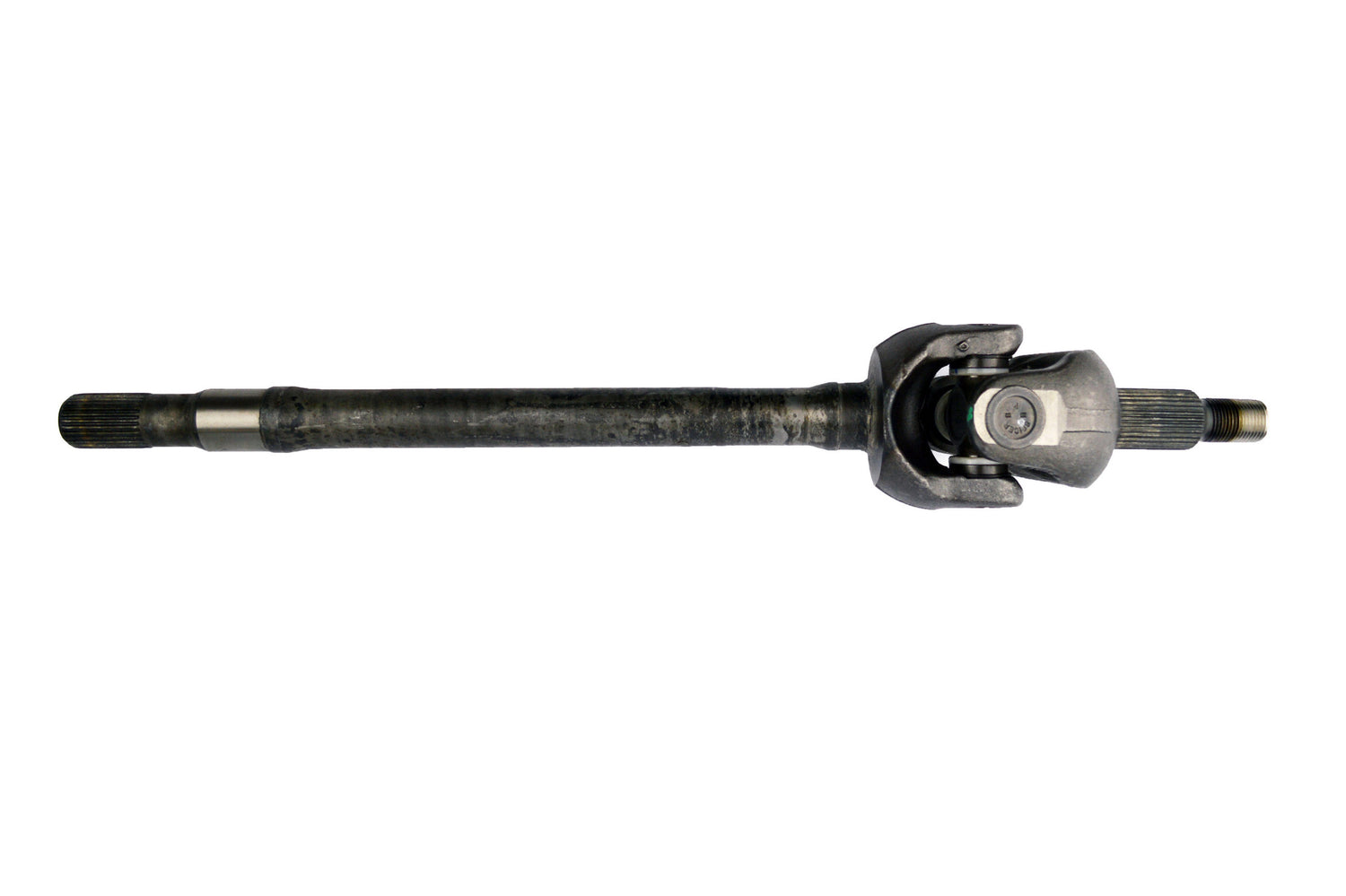

Spicer 2014616-1 - DANA FRONT AXLE SHAFT

DANA FRONT AXLE SHAFT

Genuine Spicer light vehicle axle products are manufactured to the same high standards as original equipment (OE) parts because they are OE parts. That means when an automotive axle part is replaced with a genuine Spicer part, you are getting the same performance and reliability you have come to expect. And because Dana is constantly revolutionizing the technology behind its Dana axles and Spicer products, the replacement car axle or component you purchase today may even exceed the standards set for the original equipment part that you are replacing.

  • Genuine OE quality. Tested and proven.
  • Precision manufacturing processes
  • Engineered for consistent quality and durability
  • Heat-treated for optimal hardness and durability
Universal Joint Series: 1350
Axle Model: DANA 30
Material: Steel
ABS/Non-ABS: Non-ABS
Length (IN): 25.100
Spline Count: 27 Inboard / 32 Outboard
Axle Cover Bolt Hole Qty: 10
Includes Tone: N
Cover Bolt Quantity: 10
Axle Type: Complete Assembly
Includes Universal Joint: Y
Inner Shaft Length (In): 18.800
Inner Shaft Spline: 27
Outer Stub Length (In): 6.330
Outer Stub Spline Count: 32
Overall Assembled Length (In): 25.100
Quantity: 1
Length (Mm): 637.540
ABS Sensor Ring Included: No
ABS Sensor Ring Installed: N
Axle Shaft Included: Y
Bearing Included: N
Full-Floating Or Semi-Floating: Semi-Floating
Inner Axle Included: Y
Outer Axle Included: Y
Retainer Ring Included: N
Seal Included: N
Seal Kit Included: N
U-Joint Included: Y
Wheel Bearing Included: N
Wheel Bolt Prep Kit Included: N
Wheel Nuts Included: N
Wheel Studs Included: N
