Spicer 2013526 - Differential Ring and Pinion - DANA 80 - 4.11 Gear Ratio
Spicer | SKU:
FSGR-2013526
Sale price
$50199
Regular price
$67642
Unit price
/
Unavailable
$174.43 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

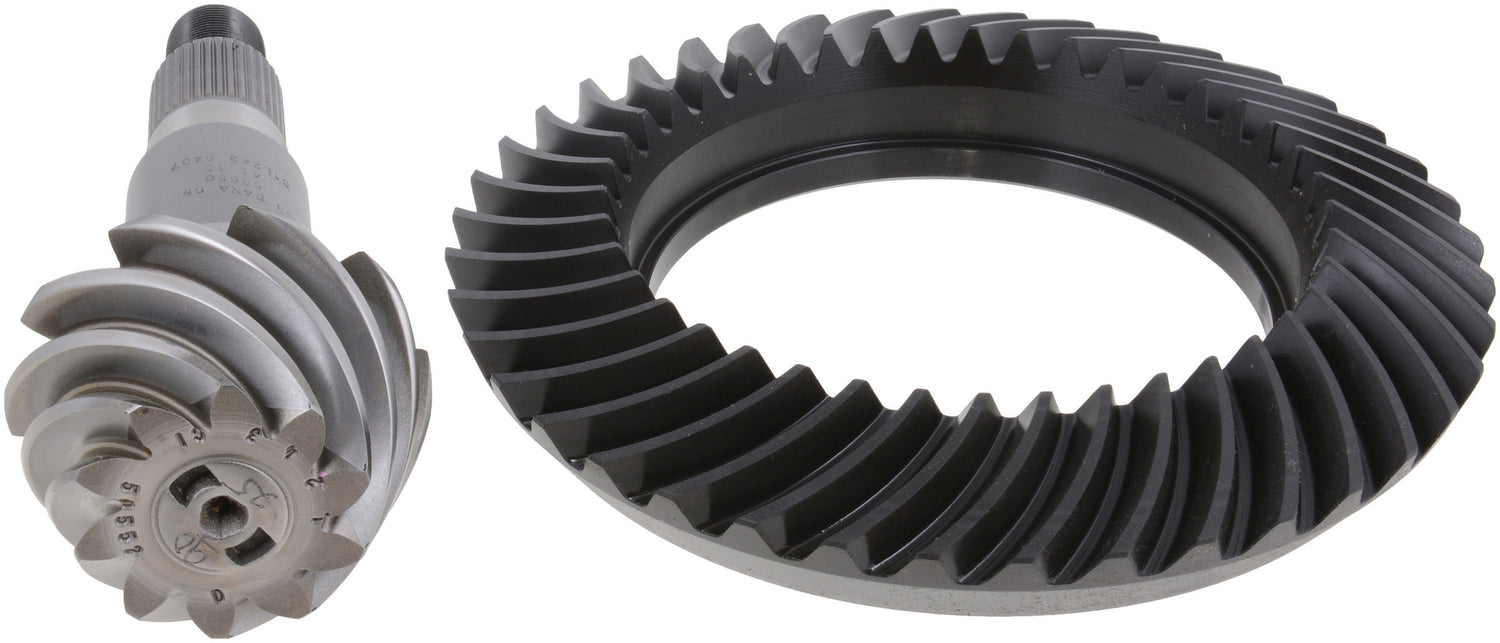

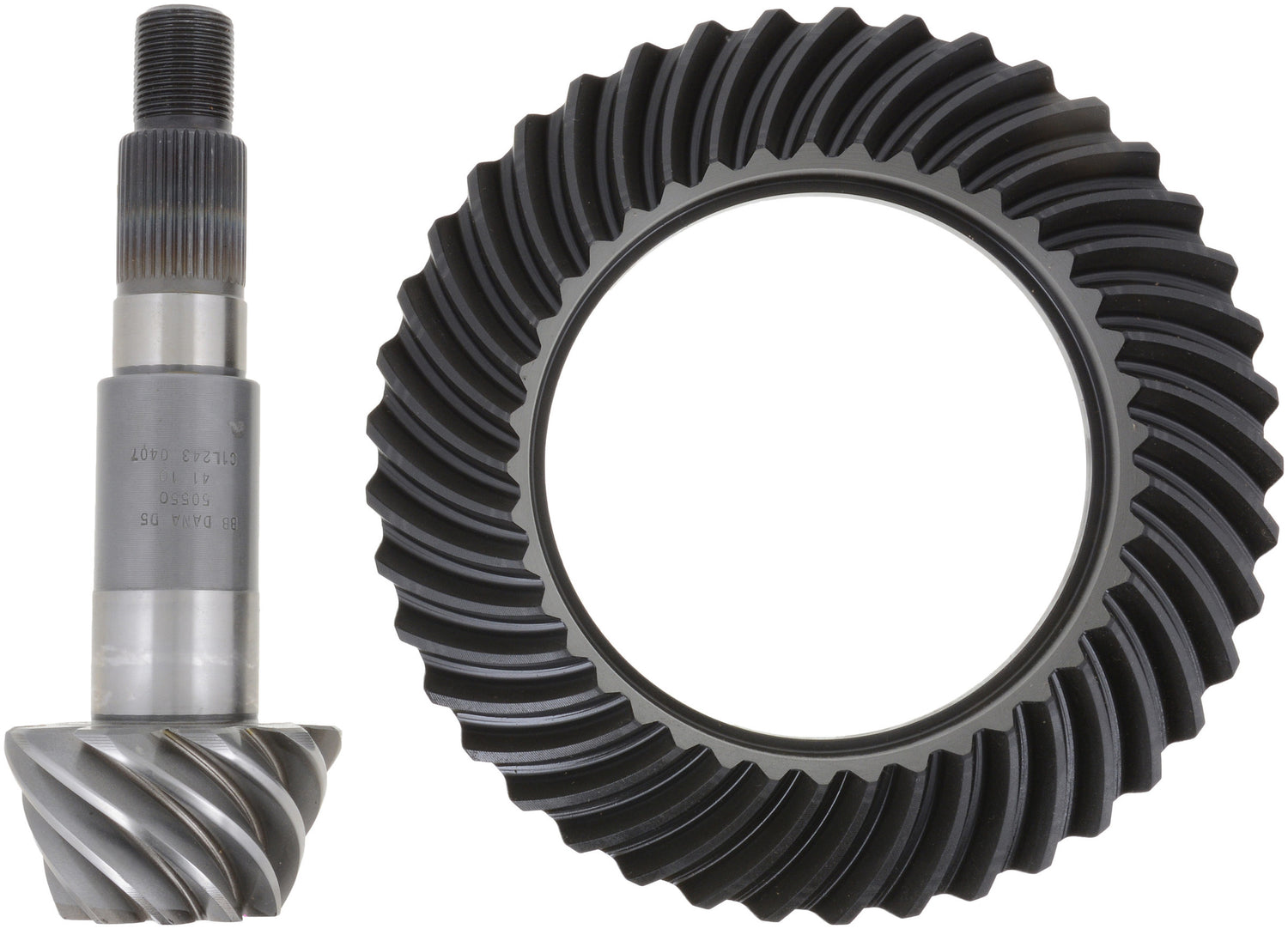

Spicer 2013526 - Differential Ring and Pinion - DANA 80 - 4.11 Gear Ratio
Differential Ring and Pinion - DANA 80 - 4.11 Gear Ratio
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- Superior Metallurgy: Ensures more consistent, higher quality product
- Hobbed and Shaved Gearing: Provides optimal mating to minimize stress and maximize life
- Precision heat-treating and shot-peening delivers consistent quality, enhanced life by reducing residual stress doubling the fatigue life of the gear
- High-grade steel for maximum durability
Axle Model: DANA 80
Gear Ratio: 4.11
Ring Teeth Count: 41
Cover Bolt Quantity: 10
Include Installation Kit: N
On Vehicle Location: Rear
Pinion Gear Tooth Quantity: 10
Pinion Shaft Diameter: 1.975
Pinion Spline Count: 37
Ring Gear Bolt Qty: 12
Ring Gear Bolt Thread In.: .5625-18
Ring Gear Diameter (In.): 11.300
Pinion Gear Included: Y
Ring Gear Included: Y
Pinion Nut Included: N
