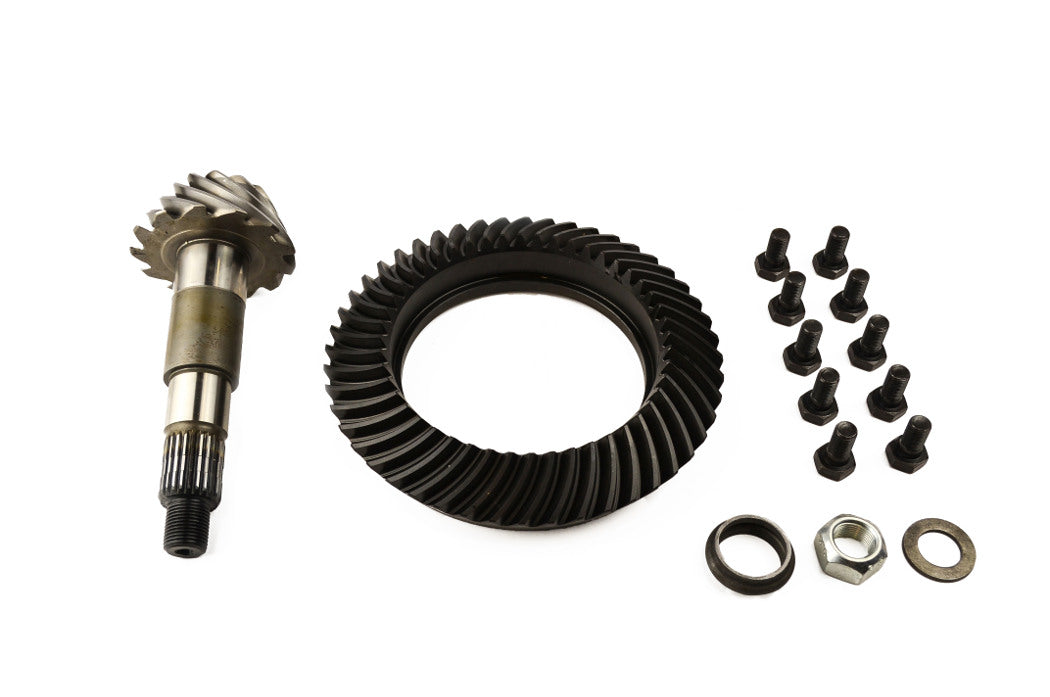

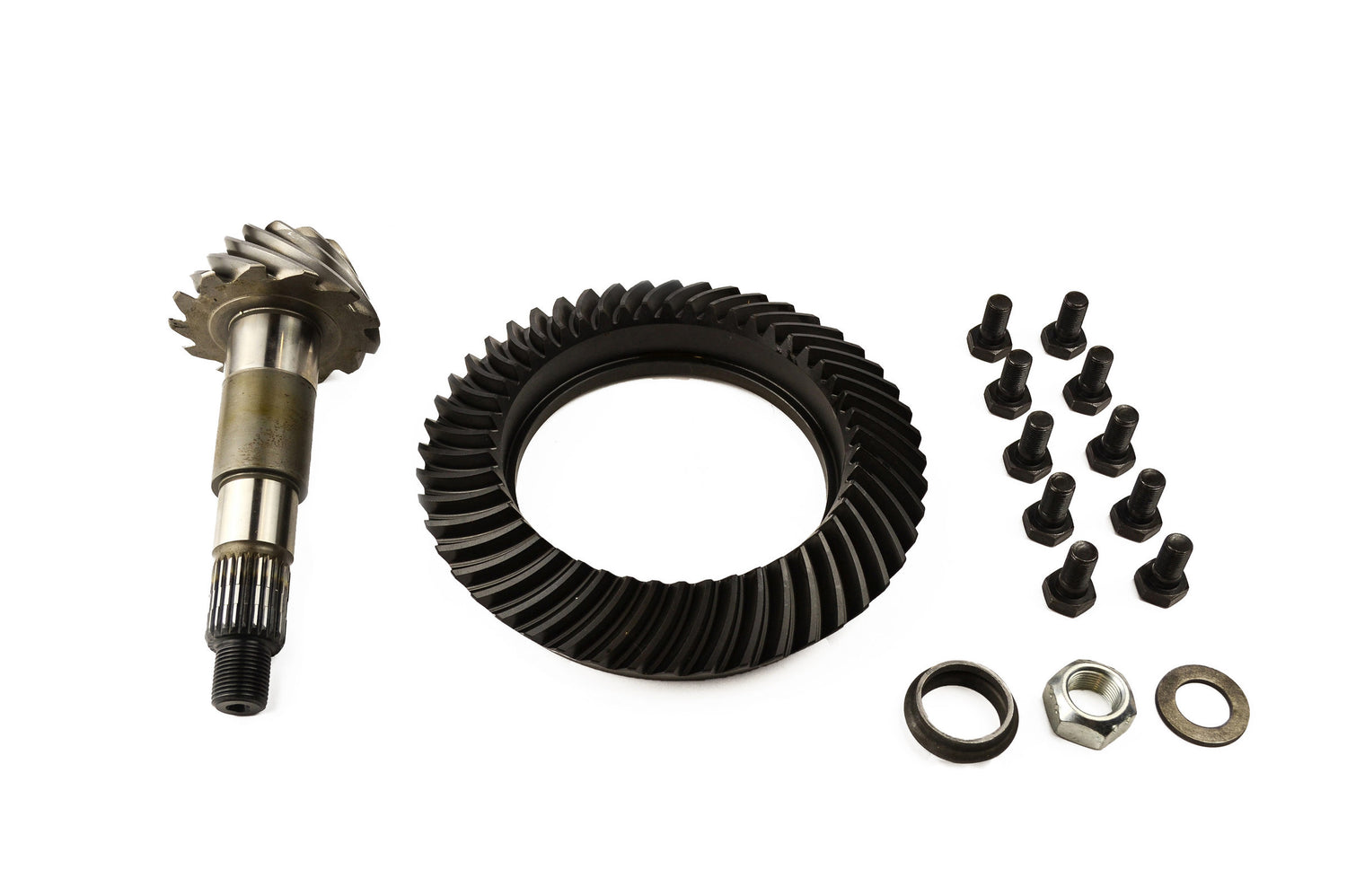

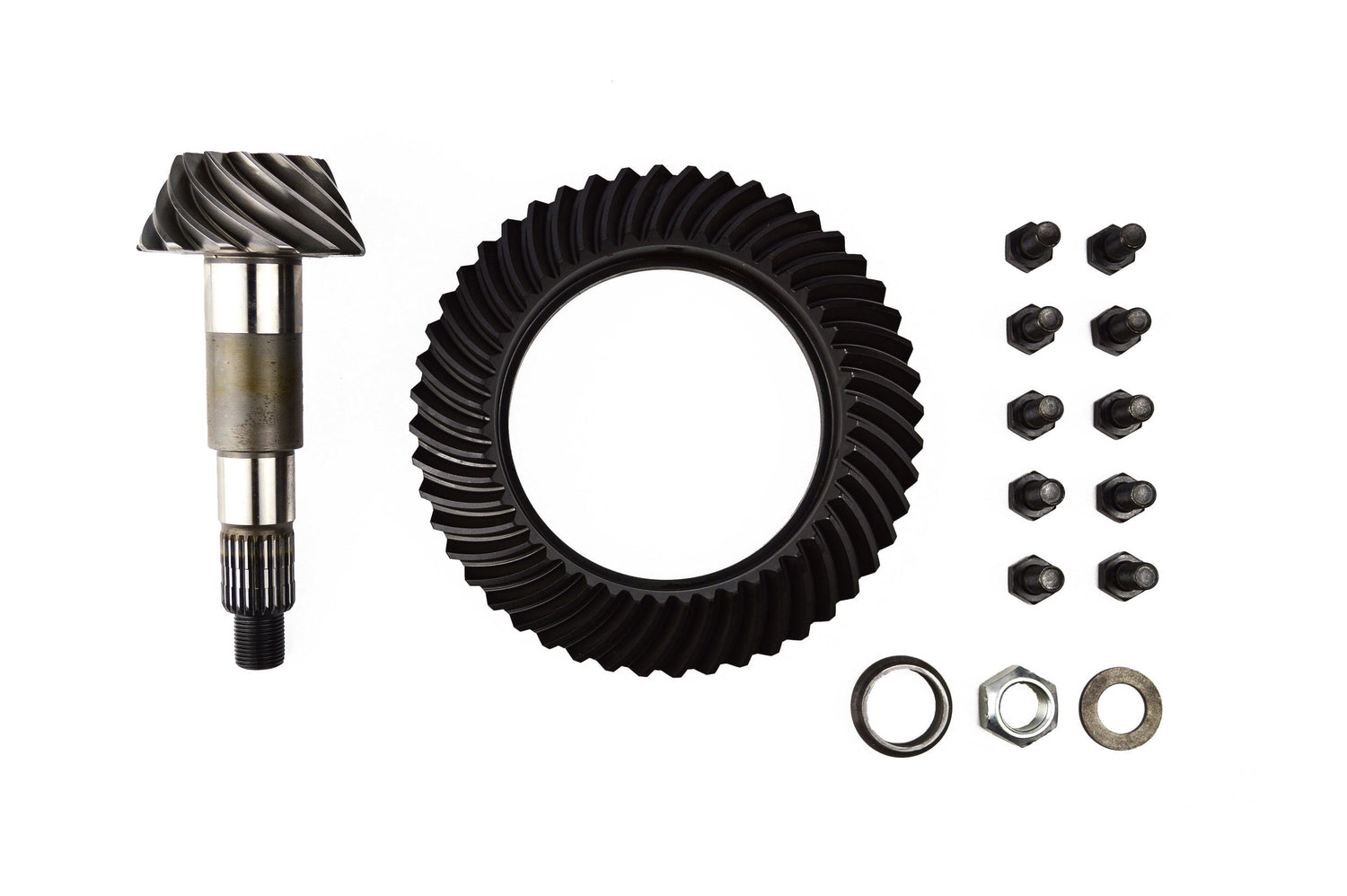

Spicer 2006272-5 - Gear Set DANA S44-3.69 - Pinion is 24 Spline If Original 29 Must Change Flange

Spicer  |  SKU: FSGR-2006272-5
$32799 $44126

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Spicer 2006272-5 - Gear Set DANA S44-3.69 - Pinion is 24 Spline If Original 29 Must Change Flange

Gear Set DANA S44-3.69 - Pinion is 24 Spline If Original 29 Must Change Flange

All Spicer ring and pinion gears are designed and tested to meet original equipment specifications. When you purchase genuine Spicer ring and pinion gear sets, you can be confident the ring and pinion set will meet or exceed the exact Dana standards that original equipment manufacturers have relied upon for more than a hundred years.

  • All Spicer ring gear and pinion sets are designed and tested to meet original equipment specifications.
  • Lapped to reduce noise and heat. Lubrication process allows for no break in period.
  • Precision heat-treating and shot-peening delivers consistent quality, enhanced life by reducing residual stress doubling the fatigue life of the gear.
  • High-grade steel for maximum durability.
Axle Model: S44/226
Gear Ratio: 3.69
Ring Teeth Count: 48
Carrier Breaks: None
Cover Bolt Quantity: 12
Include Installation Kit: Y
On Vehicle Location: Rear
Pinion Gear Tooth Quantity: 13
Pinion Shaft Diameter: 1.627
Pinion Spline Count: 24
Ring Gear Bolt Qty: 10
Ring Gear Bolt Thread In.: .500-20
Ring Gear Diameter (In.): 8.070
Ring Gear Rotation: Standard
Axle Type: Semi Floating
New Or Remanufactured: New
Pinion Gear Included: Y
Ring Gear Included: Y
Pinion Nut Included: Y
