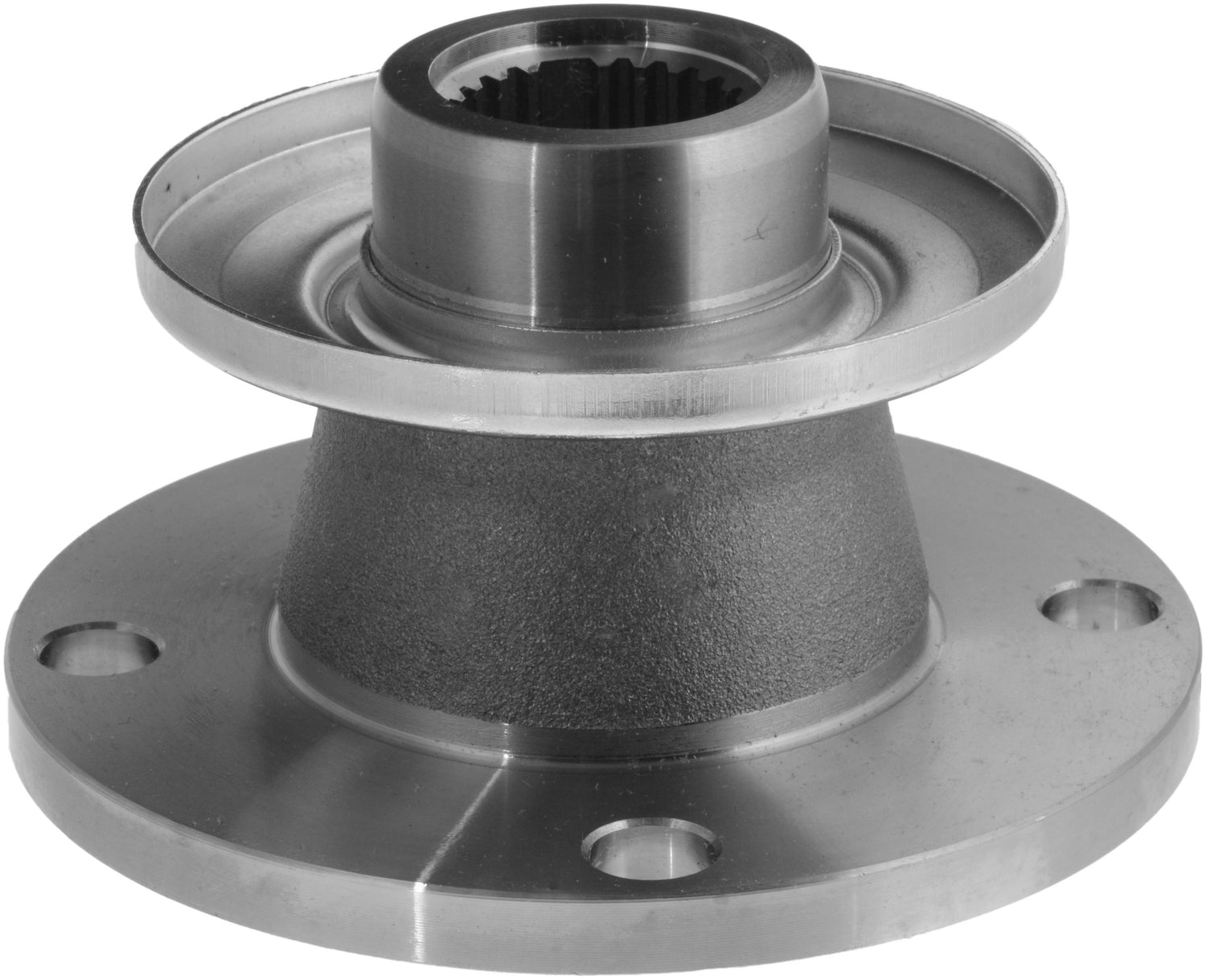

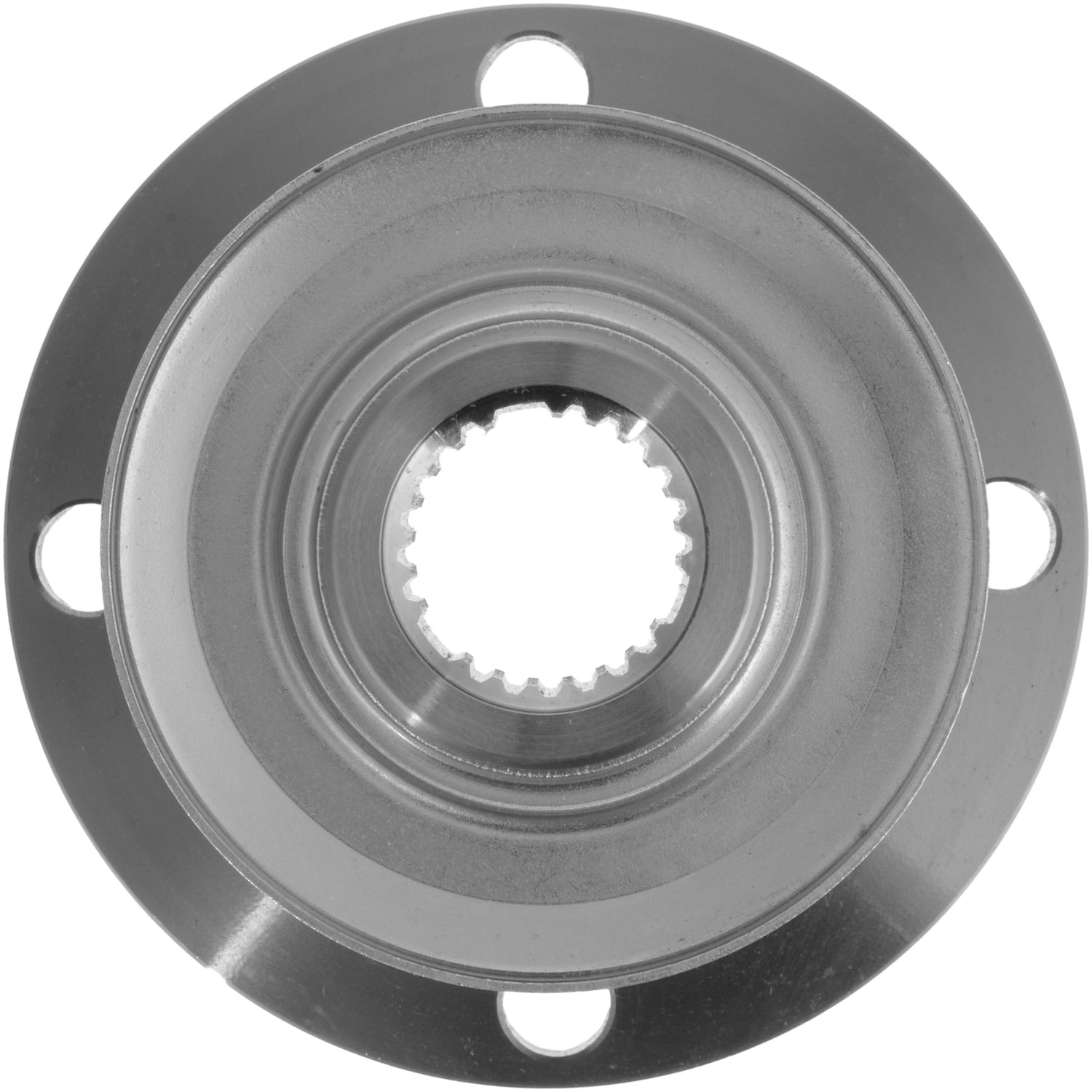

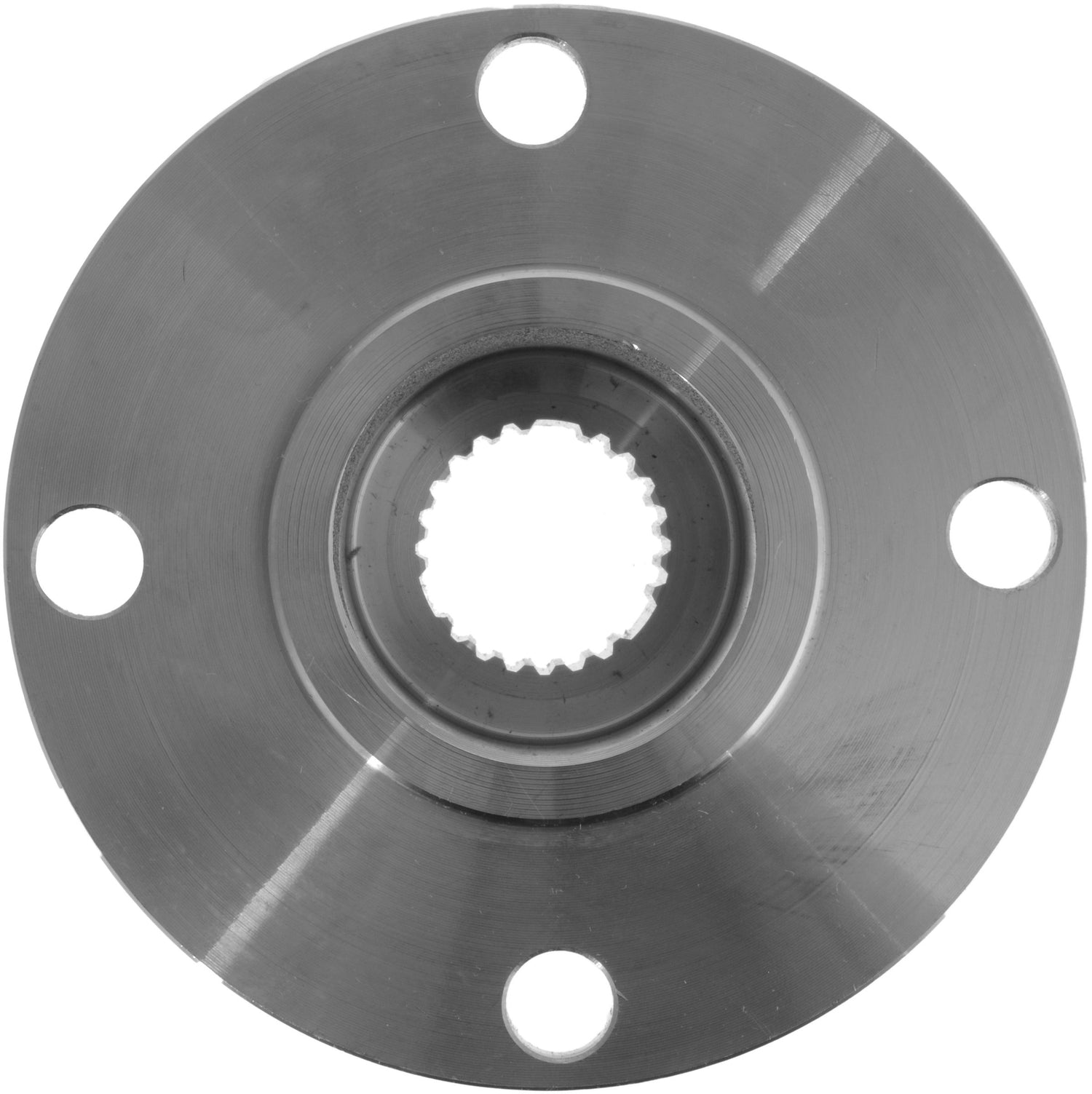

Spicer 2006269 - Differential Pinion Flange - Male Pilot
Spicer | SKU:
FSGR-2006269
Sale price
$7999
Regular price
$10683
Unit price
/
Unavailable
$26.84 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Spicer 2006269 - Differential Pinion Flange - Male Pilot
Differential Pinion Flange - Male Pilot
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- Genuine OE quality. Tested and proven.
- Built to meet OE standards set by Dana.
- Tested and validated to rigorous OE specifications.
- Latest production upgrades ensure genuine Spicer parts are as good or better than the OE parts they replace.
Series: 1310
Material: Steel
Spline Count: 21/24 I
Involute Spline: Y
Companion Flange Assembly: Y
Flange Face To End Of Hub (G): 2.787
Ground Hub Diameter In.: 1.875
Length Thru Hole (F) In.: 1.488
Major Diameter (D) In.: 1.250
Pilot Diameter (C) In.: 2.559 - MALE
Bolt Circle Dia.(B) In.(FL YK): 4.25
Bolt Hole Diameter In (FL YK): .500
Number Of Holes (FL YK): 4
