Spicer 2-53-501 - DRIVE SHAFT MIDSHIP STUB SHAFT
Spicer | SKU:
FSGR-2-53-501
Sale price
$13399
Regular price
$18060
Unit price
/
Unavailable
$46.61 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

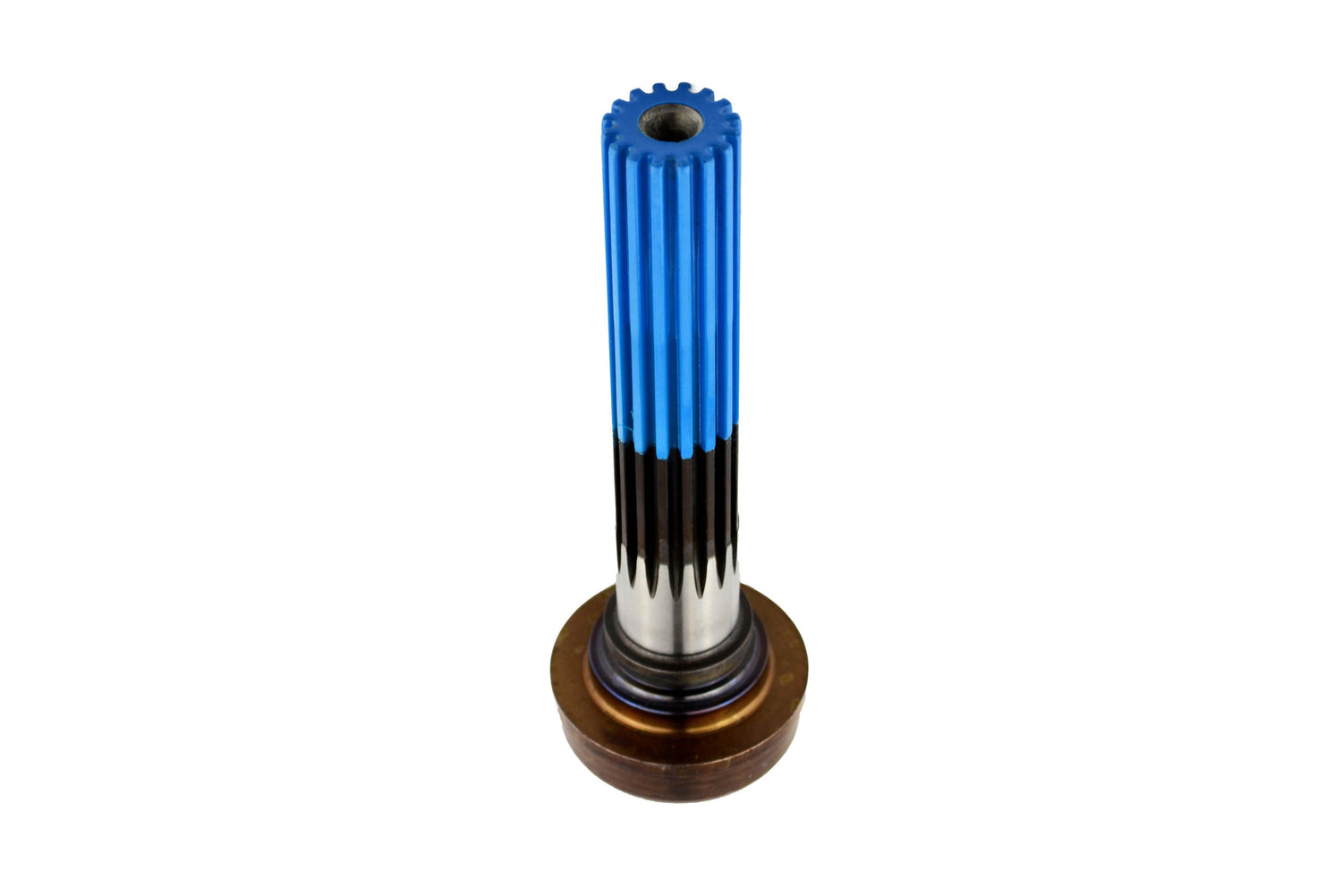

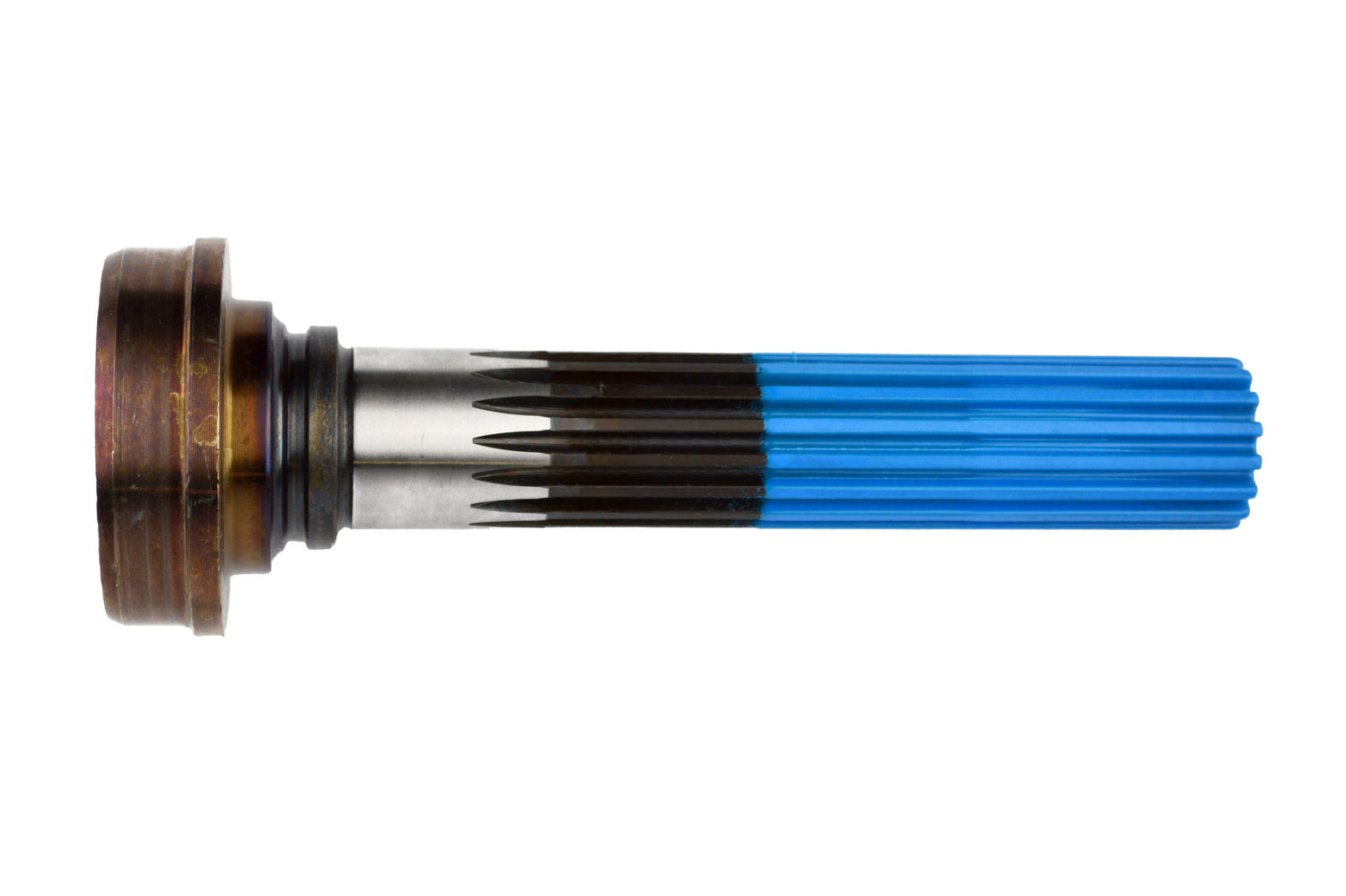

Spicer 2-53-501 - DRIVE SHAFT MIDSHIP STUB SHAFT
DRIVE SHAFT MIDSHIP STUB SHAFT
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.
- Dana manufactured Spicer components are designed, engineered, tested, and manufactured to meet or exceed OE requirements.
- Spicer components are engineered to meet or exceeds the performance requirements of the original factory driveline component
- Tested for unparalleled reliability
- Strength and durability for long life
- Dana engineering-approved for fit, form and function
Series: 1310-1410
Material: Steel
Style: 1
Fits Tube Diameter: 3
Number of Splines: 16
Involute: N
Fits Tube Wall: 0.083
Butt Diameter: 2.854
Bearing Diameter (C) In.: 1.378
Bearing Diameter (Max): 1.3784
Spline End To Weld (K) In.: 8.000
Spline Length (L) In.: 5.406
Spline O.D.: 1.3750
Bearing Diameter (Min): 1.3779
For Use With: Outboard Slip Yoke
Shoulder Diameter (B) In.: 1.688
Shoulder Length (G) In.: 0.812
Spline End To Brg Shoulder (Y): 6.938
Bearing Diameter Length: 1.56
