Spicer 2-53-1351 - DRIVE SHAFT MIDSHIP STUB SHAFT
Spicer | SKU:
FSGR-2-53-1351
Sale price
$15399
Regular price
$20770
Unit price
/
Unavailable
$53.71 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

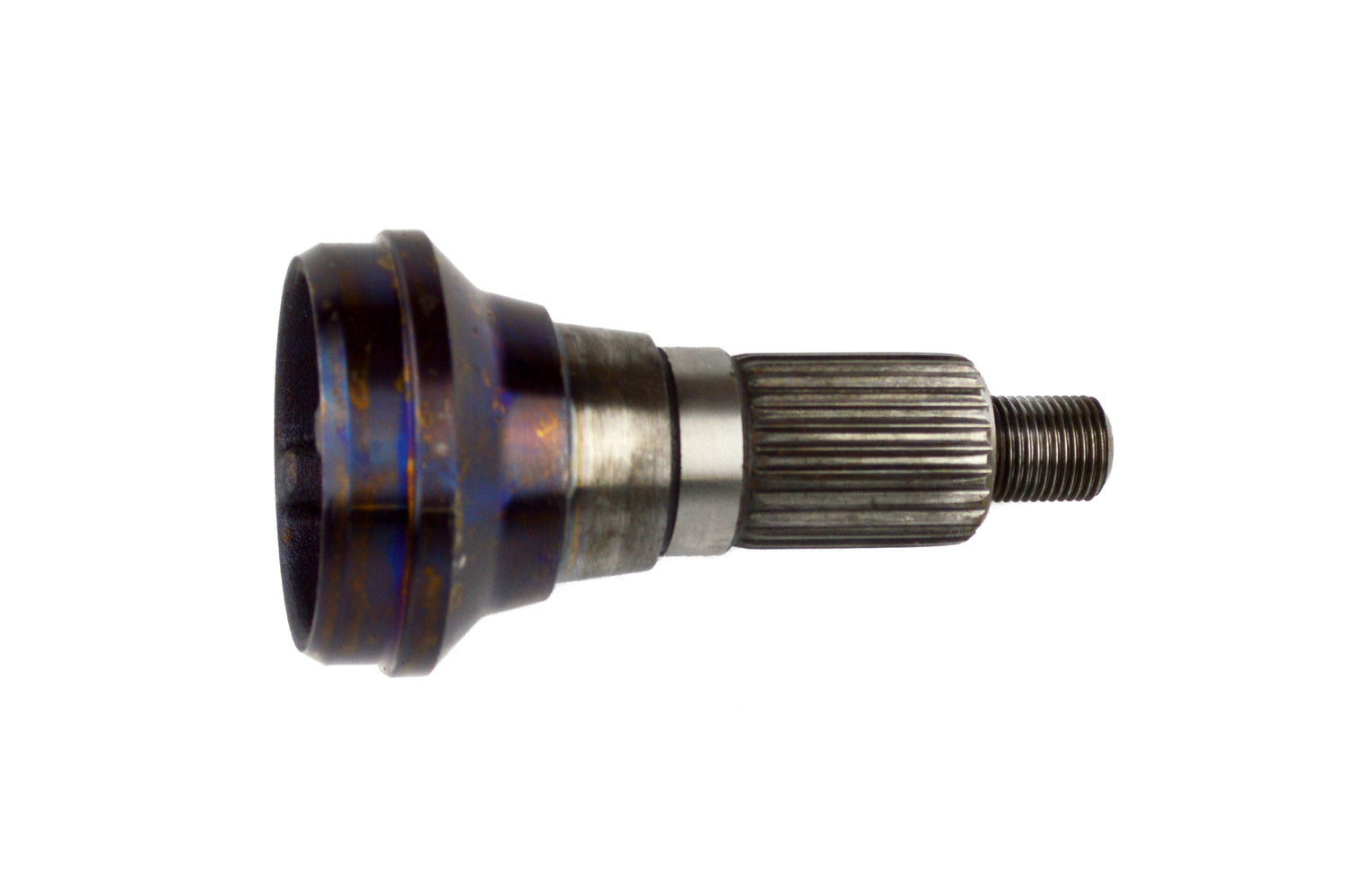

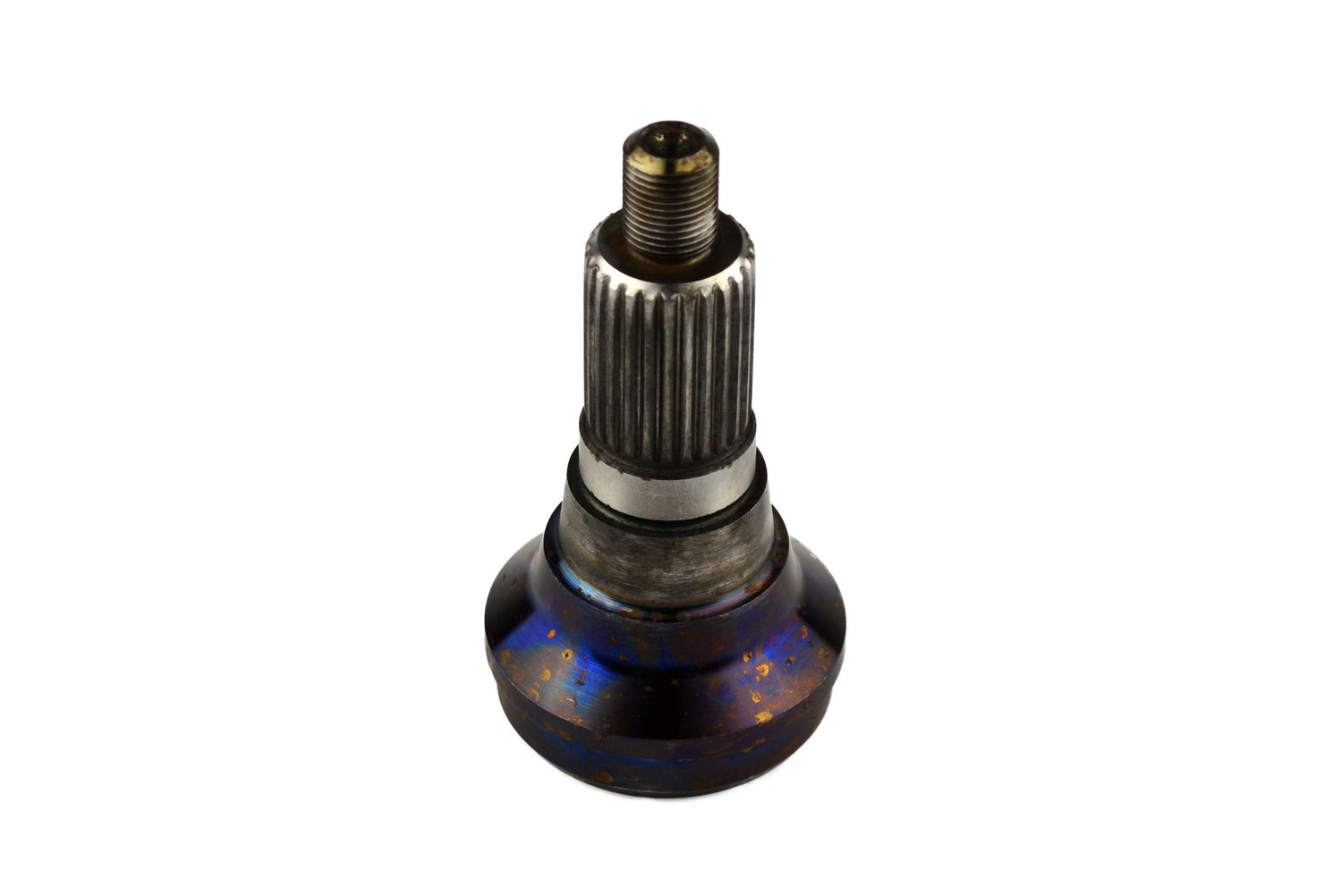

Spicer 2-53-1351 - DRIVE SHAFT MIDSHIP STUB SHAFT
DRIVE SHAFT MIDSHIP STUB SHAFT
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.
- Dana manufactured Spicer components are designed, engineered, tested, and manufactured to meet or exceed OE requirements.
- Spicer components are engineered to meet or exceeds the performance requirements of the original factory driveline component
- Tested for unparalleled reliability
- Strength and durability for long life
- Dana engineering-approved for fit, form and function
Thread Size: .625-18
Style: 2
Fits Tube Diameter: 2.500
Number of Splines: 26 I
Involute: Y
Fits Tube Wall: .083
Butt Diameter: 2.345
Bearing Diameter (C) In.: 1.181
Bearing Diameter (Max): 1.1815
Spline End To Weld (K) In.: 3.406
Spline Length (L) In.: 1.375
Spline O.D.: 1.125
Bearing Diameter (Min): 1.181
For Use With: END YOKE OR COMPANION FLANGE
Shoulder Diameter (B) In.: 1.181
Shoulder Length (G) In.: .665
Spline End To Brg Shoulder (Y): 1.906
