Spicer 2-4-533 - 1310 SERIES END YOKE
Spicer | SKU:
FSGR-2-4-533
Sale price
$3799
Regular price
$4260
Unit price
/
Unavailable
$4.61 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

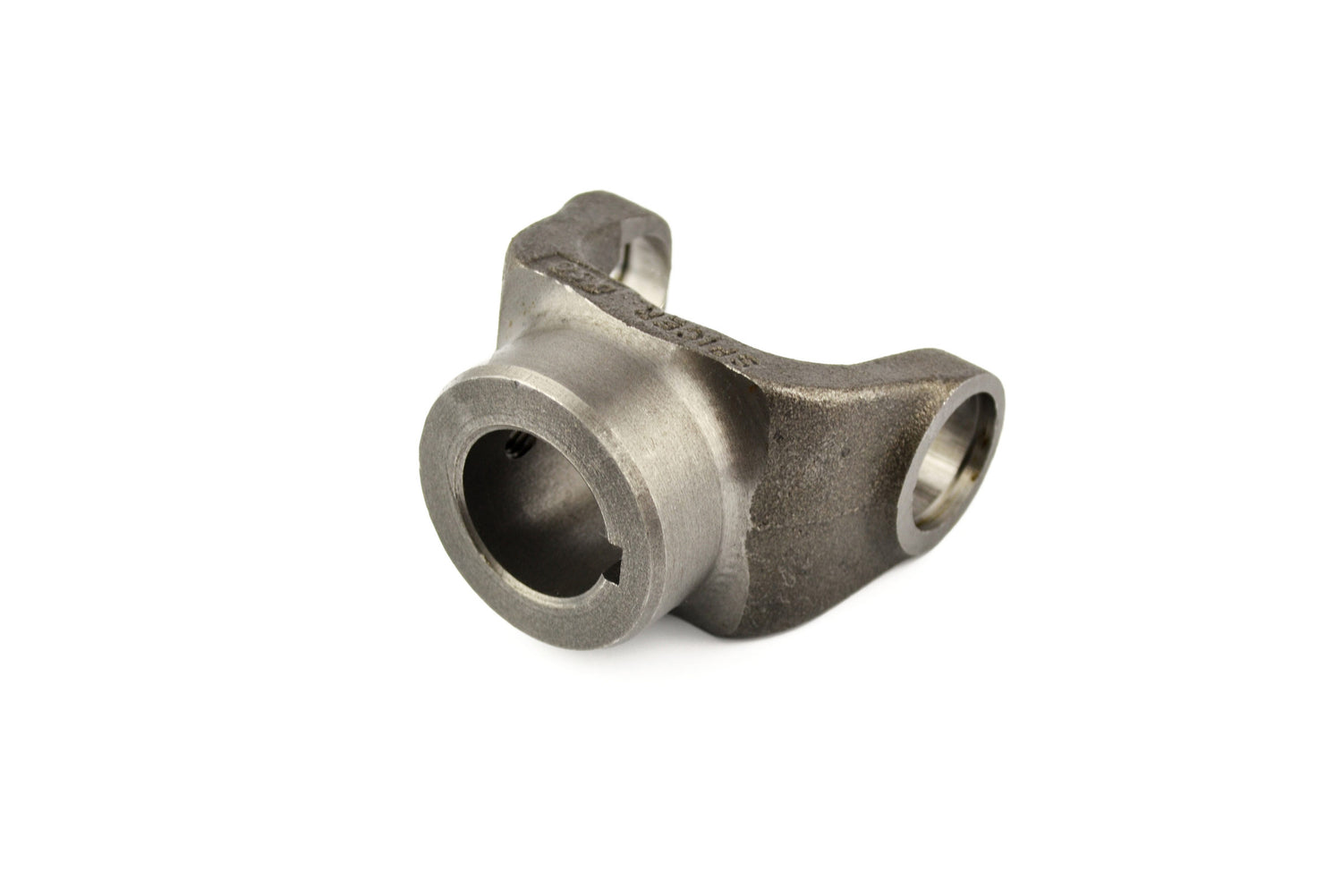

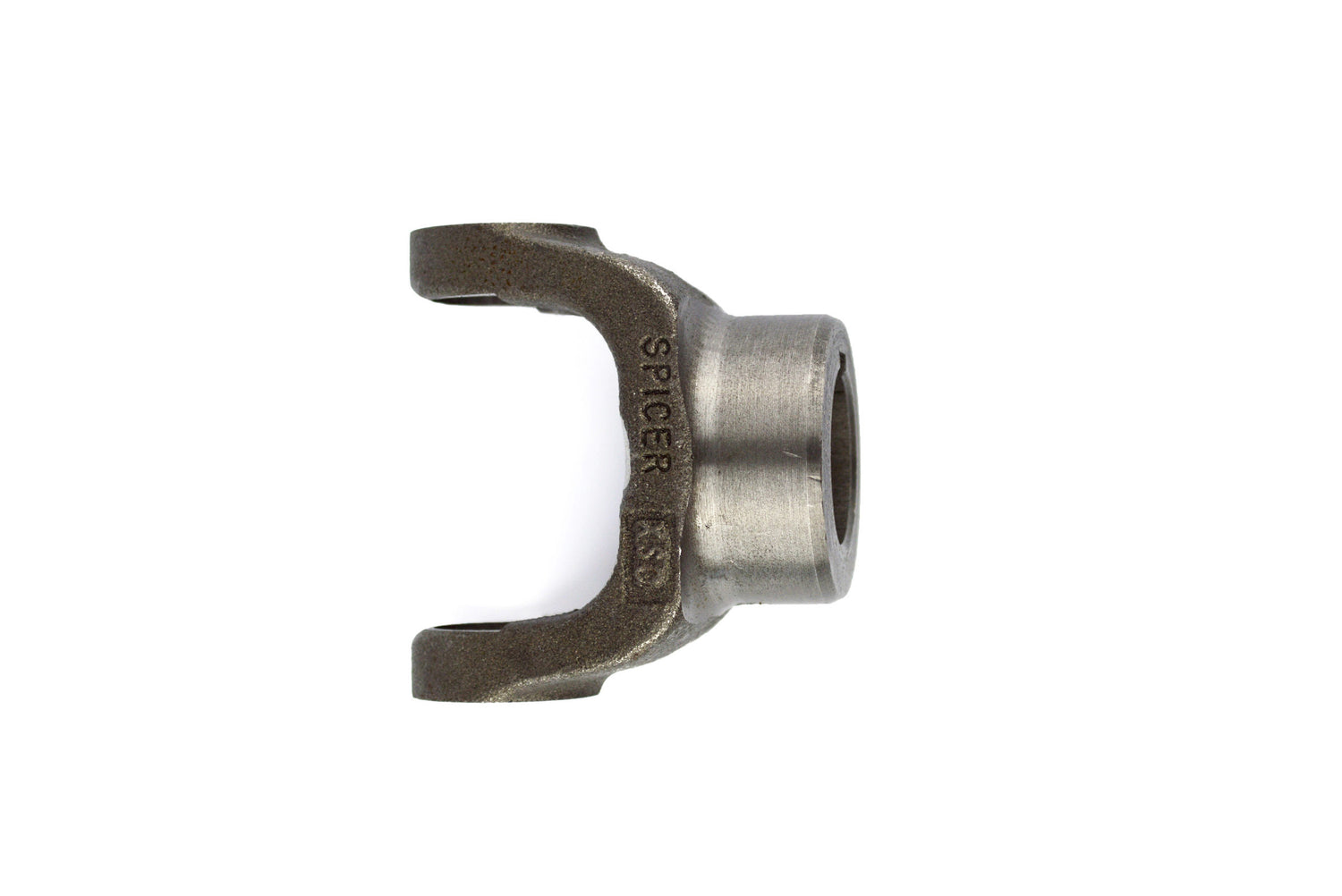

Spicer 2-4-533 - 1310 SERIES END YOKE
1310 SERIES END YOKE
Spicer end yokes deliver the same quality and reliability you expect from your original equipment parts. That is because they are OE parts, manufactured to the same standards and specifications as the end yokes that were installed in your vehicle in the first place.
- Uses high-grade Dana approved materials to ensure optimal quality.
- Dana designed, tested and engineered.
- Genuine OE quality. Tested and proven.
Series: 1310
Material: Steel
Type: Straight Round Hole
Hole Diameter (In) P: 1.250
Hub Diameter R: 2.125
Involute Spline: N
Outside Yoke Dimension (In) E: 3.469
Yoke Bearing Dimension (In) D: 1.062
Yoke Style: SR
Keyway Location W: 12
Sae Keyway Width (In) X: 0.312
Set Screw Location W: 6
C/L To End Hub S: 2.562
Joint Angle #1: 17
Set Screw Hole Diameter (In): 0.375
Hole Diameter - Max: 1.251
Hole Diameter - Min: 1.250
Keyway Width - Max: 0.3155
Keyway Width - Min: 0.3135
