Spicer 2-4-473 - DRIVE SHAFT END YOKE
Spicer | SKU:
FSGR-2-4-473
Sale price
$4499
Regular price
$5266
Unit price
/
Unavailable
$7.67 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

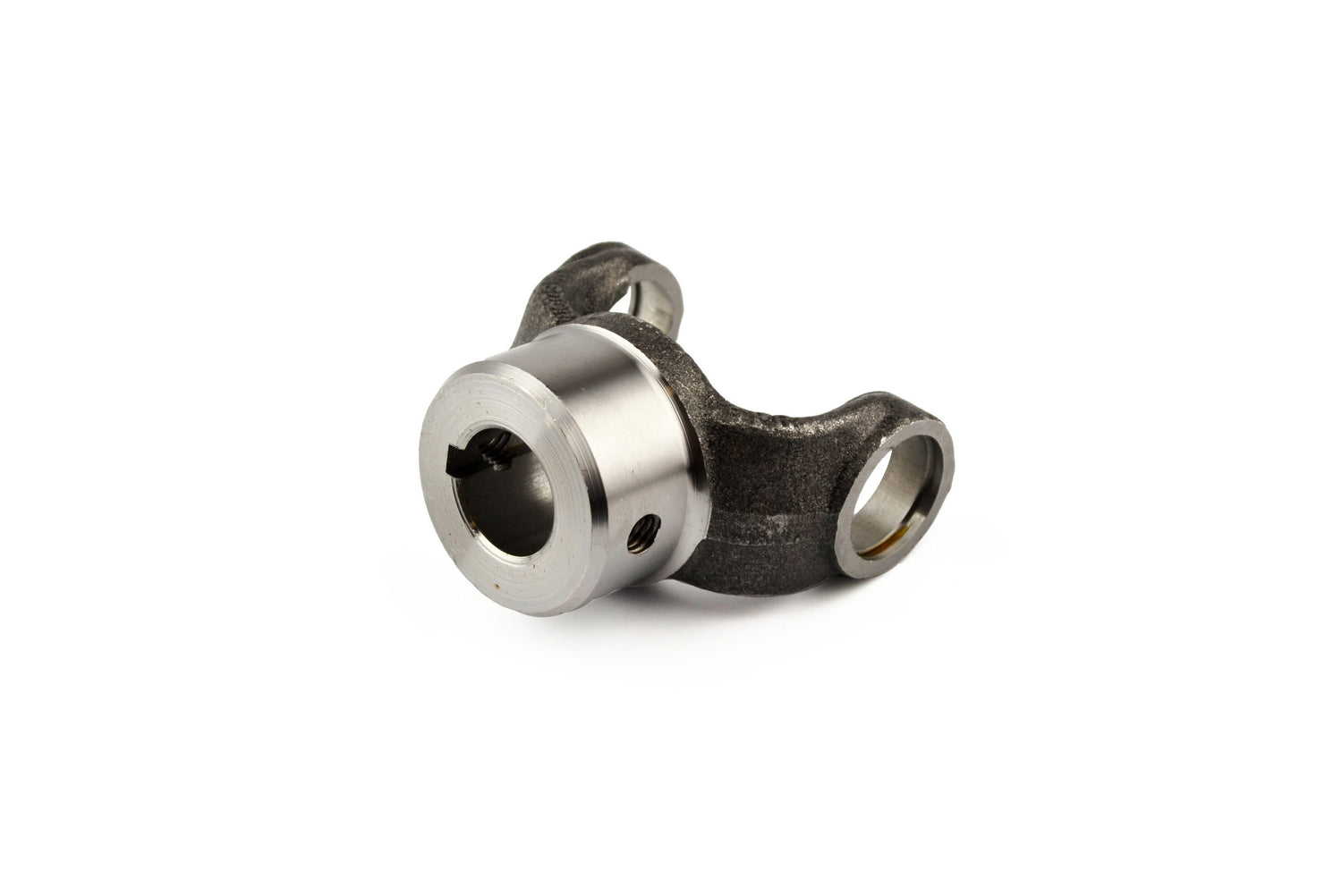

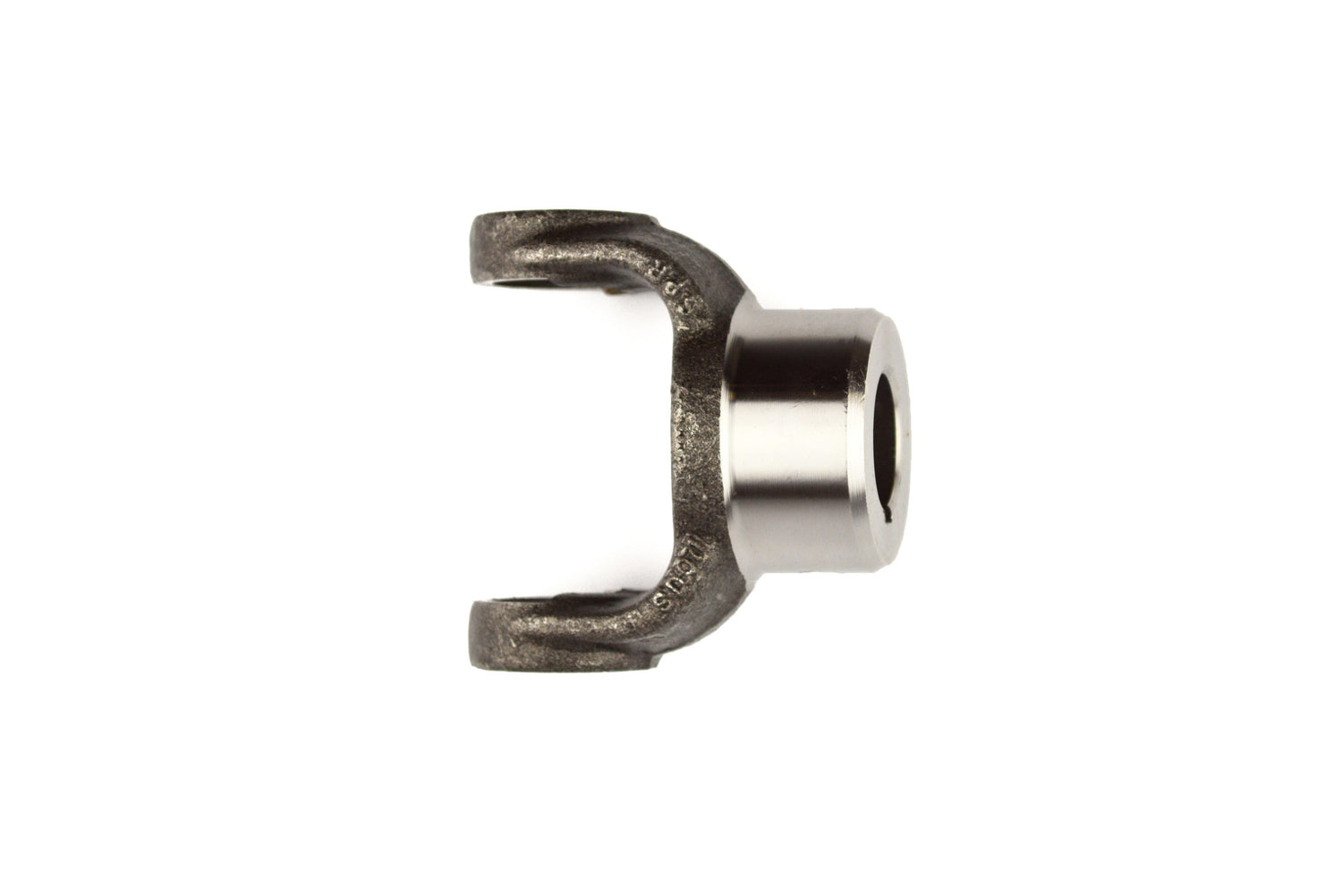

Spicer 2-4-473 - DRIVE SHAFT END YOKE
DRIVE SHAFT END YOKE
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.
- Uses high-grade Dana approved materials to ensure optimal quality.
- Dana designed, tested and engineered.
- Genuine OE quality. Tested and proven.
Outside Yoke Dimension (In) E: 3.469
Yoke Bearing Dimension (In) D: 1.062
Yoke Style: SR
Keyway Location W: 12
Sae Keyway Width (In) X: 0.250
Set Screw Location W: 6 & 12
C/L To End Hub S: 2.562
Joint Angle #1: 17
Set Screw Hole Diameter (In): 0.375
Hole Diameter - Max: 1.0005
Hole Diameter - Min: 0.9995
Keyway Width - Max: 0.253
Keyway Width - Min: 0.251
Series: 1310
Material: Steel
Type: Straight Round Hole
Hole Diameter (In) P: 1.000
Hub Diameter R: 2.125
Involute Spline: N
