Spicer 2-2-1799 - DRIVE SHAFT FLANGE YOKE
Spicer | SKU:
FSGR-2-2-1799
Sale price
$6299
Regular price
$8379
Unit price
/
Unavailable
$20.80 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

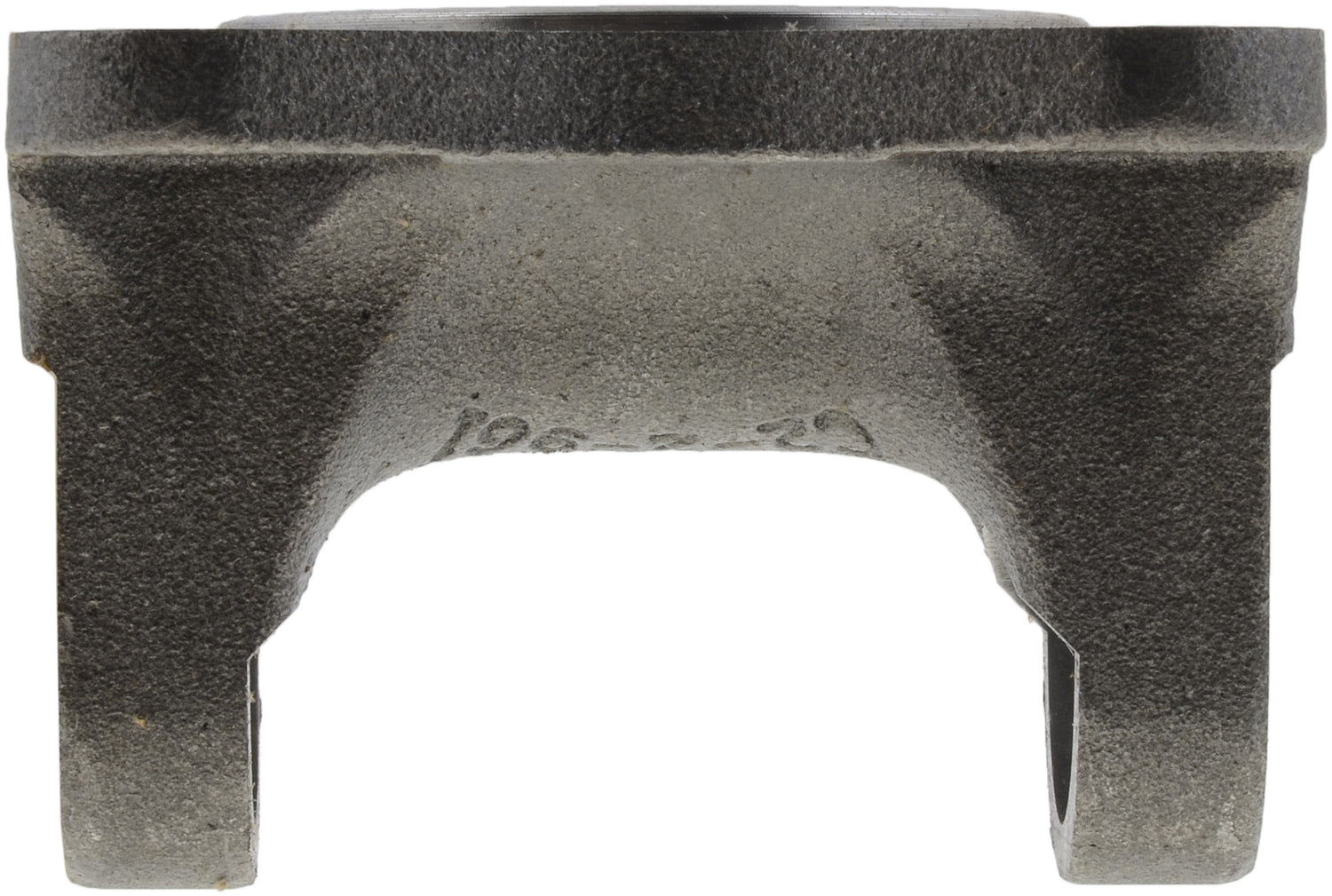

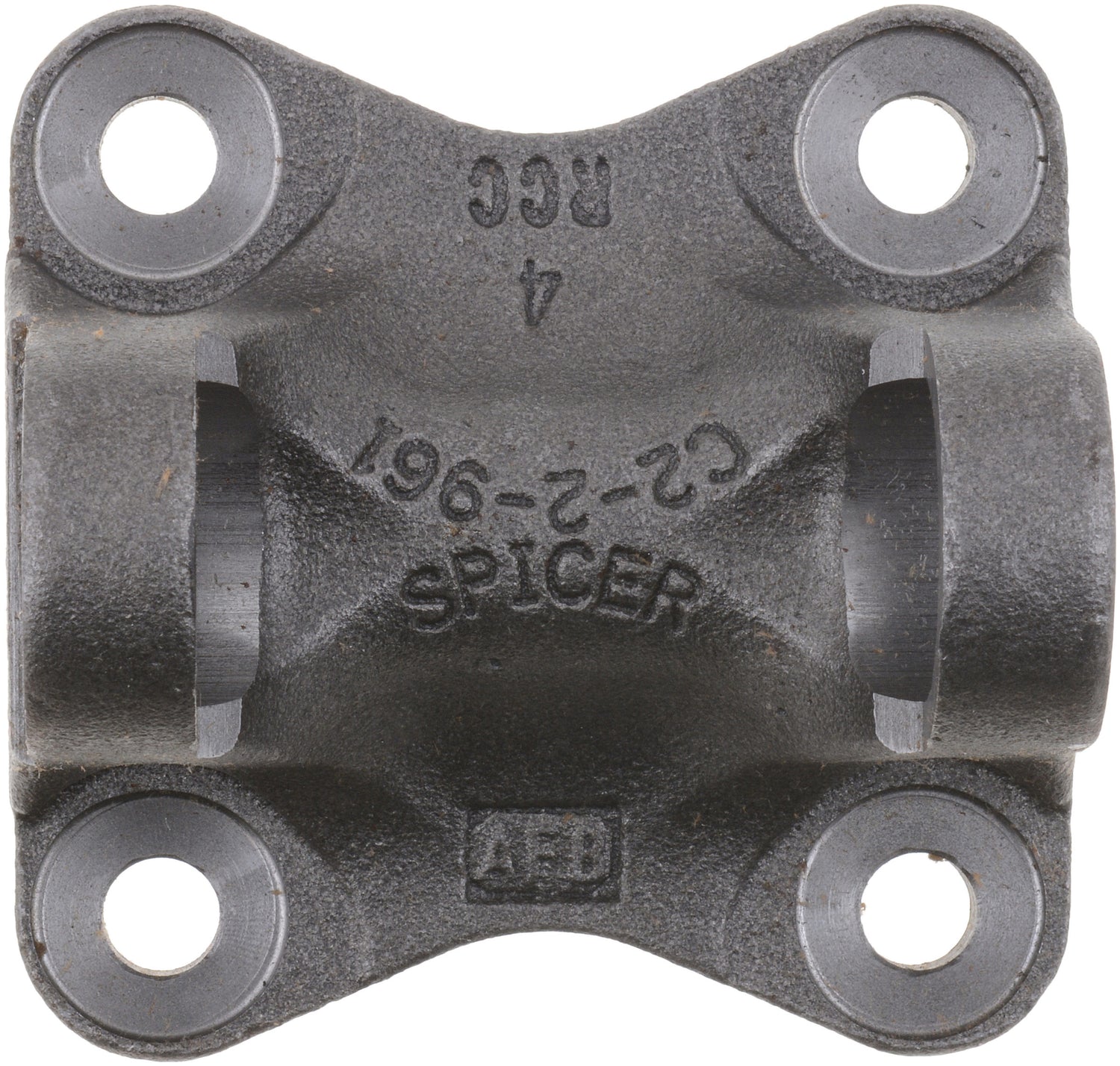

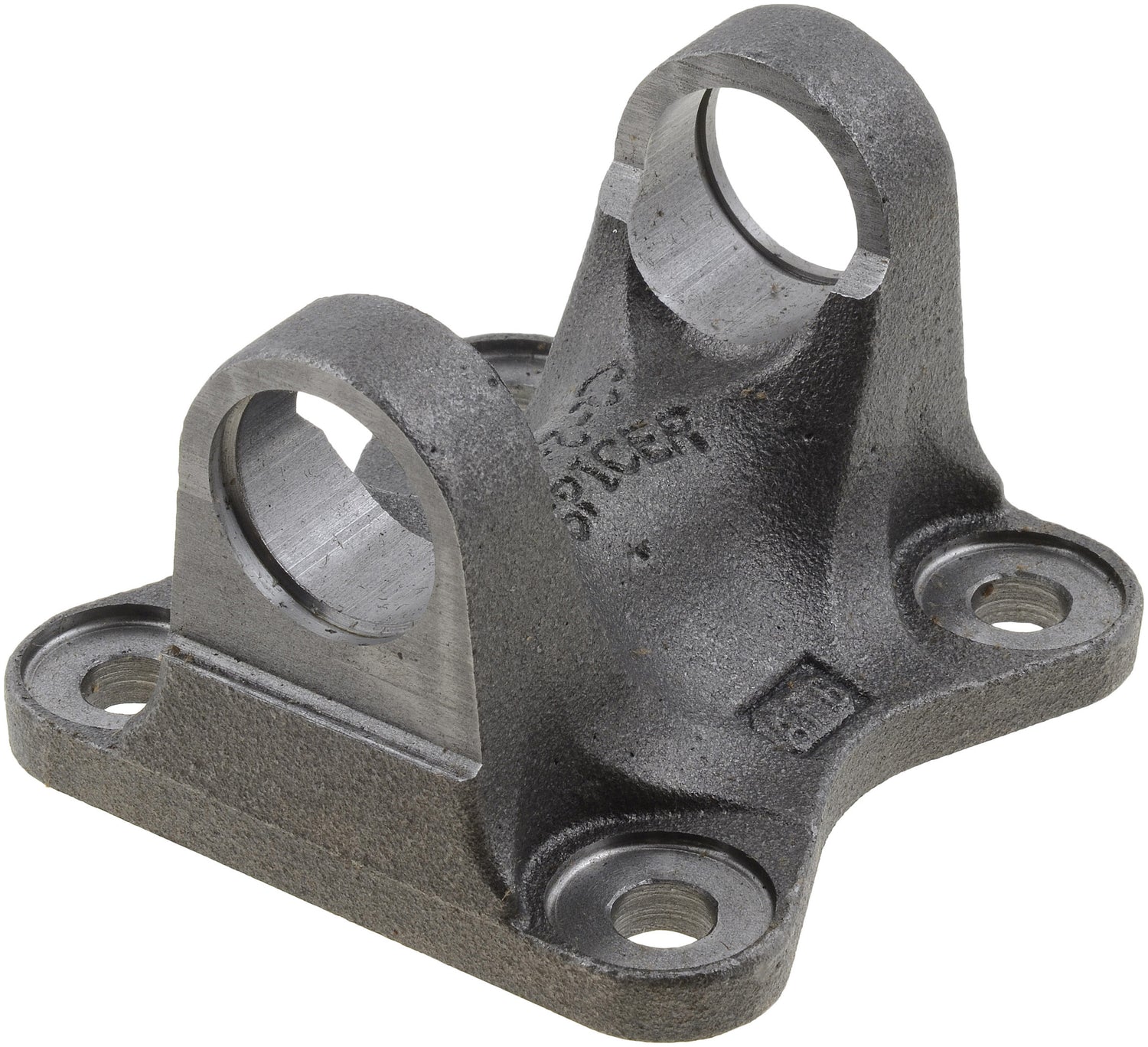

Spicer 2-2-1799 - DRIVE SHAFT FLANGE YOKE
DRIVE SHAFT FLANGE YOKE
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- Genuine OE quality. Tested and proven.
- Built to meet OE standards set by Dana.
- Tested for unparalleled reliability.
- Strength and durability for long life.
- Dana engineering-approved for fit, form and function
Series: 1310
Material: Steel
Number Of Bolt Holes: 4
Design: Square
Bolt Circle Dia. In. (B): 3.750
Bolt Hole Dia. In (B): .406 - DRILLED
Flange Face To C/L In. (G): 1.772
Flange Or Swing Dia. In. (A): 4.625
Outside Yoke Dimension In.(E): 3.469
Pilot Dia. M=Male F=Female (C): 2.559 - MALE
Yoke Bearing Dimension In. (D): 1.062
