Spicer 2-1-323 - Drive Shaft Companion Flange
Spicer | SKU:
FSGR-2-1-323
Sale price
$24899
Regular price
$33570
Unit price
/
Unavailable
$86.71 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

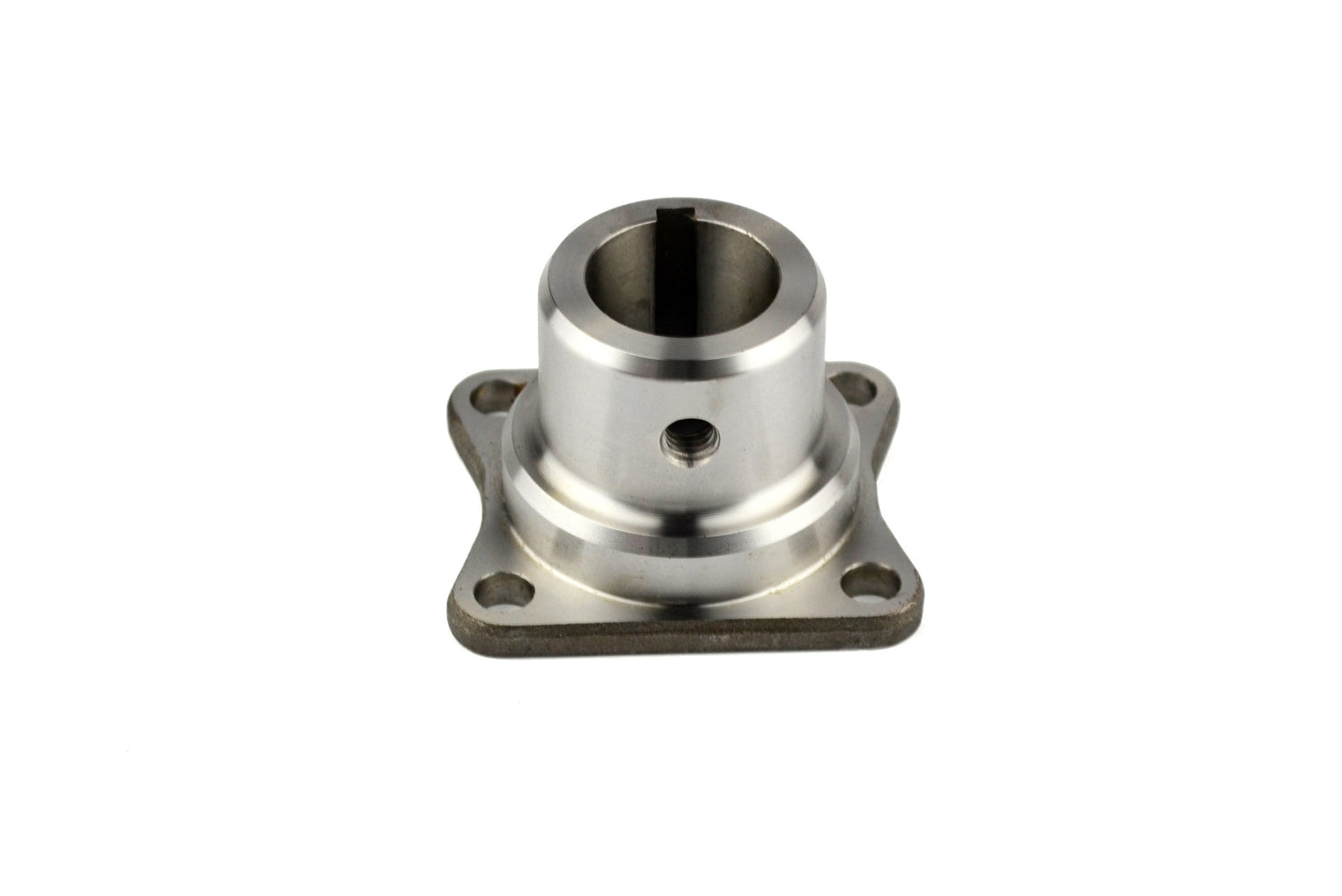

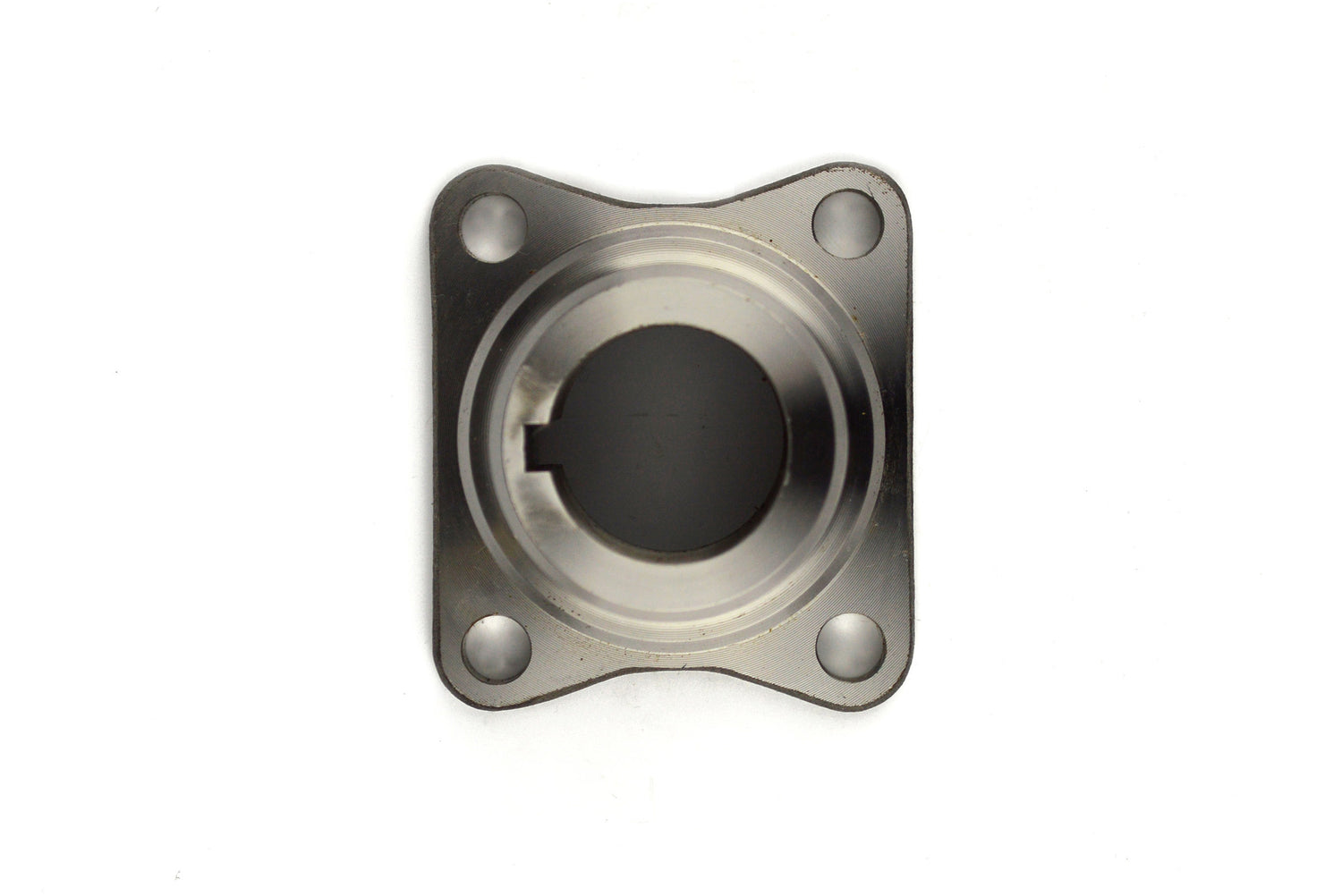

Spicer 2-1-323 - Drive Shaft Companion Flange
Drive Shaft Companion Flange
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- Genuine OE quality. Tested and proven.
- Built to meet OE standards set by Dana.
- Tested and validated to rigorous OE specifications.
- Latest production upgrades ensure genuine Spicer parts are as good or better than the OE parts they replace.
Series: 1310
Material: Steel
Number Of Holes: 4
Pilot Diameter (C) In.: 2.375 - FEMALE
Bolt Circle Diameter (B) In.: 3.125
Flange Type: Rectangular
Actual Hole Diameter (Max): 1.2505
Actual Hole Diameter (Min): 1.2495
Actual Keyway Width (Max): 0.253
Actual Keyway Width (Min): 0.251
Bore Diameter (D) In.: 1.250
Circ Flnge Face To End Of Hub: 2.062
Flange Width Diameter (A) In.: 3.875
Hub Diameter (E) In.: 1.875
Key Width (K) In.: 0.250
Rect Flnge Face End Of Hub (G): 2.062
Rect Lngth Thru Hole (F): 1.500
Set Loc. ( Hub & Keyway At 12): 6
Set Screw Hole Diameter In.: 0.375
